Track Lighting and Spotlight Set - Blender Auto-Placement Add-on 3D model
DESCRIPTION

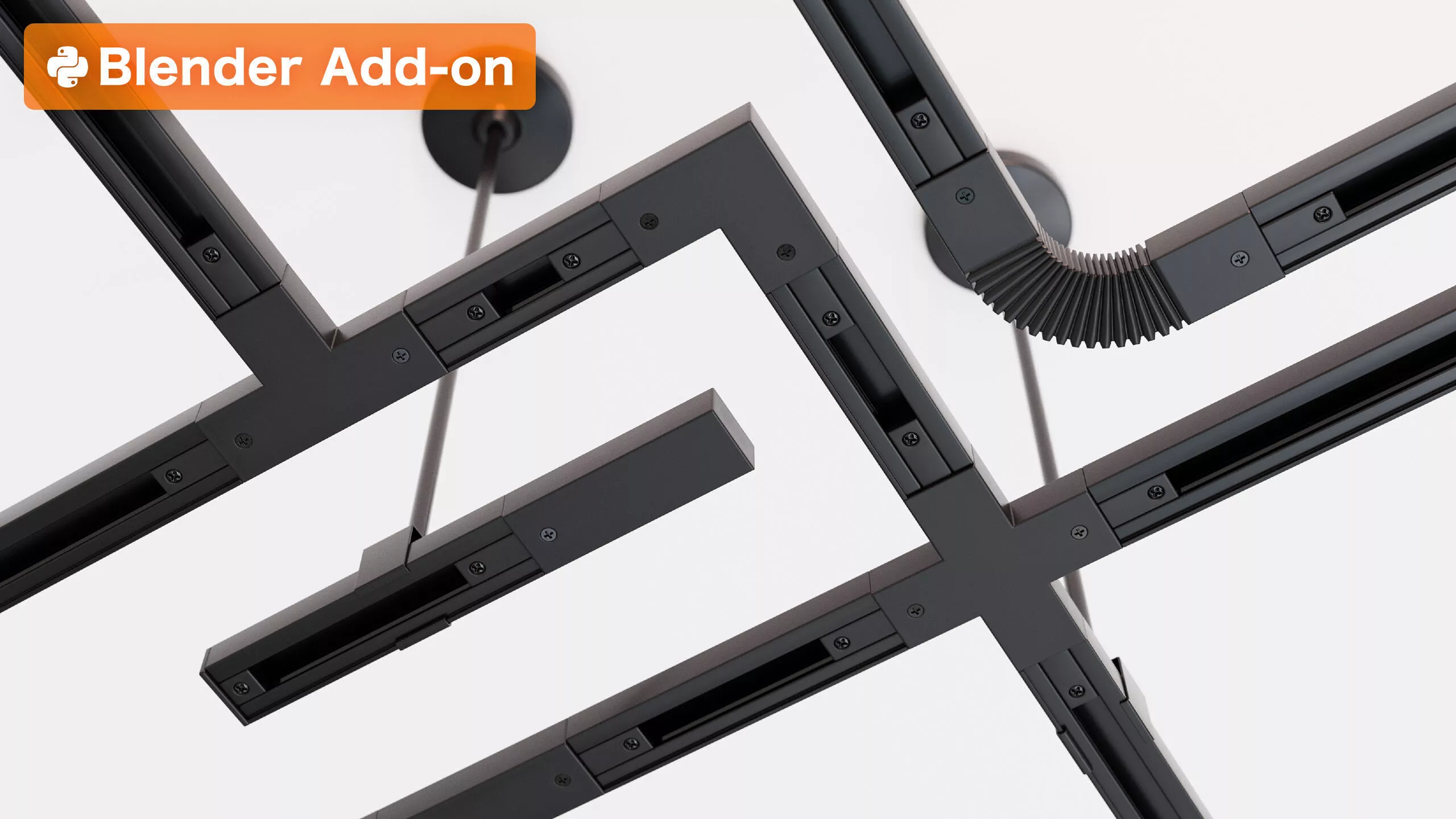

This is a comprehensive 3D model set featuring track lighting (lighting duct rails), 5 types of joints, start/end caps, pipe suspension hangers, and a spotlight fixture. By combining these models with the included Blender Add-on, you can dramatically streamline the tedious and time-consuming placement process for architectural visualization and retail space design.

Included Add-on
This model set includes the following two Add-on. Please refer to the README.md file inside the script zip for usage instructions.

1. LIGHTING DUCT Placer
A script that accurately places rails, joint parts, caps, suspension hangers, and lighting fixtures automatically or semi-automatically along a selected spline path. The placement logic is based on real-world construction and installation rules.

2. Spotlight Auto Aim
An auto-tracking script that controls the spotlight to face a target object. Just like real-world spotlight fixtures, it operates by independently controlling two rotational axes: Pan (R.H) and Tilt (R.P).

File Formats

  • Blender (4.3 or later recommended)
  • FBX
  • Python (Script files)

Pre-configured Material Formats
Cycles (.blend)

Included Data

  • LIGHTING_DUCT.blend
  • LIGHTING_DUCT.fbx
  • tex (Texture folder)
  • Spotlight_Auto_Aim_Blender_v1_1_0.zip (Add-on)
  • LIGHTING_DUCT_Placer_Blender_v1_1_3.zip (Add-on)

Model Details

  • Rail - Polygons: 1,362 / Vertices: 1,560
  • Cap (Start Cap) - Polygons: 1,485 / Vertices: 1,503
  • End_Cap - Polygons: 946 / Vertices: 962
  • Joint_S (Straight Joint) - Polygons: 2,666 / Vertices: 2,680
  • Joint_L (L-shaped Joint) - Polygons: 2,748 / Vertices: 2,782
  • Joint_T (T-shaped Joint) - Polygons: 3,592 / Vertices: 3,640
  • Joint_+ (Cross Joint) - Polygons: 4,540 / Vertices: 4,602
  • Joint_F (Flexible Joint) - Polygons: 5,128 / Vertices: 5,162
  • Rail_Hanger (Suspension Hanger) - Polygons: 4,402 / Vertices: 4,480
  • Track_Spotlight - Polygons: 18,750 / Vertices: 19,000

Texture Specifications (4 Color Variations Included)

  • BaseColor (4K / .png)
  • Roughness (4K / .png)
  • Metallic (4K / .png)

Technical Specifications

  • Textures: Yes (PBR 4K PNG)
  • Materials Configured: Yes
  • UV Mapping: Yes (Non-overlapping)

Terms of Use & Disclaimer

  • Usage: You are free to use this asset for both commercial and personal projects. (Credit is optional, but highly appreciated!)
  • Prohibited Acts: Redistribution or resale of this data (including modified versions) is strictly prohibited.
  • Disclaimer: The creator assumes no responsibility for any trouble, damages, or losses caused by the use of this data.
Related Tagsblendertrack lightingspotlightceiling lightarchvizinteriorfbxscriptautomationphotorealisticlighting
