Meade LXD75 Schmidt-Newtonian 10 telescope static version 3D model

This is my telescope. I had the advantage of having it in my hands to model it and check for geometry andshaders accuracy. It was modeled in 3ds Max using cm as units. The only external plugin used was the V-Ray render engine.

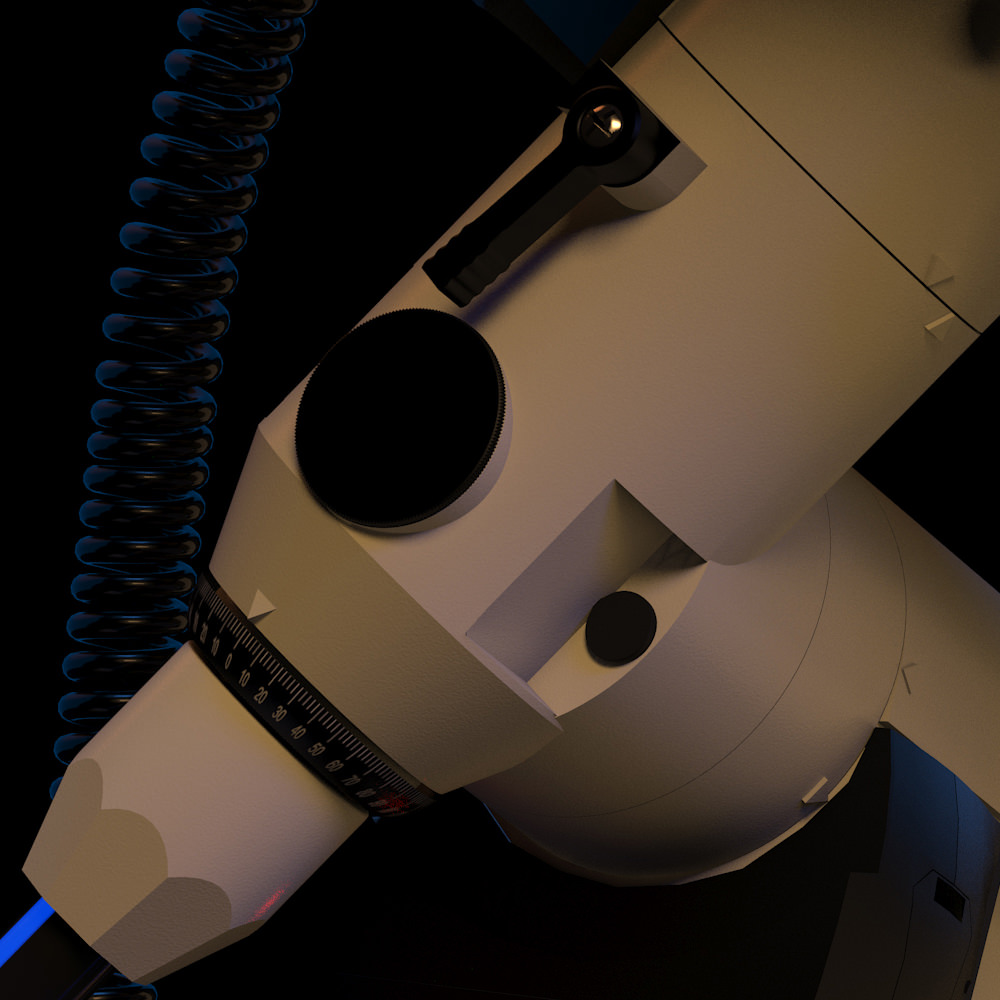

It is presented in a 30° Latitud, 35° Rignt Ascension, 25° Declination and 20° tube rotation position, a very fancy one to present it, comfortable to position an observer.

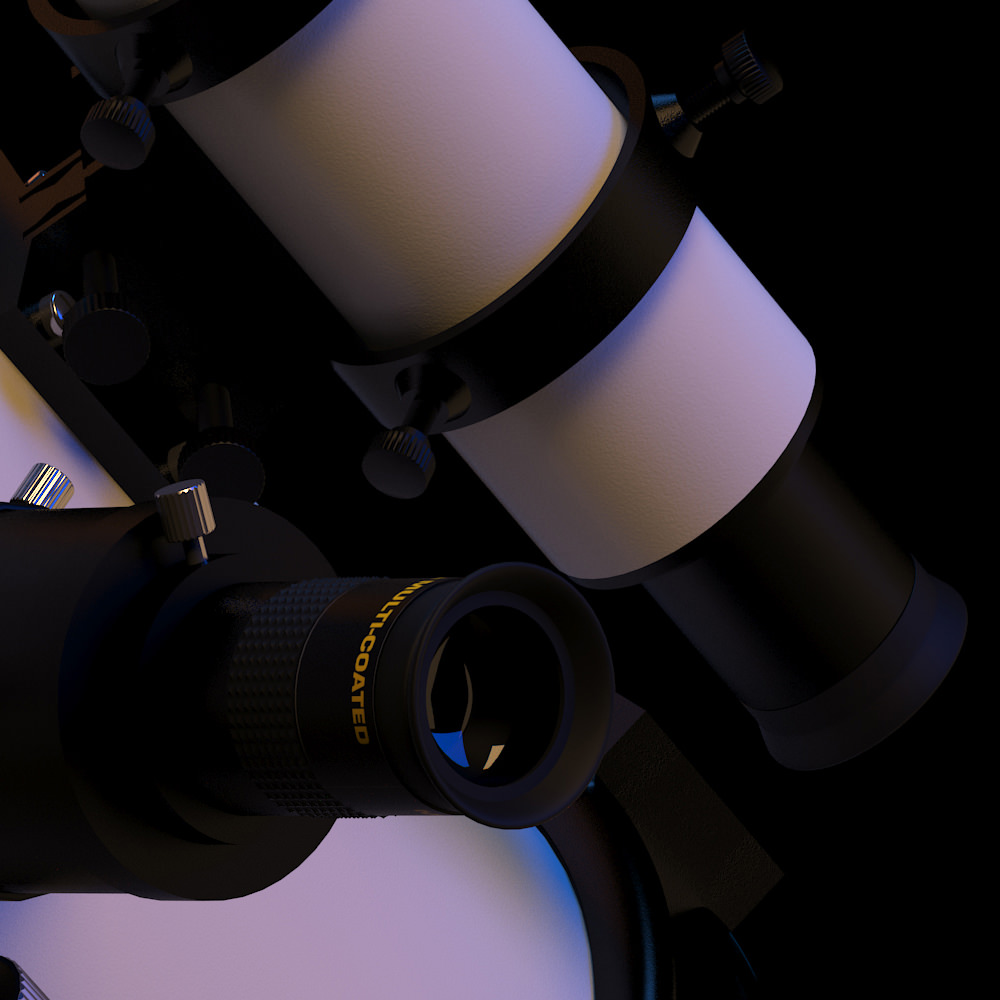

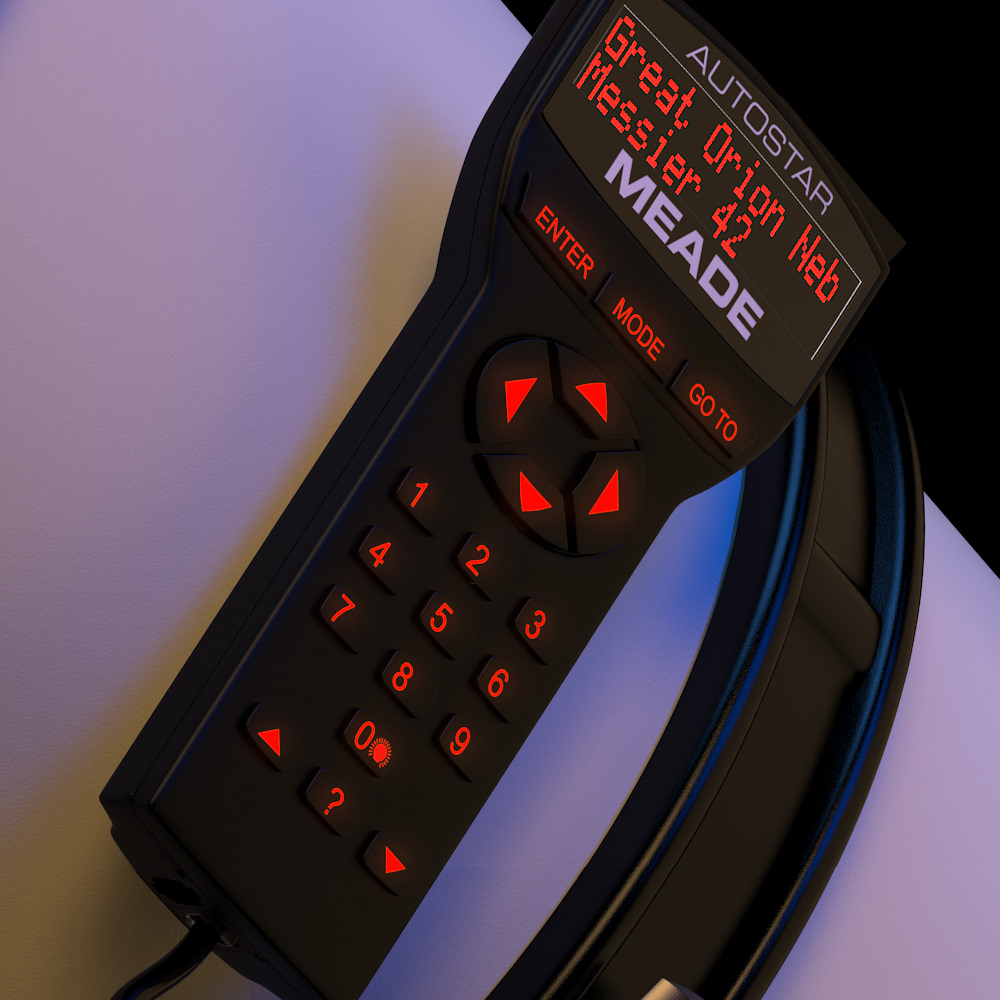

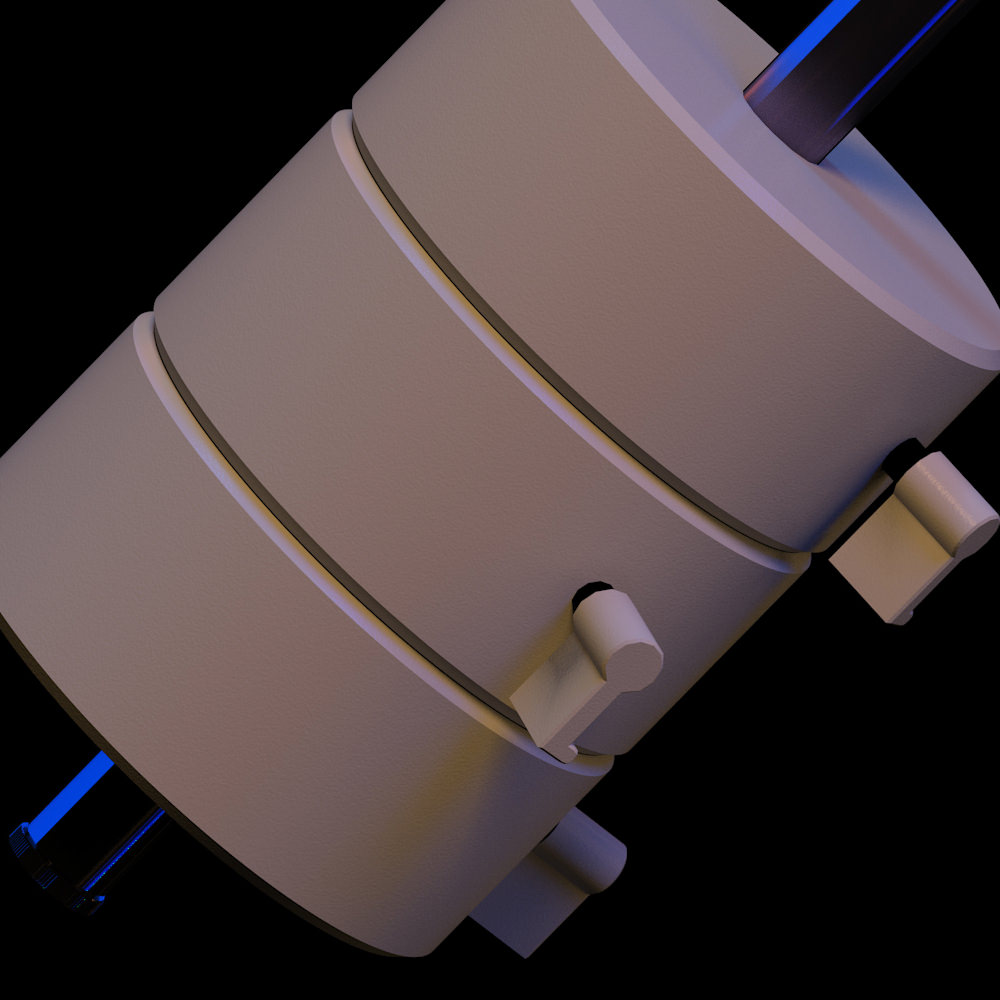

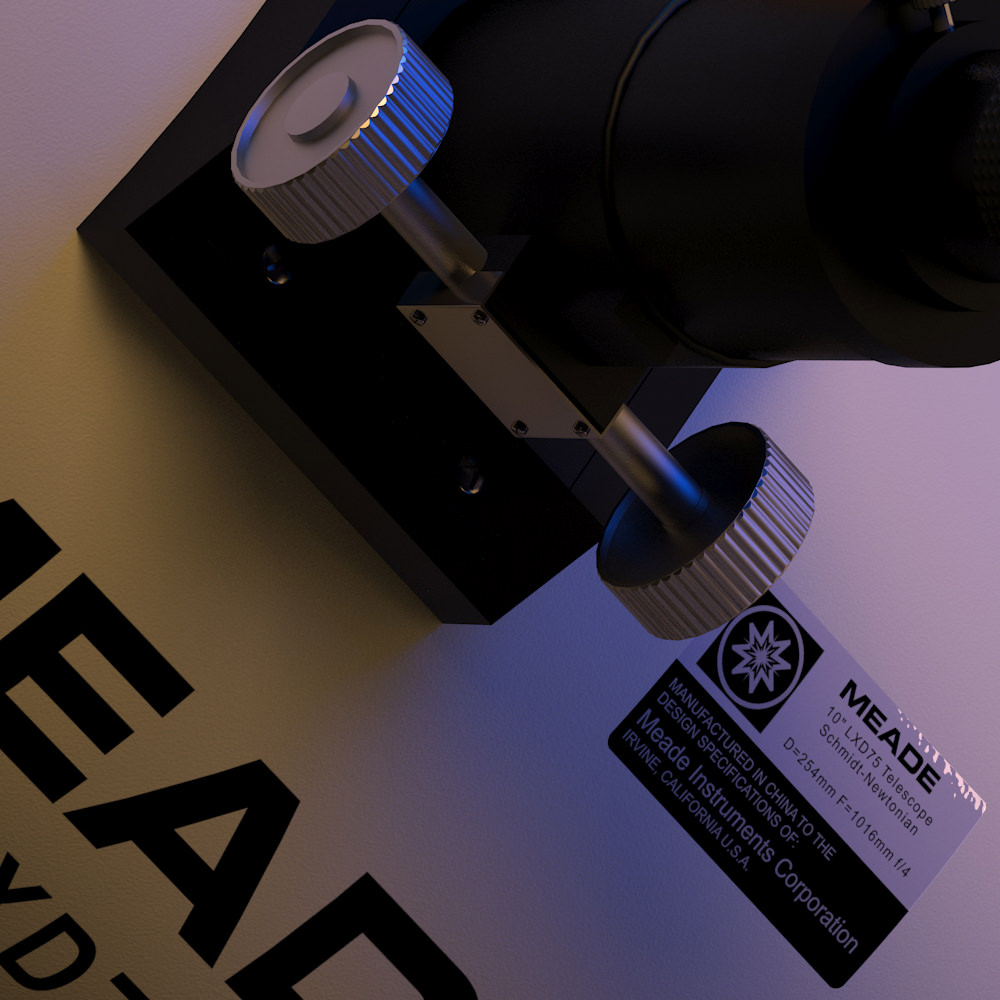

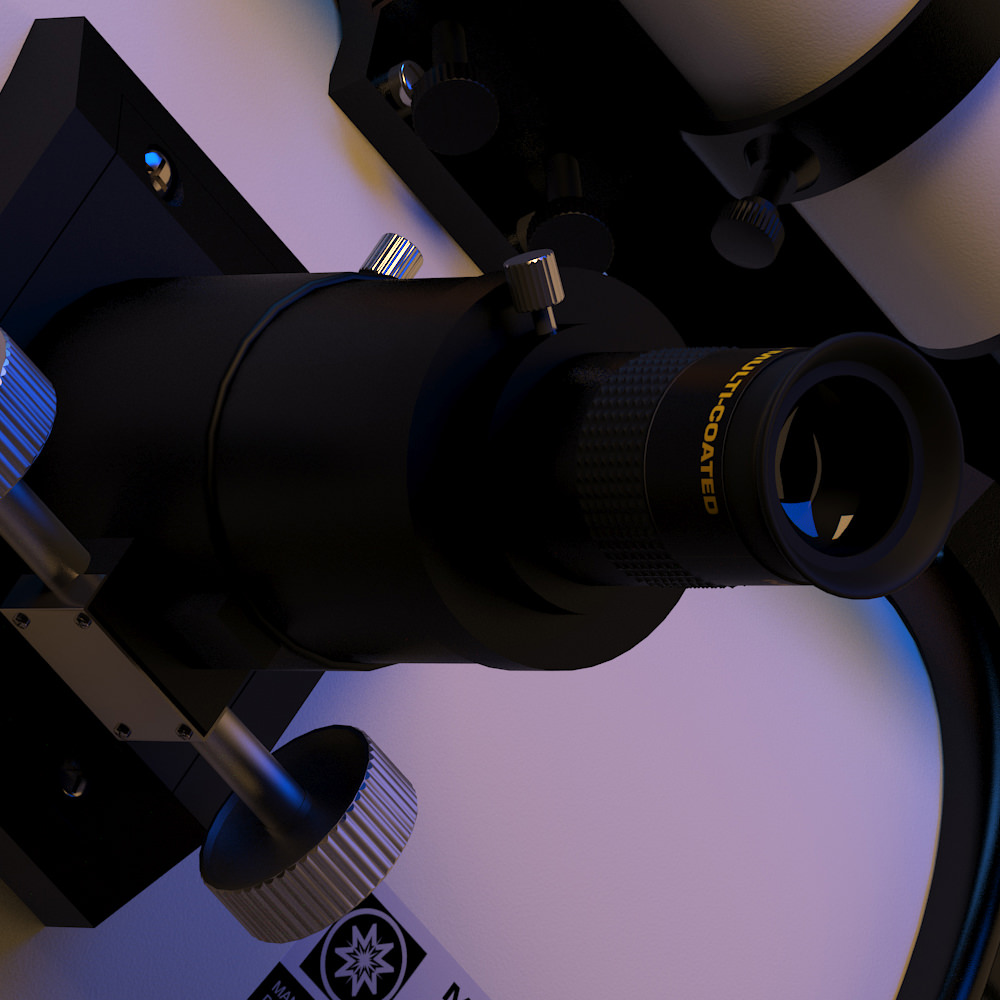

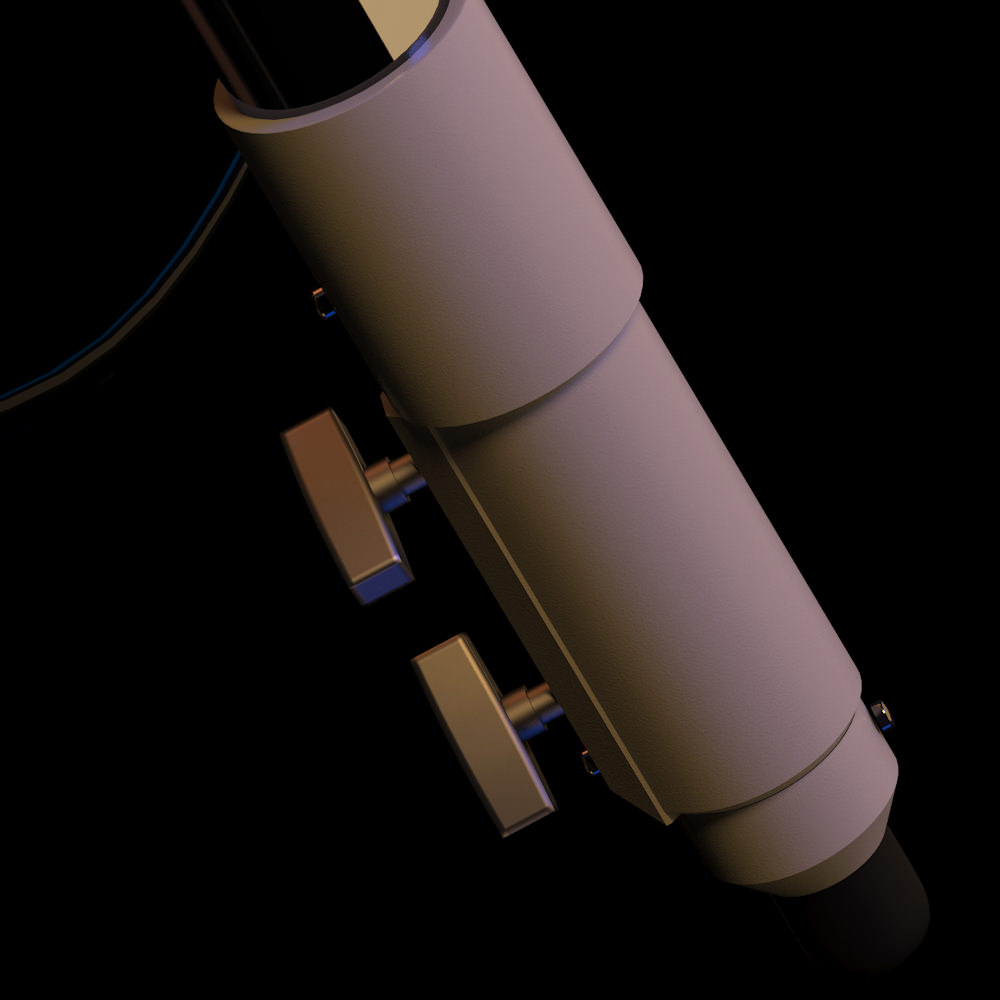

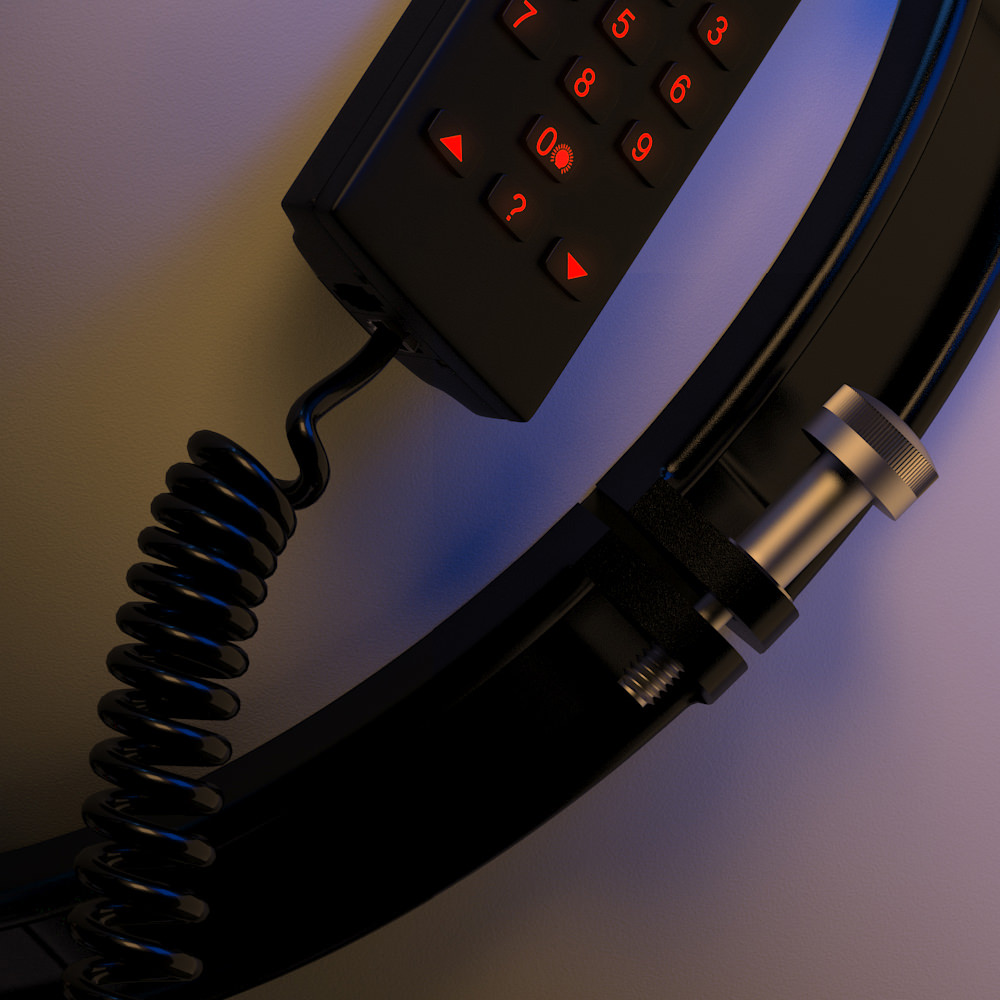

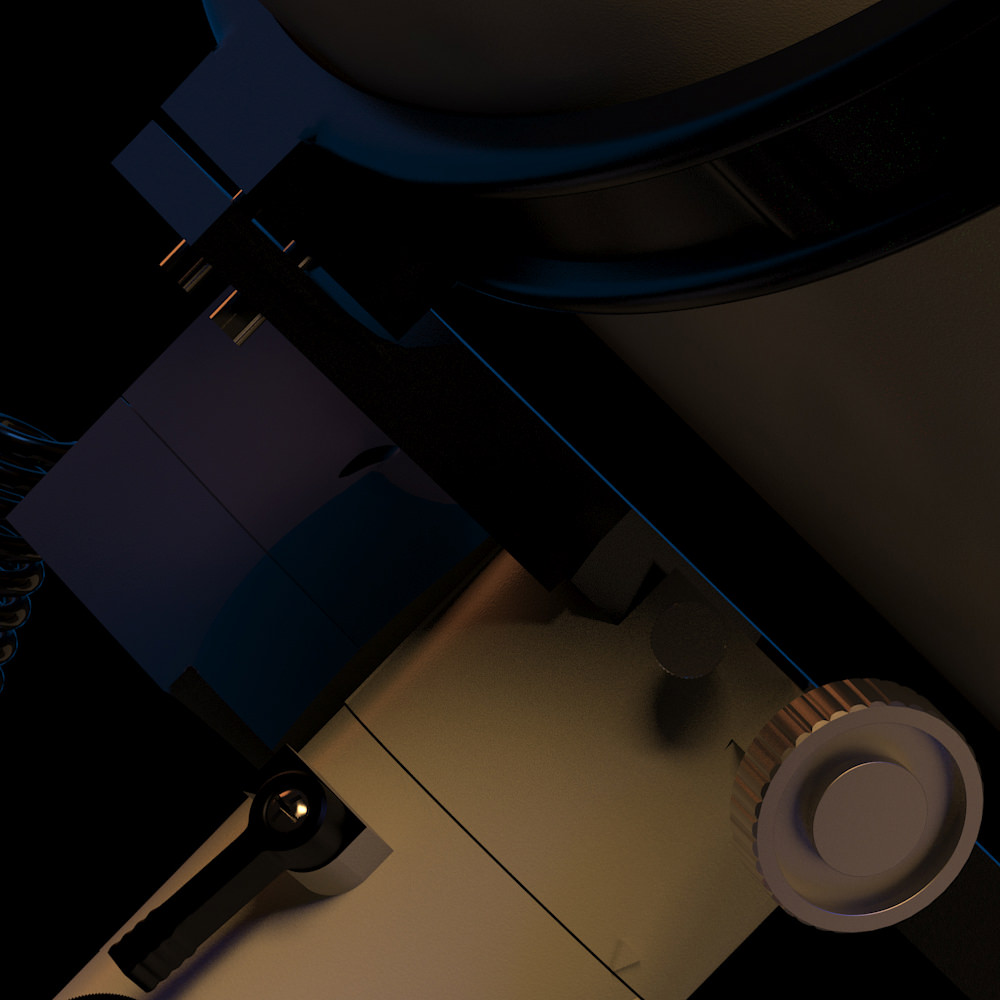

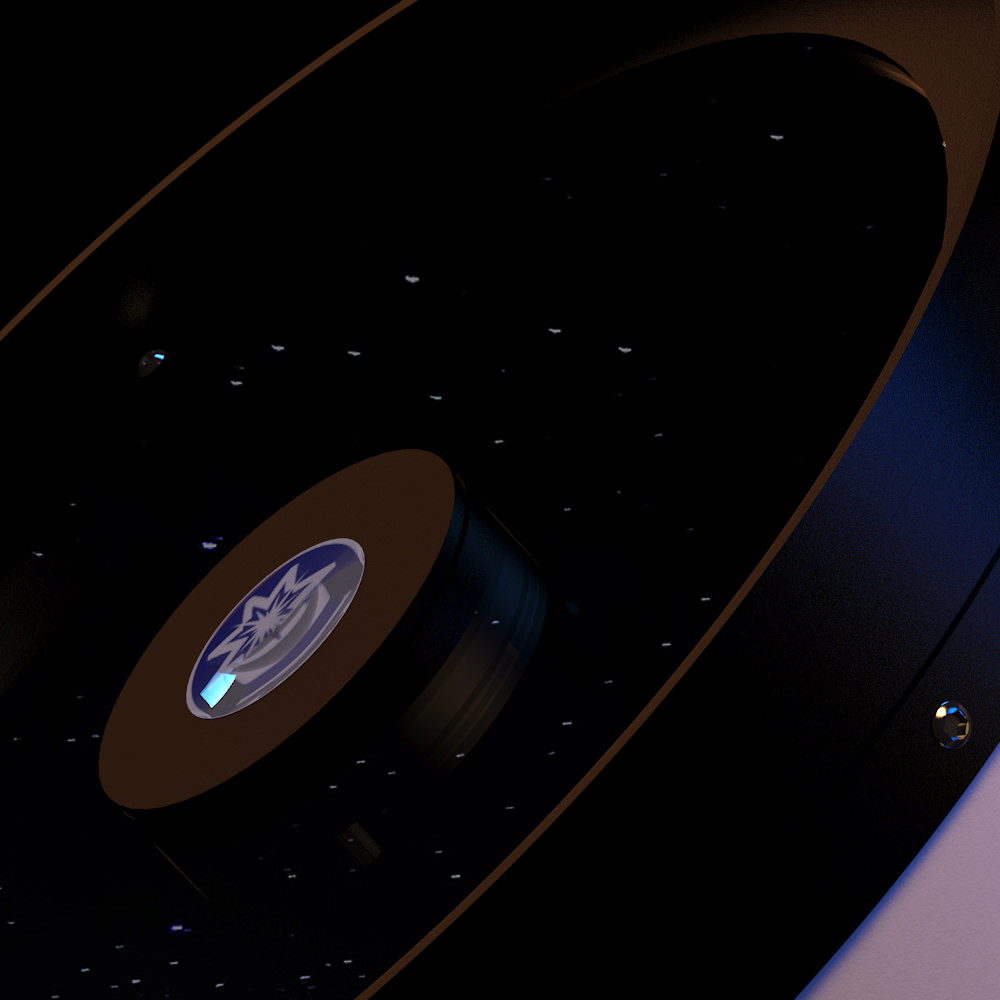

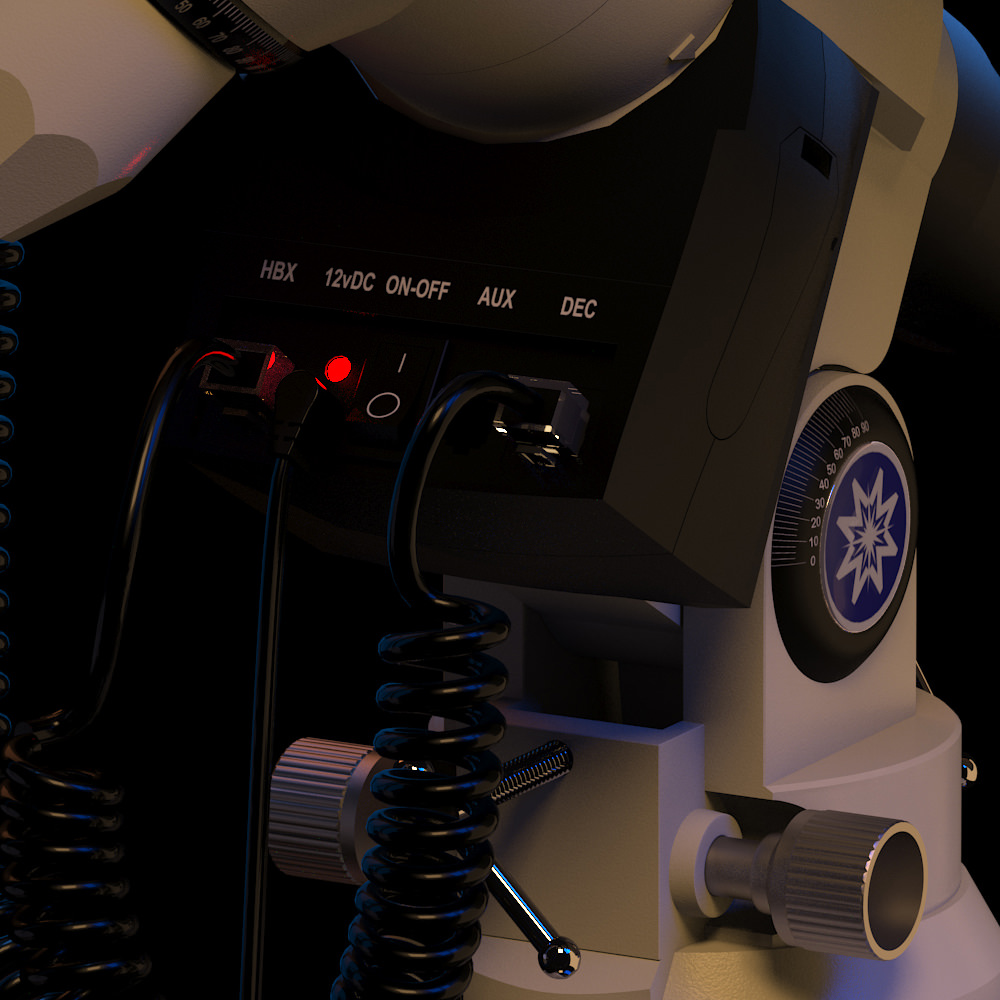

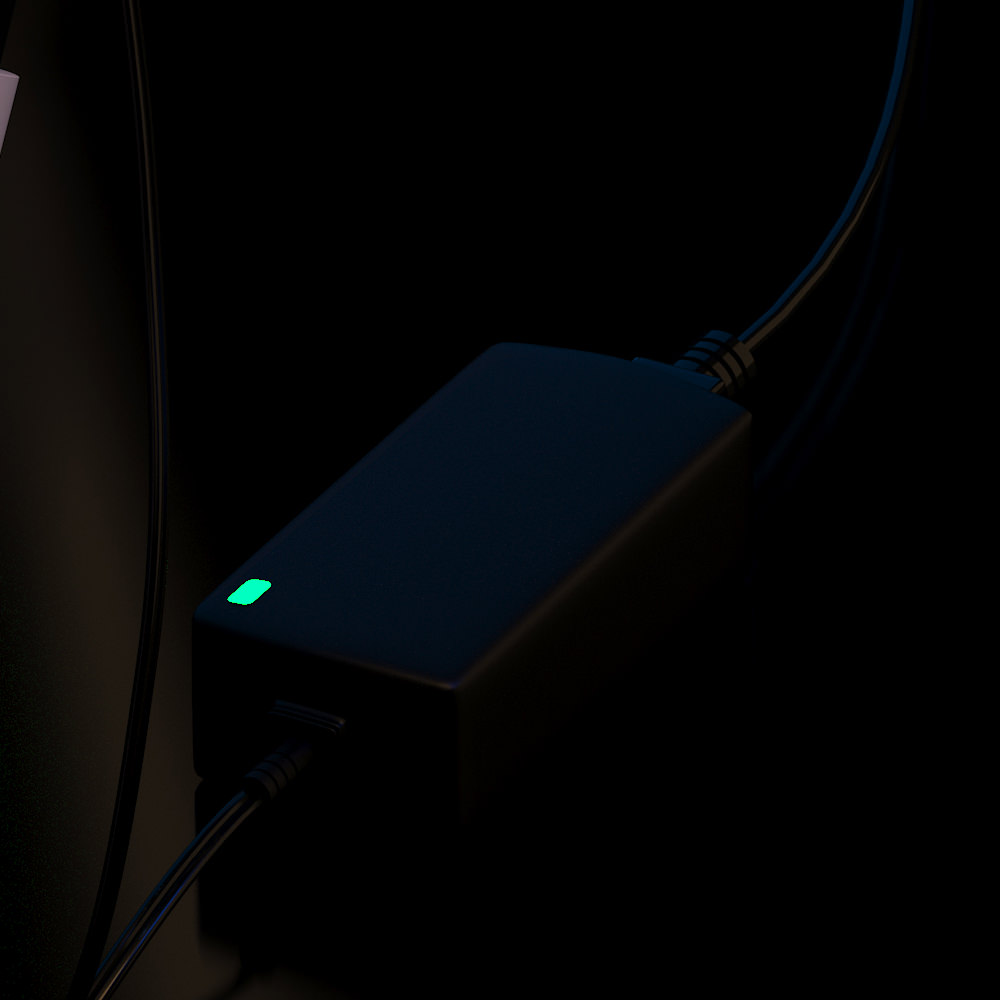

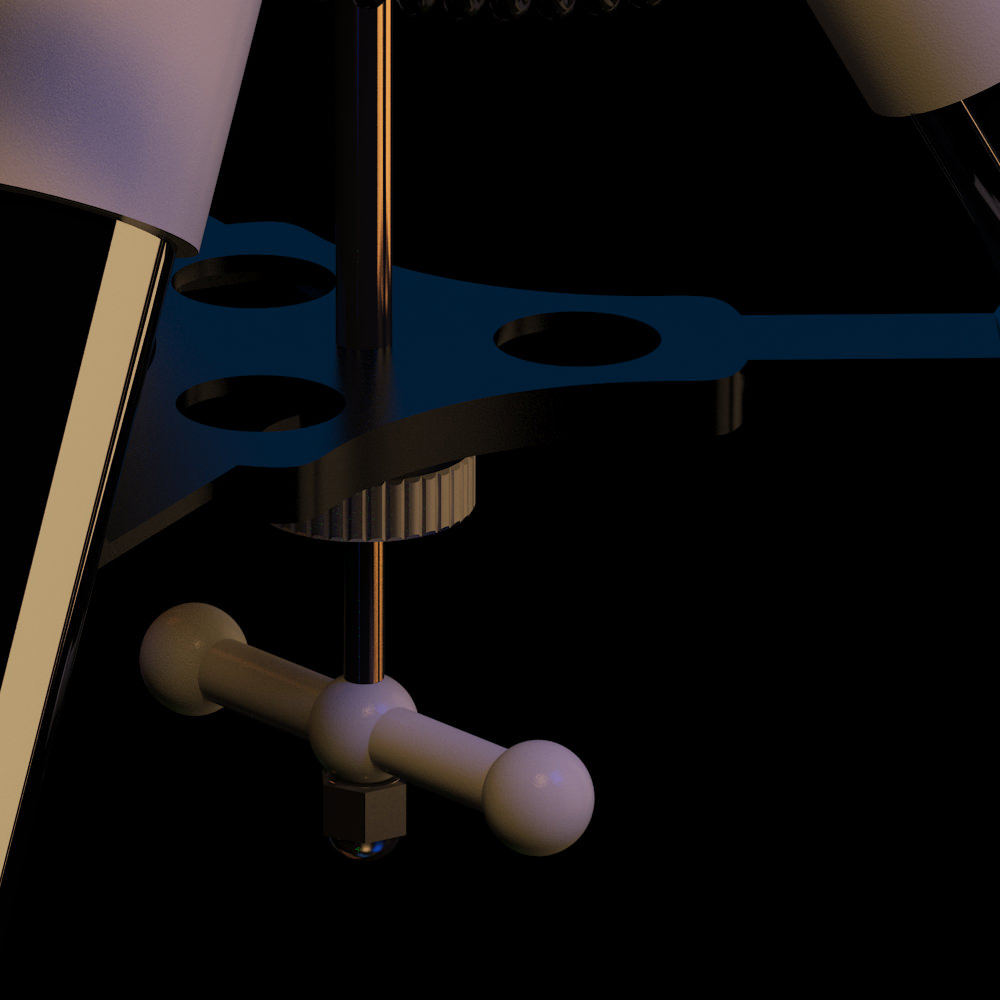

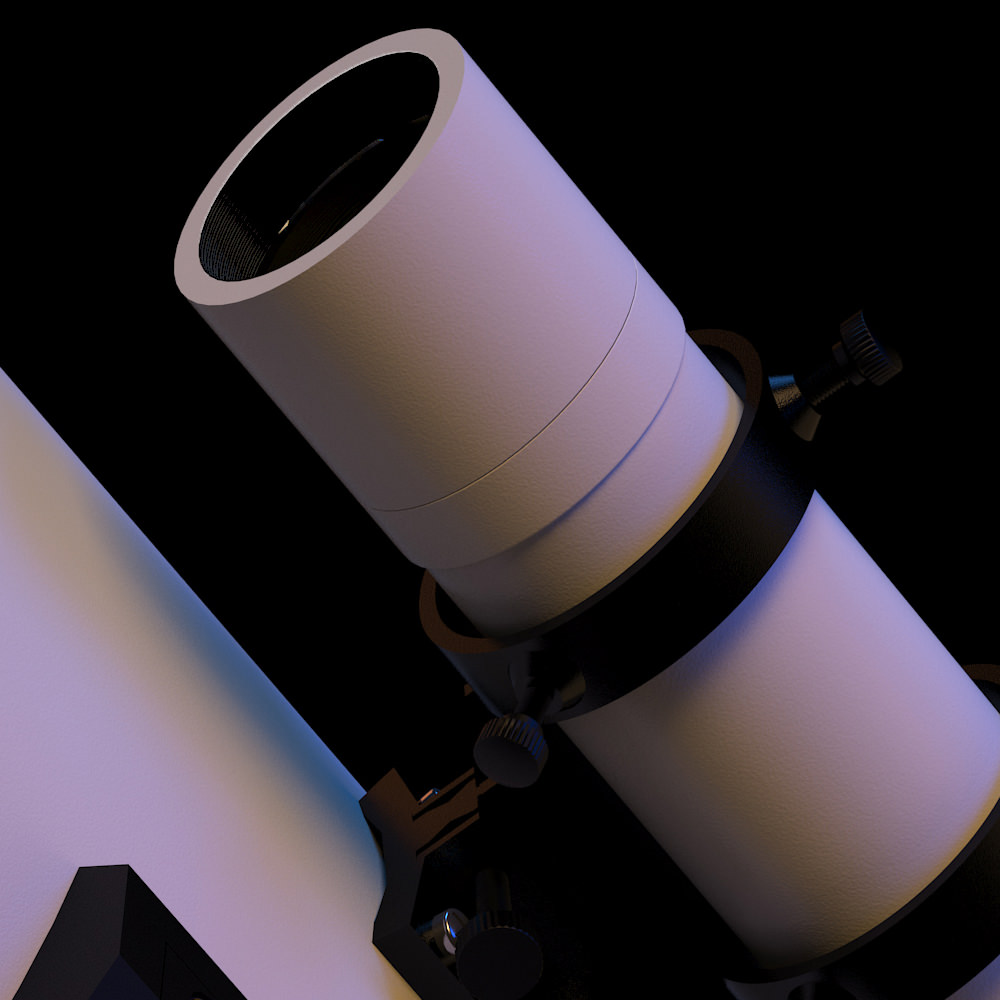

Although it is a highly detailed model, as you can verify in the images, it is a lowpoly model smoothed using NURMS subdivision + smoothing groups (no turbosmooth).

The 120 objects in it are named after their actual names, and so are shaders and textures. Textures were made as vectors using Corel Draw! and exported as bitmaps.

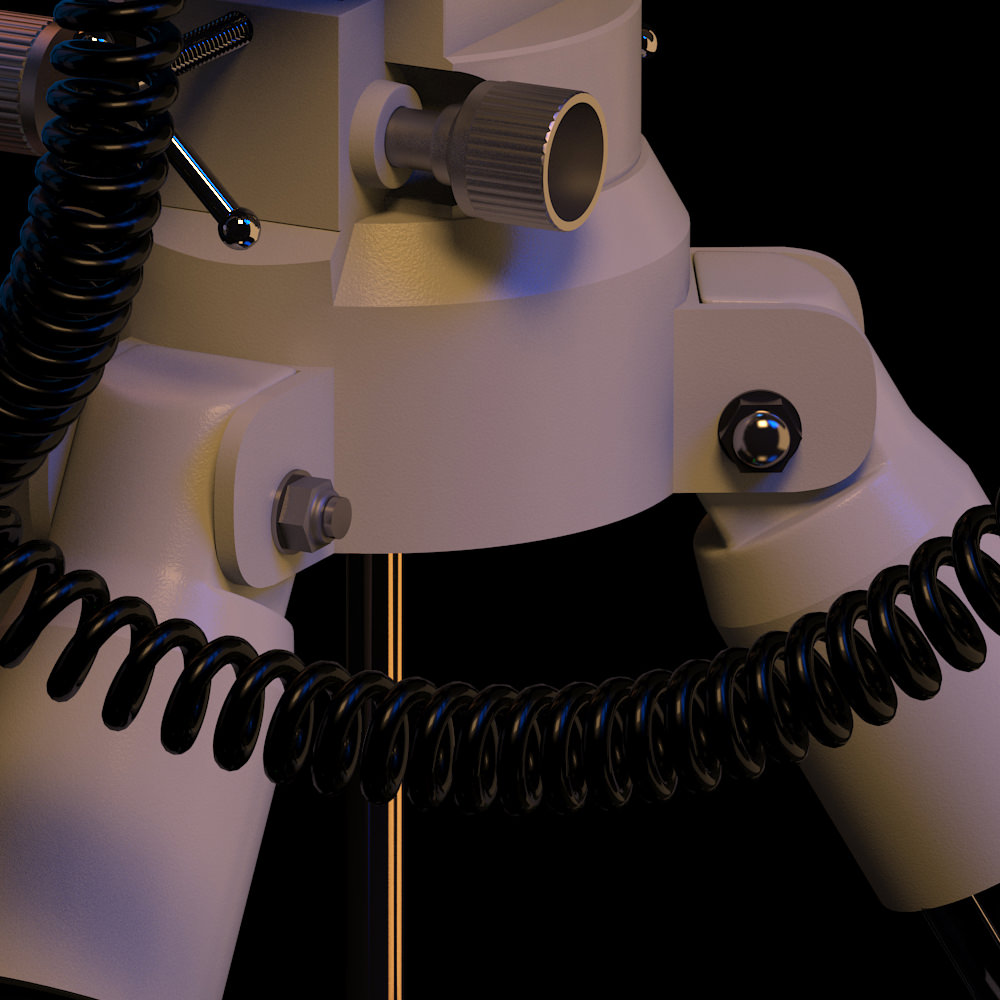

WARNING: although all objects are linked and their movents restricted to only the ones allowed, cords could not be linked to follow the telescope movements. So I preferred to group them all, hence the "static version". I urge you not to attempt to change its pointing position unless you really know what you are doing, but if you still want to try it, please e-mail me to provide instructions.

    This product has no reviews yet
    Meade LXD75 Schmidt-Newtonian 10 telescope static version
    $32.00
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response - % in - h
    3D Modeling
    Lighting
    Rendering
    Texturing
    Hire me
    3D model formats
    Native
    • Autodesk 3ds Max 2010 (.max)4.49 MBVersion: 2010Renderer: V-Ray 2.40.03
    Exchange
    • Autodesk FBX (.fbx) -
    • OBJ (.obj, .mtl) -
    • Stereolithography (.stl) -
    3D model details
    • Publish date2014-05-26
    • Model ID#71304
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 136,336
    • Vertices 141,369
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs No
    • Plugins used
