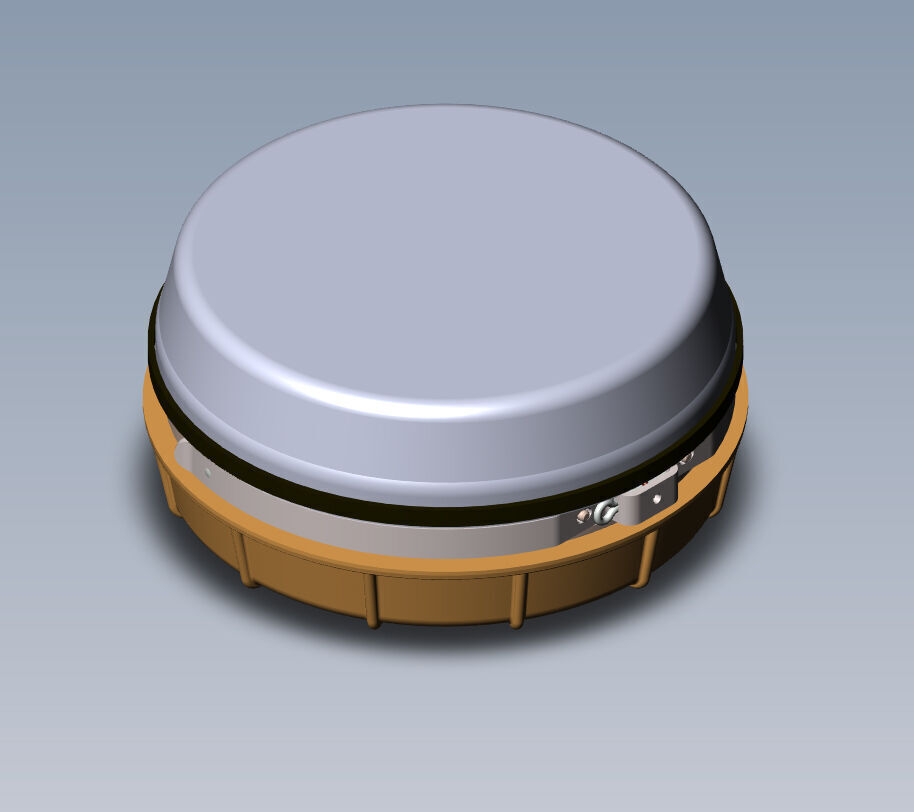

PMN-4 (ПМН-4) Soviet, Russian anti-personnel, pressure-action high-explosive mine.

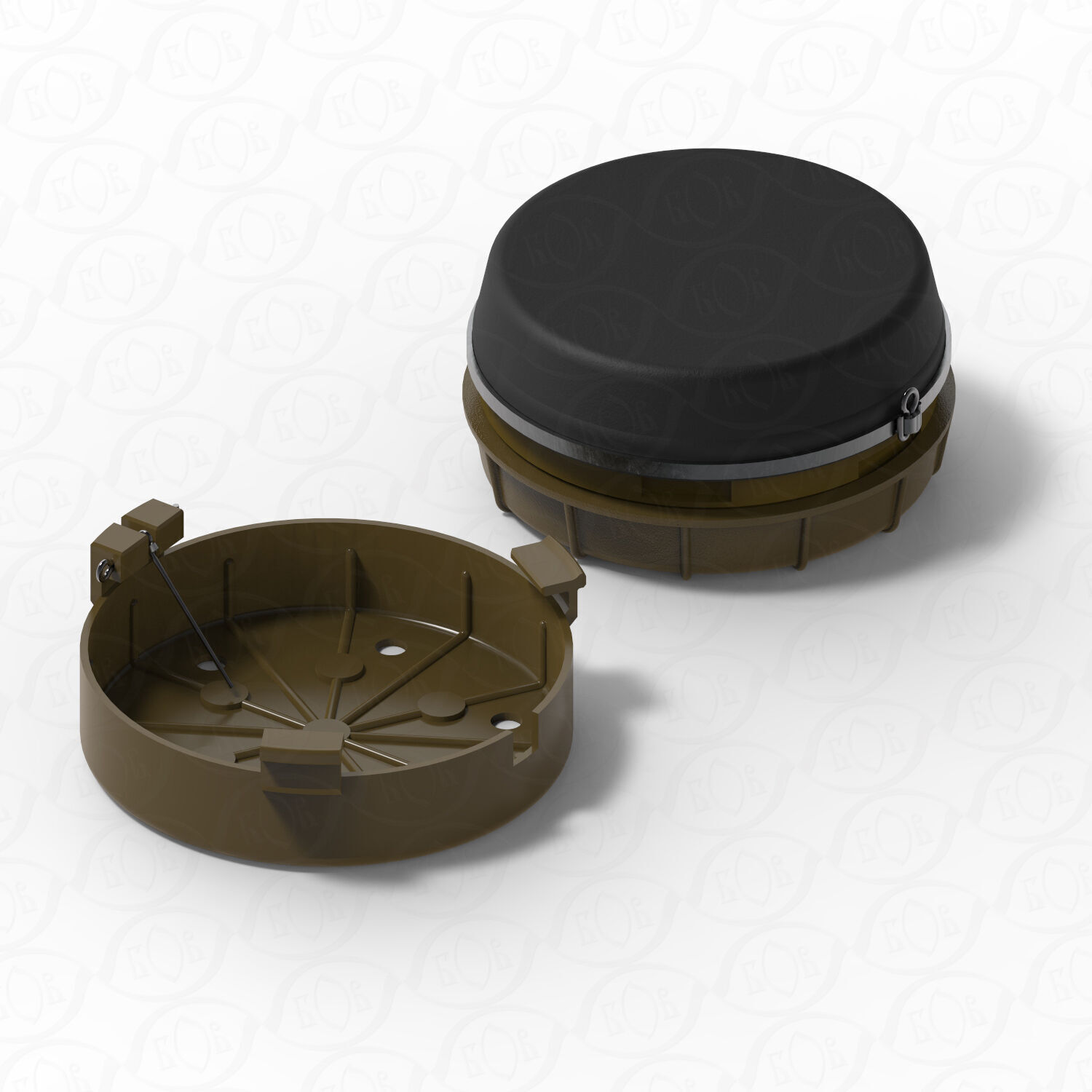

“Classic” and “modern” design -The safety cover acts as a сheka landmines - two 3D models.
The PMN-4 mine is the latest (developed in 1990) in the PMN model line. It differs visually
from the previous models by its noticeably smaller overall dimensions.

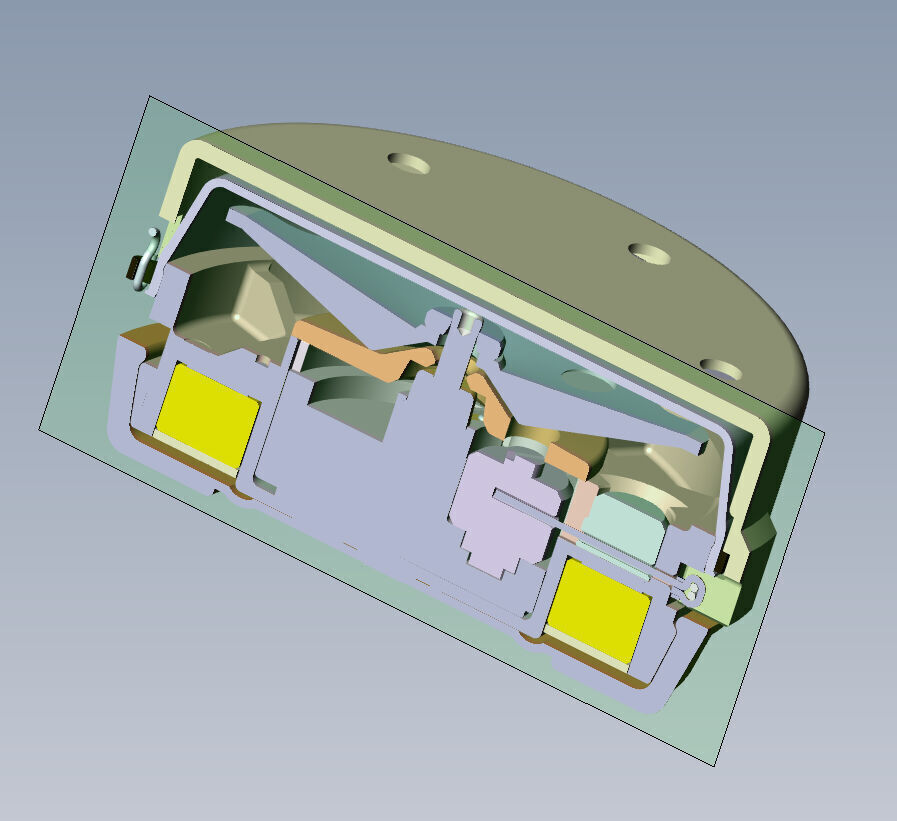

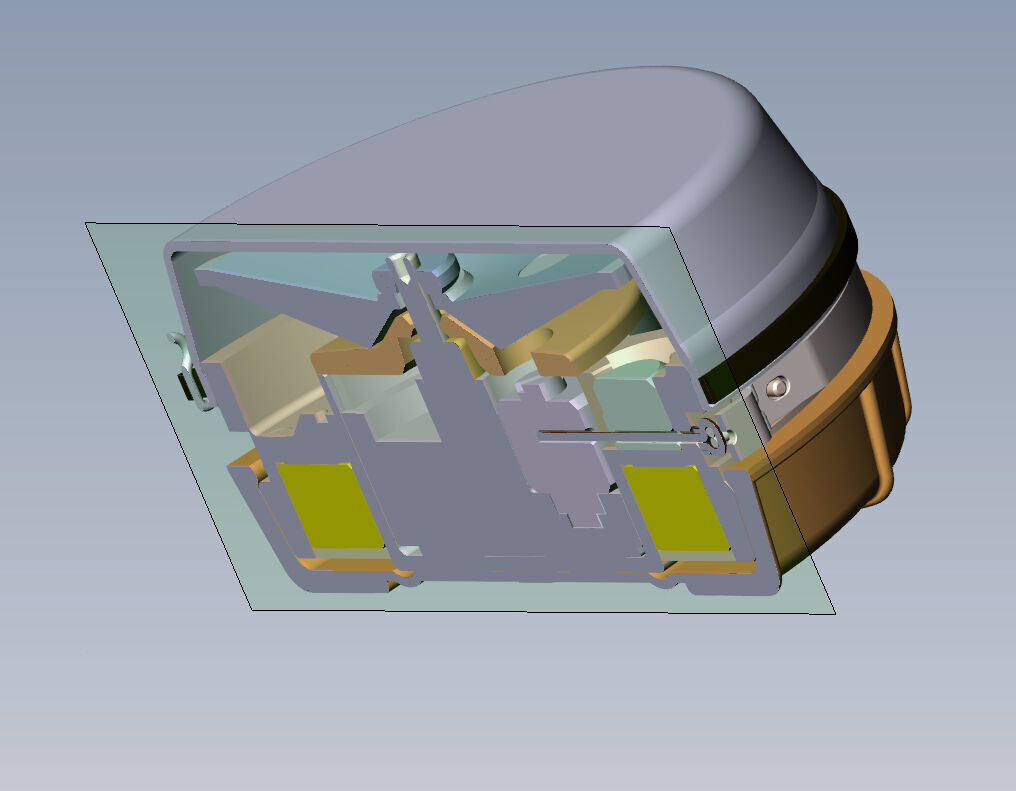

The casing is hermetically sealed, cylindrical plastic, and has cavities to accommodate
the explosive charge and fuze mechanisms. From above, the case is covered with a rubber cap,
which is attached to it with a steel clamp. The fuze and fuse of the PMN-4 anti-personnel mine is part of its design.
The mine does not have elements of self-destruction, non-retrievability and non-destructability,
but the design features exclude the reverse transfer of the mine from the combat position to the safe position.
Therefore, the PMN-4 mine is classified as non-destructible.
It was used en masse in the Russian-Ukrainian War and became one of the most mass-produced mines in its class.

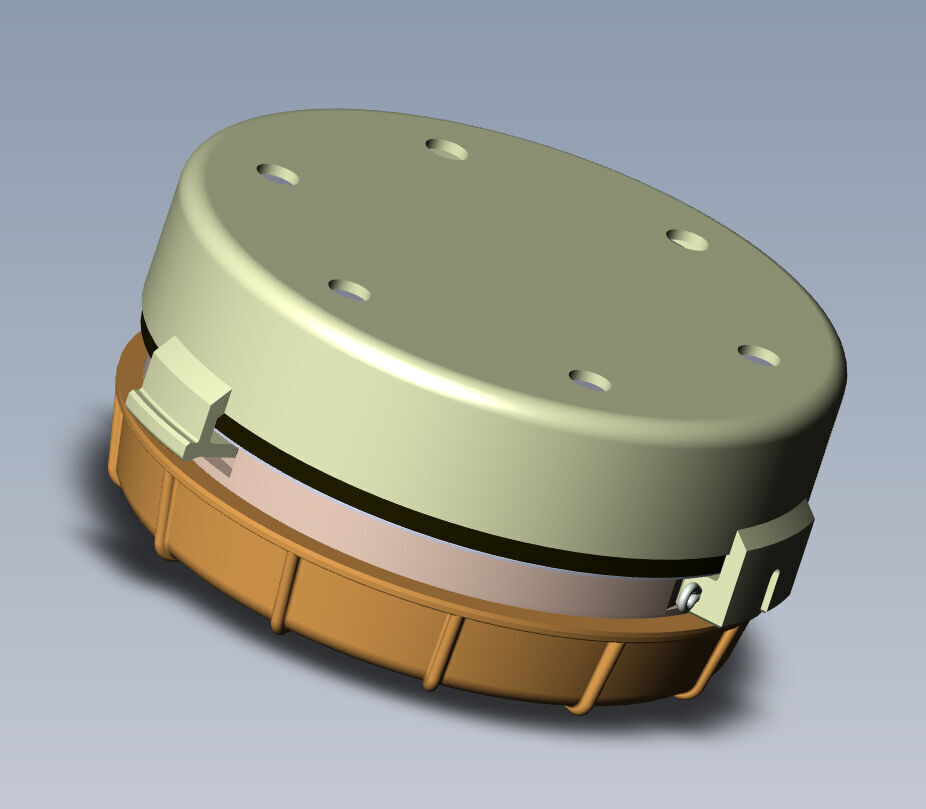

The models are made in Original Dimensions - 94(95max) x 42mm. 100(101max) x 45 mm.

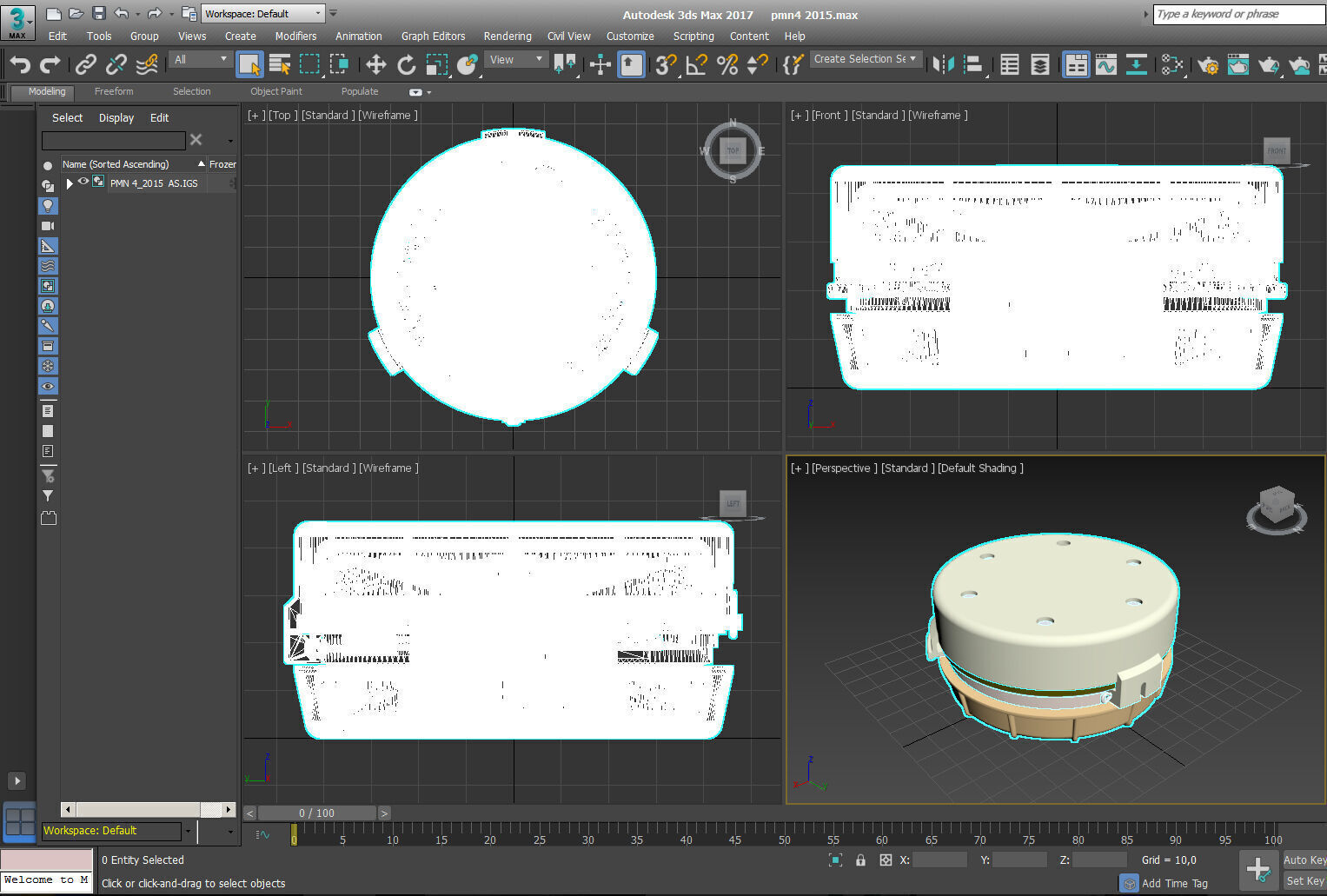

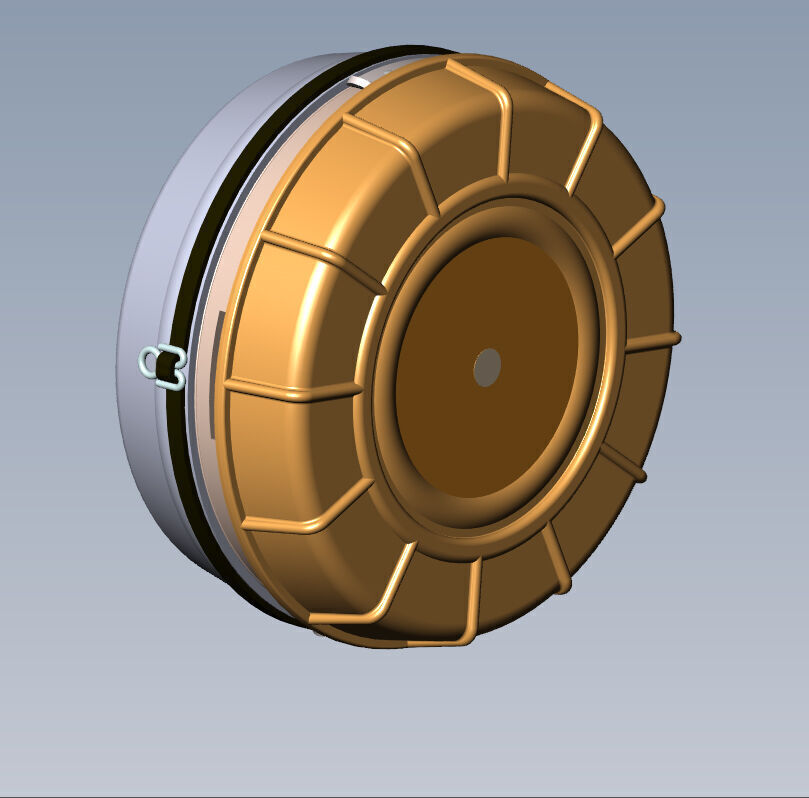

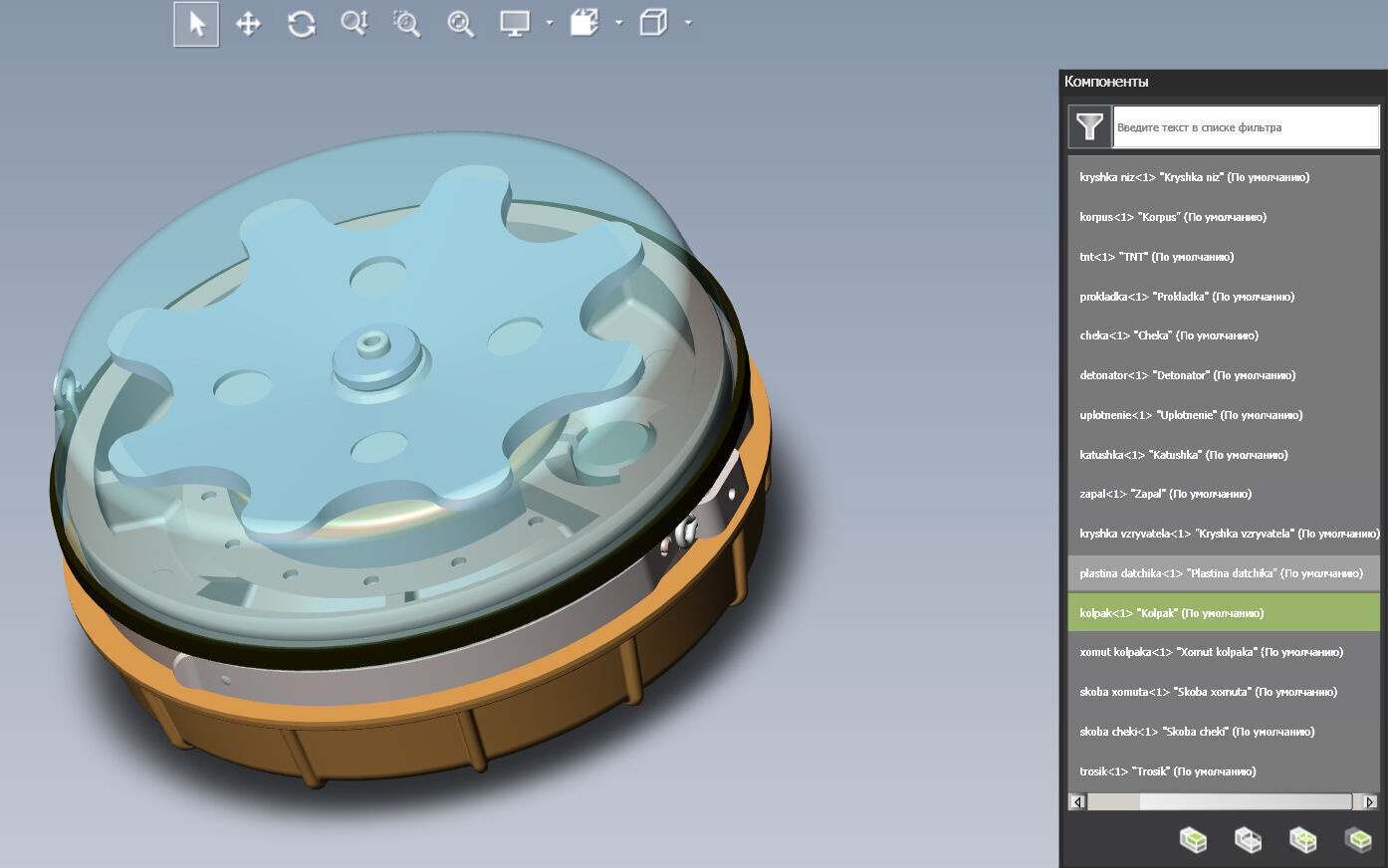

These assembly models is made in SolidWorks. they is primarily for 3D printing of a stand model.
For use as a visual aid and is not a complete copy of the external forms of the original product,
although it displays all the necessary elements. Adapted for the possibility of 3D printing and

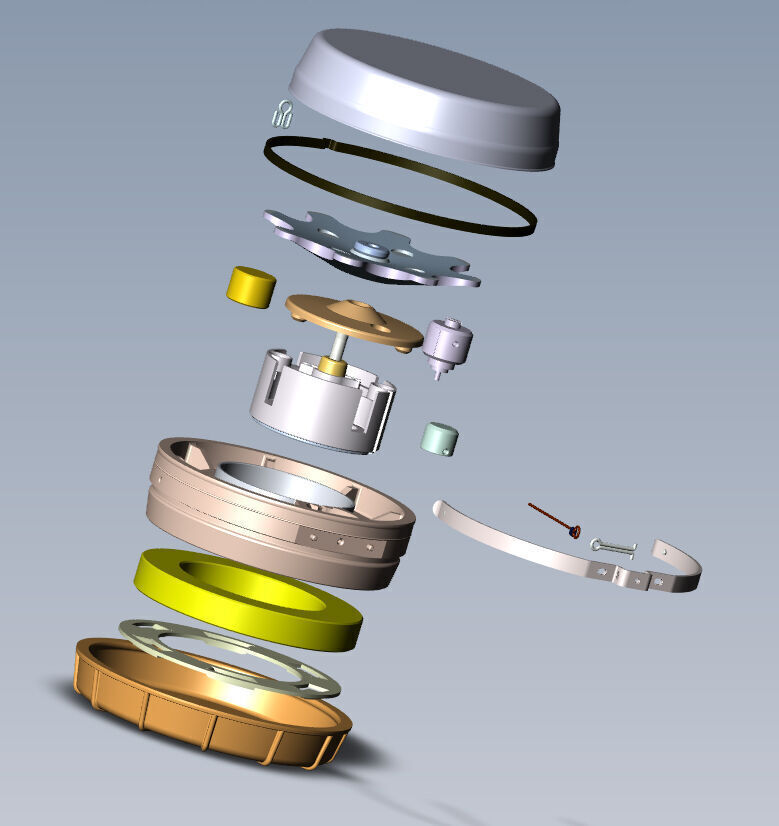

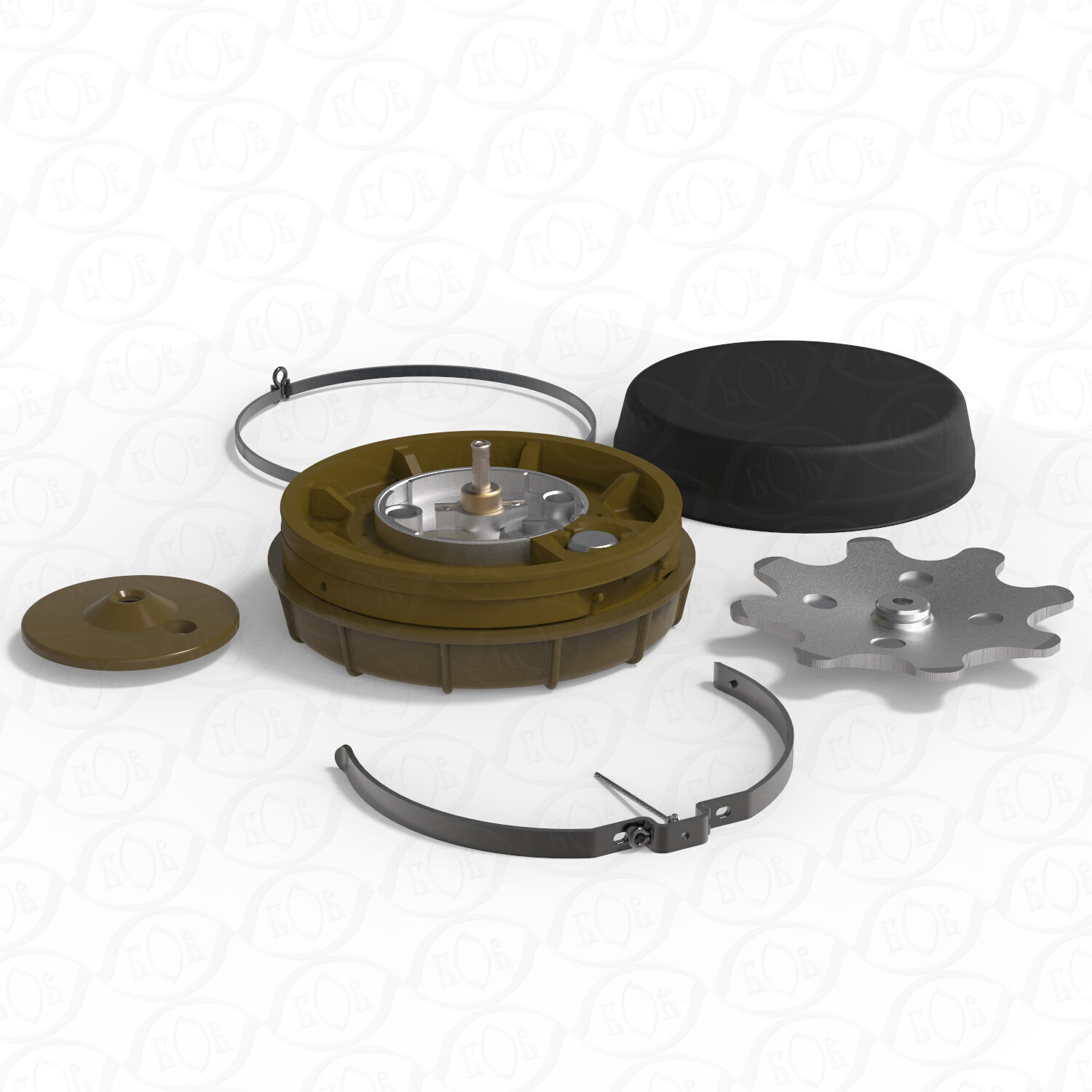

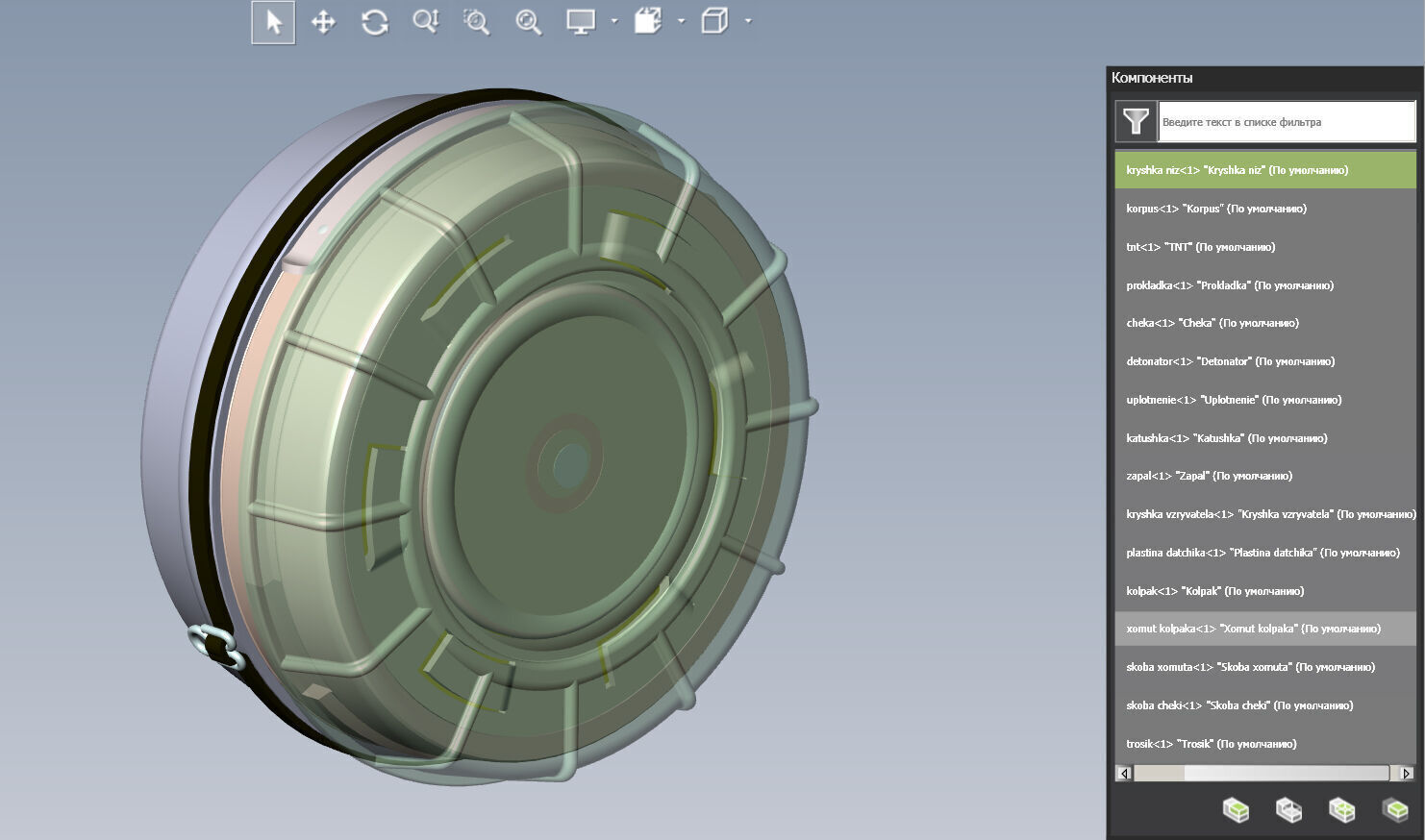

subsequent assembly of the product layout. The model is an assembly model, contains all
conditional parts files (STL) in high-polygonal version to obtain qualitatively smooth forms.

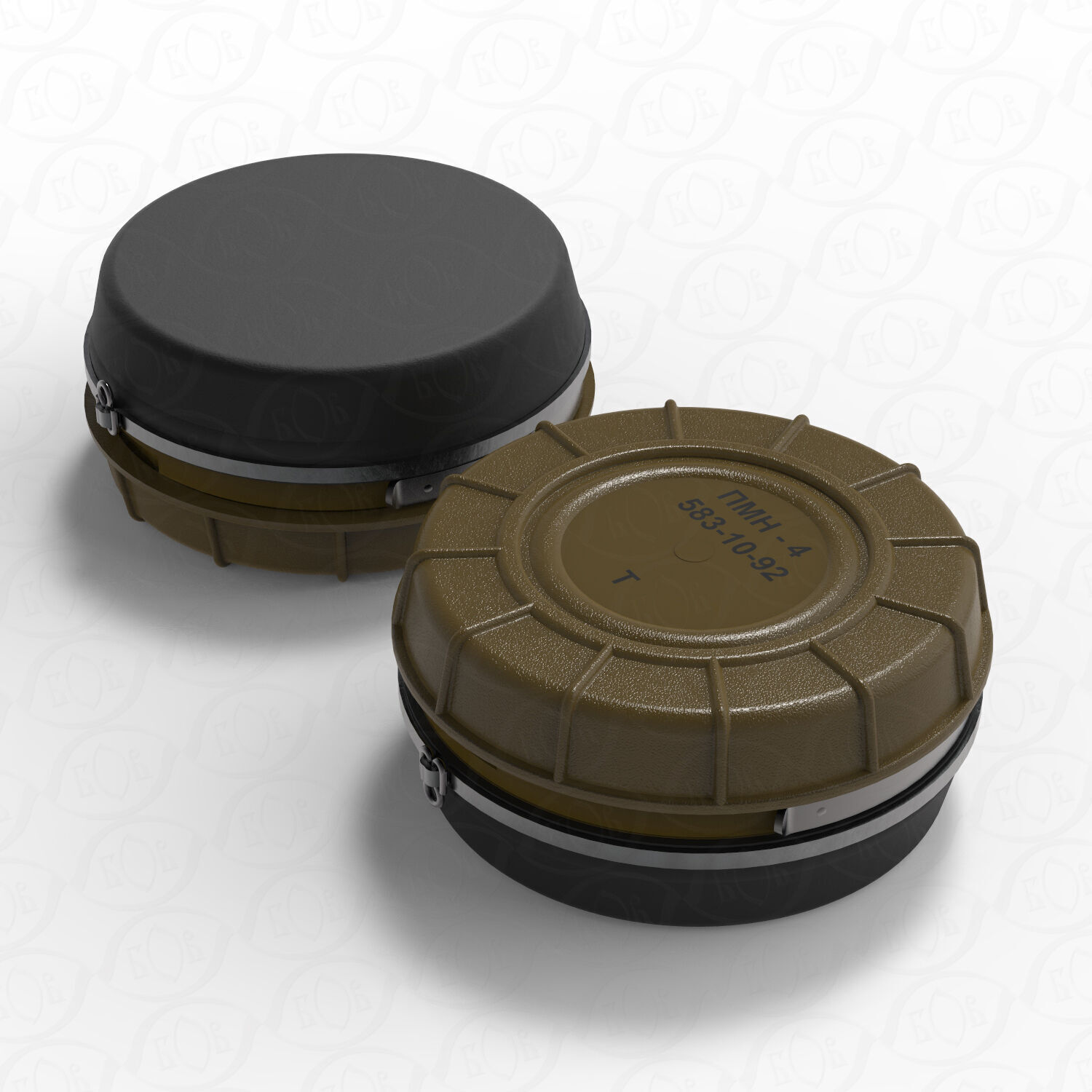

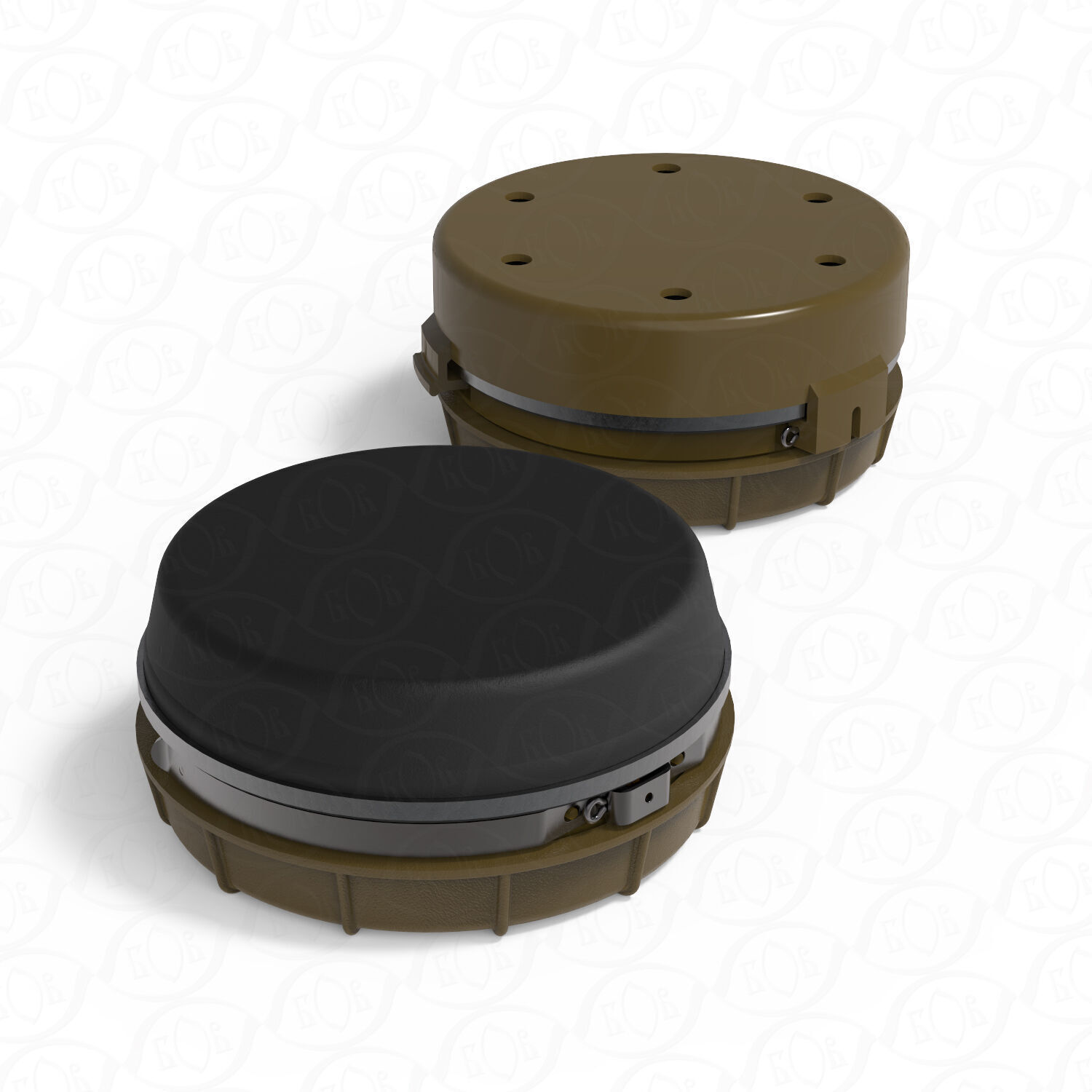

Additionally, the set contains all files for obtaining high-quality realistic close-up rendering
(smooth lines, selected, prepared surfaces - for applying materials or textures - Assigned materials
surfaces with conditional color markings), see the image of models and examples of
3D rendering results in specialized professional applications (for examples- KeyShot).

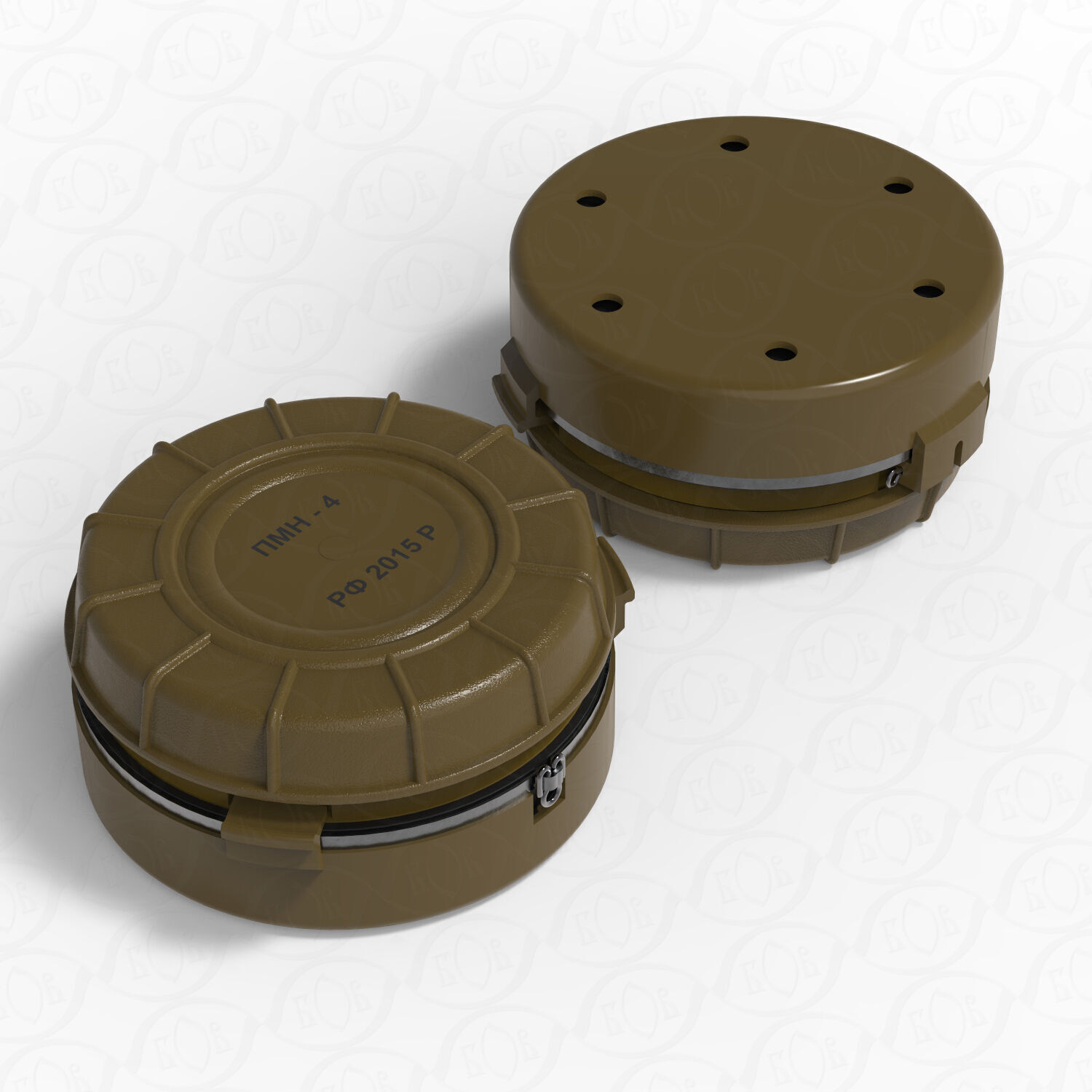

Additionally, the set contains marking textures - inscriptions to be applied to surfaces (see rendering examples).

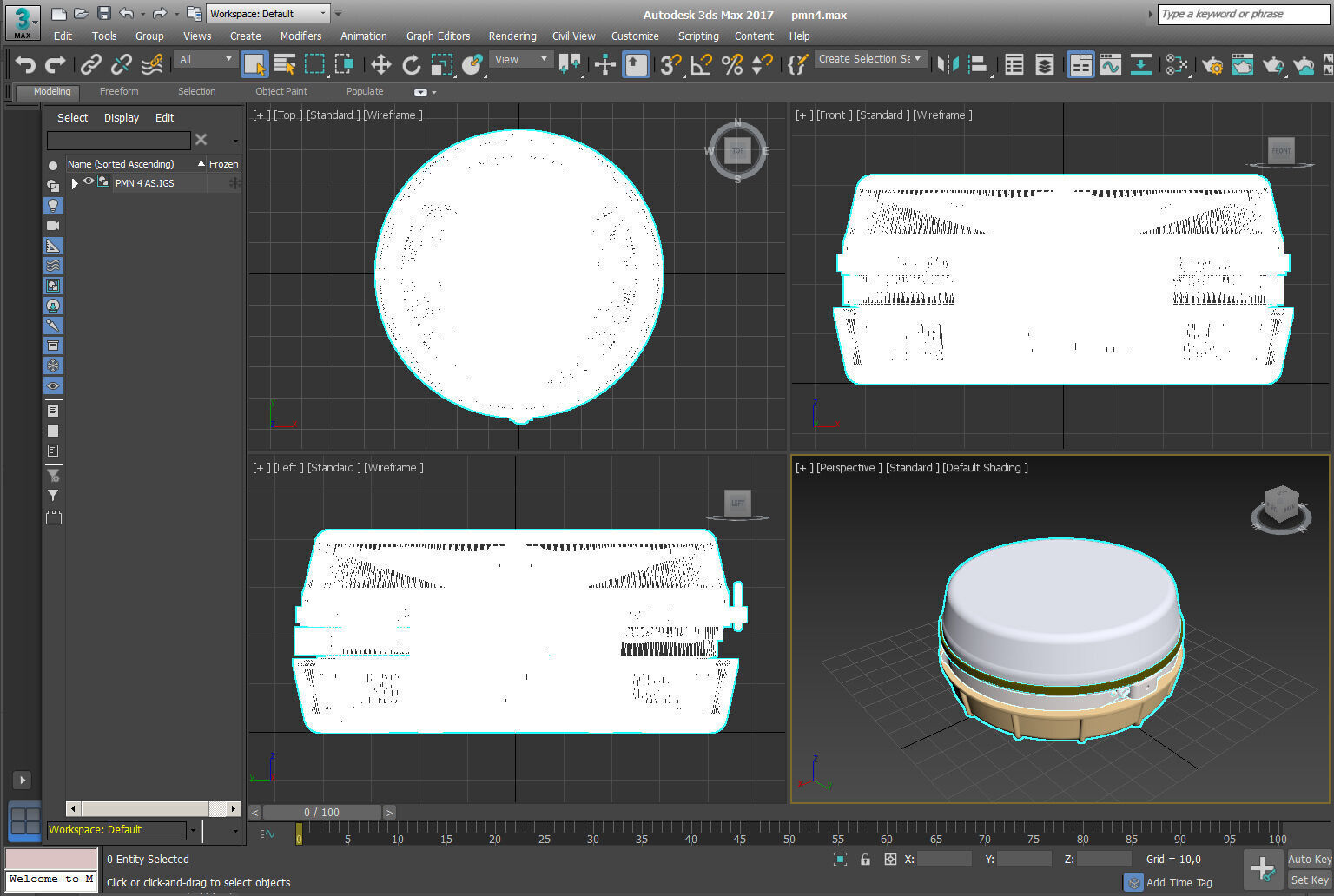

In addition to solid model file formats, converted highly detailed polygonal file formats are additionally available.

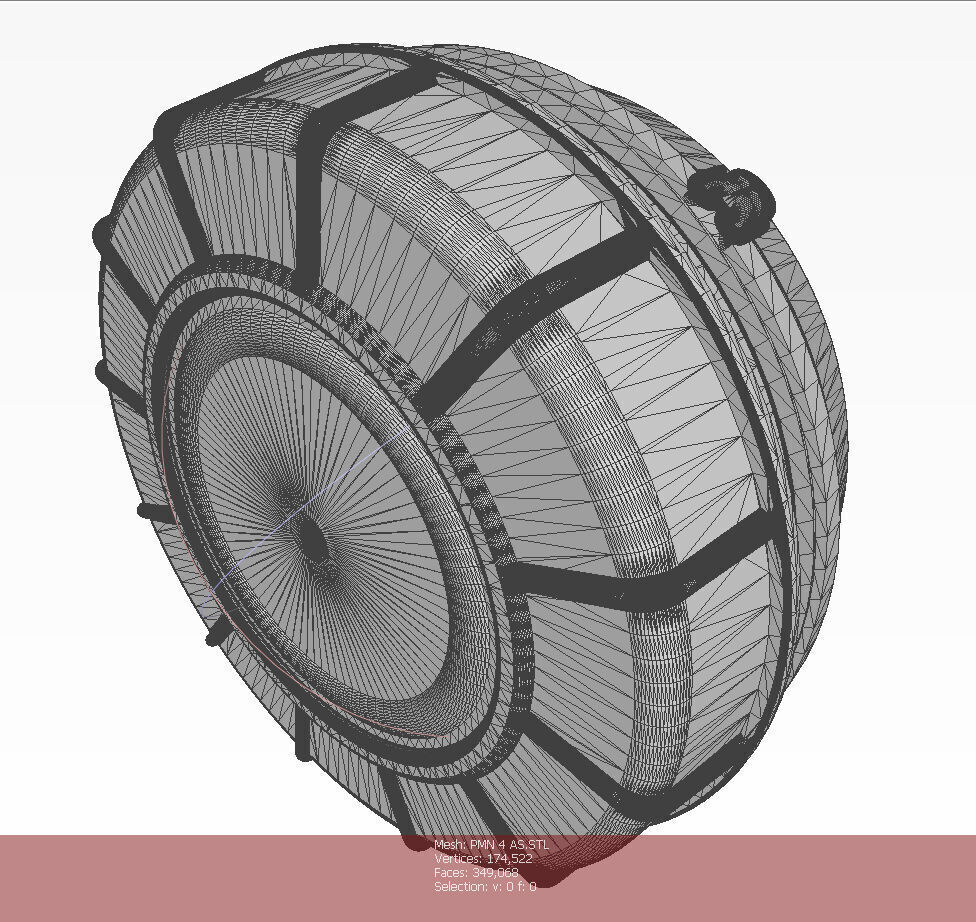

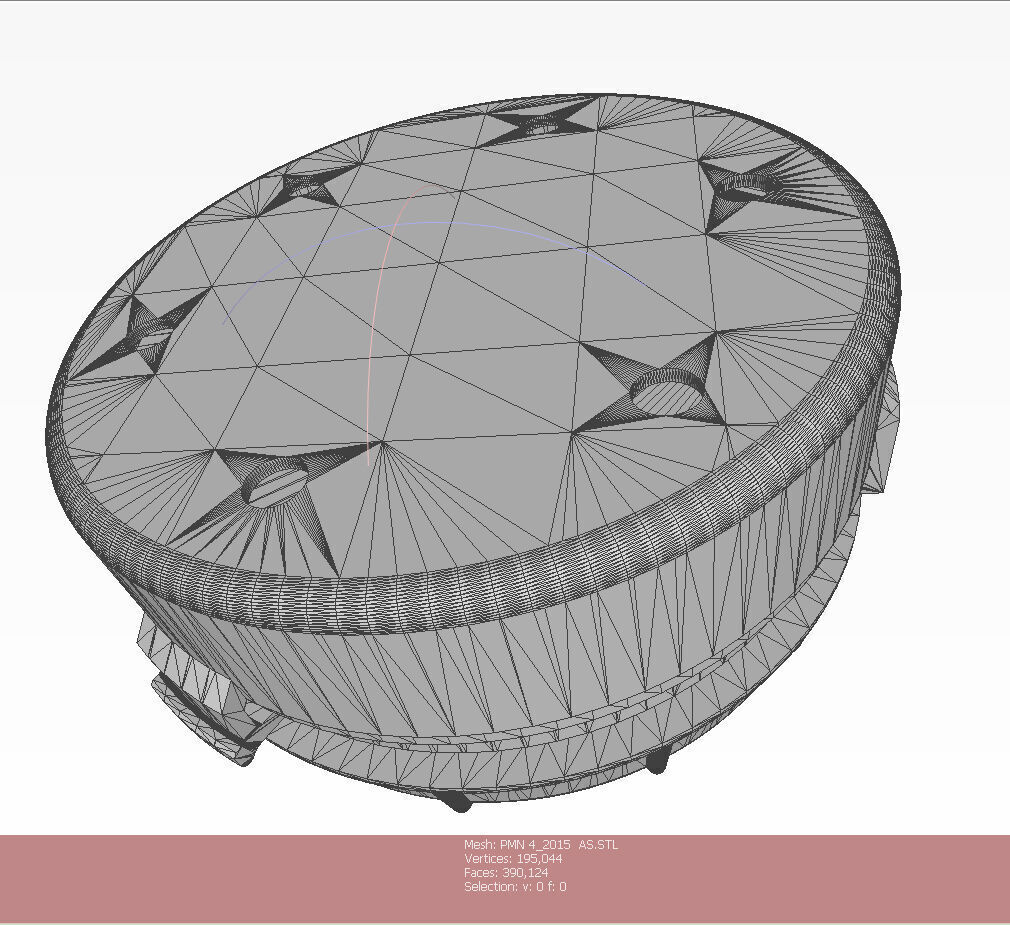

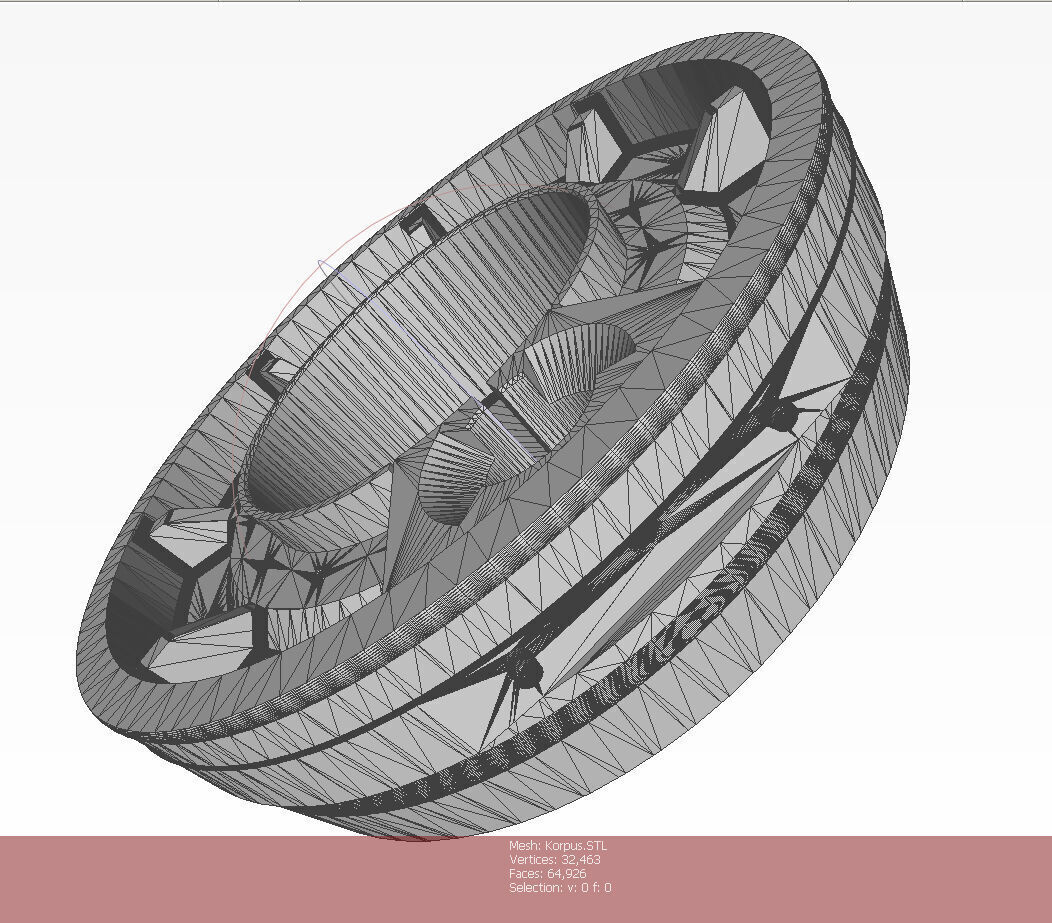

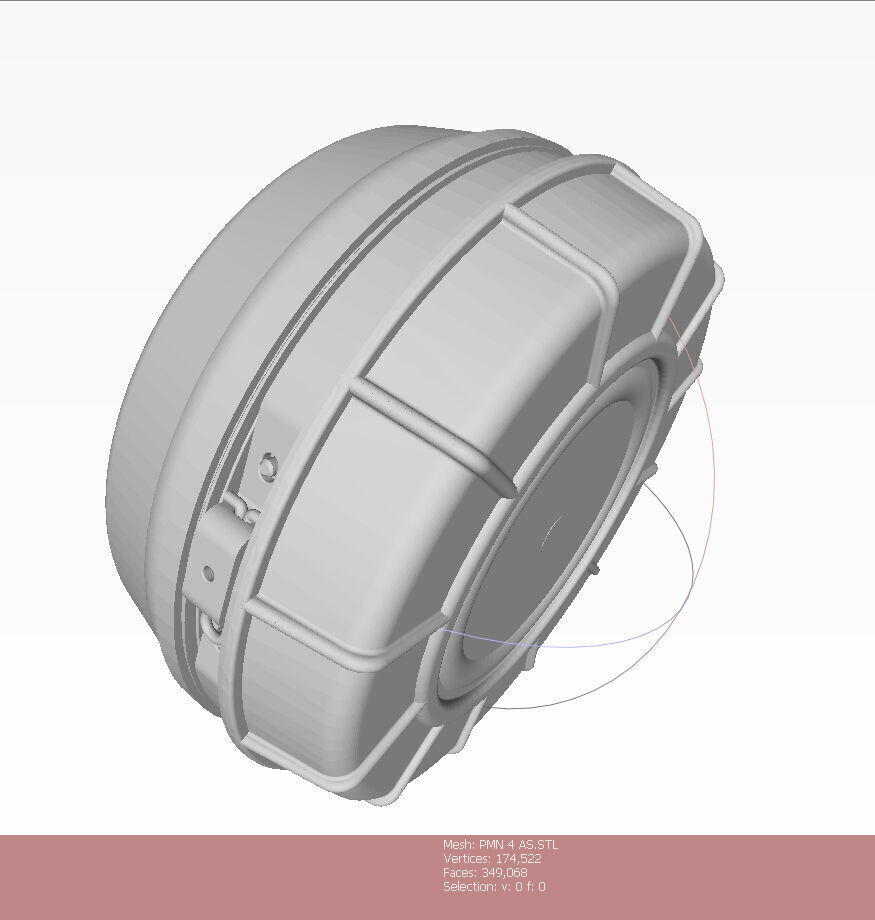

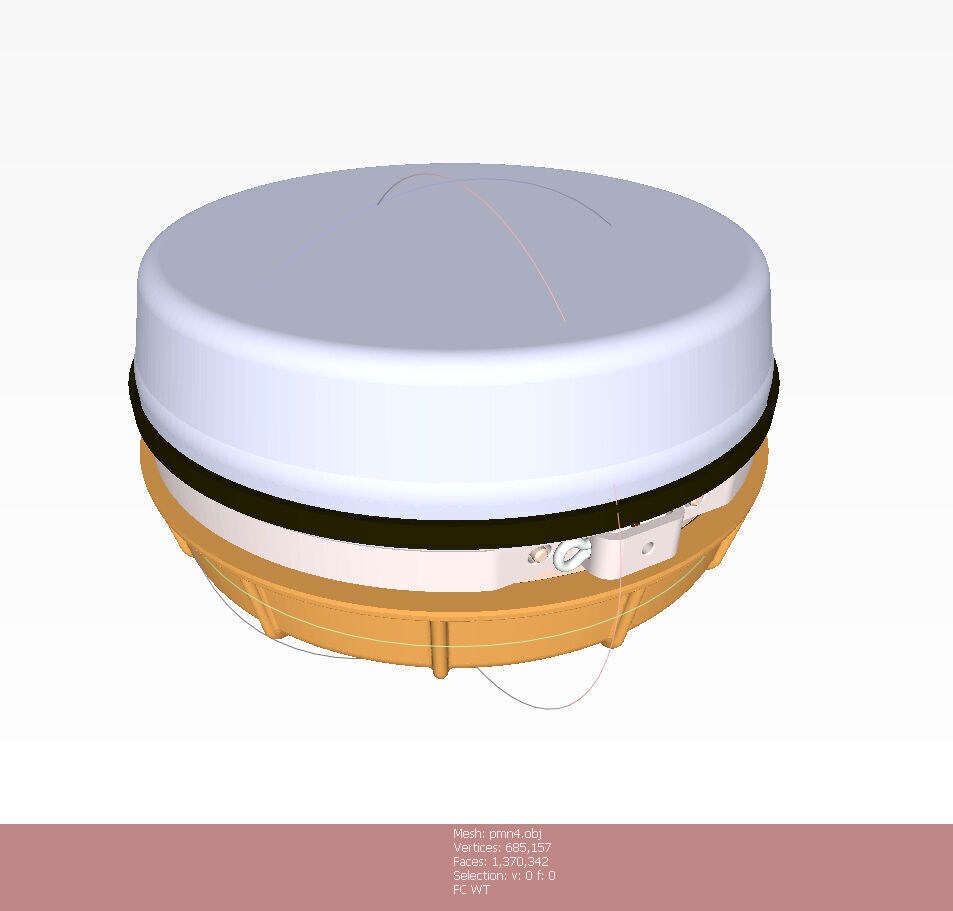

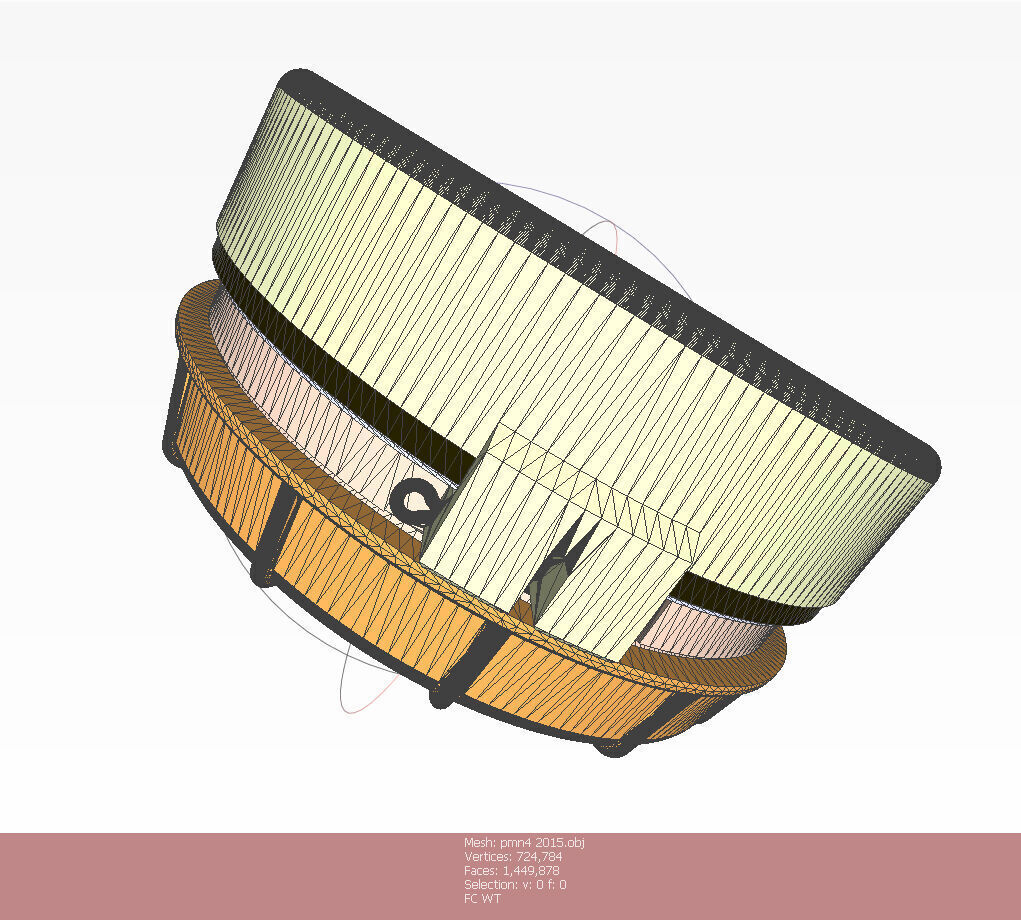

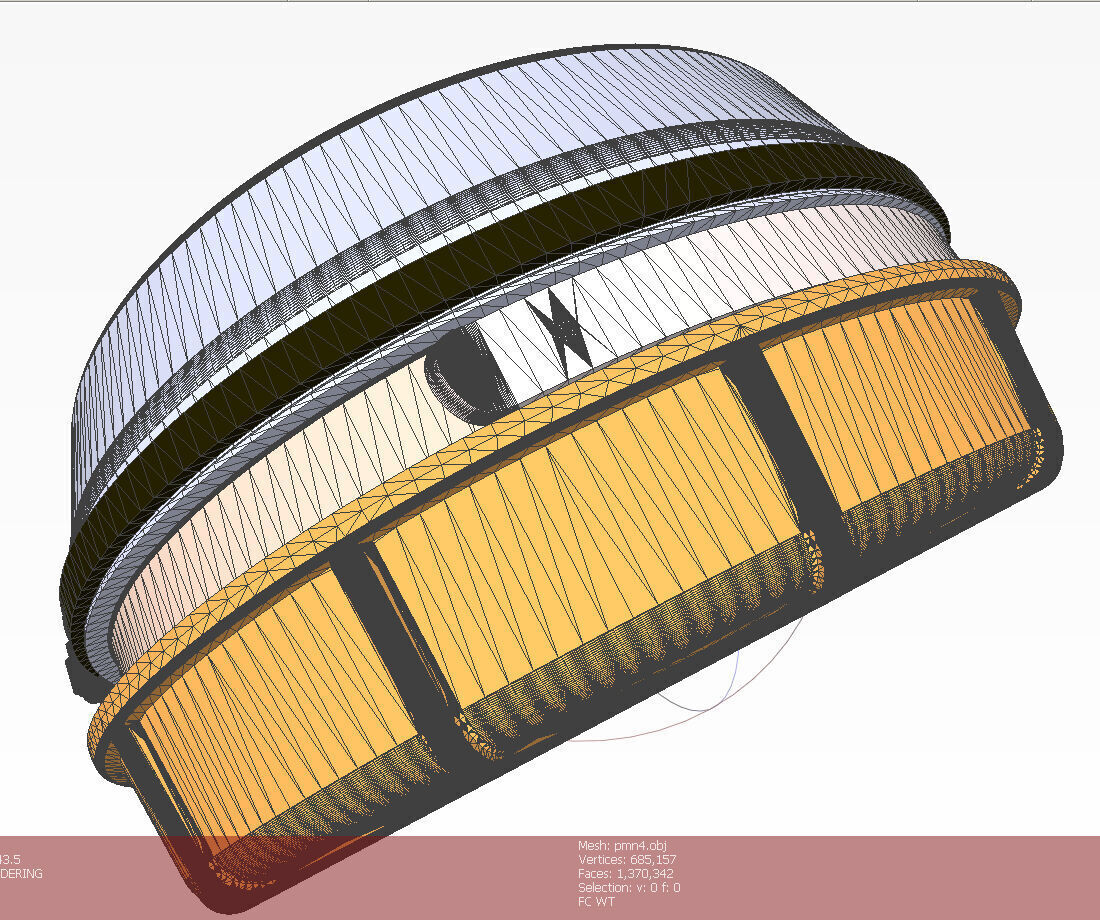

Mesh:
Vertices 685157
Faces 1370342

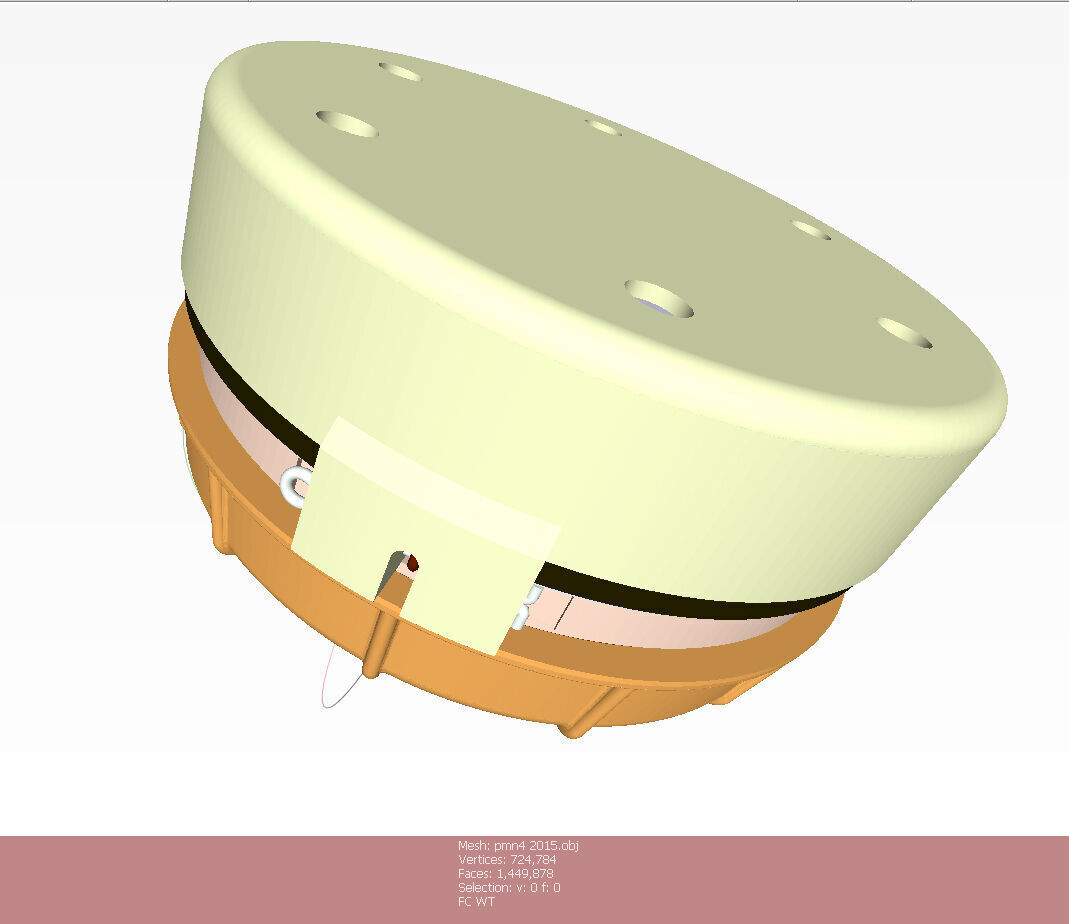

(PMN4.obj)
Please rate and write a review about this model.
If you have any questions, please feel free to email me.
Thank you.
Always willing to consider YOUR suggestions on price!
