Magnetic Yoke 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

MAGNETIC YOKE_________________________________________________________________________________________________

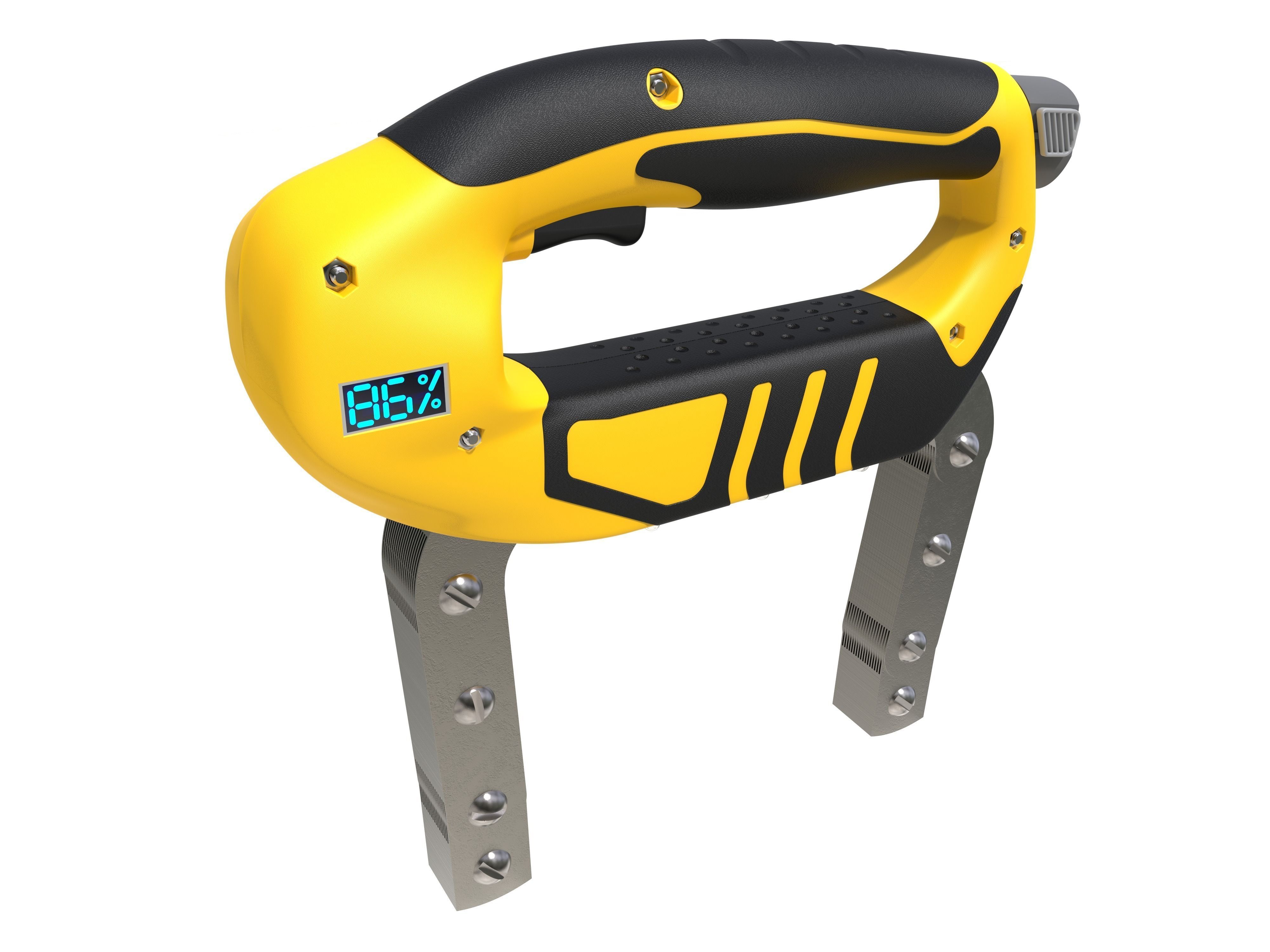

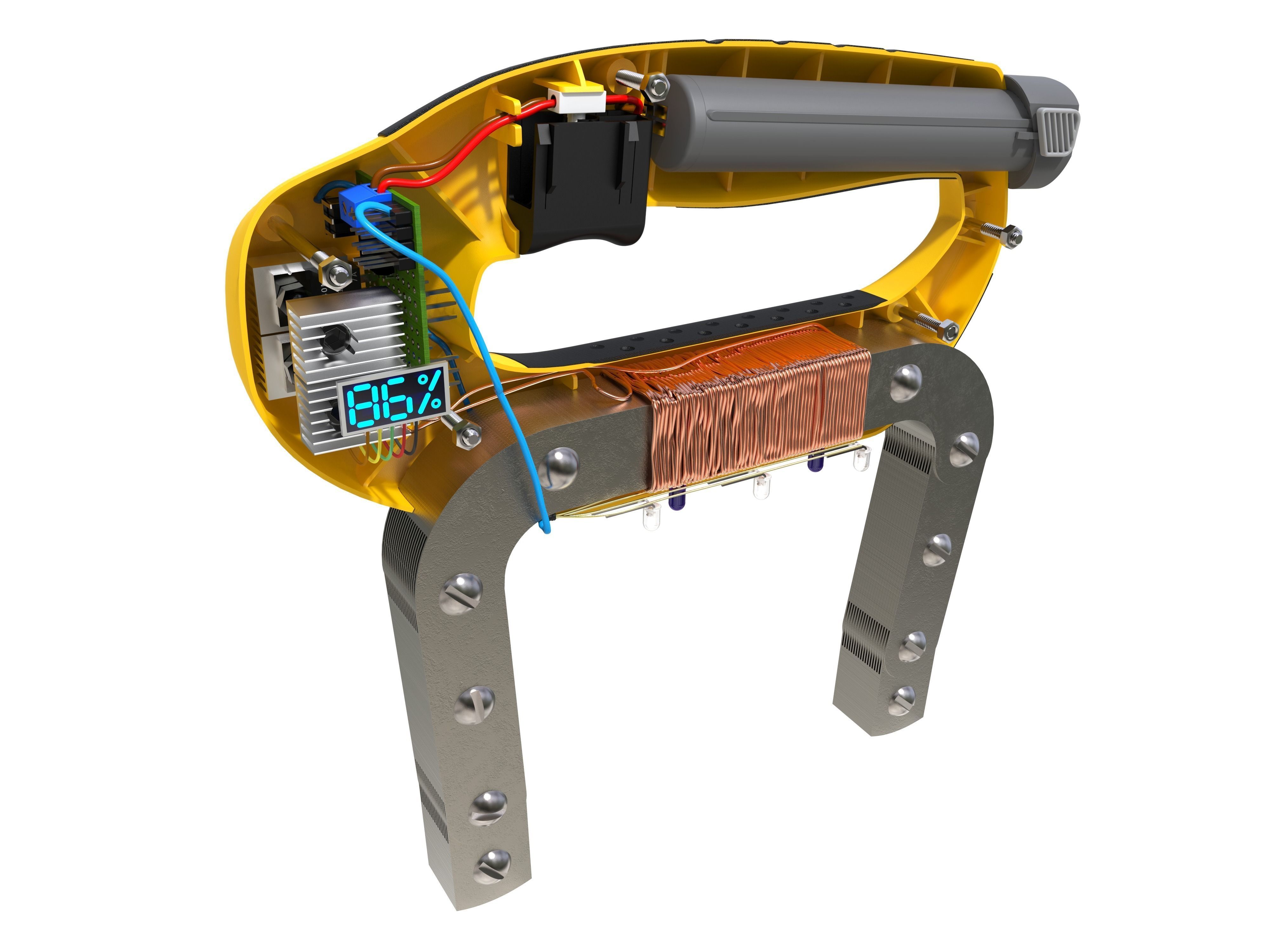

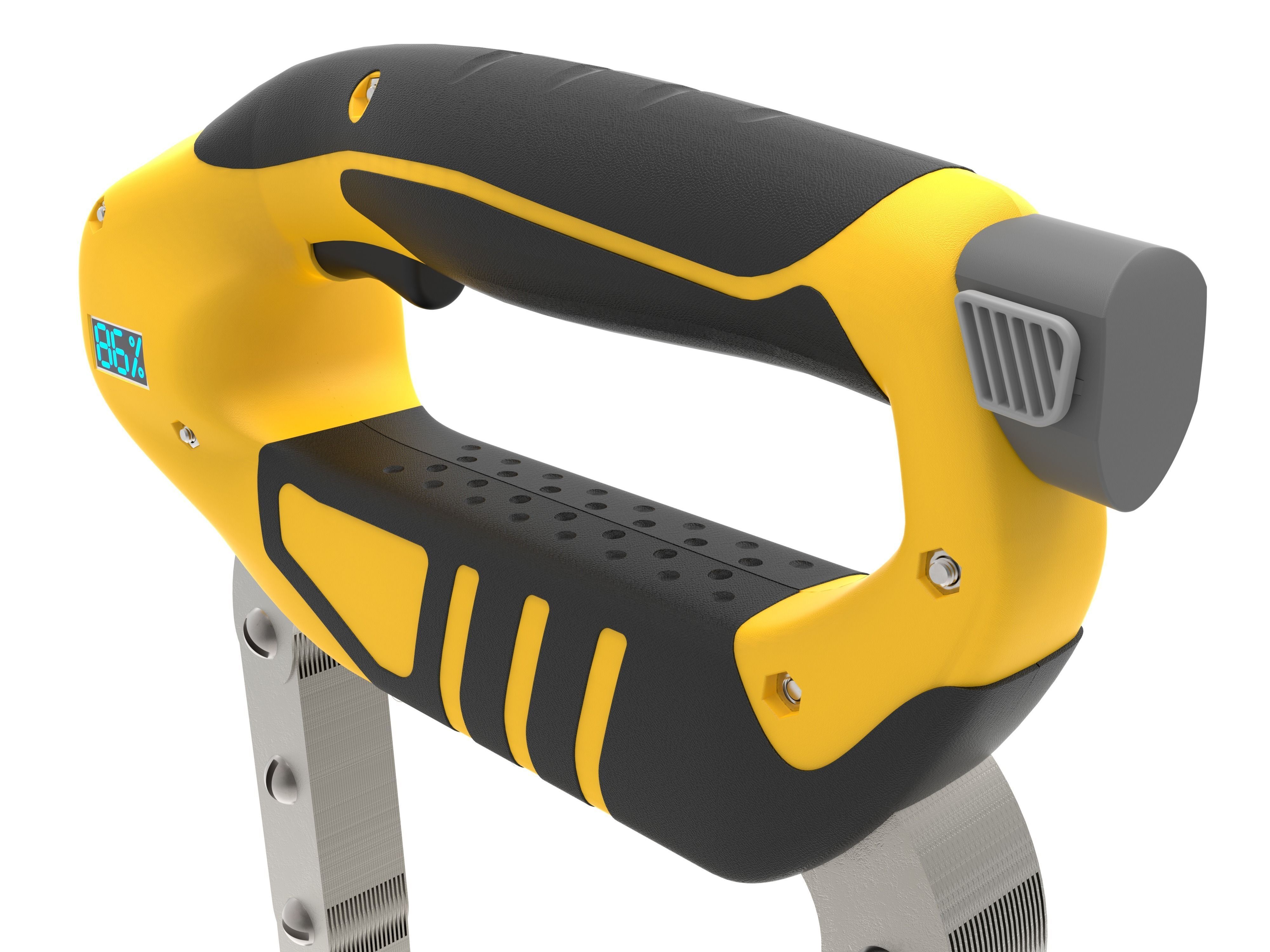

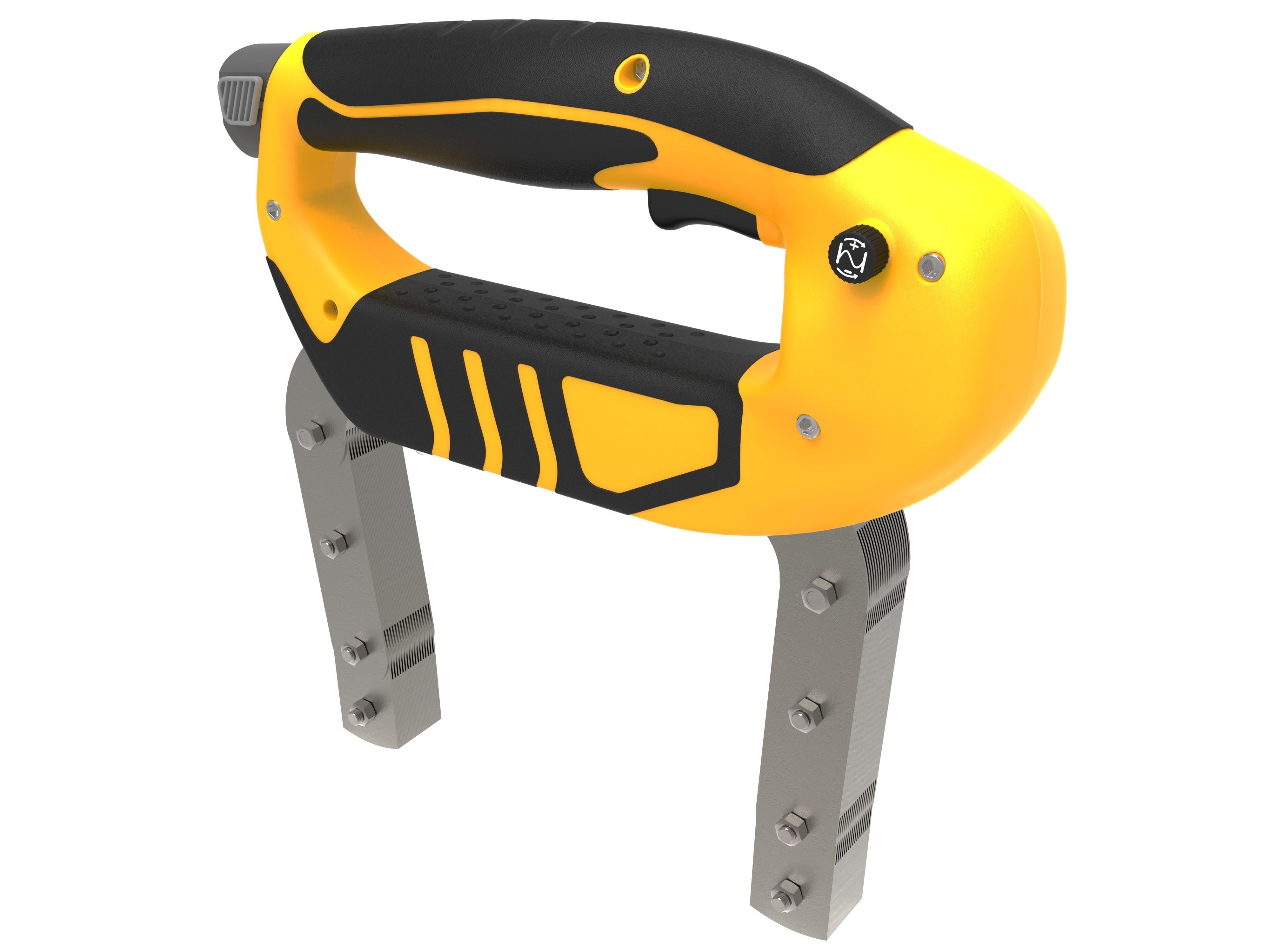

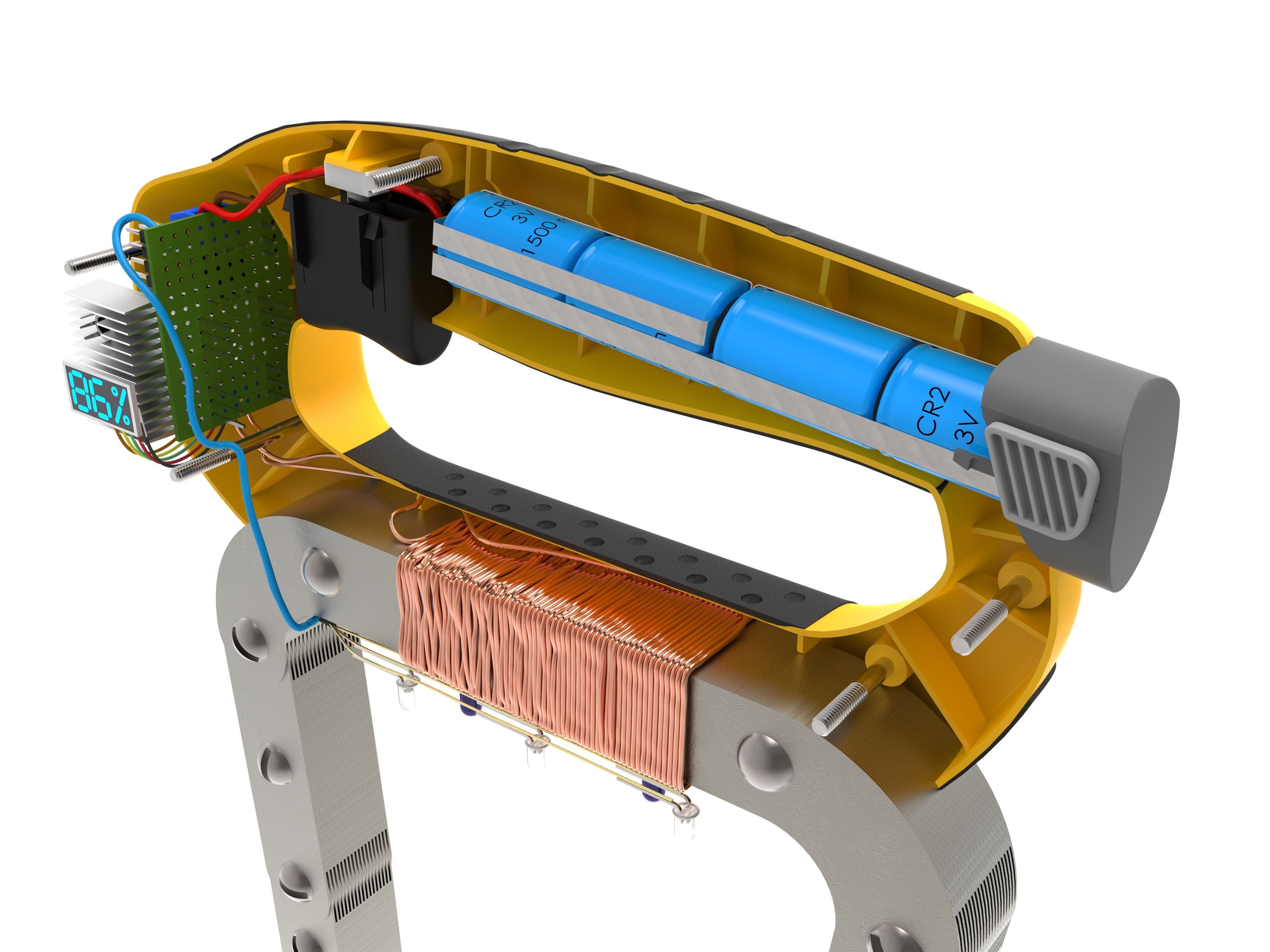

This is a device called a Magnetic Yoke, which is used in magnetic particle testing. With this device welds kan be tested for errors which are mostly undetectable with the naked eye. It's a product i designed during my study (Engineering) in the Netherlands. Due to the fact that the client does not want to go further with the product, it's possible to upload and share this innovative and yet unavailable design.

_________________________________________________________________________________________________

So i added a lot of different files because i don't know which ones are most favorite. I made it with CAD-software for industrial design and i don't think that is suitable for most. I also added a folder which contains STL-files of all the parts included (222-parts). Hope you guys like it, or atleast someone likes it. ;p

BTW: The renderings of the product are made in Keyshot.This is a device called a Magnetic Yoke, which is used in magnetic particle testing. With this device welds kan be tested for errors which are mostly undetectable with the naked eye. It's a product i designed during my study (Engineering) in the Netherlands. Due to the fact that the client does not want to go further with the product, it's possible to upload and share this innovative and yet unavailable design.

So i added a lot of different files because i don't know which ones are most favorite. I made it with CAD-software for industrial design and i don't think that is suitable for most. I also added a folder which contains STL-files of all the parts included (222-parts). Hope you guys like it, or atleast someone likes it. ;p

_________________________________________________________________________________________________

BTW: The renderings(visualisations) of the product are made in Keyshot.

If there is a need for another file type, please contact me.
