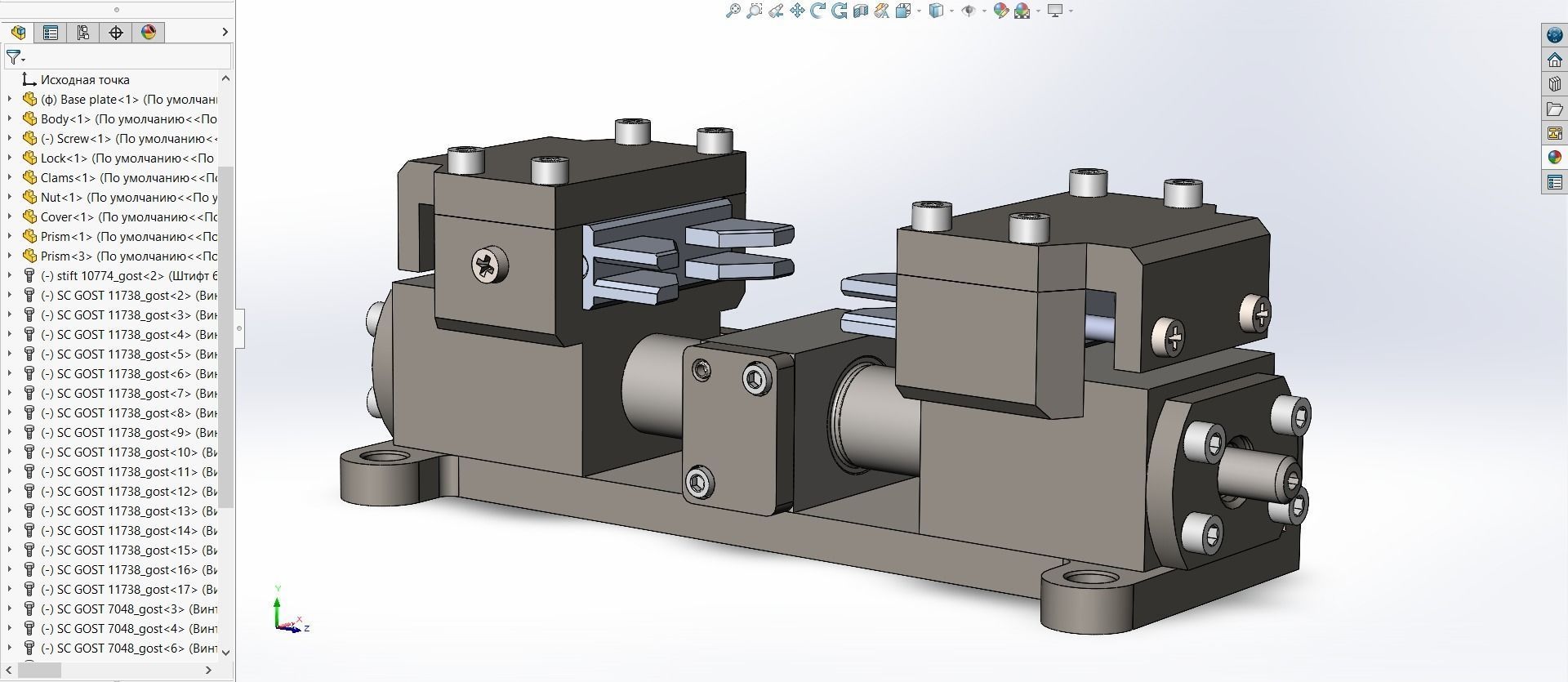

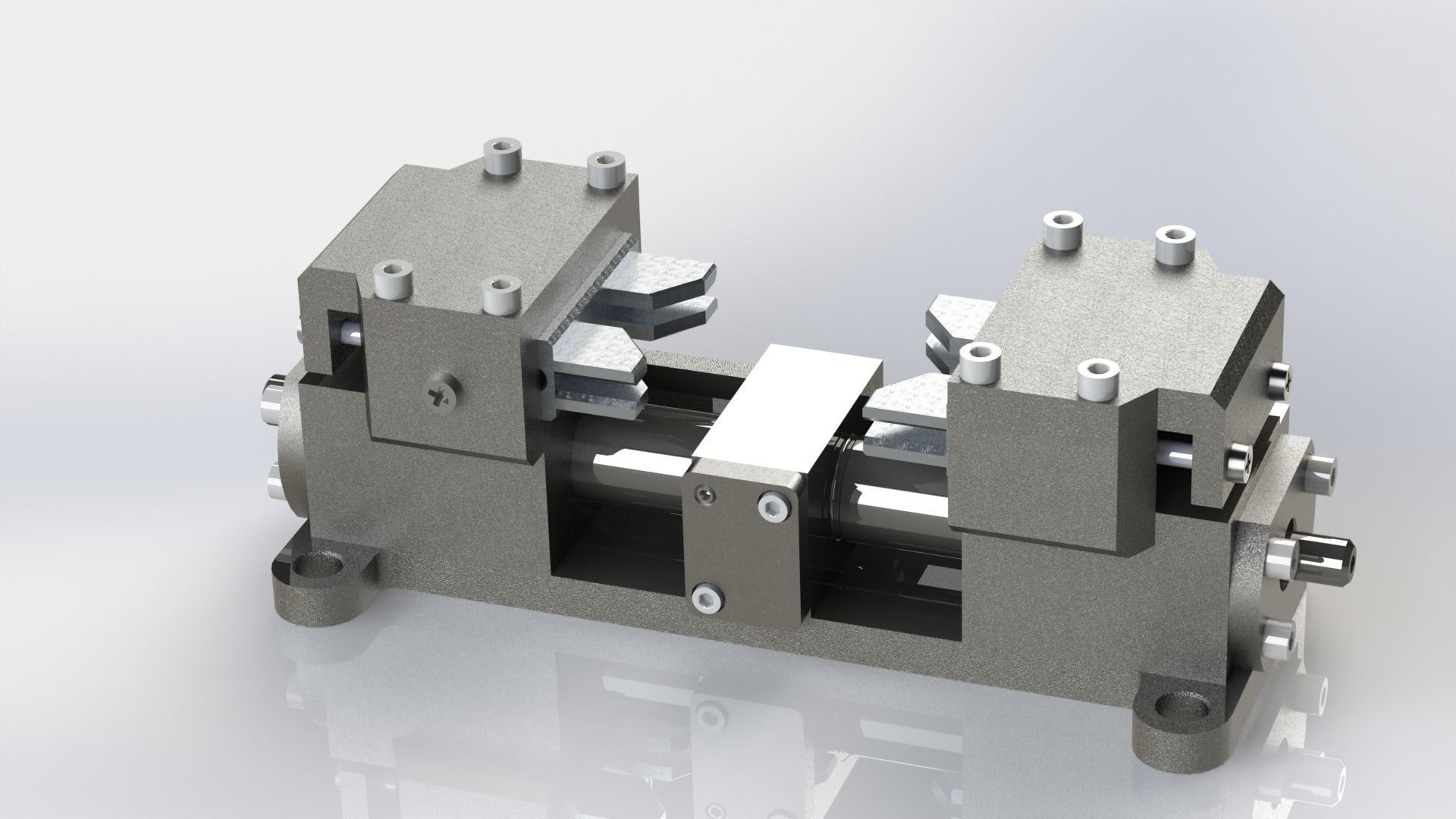

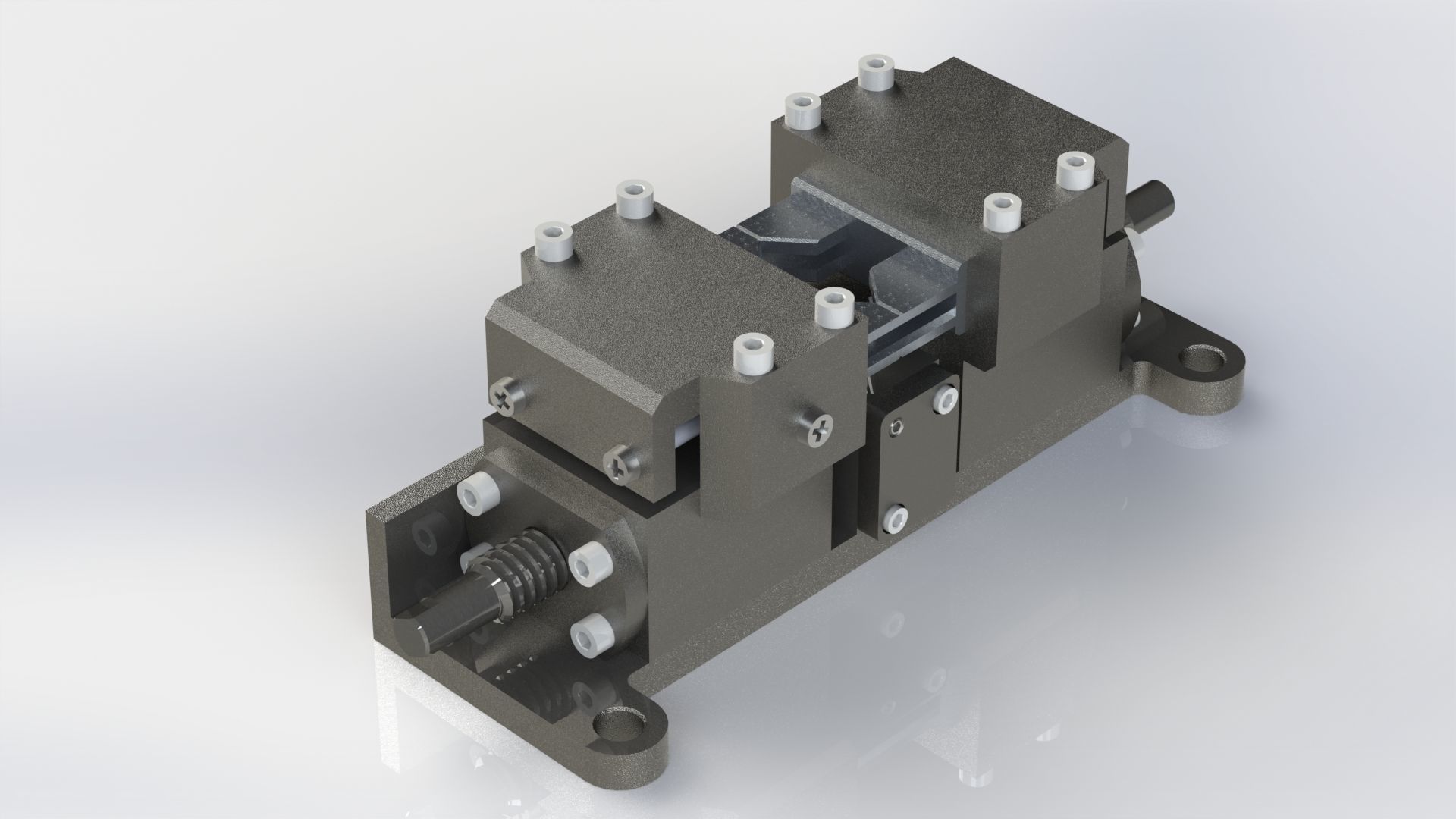

Machine vice with movable replaceable jaws 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Compact machine vice (320x114 mm). The vise jaws move symmetrically towards the center. Mechanical relationships are used for the mobility of the model. Include a pdf 3d model

------------------------------------------------

Includes:

-Models of all vise assemblies

-Assembly model

-Toolbox models

------------------------------------------------

Files format contains:

-SOLIDWORKS 2021 (SLDASM, SLDPRT)

-IGES

-STEP AP203(only Assembly)

-STEP AP214(only Assembly)

-PDF (3D preview)

-JPEG (preview)

-PNG ( preview with transparency)

------------------------------------------------

If you like,you can buy for you to get this models or if you have any questions also you can email to me. Designed with SolidWorks 2021, render with PhotoView 360

------------------------------------------------
