Cylinder driving rack and pinion rotating mechanism 3D model

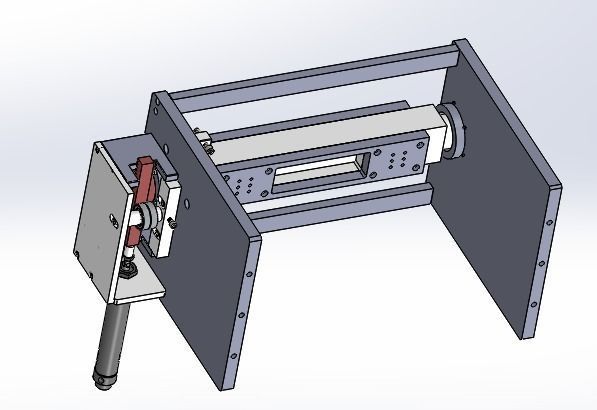

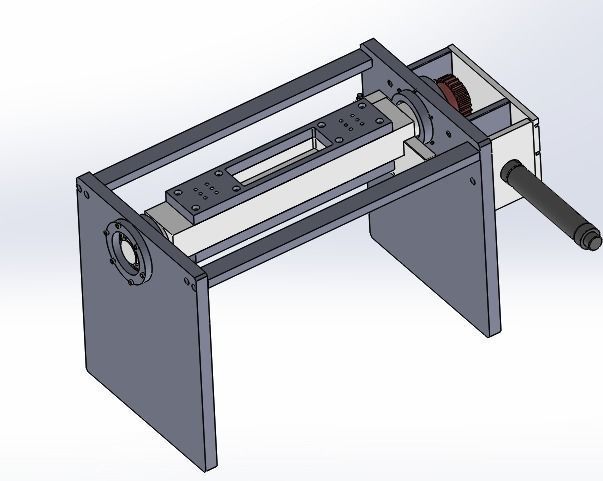

Cylinder driving rack and pinion rotating mechanism, this mechanism through the effect of rack and pinion schedule 180 ° rotation, using the linear motion of the cylinder is transformed into Angle rotation motion.The accuracy of the Angle is completed by the position constraint mechanism, and the whole model is representative in the Angle rotation application.
