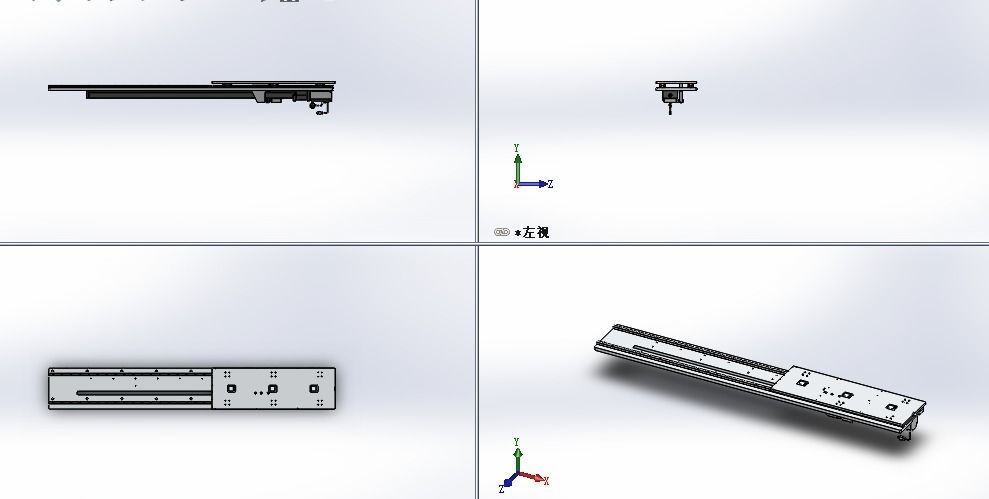

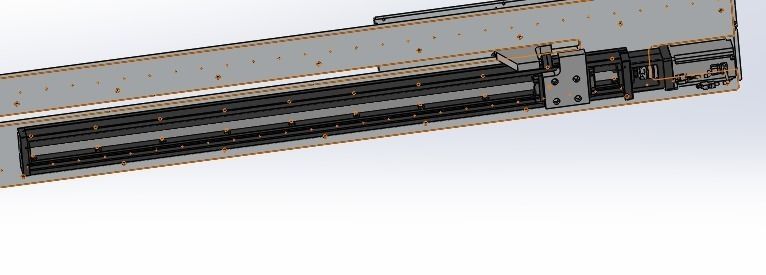

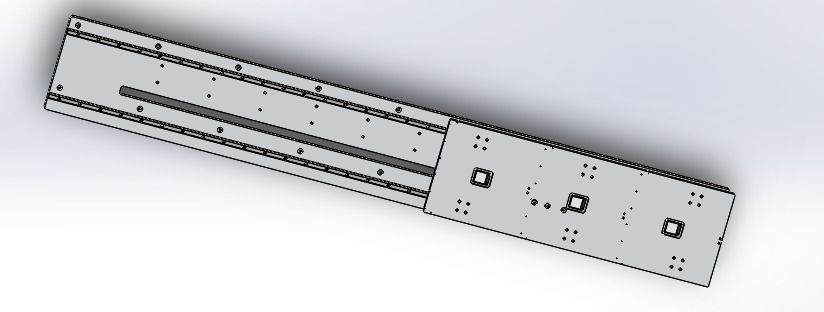

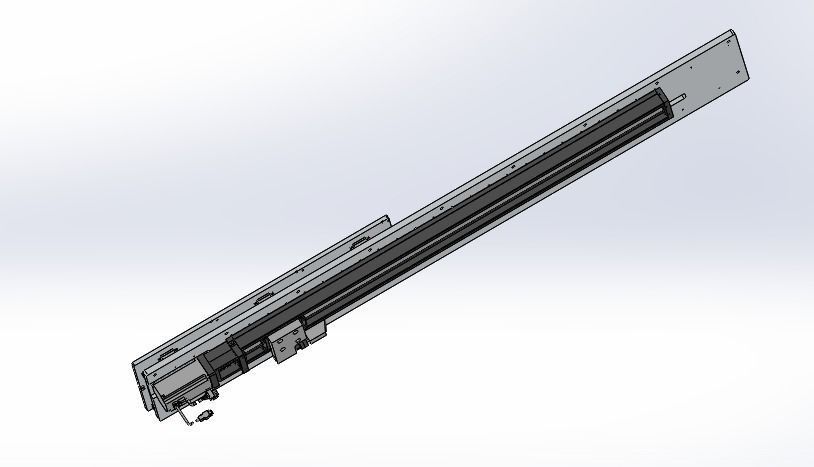

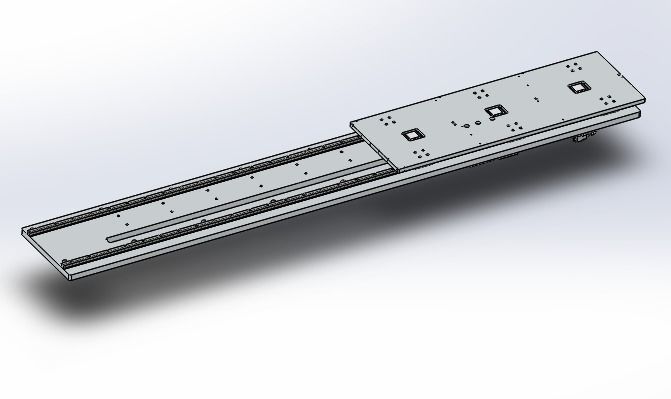

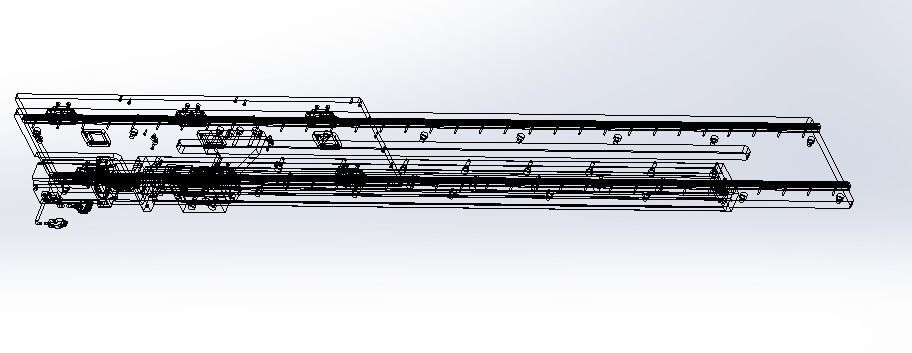

Ultra long stroke slide rail module-fine tuning 3D model

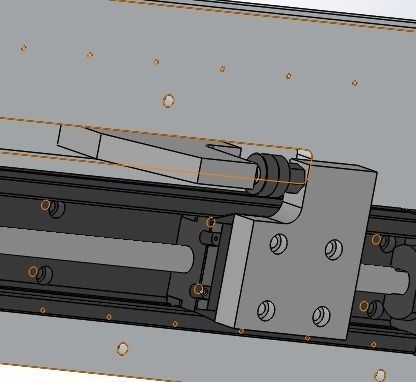

Long stroke slide eliminate installation does not parallel mechanism, the mechanism used for some super long module, for the adjustment of the slide rail parallelism is the difficult problem, because in the machining process of tolerance, the bigger the longer the plane is more likely to parallelism is difficult to guarantee, the model through a simple mechanism can eliminate this kind of error, is very classic, welcome to download.
