Laminating clamp

Laminating clamp 3D model

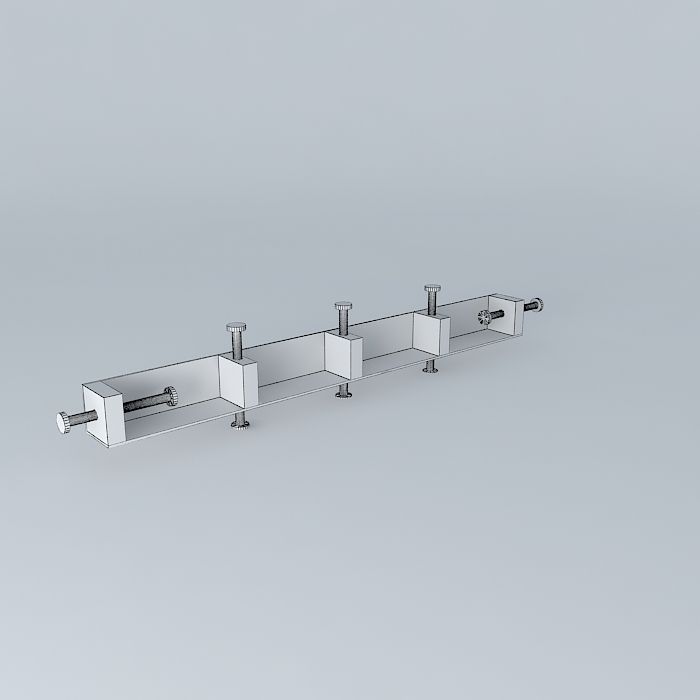

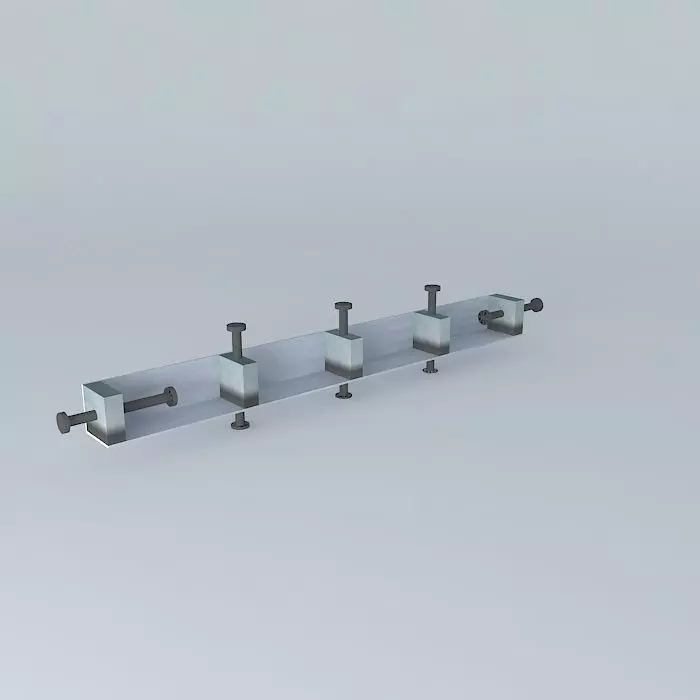

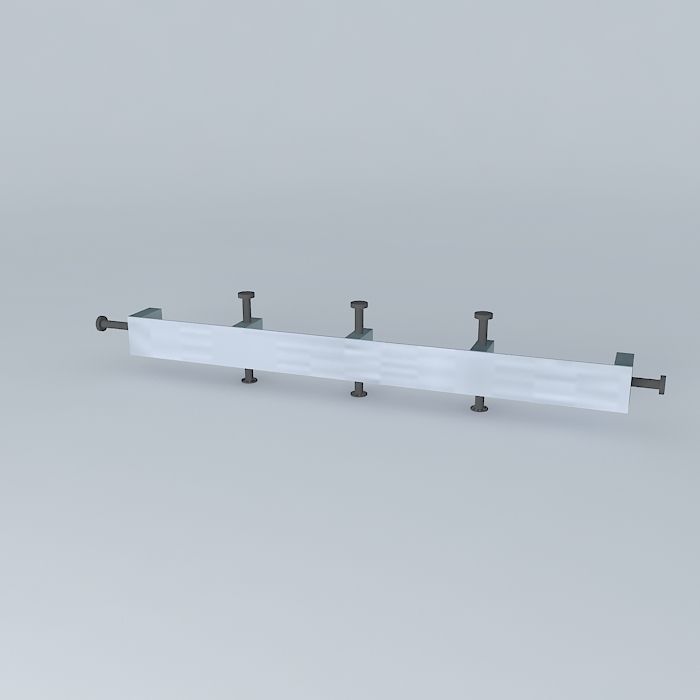

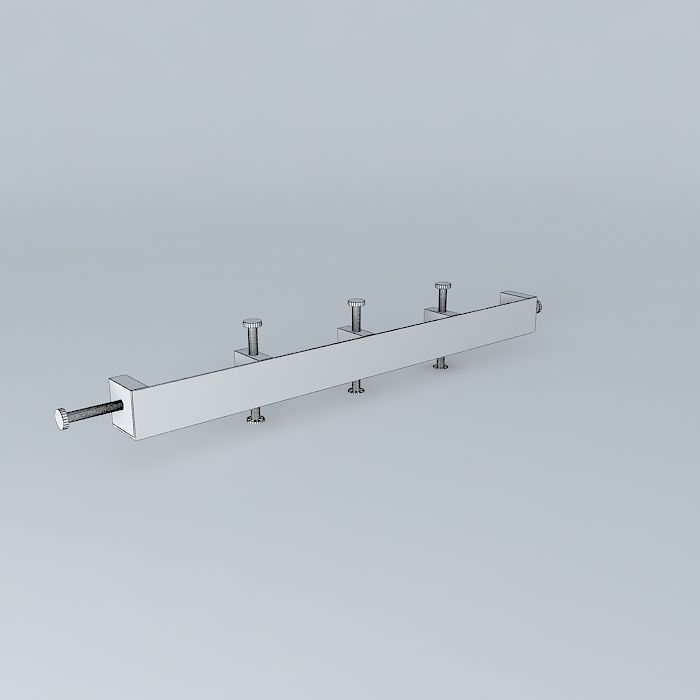

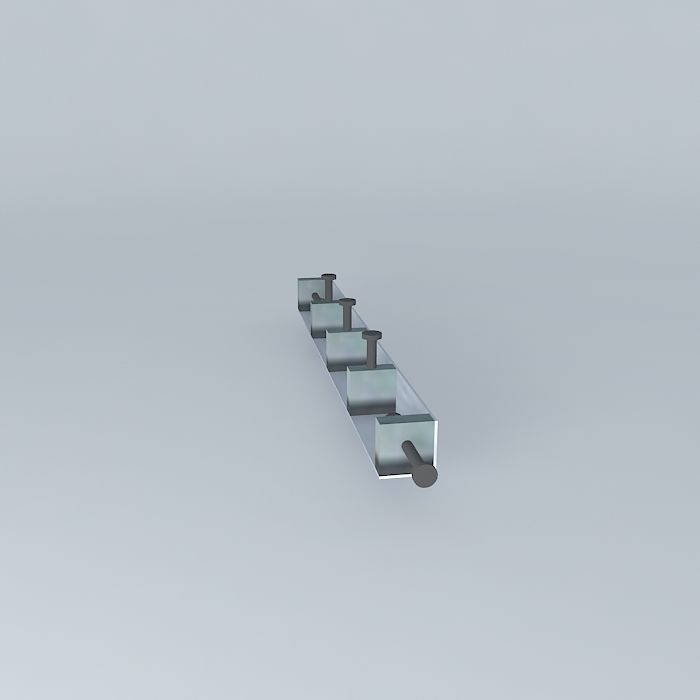

This 3D model was originally created with Sketchup 8 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 Whenever the back vertical was to be laminated inside a cabinet, there was always a problem. I have designed this clamp which facilitates laminating of the vertical surfaces. The ends will lock on the to the cabinet walls. The middle pads will press the laminate against the wall. A strip of ply will be placed between the pad and the laminate so that the pressure is evenly distributed.

Item rating
0 0
Laminating clamp
Royalty Free License
Laminating clamp
Royalty Free License
Response 0% in 48.0h
Low-poly Modeling
Hire me

3D Model formats

Format limitations
  • 3D Studio (.3ds)17.7 KB
  • Collada (.dae)59.7 KB
  • Autodesk FBX (.fbx)31.1 KB
  • IGES (.ige, .igs, .iges)299 Bytes
  • Autodesk 3ds Max (.max)68.3 KB
  • OBJ (.obj, .mtl) (2 files)29.9 KB
  • Sketchup (.skp)65.5 KB
  • Stereolithography (.stl)33.6 KB
  • Other 11.7 KB

3D Model details

  • Publish date2015-10-27
  • Model ID#195156
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures -
  • Materials -
  • UV Mapping -
  • Unwrapped UVs Unknown
  • Plugins used -
  • Ready for 3D Printing
