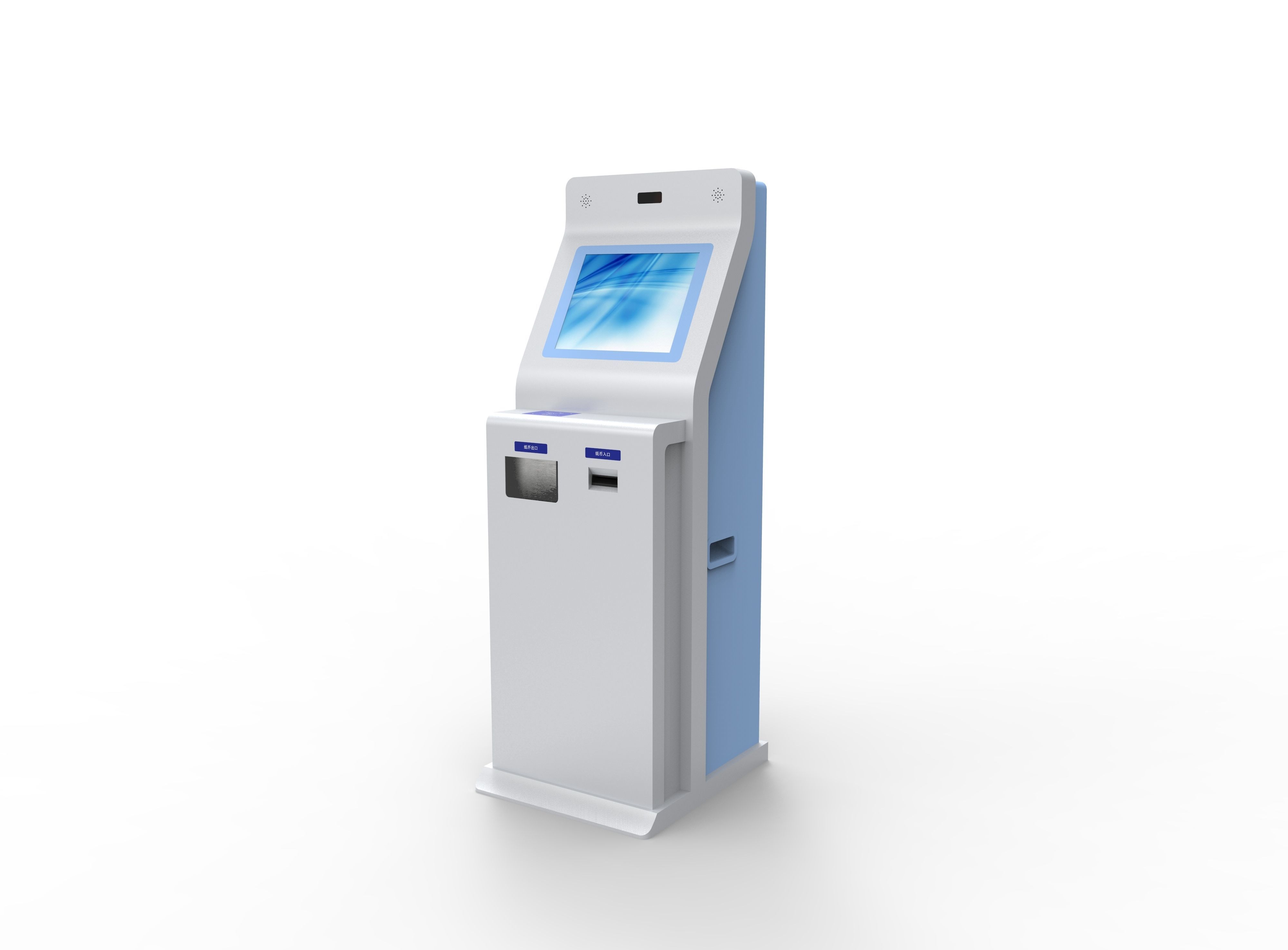

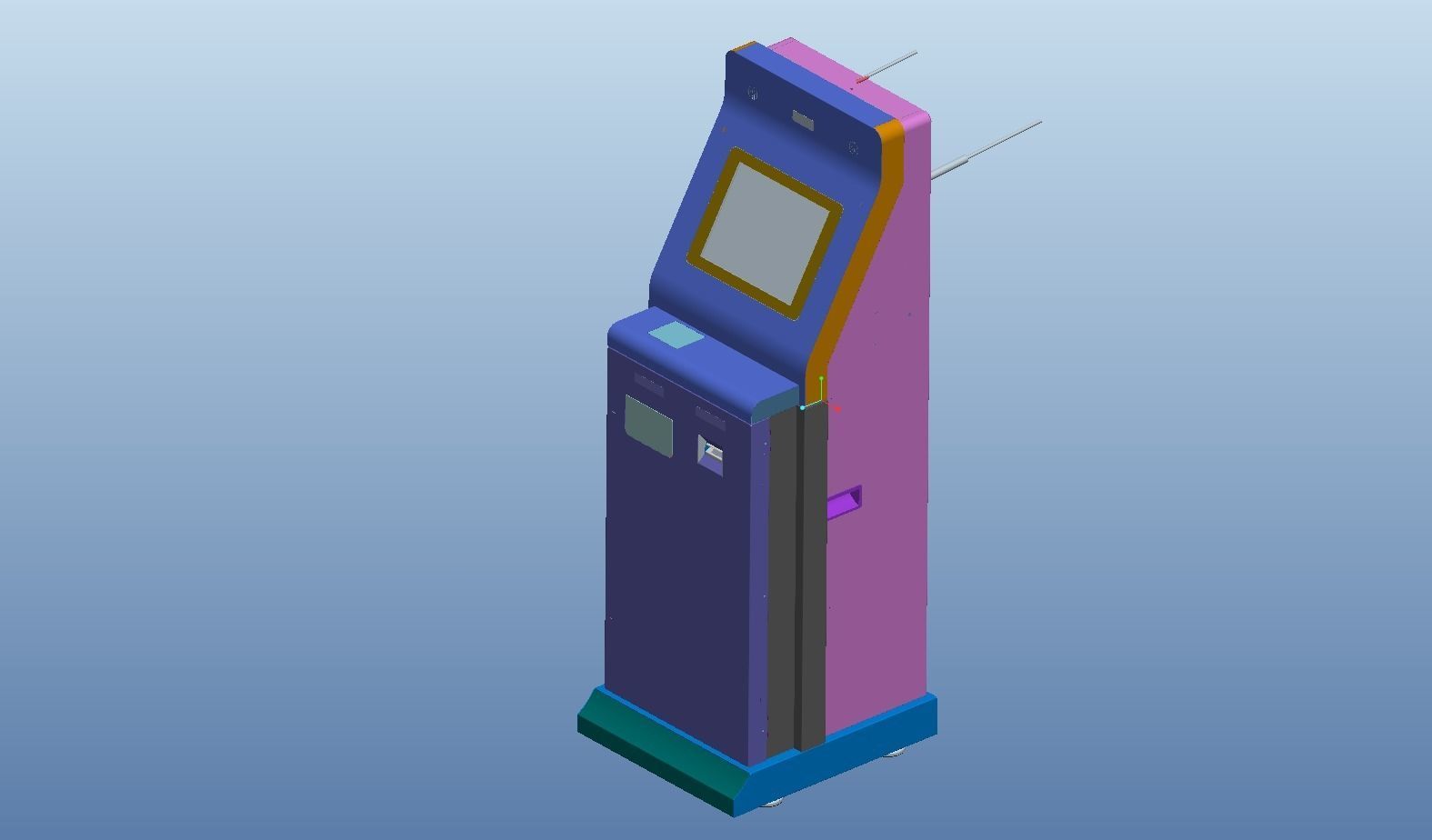

Parking charge machine 3D model

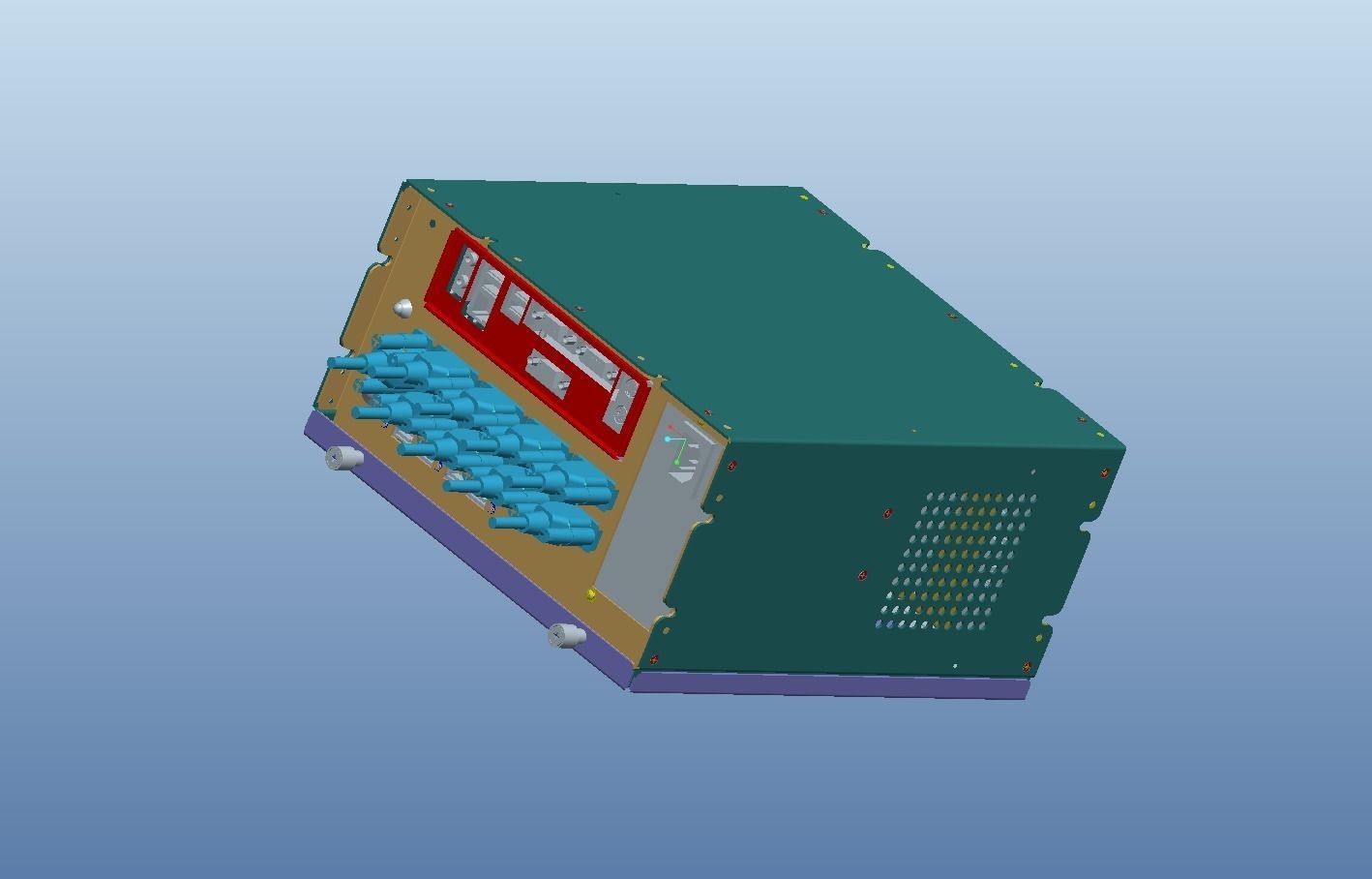

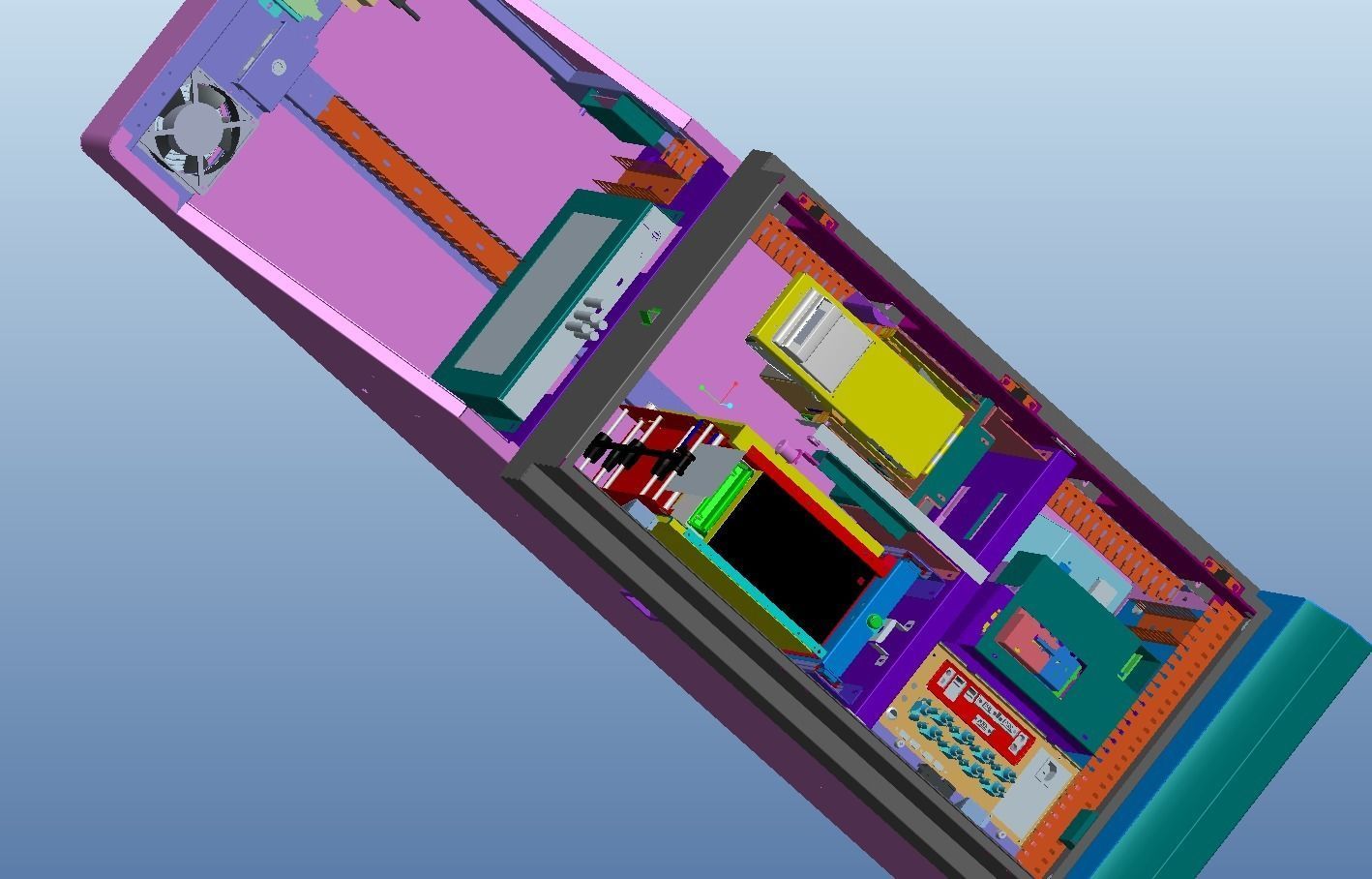

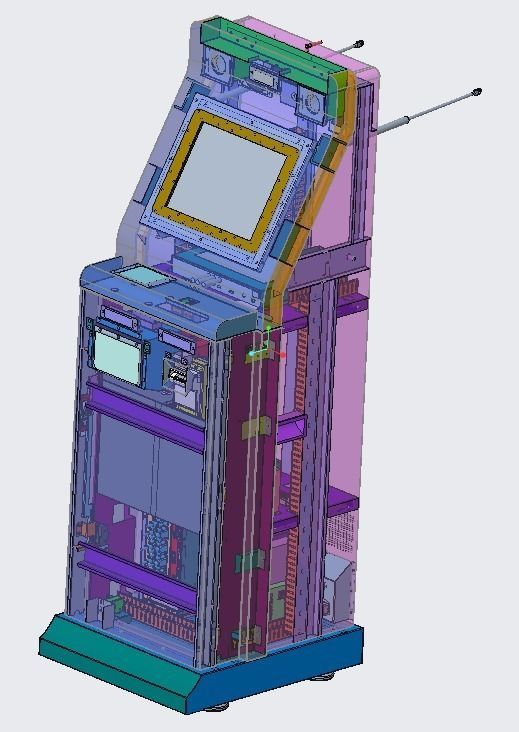

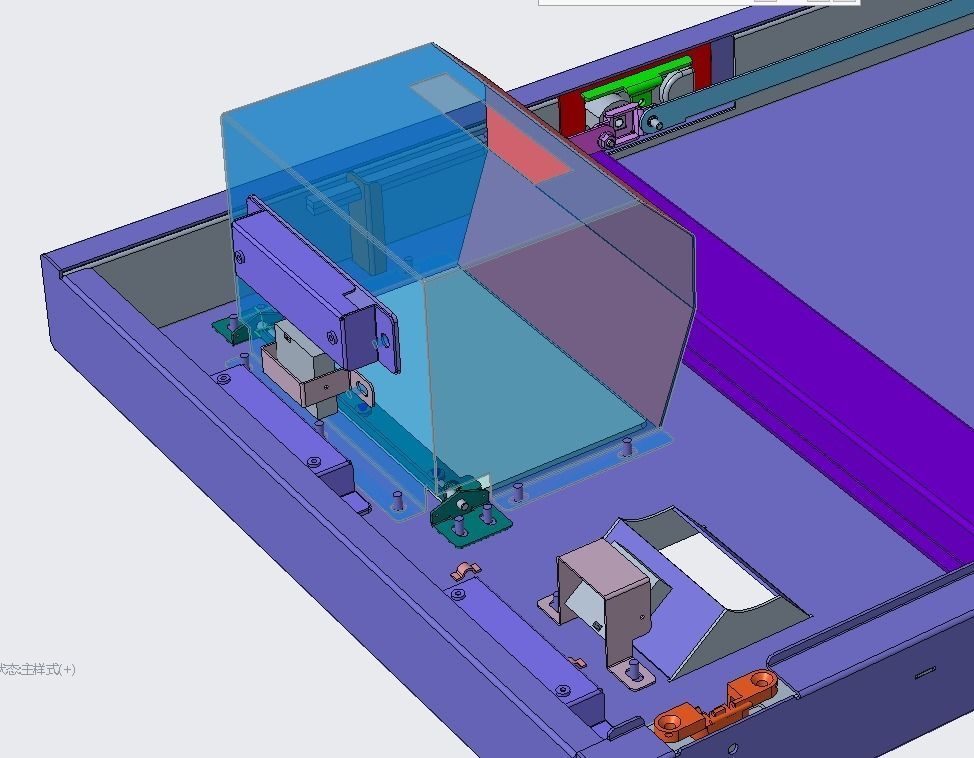

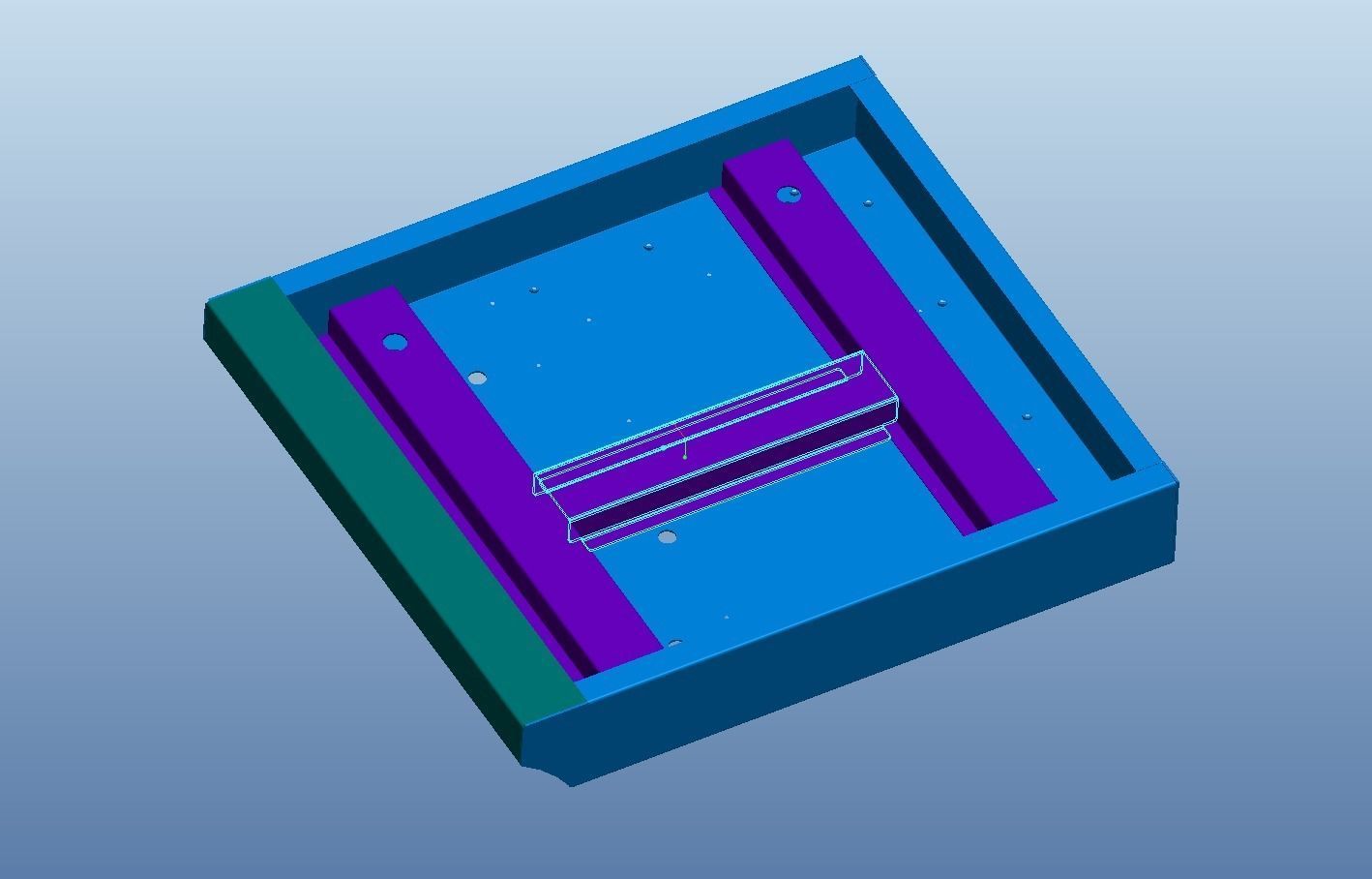

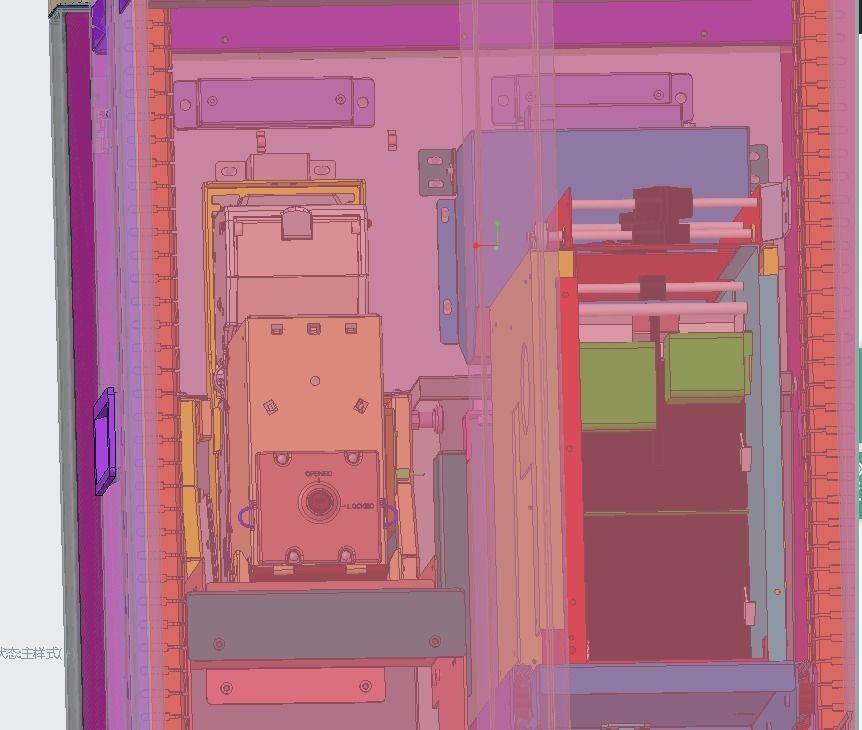

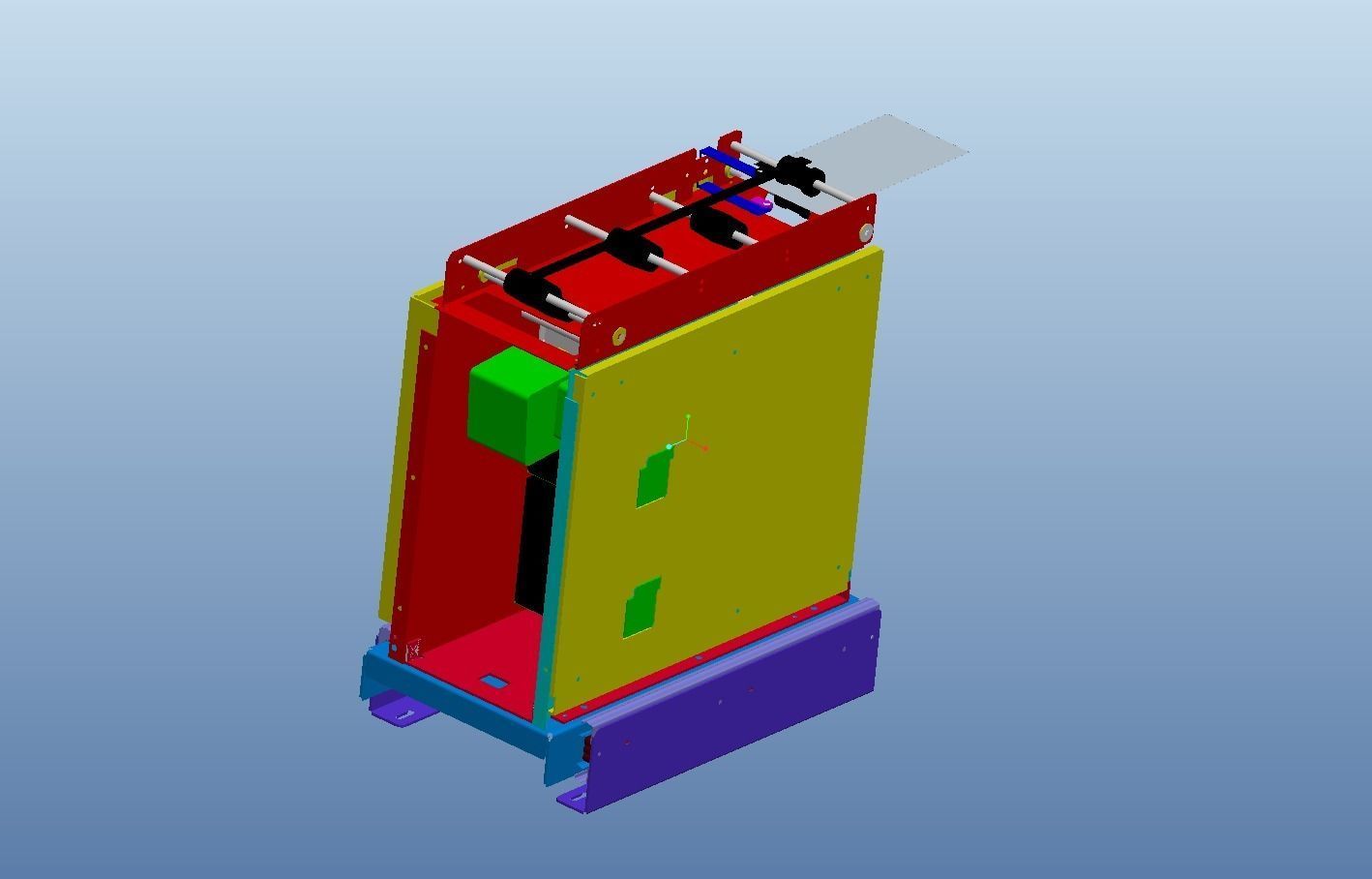

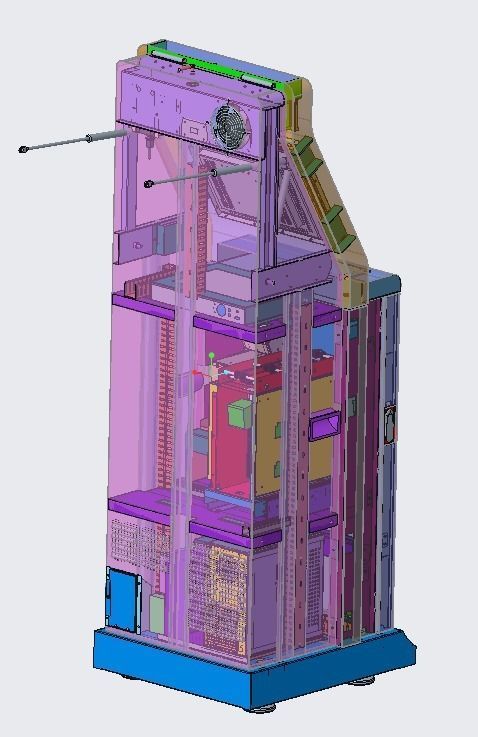

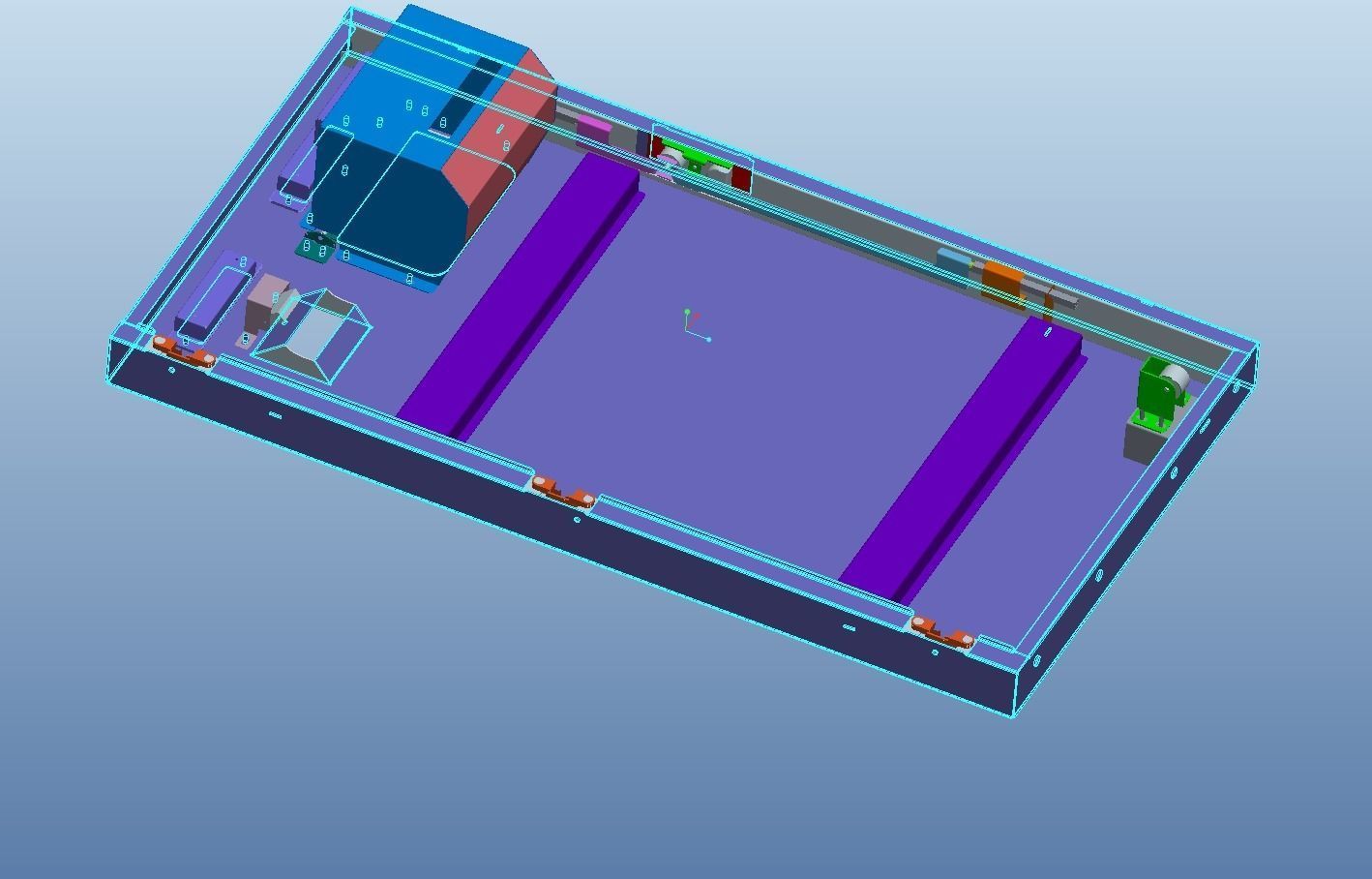

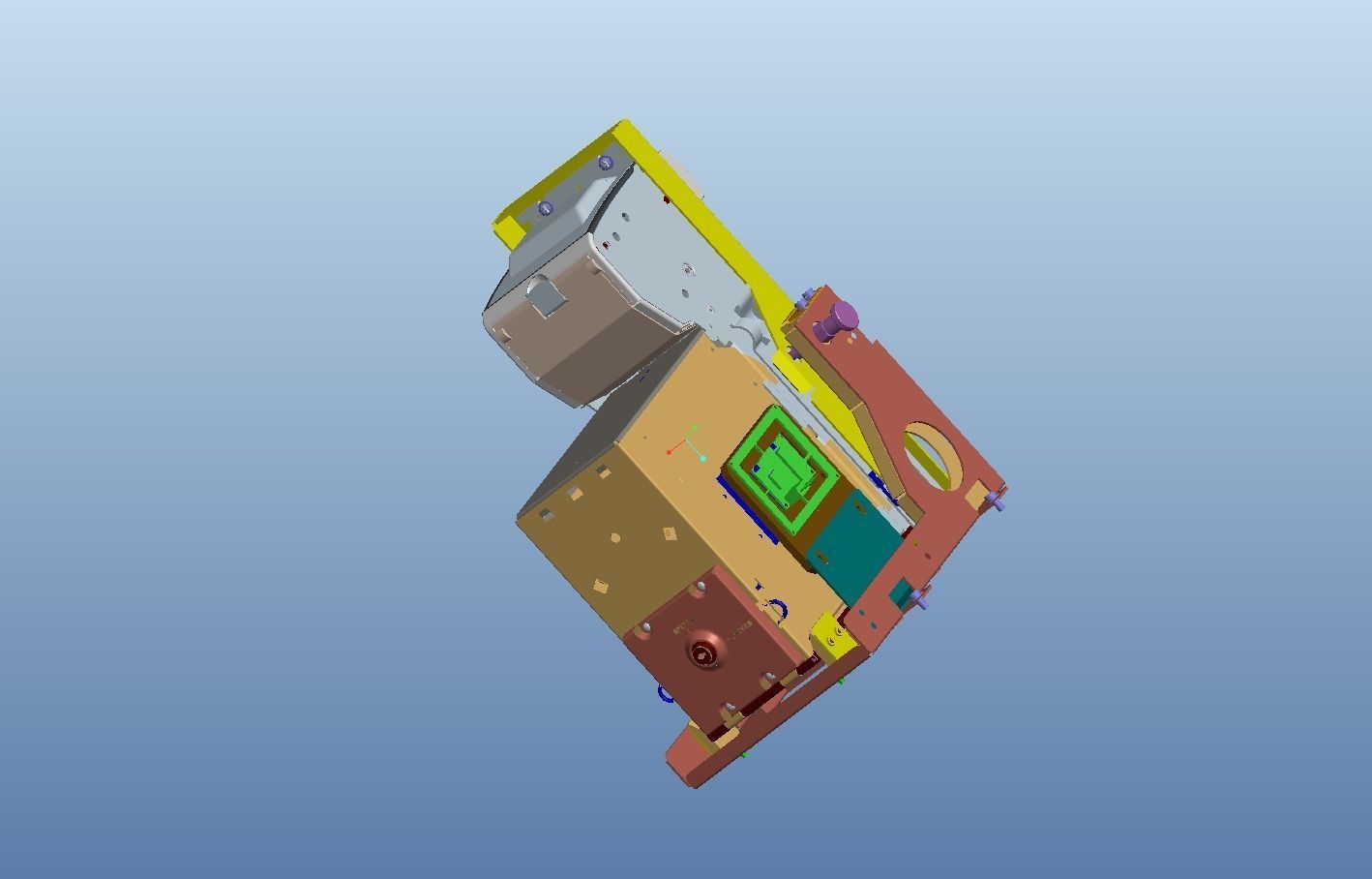

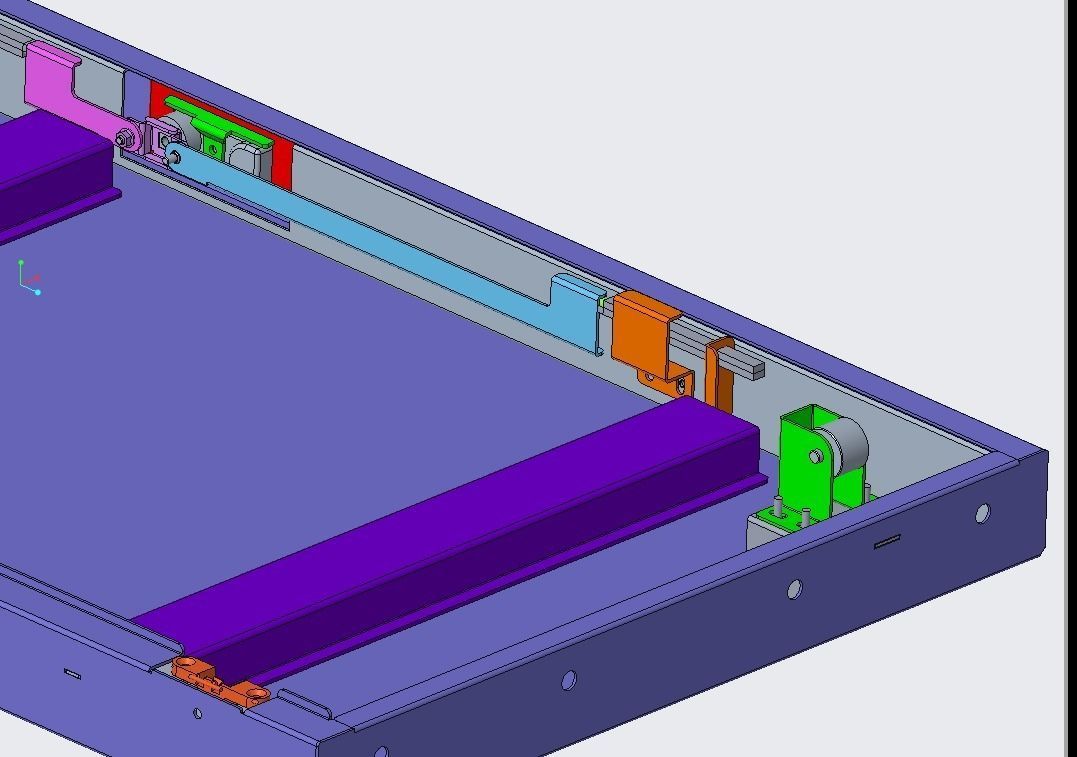

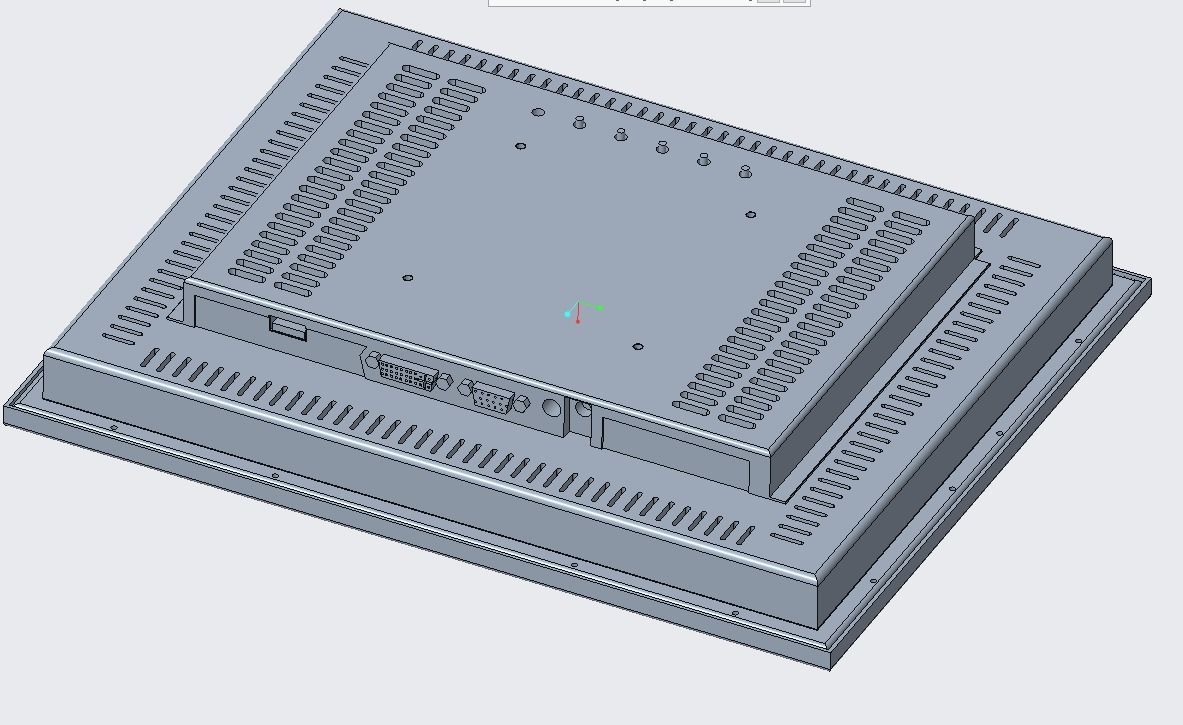

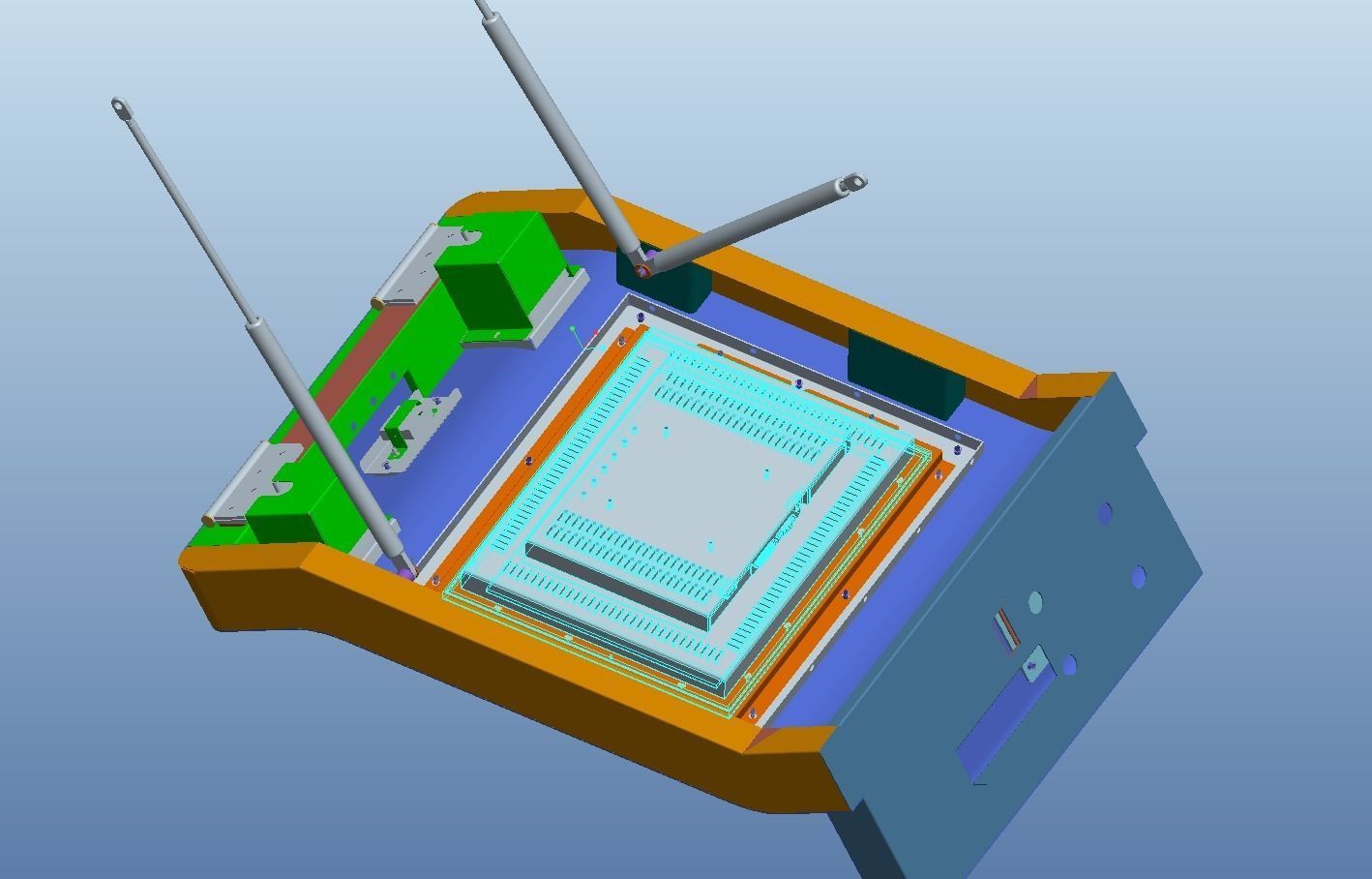

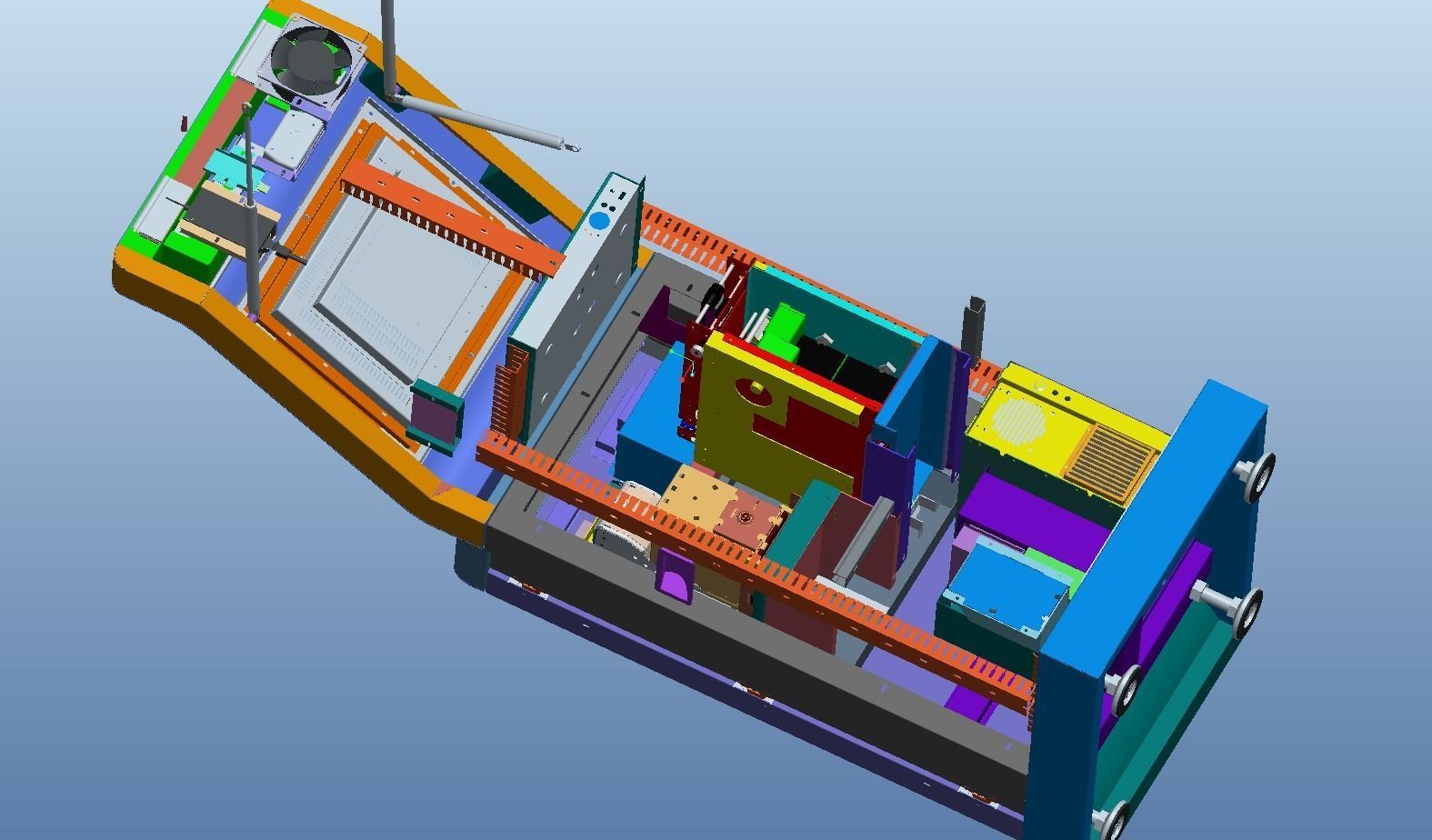

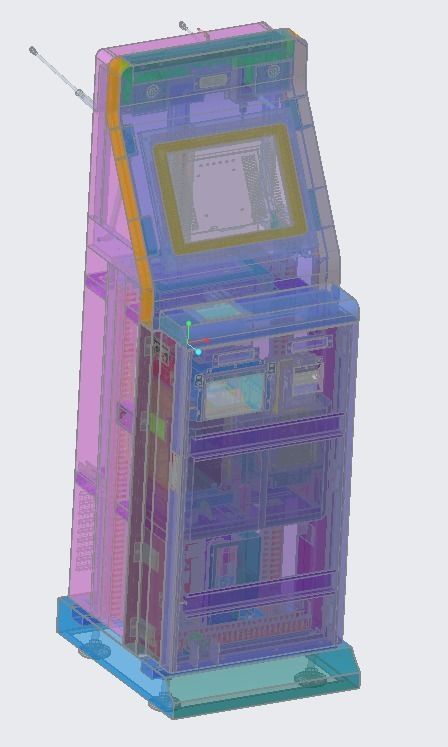

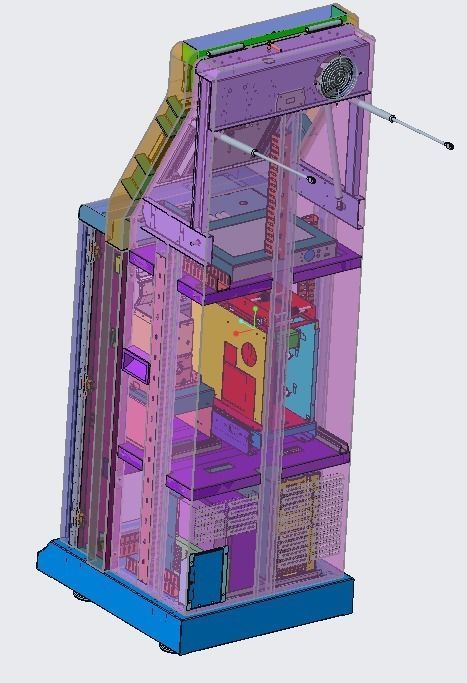

The main production process of this parking lot toll machine is made of sheet metal. The front cover is opened by a gas spring flip cover. The structure is assembled by the cabinet, base, front door frame, door and face cover. The internal electrical appliances are mainly composed of industrial computer components, money input mechanism, change mechanism, etc. Since all parts of the assembly have been assembled except the wires are not added, there are many parts, probably more than 500. There is no problem in terms of structure and function. As a study, it is also a good choice, especially in the design of sheet metal structures. The parts here are drawn using sheet metal modules according to the production process. There are also complete 2D drawings. Friends who like it can download it. ,Thank you.
