Electrical Transformer with Assembly 3D model

Description

This is an assembly of an Electric Transformer Component List

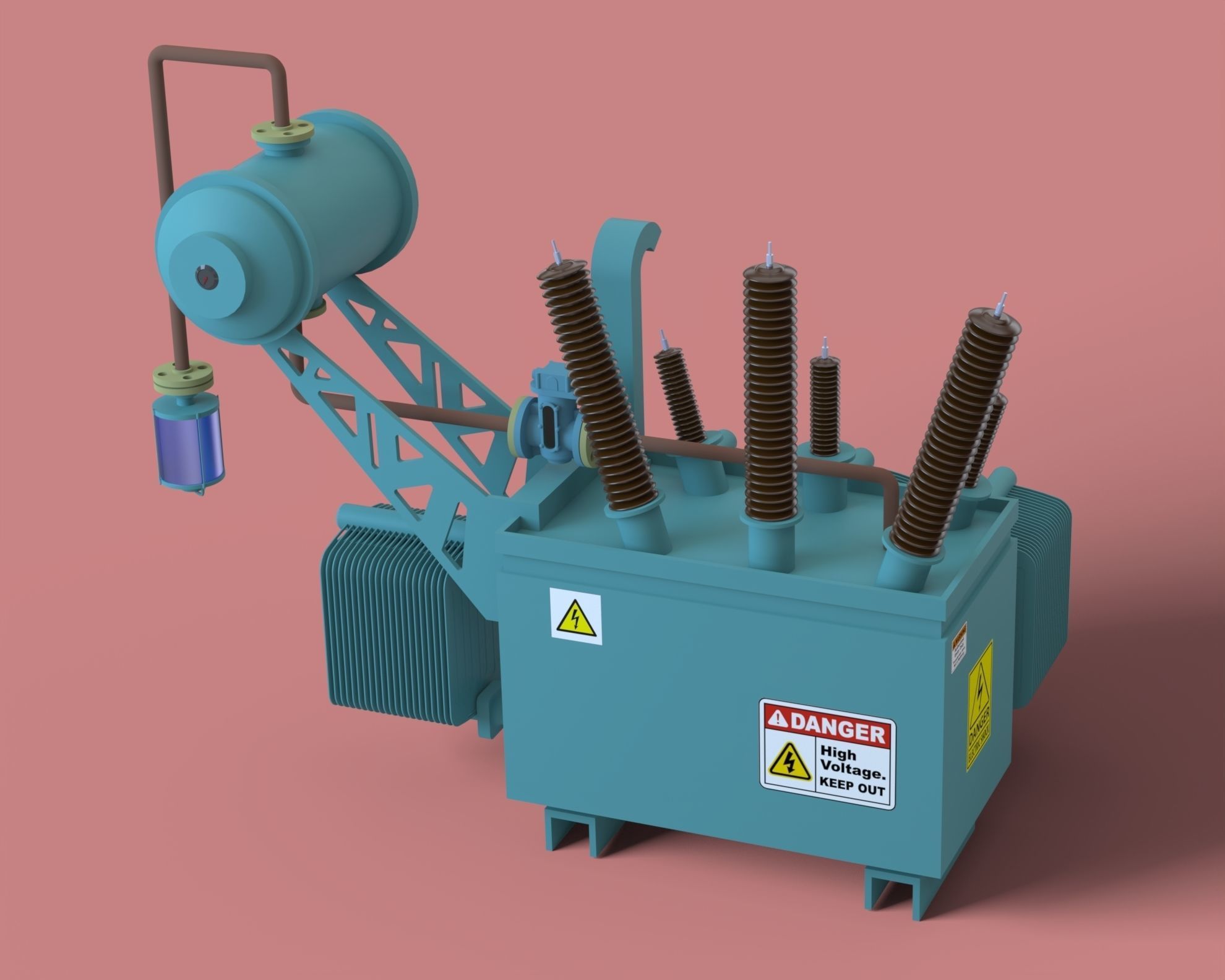

  • Laminated sheets(5) -3 iterations of insulation -Copper Windings(2, N1>N2) -Supports -Outer container, Lid -Oil tank -Air conservator -Breather -Buccholz relay -Radiators(4) -High Voltage bushings(3) -Low voltage bushings(3) -Explosion vent -Drain pipe -Piping done with Solidworks Routing Rendering done on Solidworks Visualize
