Assembly of laminating machines 3D model

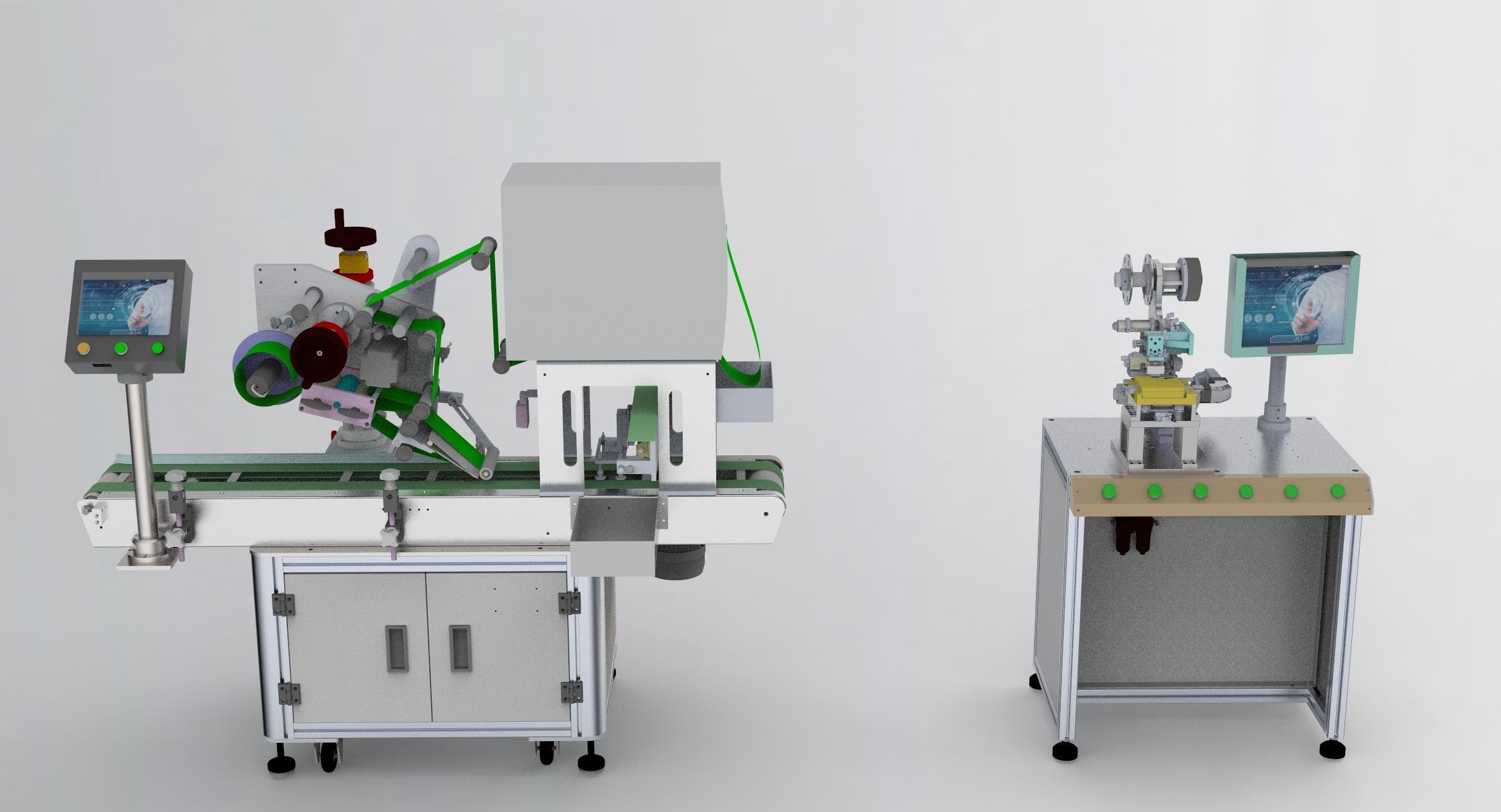

Assembly of laminating machines

Includes: labeling machine, laminating machine

The label or diaphragm can be attached to the product by means of roller pressing

The mechanism includes:

  1. Roller pressing mechanism
  2. Motor driving mechanism
  3. Film winding mechanism

The model of the equipment is complete and can be used as a good reference for similar equipment design.

polygons: 15992952

Vertice: 31956357

Files format contains -solidworks 2017 -step -iges -stl -obj -3ds -Fbx -3dmax

  • and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me. Designed with SolidWorks 2017, render with Keyshot

    This product has no reviews yet
    Assembly of laminating machines
    $120.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 91% in 2.0h
    3D Modeling
    Hire me
    3D model formats
    • DXF (.dxf)474 MB
    • IGES (.ige, .igs, .iges) (2 files)-
    • Autodesk FBX (.fbx)667 MB
    • Autodesk 3ds Max 2018 (.max)279 MBVersion: 2018Renderer: Other keyshot
    • SolidWorks 2017 (.sldprt, .sldasm, .slddrw)112 MBVersion: 2017Renderer: Mental Ray
    • 3D Studio (.3ds)58.2 MB
    • STEP (.stp)11.1 MB
    • OBJ (.obj, .mtl) -
    • Stereolithography (.stl) -
    3D model details
    • Publish date2020-08-14
    • Model ID#2558983
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 15,992,952
    • Vertices 31,956,357
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
