Pleated Filter

Pleated Filter 3D model

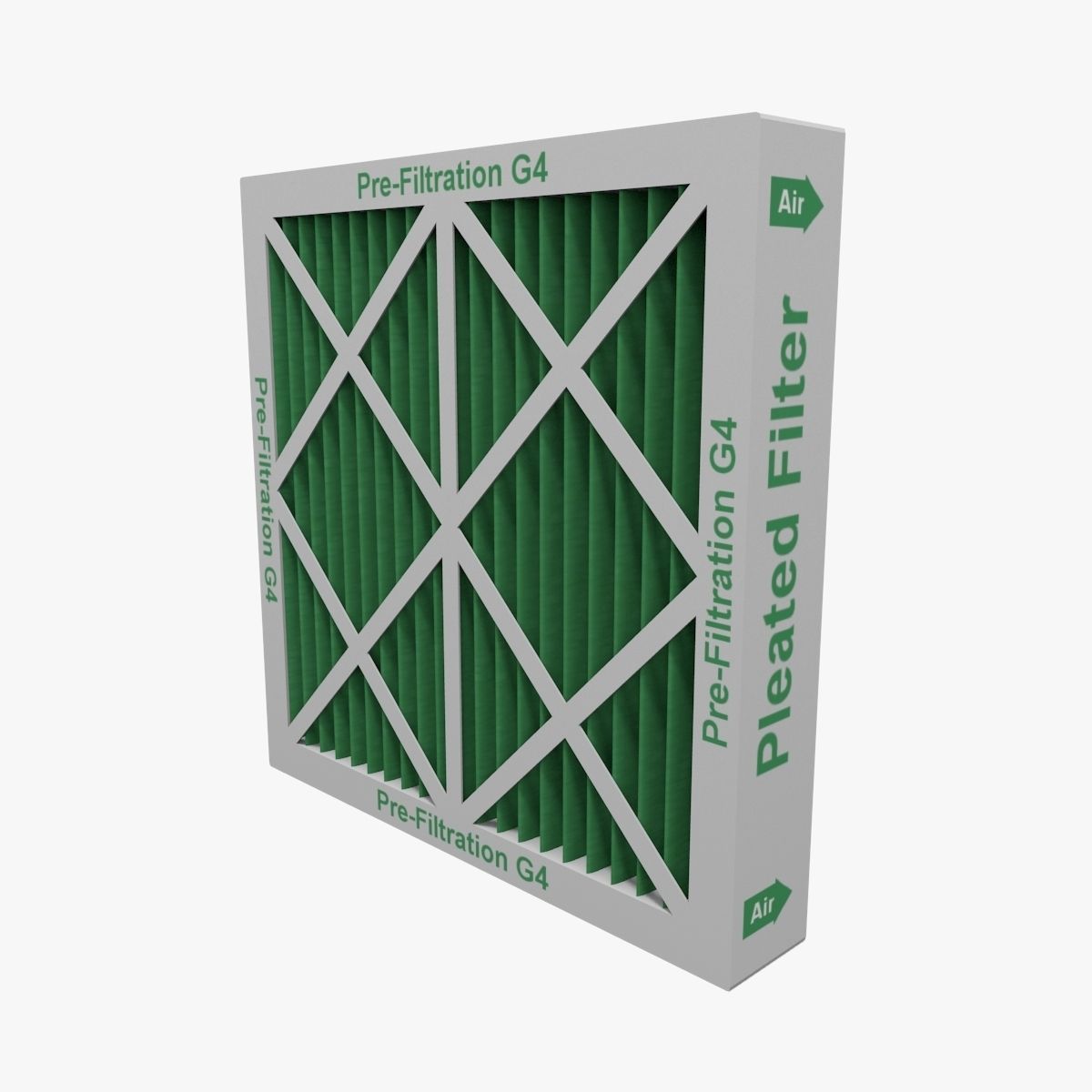

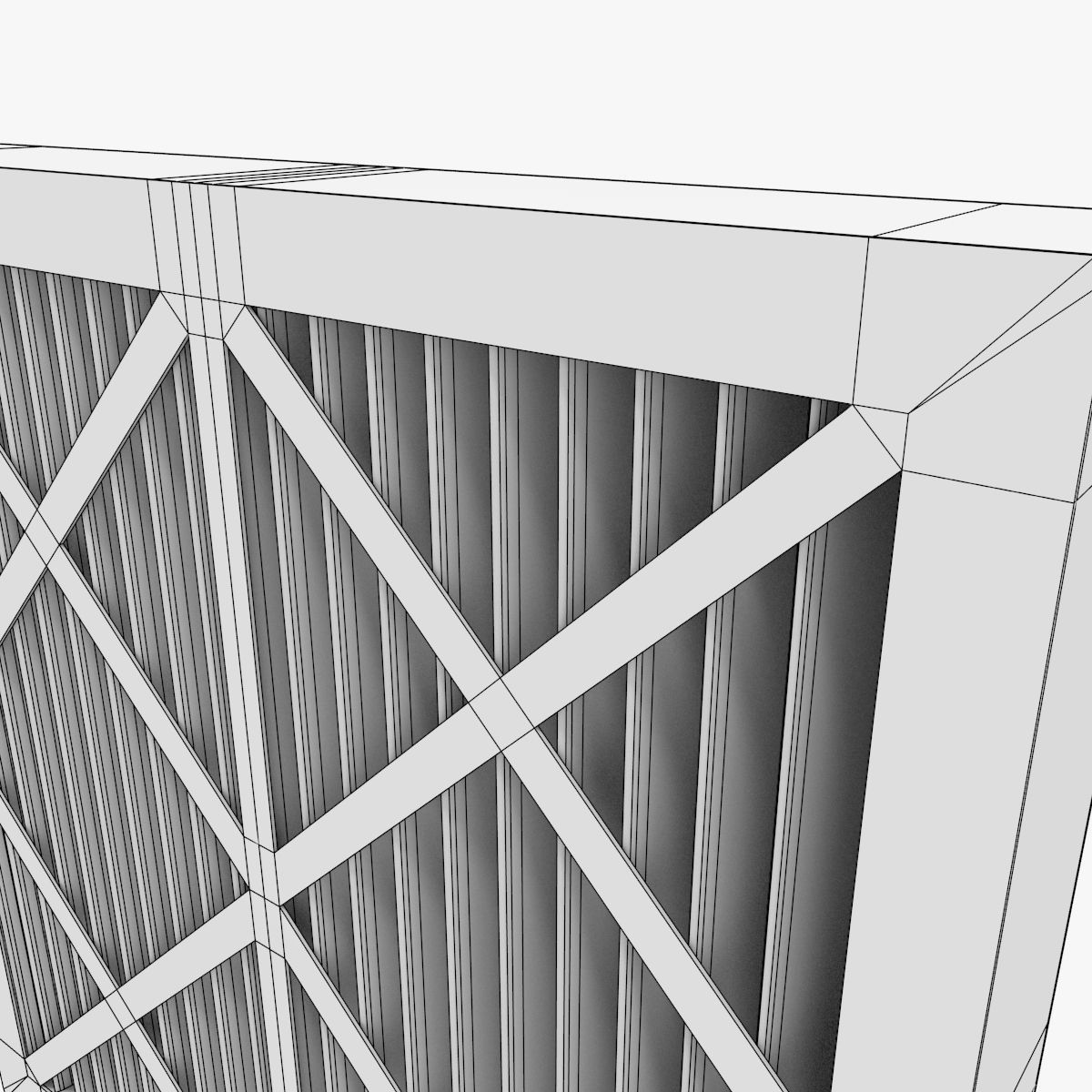

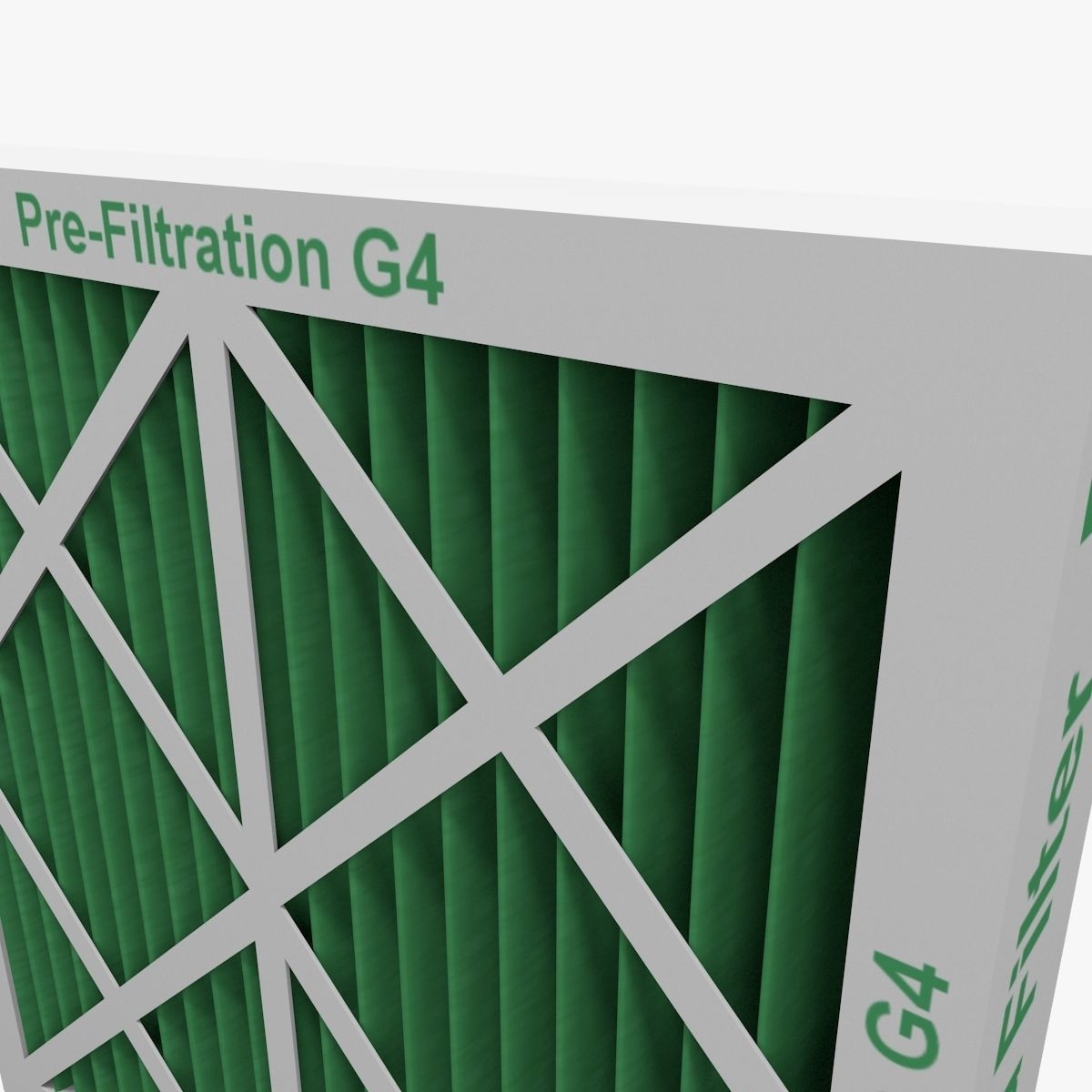

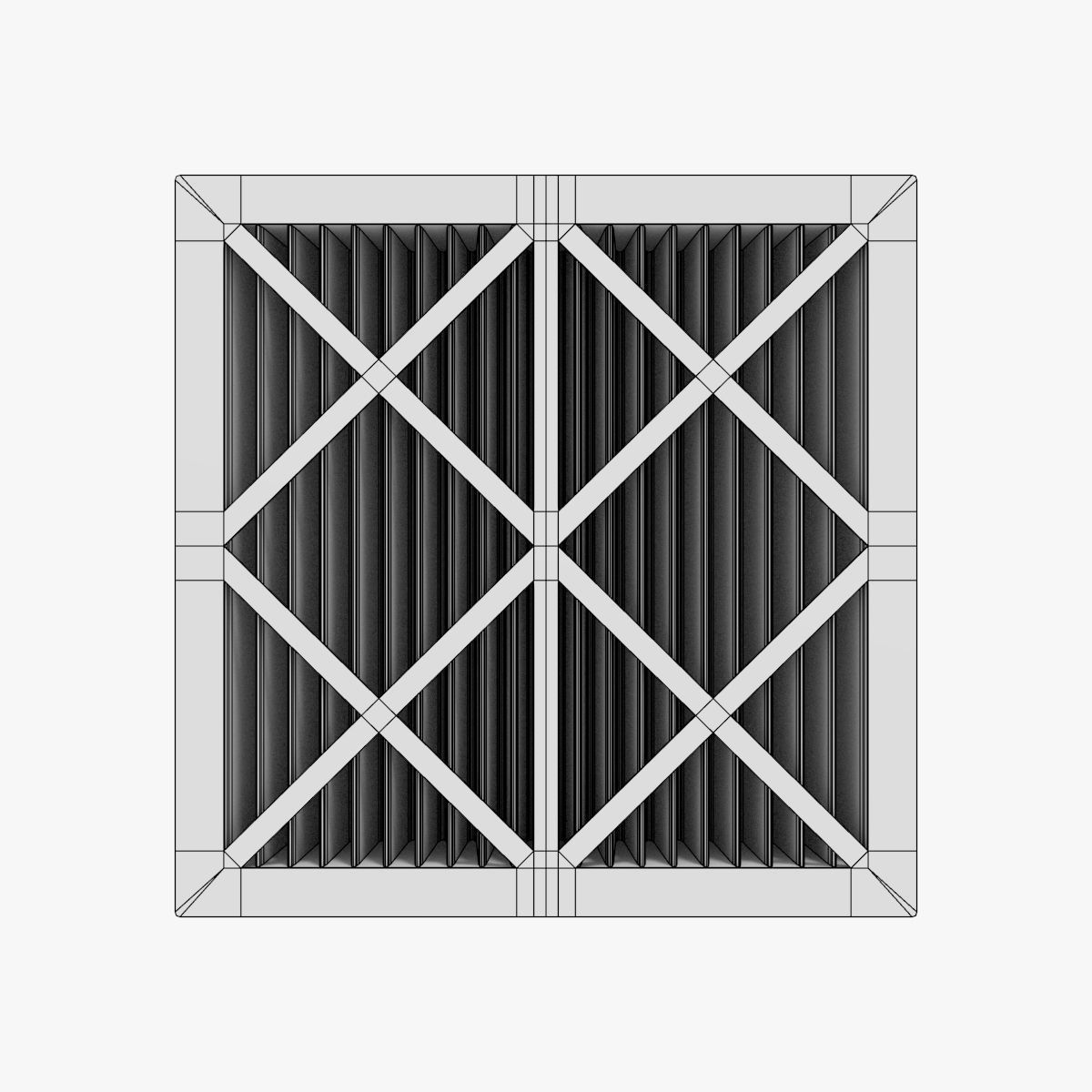

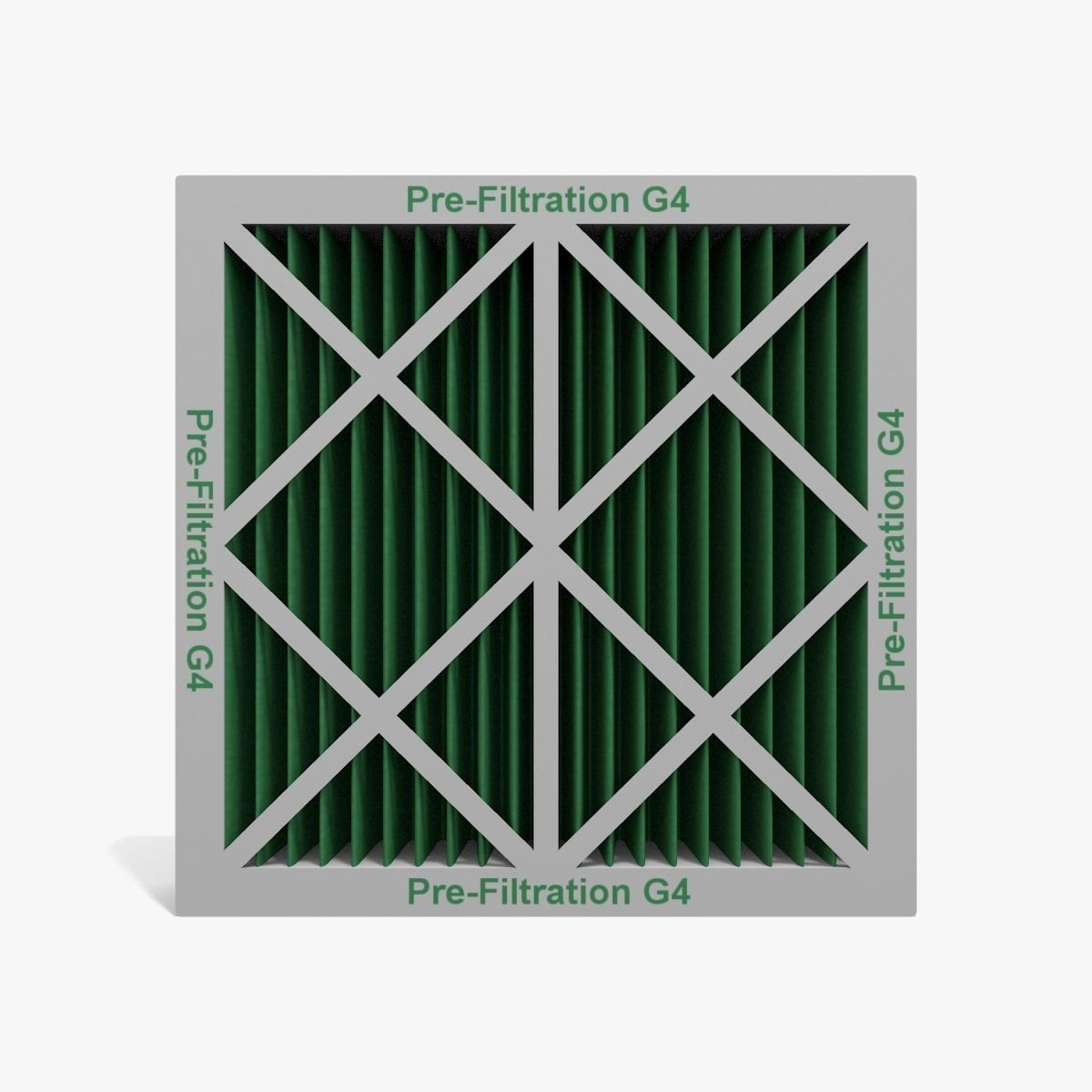

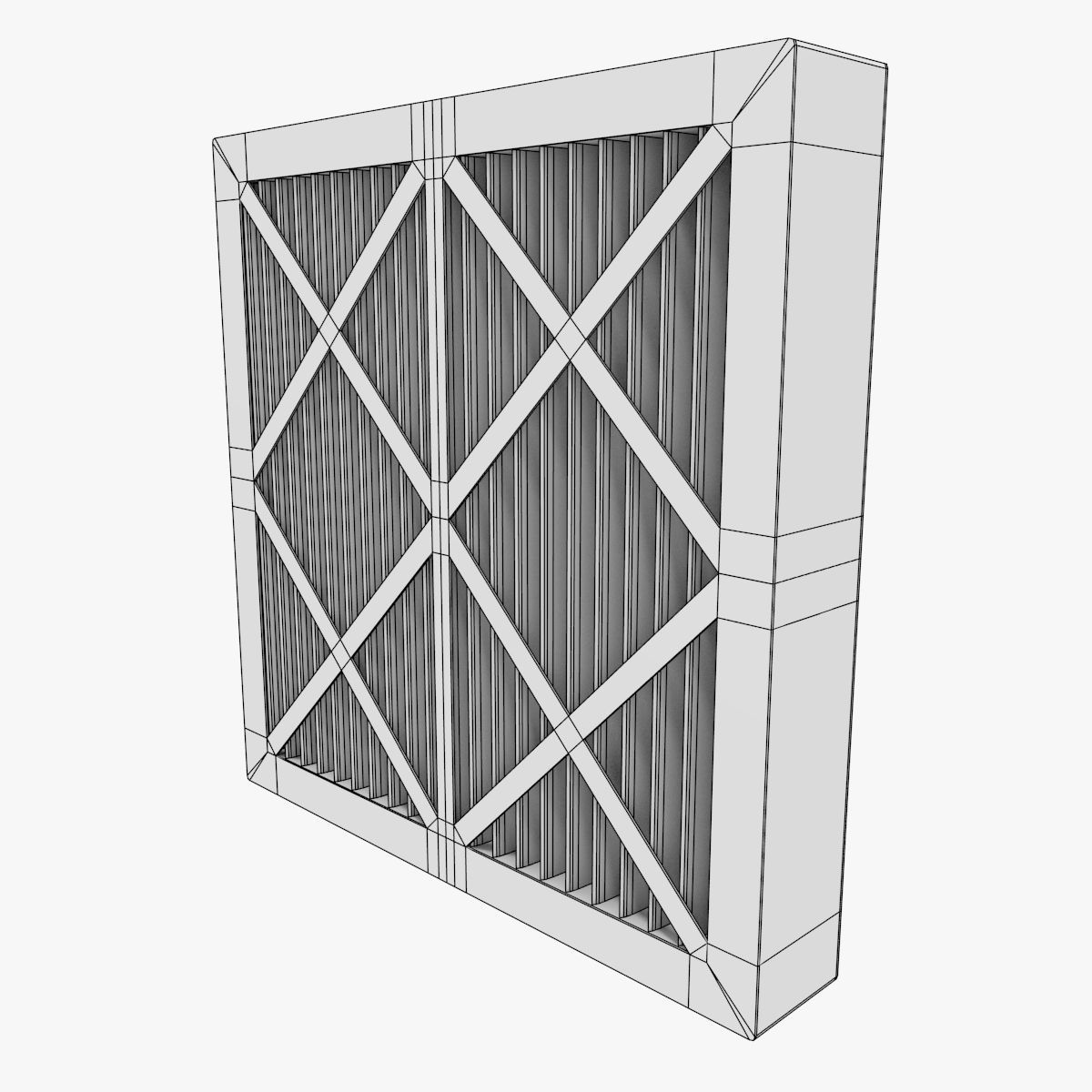

3D model of a pleated filter modelled in Blender v2.70a. The model is completed of materials and textures. The filters are used in the AHU (Air Handling Unit) for cleaning the air. This type of pleated filter has a special frame with grid in order to get more resistance. You can find the UV Layout in the ZIP - see folder 'UVLayout'.

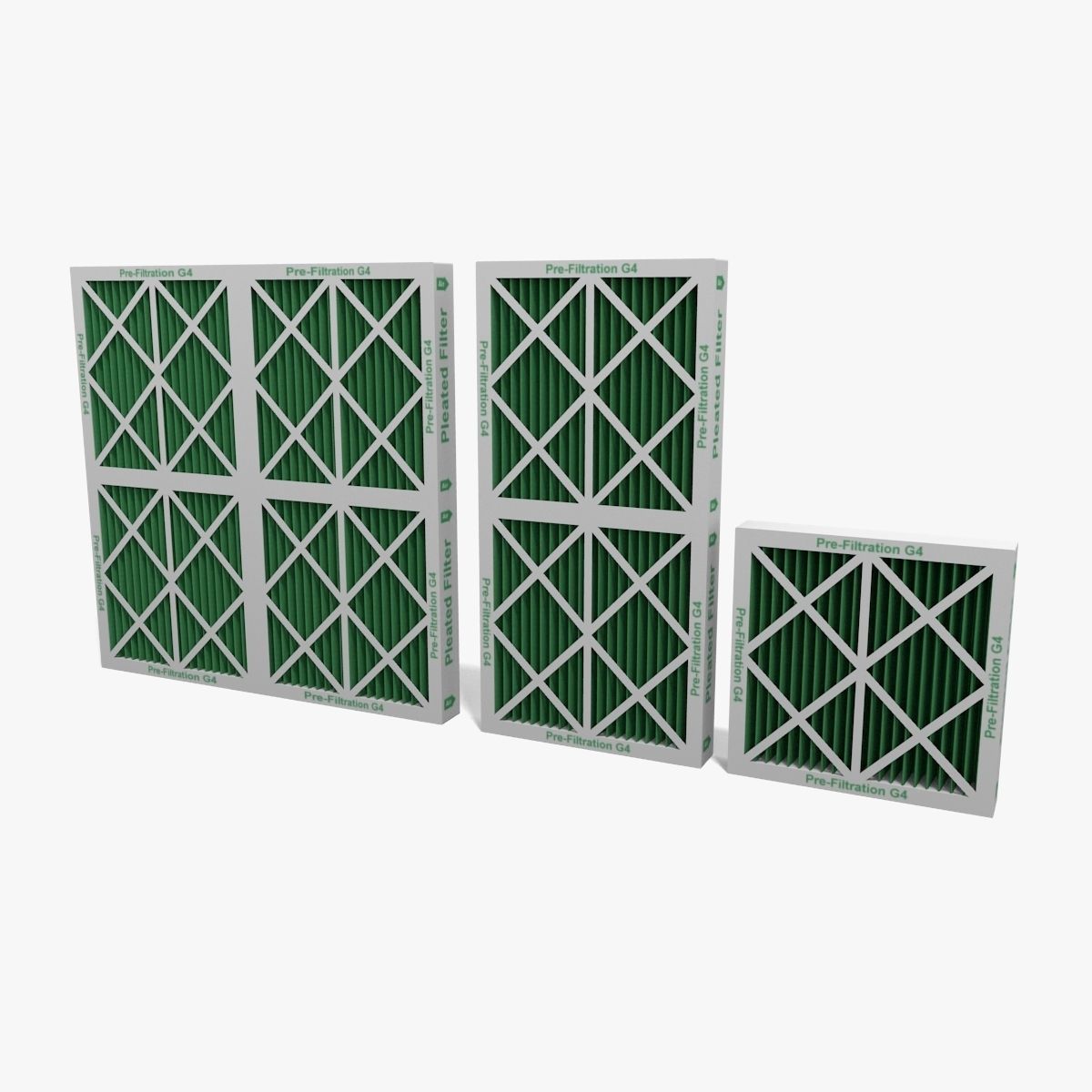

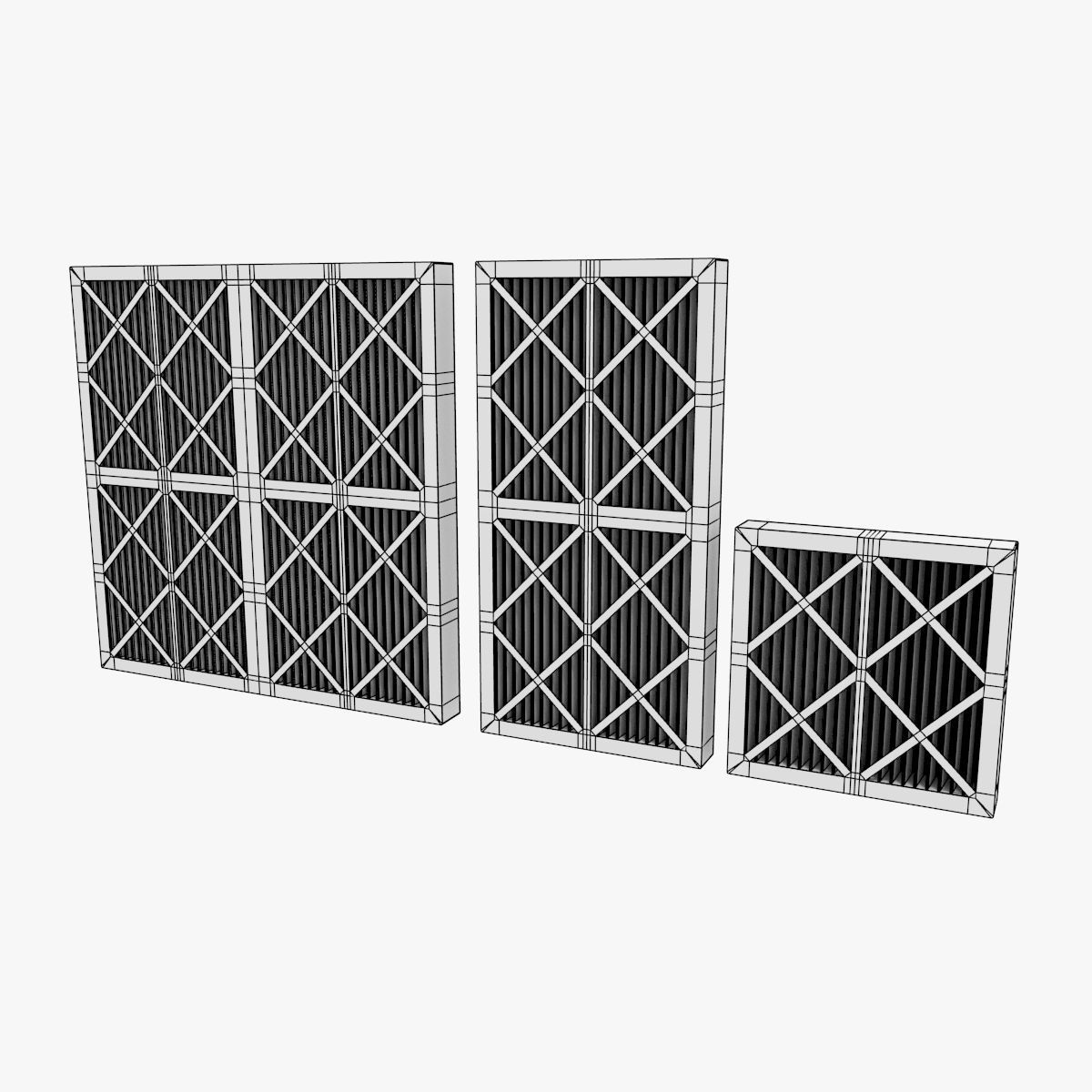

The archive contains three size (BxHxL) of the filter cell: - 305 x 305 x 50 mm; - 305 x 610 x 50 mm; - 610 x 610 x 50 mm.

List of textures: - PFilter.jpg 1024x1024 px

The model is available in the following formats: - Blender format .BLEND; - 3DS format (.3ds); - Wavefront OBJ (+ MTL file for materials).

The model is rendered with Blender.
