Build factory automation, CNC, machinery, game, animation, VR/AR, simulation and industrial visualization scenes without modeling common linear-motion components from scratch.

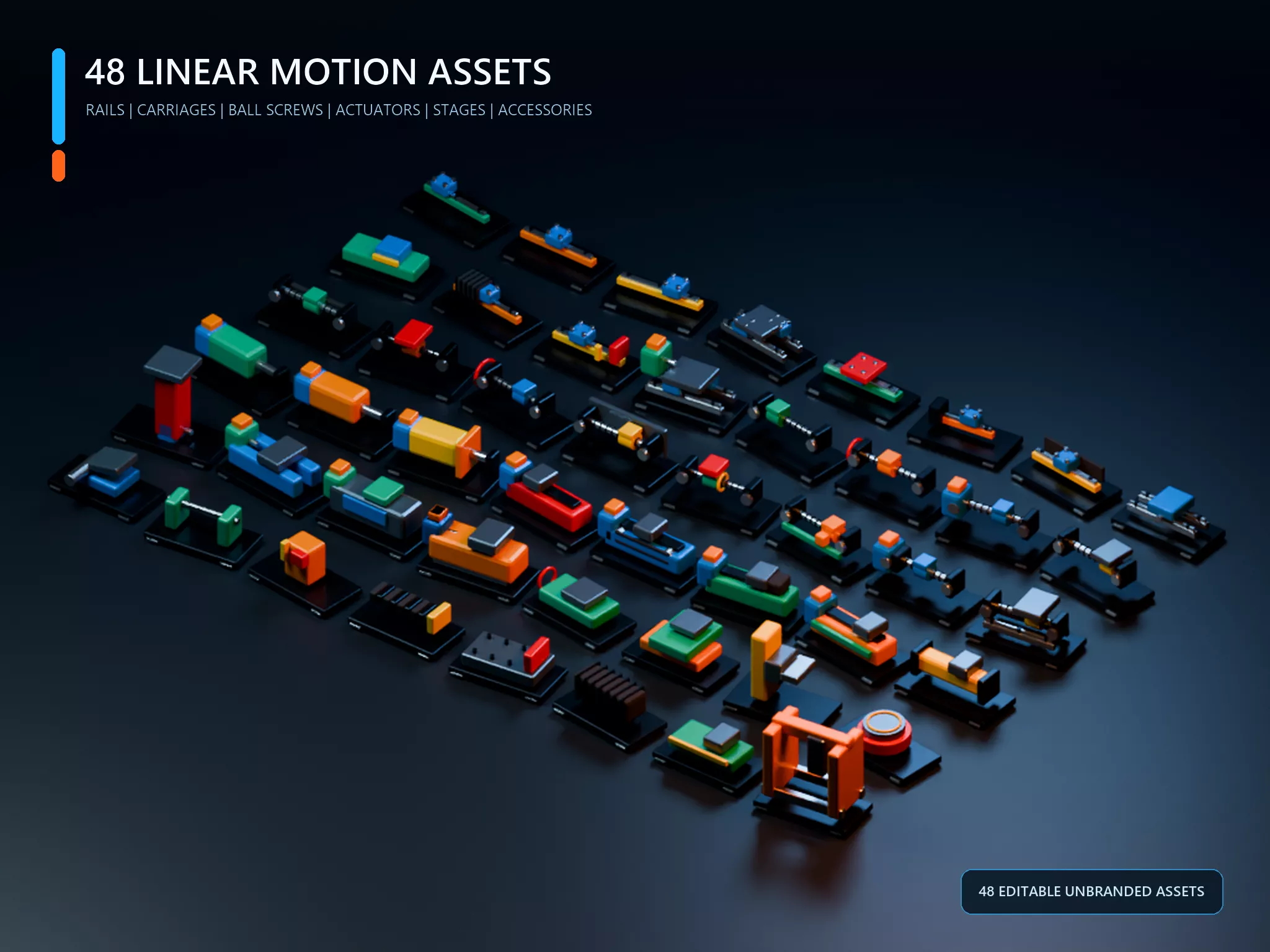

This original coordinated library contains 48 generic visual assets in four exact groups: 12 linear rails and carriages; 12 ball screws and lead screws; 12 linear actuators; and 12 positioning stages and accessories.

Rail concepts include miniature, standard, long, dual, wide, covered, roller, dovetail, bellows-protected, sensor-stop and motorized gantry arrangements. Screw concepts include supported, handwheel, motor-driven, flange-nut, twin, enclosed, anti-backlash, scale-equipped and guided-table arrangements. Actuator and positioning concepts include rod, belt, screw, rodless, lift-column, twin, guarded, X/XY/Z, rotary, tilt, shaft supports, cable carrier, mounting plate and three-axis gantry visuals. Every design is original, generic and unbranded.

Technical details:

• 48 individual files in every main format
• Full-kit files in BLEND, FBX, OBJ/MTL and GLB
• Additional CGT Standard ZIP with triangulated geometry and mapped PBR materials
• Round-trip-validated USDZ full-kit variant with packed texture maps
• Nine polished primary, group, close-up and wireframe previews
• Eleven 1920 x 1080 turntable views
• 72,440 vertices, 68,978 polygons and 142,644 triangles in the complete source scene
• Nine editable materials, meter units, generated non-overlapping UVs and applied transforms
• Native Blender source contains 48 separate clearly named meshes with practical origins and no external image textures to relink
• CSV asset manifest, technical summary and README included

• Intended for games, ArchViz, industrial visualization, animation, VR/AR, simulation and training visuals

  These are visual digital scene assets only. They are not operational, dimensionally accurate, precision-, load-, speed-, stroke- or backlash-rated, certified, standards compliant, safety certified, engineering approved, manufacturing/fabrication ready or intended for physical production or 3D printing. They provide no component selection, control, installation, alignment, lubrication, maintenance or workplace-safety guidance. Components are not rigged, animated or simulated. The product contains no third-party logos, manufacturer names, named standards or copied proprietary designs. AI-assisted procedural methods were used in the original creation workflow.
