DESCRIPTION

HQ series electric actuator is specially designed for quarter turn operating applications such as Ball, Butterfly, Plug valves, Dampers and similar usages. - It's variation in wide range of output torque control options fit your specific requirement. - HQ series electric actuator provides high reliability and performance for your automation plan. - Compact and low weight due to high grade aluminum alloy for housing. - High corrosion resistance due to hard anodizing on inside & outside and polyester coating on external surface. - Various output torque from 80Nm to 3000Nm. - Wide range of voltage available - Self locking with minimum backlash in the transmission - Rugged construction with o-ring system giving water and explosionproof. (optional : explosionproof/Exd IIB T4, IP68) - Handwheel for manual operation engaged by a manual/auto lever arranged for power preference - Easy mounting base standard to ISO5211 - Standard 4 limit switches. 2 for operation, 2 for extra (dry contacts) - Torque switches (except for HQ-008) - LED lamps on indicator monitoring valve position and operation (option) - Space heater with thermostat for preventing overheat - Removable drive bushing with under hung for easy machining and tight connection.

- Low weight & Robust design

  • Motor Power : DC24V AC110/220V, 1PH, 50/60Hz ±10% AC220/380/440/460/480V, 3PH, 50/60Hz ±10%

  • Flexible option : LCU, RBP, PCU, etc

  • Enclosure : weather proof - IP67, IP68 explosion proof - Ex d IIB T4(IECEx, ATEX ...)

  • 4x limits switches(standard) - except HQ-008/010

  • 2x torque switches(standard) - except HQ008/010

  • Reversible fan cooling motor

  • ON/OFF or Modulating

  • ISO 5211 mounting base

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

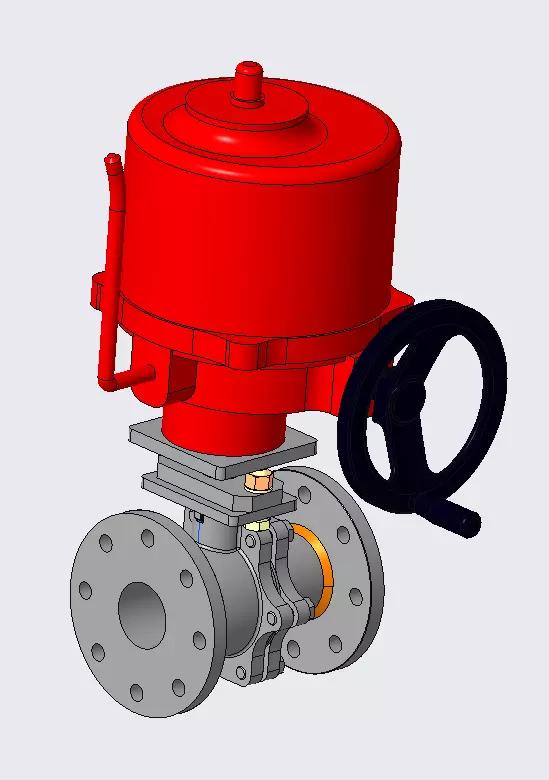

HQ Series Quarter-turn Electric Actuator Valve 3D model
