DESCRIPTION

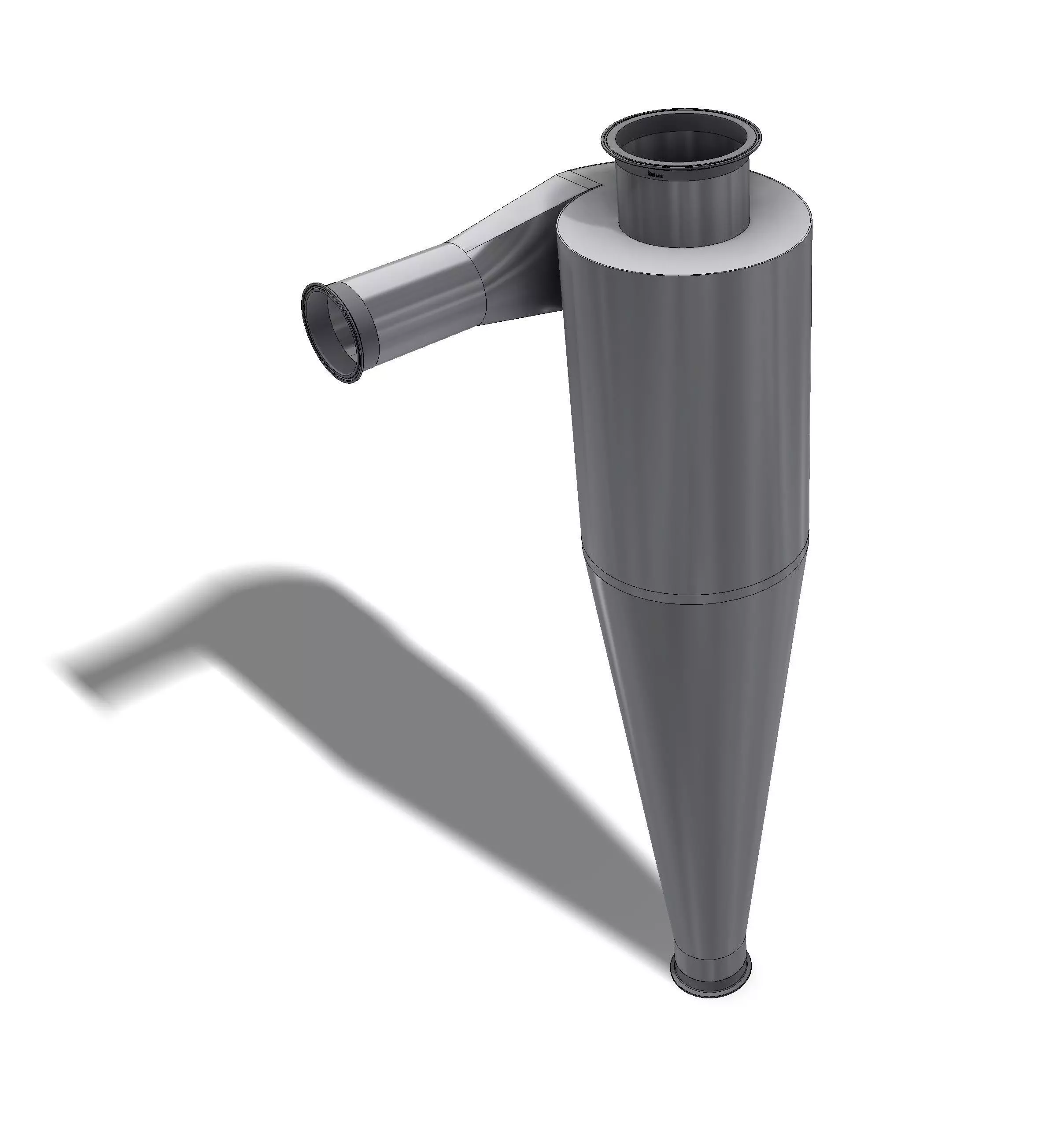

English...3D model with manufacturing drawing of solid separator cyclone for pneumatic transport line on food or pharmaceutical industry. Design material is AISI316L stainless steel with commercial hygienic clamp connections.Technical specifications for optimal operation:• Cyclone diameter: 300mm• Gas flow: 11.8 m3 / min• Inlet pipe size: DN100• Gas velocity in the inlet pipe: 25.0 m / s• Cyclone type: high efficiency Stairmand AE Ø300• Cyclone inlet velocity: 21.8 m / s• Cyclone outlet velocity: 11.1 m / s• ∆P Cyclone: 155 mmH2O

Español...Modelo 3D, con plano de fabricación, de ciclón separador de sólidos para línea de transporte neumático en la industria alimentaria o farmacéutica. El material del diseño es acero inoxidable AISI316L con conexiones comerciales higiénicas tipo clamp.Especificaciones técnicas para un funcionamiento óptimo:• Diámetro de ciclón: 300mm• Caudal de gas: 11,8 m3/min• Tamaño de tubería de entrada: DN100• Velocidad del gas en la tubería de entrada: 25,0 m/s• Tipo de ciclón: alta eficiencia Stairmand AE Ø300• Velocidad de entrada: 21,8 m/s• Velocidad de salida: 11,1 m/s• ∆P Ciclón: 155 mmH2O

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

HIGH EFFICIENCY CYCLONE 300mm FOR PNEUMATIC TRANSPORT LINE 3D model

Royalty Free License
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
IDW2 files
Size: 340 KB
Exchange formats
IGE
IGES<br />File Size: 215 KB
DWG
AutoCAD<br />Version: 201<br />File Size: 222 KB
PDF
PDF<br />File Size: 680 KB
STL
Stereolithography<br />File Size: 459 KB
STP
STEP<br />File Size: 140 KB
SAT
3D ACIS<br />File Size: 167 KB
IAM
Autodesk Inventor | 2 files<br />Version: 2016<br />File Size: 1.83 MB
