High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

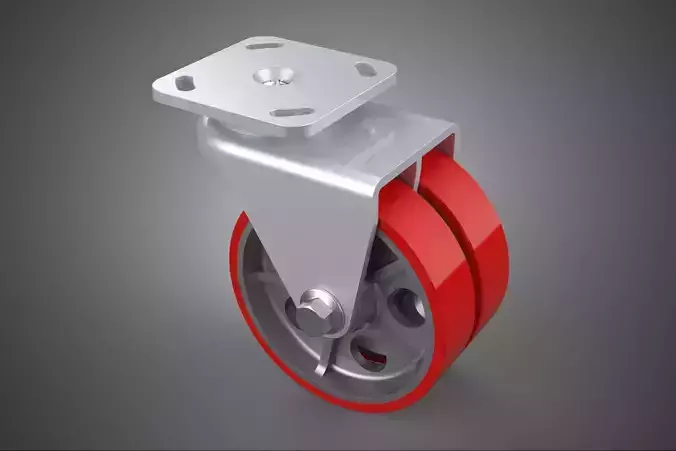

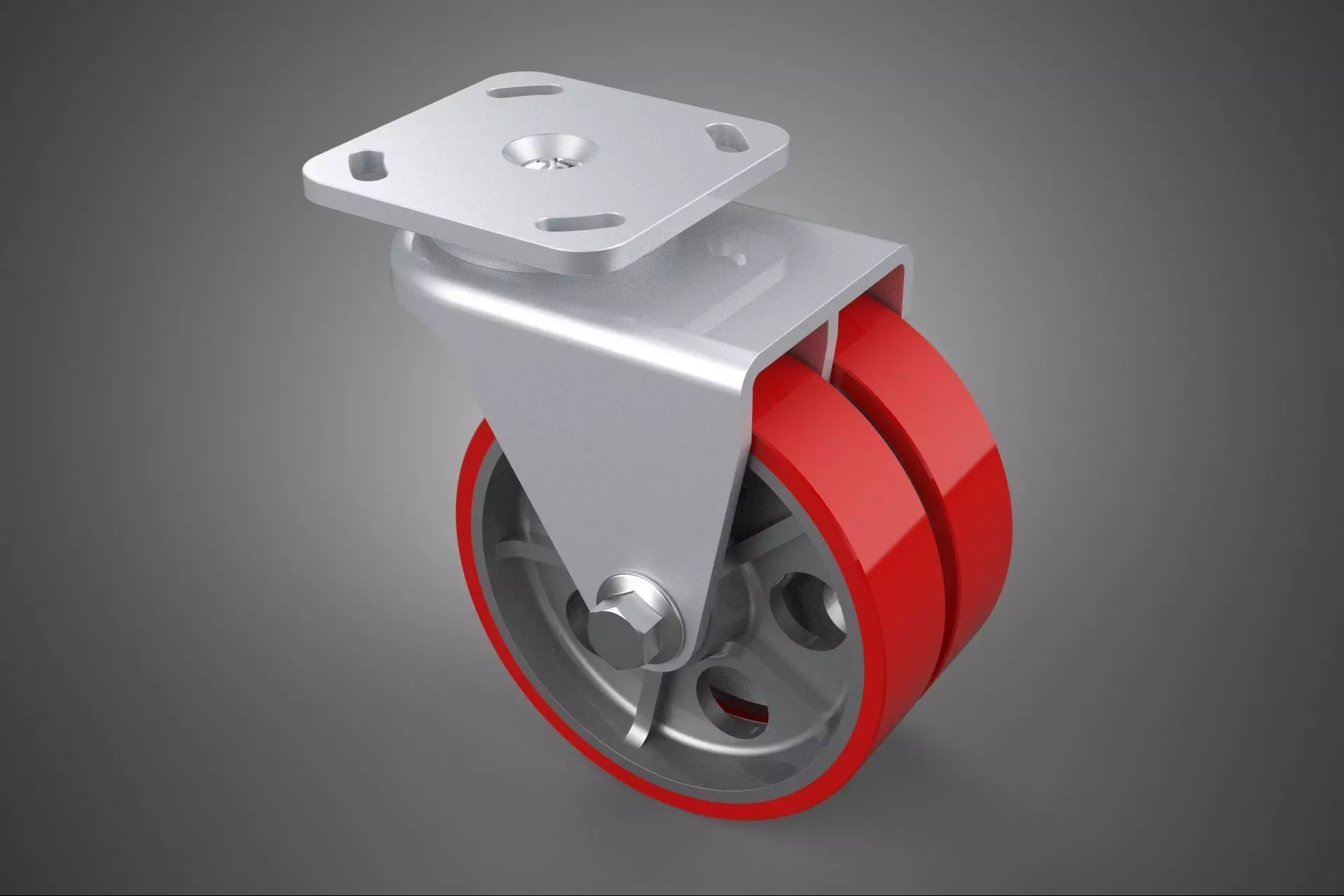

A Heavy Duty Swivel Caster Dual Red Polyurethane Wheel Tire Roller is a specialized, industrial-grade locomotion device engineered for the movement and positioning of extremely heavy static or dynamic loads. This assembly integrates superior mechanical strength, multi-directional agility, and advanced wheel material technology to function as an integral component in rigorous material handling systems.
Design and Construction
The designation Heavy Duty signifies that the caster frame, or yoke, is constructed from robust materials, typically thick-gauge, high-tenstensile cold-forged steel or precision-welded structural steel, designed to withstand immense compressive forces and lateral stresses far exceeding standard commercial casters.
Swivel Mechanism: The swivel functionality is facilitated by a precision bearing raceway, often incorporating double ball bearings, tapered roller bearings, or kingpin-less technology, depending on the maximum specified load capacity. This design allows for unrestricted 360-degree rotation of the wheel assembly relative to the mounting plate, providing exceptional maneuverability in congested or confined operational spaces. The swivel bearings are frequently sealed or fitted with grease zerks to ensure longevity, mitigate contamination infiltration (dust, debris, moisture), and reduce friction under continuous heavy loads.
Mounting: The mounting plate, typically a thick steel rectangle, contains pre-drilled holes for secure bolting to the underside of the equipment or platform. The integrity of the mounting plate and its connection to the swivel raceway are critical elements dictating the overall static and dynamic load transference capability.
Dual Wheel Configuration
The incorporation of a Dual wheel configuration involves two individual wheels mounted parallel to each other on the same axle within the caster yoke. This design offers several performance advantages critical for heavy-duty applications:
- Load Distribution: Dual wheels effectively double the footprint area contacting the floor surface, distributing the load over a wider area. This reduces point pressure (PSI) on the floor, mitigating damage to industrial flooring, coatings, or substrates, while also improving the stability of the transported load.
- Increased Capacity: The dual configuration inherently increases the total load capacity compared to a single wheel of comparable diameter and width.
- Maneuverability: Dual wheels often facilitate slightly easier swivel initiation under heavy static load due to reduced contact friction compared to an extremely wide single wheel.
### Wheel and Tire Composition
The wheels are constructed with Polyurethane (PU) tread, an elastomeric compound known for its desirable mechanical properties. Polyurethane wheels are chemically bonded or mechanically locked to a rigid core (often cast iron or high-impact nylon). The Red coloration is a standard pigment indicator, sometimes denoting a specific durometer hardness or proprietary compound formulation, commonly in the 90–95 Shore A range.
Polyurethane Characteristics:
- Non-Marking: PU material prevents scuffing or leaving dark marks on floors, crucial for sensitive environments.
- Abrasion Resistance: Exhibits excellent resistance to wear and tear, significantly extending wheel lifespan under continuous use.
- Chemical Resistance: Highly resistant to many common industrial solvents, oils, greases, and mild acids.
- Shock Absorption: Possesses inherent elasticity, allowing the wheel to absorb minor shocks and vibrations, protecting sensitive equipment and reducing noise levels.
### Applications
Heavy duty dual polyurethane swivel casters are essential components in environments requiring maximum reliability and load management. Typical applications include, but are not limited to: transport racks for aerospace components, heavy machinery bases, large-scale industrial carts, custom-built factory tooling, assembly line platforms, automated guided vehicles (AGVs), and material handling systems in the automotive, forging, and logistics industries.
KEYWORDS: Caster, Heavy Duty, Swivel, Polyurethane, Dual Wheel, Industrial, Material Handling, Load Capacity, Roller, Non-Marking, Red Tread, Abrasion Resistance, Locomotion Device, Ball Bearing, Kingpinless, Yoke, Tandem Wheel, Dynamic Load, Static Load, Logistics, Manufacturing, Shore Durometer, Wheel Tire, Floor Protection, High Performance, Steerability, Resilience, Steel Construction, Precision Raceway, Machinery Base.
