Heavy-Duty Pipeline Expansion Bellows 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

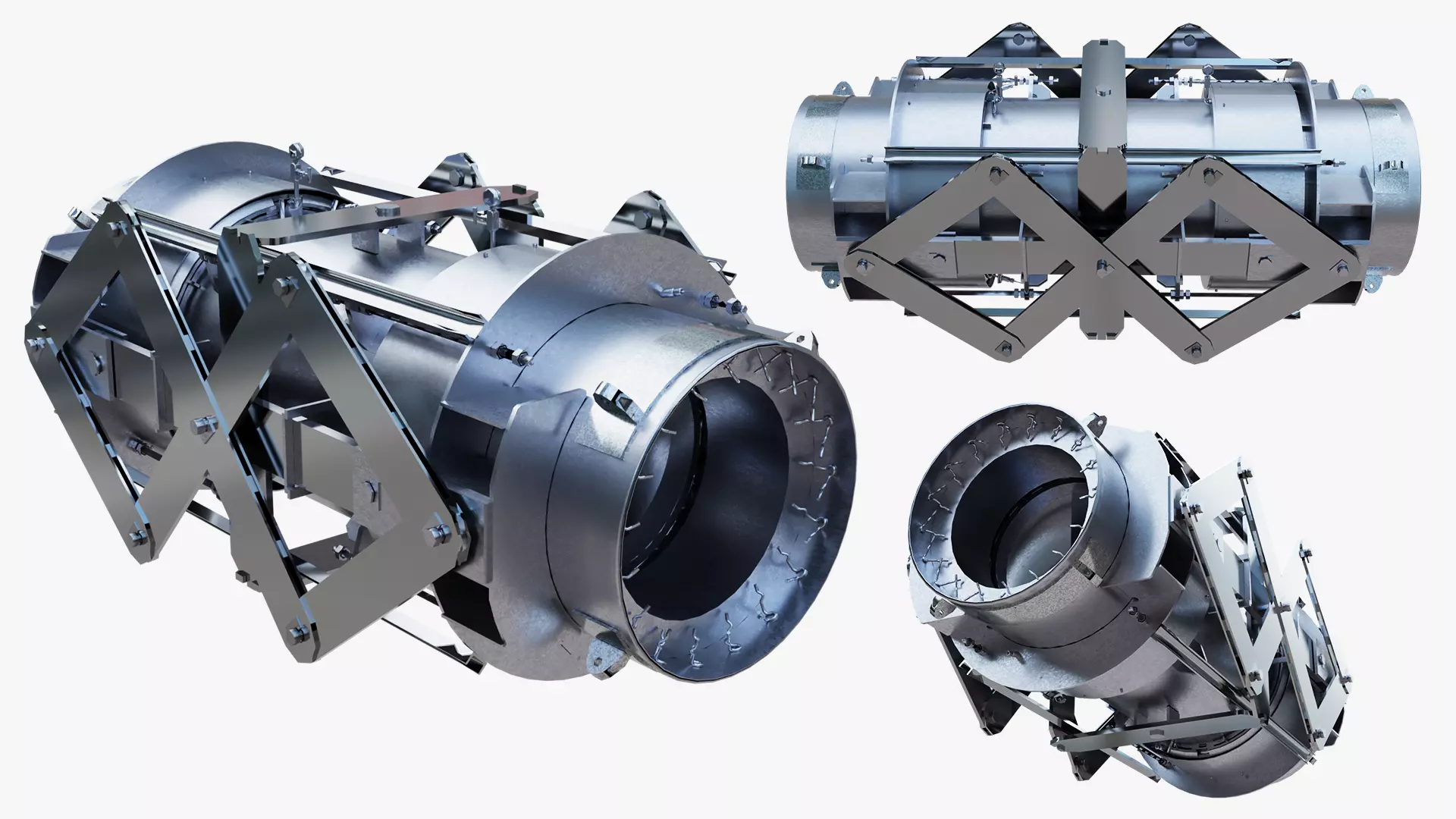

Heavy-Duty Expansion Bellows for Oil & Gas – Pipeline Integrity 3D Model

This project features a expansion joint equipped with six restraints, specifically engineered for oil and gas pipeline applications. Throughout the design process, both mechanical integrity and buoyancy principles have been carefully applied to ensure reliability and performance.

Product Specifications

  • Dimensions: Diameter = 12.5 m, Length = 35 m
  • Polygon Count: 302,897
  • Vertices: 152,545
  • Units: Meters
  • Software Used: SolidWorks 2021 & Blender 5.0
  • Available Formats: .glb / .stp / .stl / .blend / .obj/ .FBX

For any inquiries or support, feel free to reach out.Thank you for choosing this 3D model.

#expansionbellow #pipeline #oilandgas
