DESCRIPTION

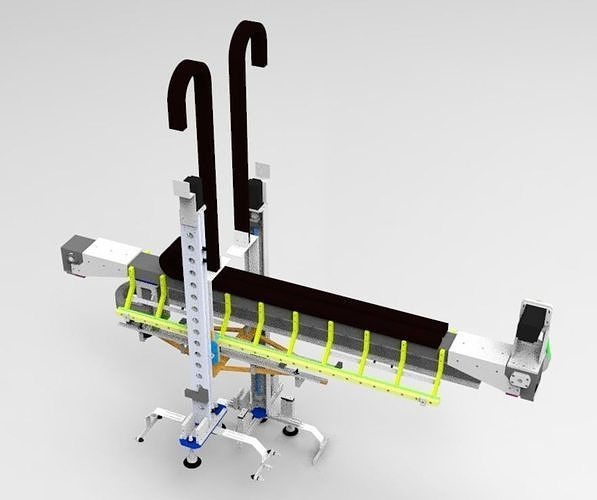

Cantilever multi-axis manipulator, the device is connected through the dragon skeleton body mechanism, including the screw rod horizontal movement mechanism, through the synchronous belt transmission can achieve large displacement horizontal movement, through the rack and pinion mechanism, to achieve two-way movement module up and down module to achieve up and down movement function, the overall combination of a group of feeding manipulator mechanism includes

  1. Cantilever keel mechanism
  2. Screw rod transverse movement mechanism
  3. Horizontal movement mechanism of synchronous belt
  4. Gear rack movement module

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.

Designed with SolidWorks 2017;vray with keyshot
