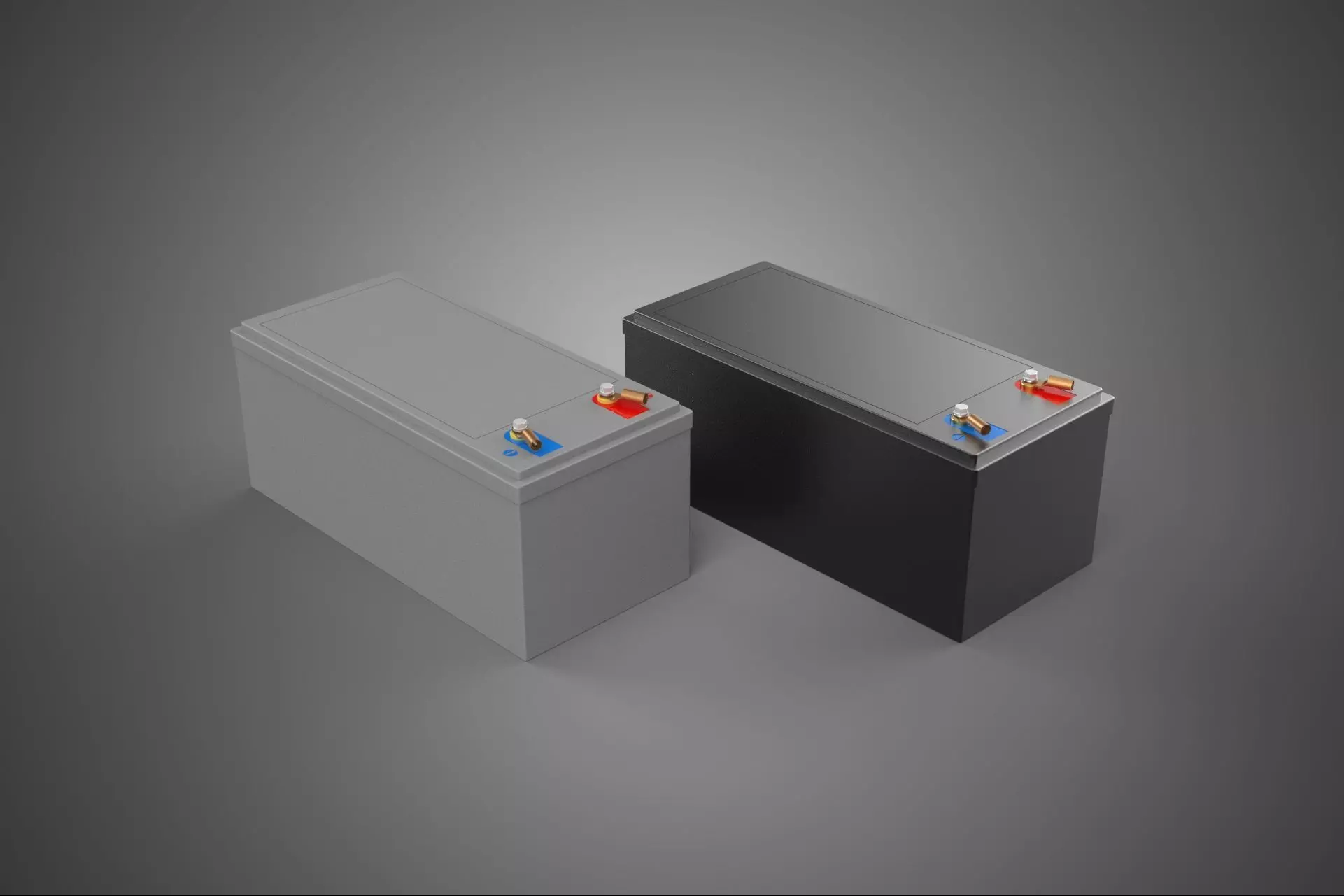

BATTERY DC VOLT POWER SUPPLY ENERGY STORAGE PACK ELECTRICAL CELL 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An Electrical Battery DC Volt Power Supply Energy Storage Pack, commonly known as a battery pack or a battery energy storage system (BESS), is an integrated assembly of electrochemical cells designed to store chemical energy and convert it into direct current (DC) electrical energy for various applications. This sophisticated unit functions both as an energy reservoir and a reliable power source, characterized by its output voltage (measured in volts) and its capacity to deliver sustained electrical current.

At its core, a battery pack comprises one or more individual electrochemical cells, which are the fundamental units for energy conversion. These cells, typically secondary (rechargeable) types such as lithium-ion (Li-ion), lead-acid, nickel-metal hydride (NiMH), or newer solid-state chemistries, are meticulously arranged in series, parallel, or a combination thereof. A series connection increases the overall voltage of the pack, while a parallel connection enhances the total current capacity and energy storage. The pack designation signifies this modular assembly, allowing for scalable designs to meet diverse voltage and energy requirements, from small portable electronics to large-scale grid energy storage.

The operational principle revolves around electrochemical reactions. During discharge, chemical energy stored within the active materials of the cells is converted into electrical energy, releasing electrons that flow as direct current (DC) through an external circuit. DC is characterized by its constant direction of electron flow and unchanging polarity, making it distinct from alternating current (AC). The potential difference between the pack's terminals, known as its voltage, dictates the electrical pressure available to drive current through a load. This voltage is an aggregation of the nominal voltages of the individual cells connected in series.

As a power supply, the battery pack provides electrical energy to power devices or systems. Unlike an AC power supply which delivers current that periodically reverses direction, a battery pack exclusively supplies DC power. Its function as an energy storage system is paramount, enabling the decoupling of energy generation from energy consumption. This is crucial for applications requiring portable power, backup power (e.g., uninterruptible power supplies – UPS), peak shaving in grid applications, or storing energy from intermittent renewable sources like solar and wind power.

Key electrical parameters defining a battery pack include its nominal voltage (V), capacity (measured in Ampere-hours, Ah), and total energy (measured in Watt-hours, Wh). Other critical characteristics involve its power delivery capability (W), cycle life (number of charge/discharge cycles before significant degradation), depth of discharge (DoD), internal resistance, and overall energy efficiency. Modern battery packs often incorporate a sophisticated Battery Management System (BMS), which monitors critical parameters such as cell voltage, temperature, current, and state of charge (SoC). The BMS is vital for ensuring safe operation, preventing overcharge/over-discharge, balancing cell voltages, optimizing performance, and extending the pack's operational lifespan.

Technological advancements continue to drive improvements in energy density, power output, safety features, and cost-effectiveness of these energy storage solutions. They are indispensable components across a vast spectrum of applications, including electric vehicles (EVs), consumer electronics, aerospace, industrial equipment, telecommunications, and utility-scale grid modernization initiatives, solidifying their role as a cornerstone of modern electrical infrastructure.
