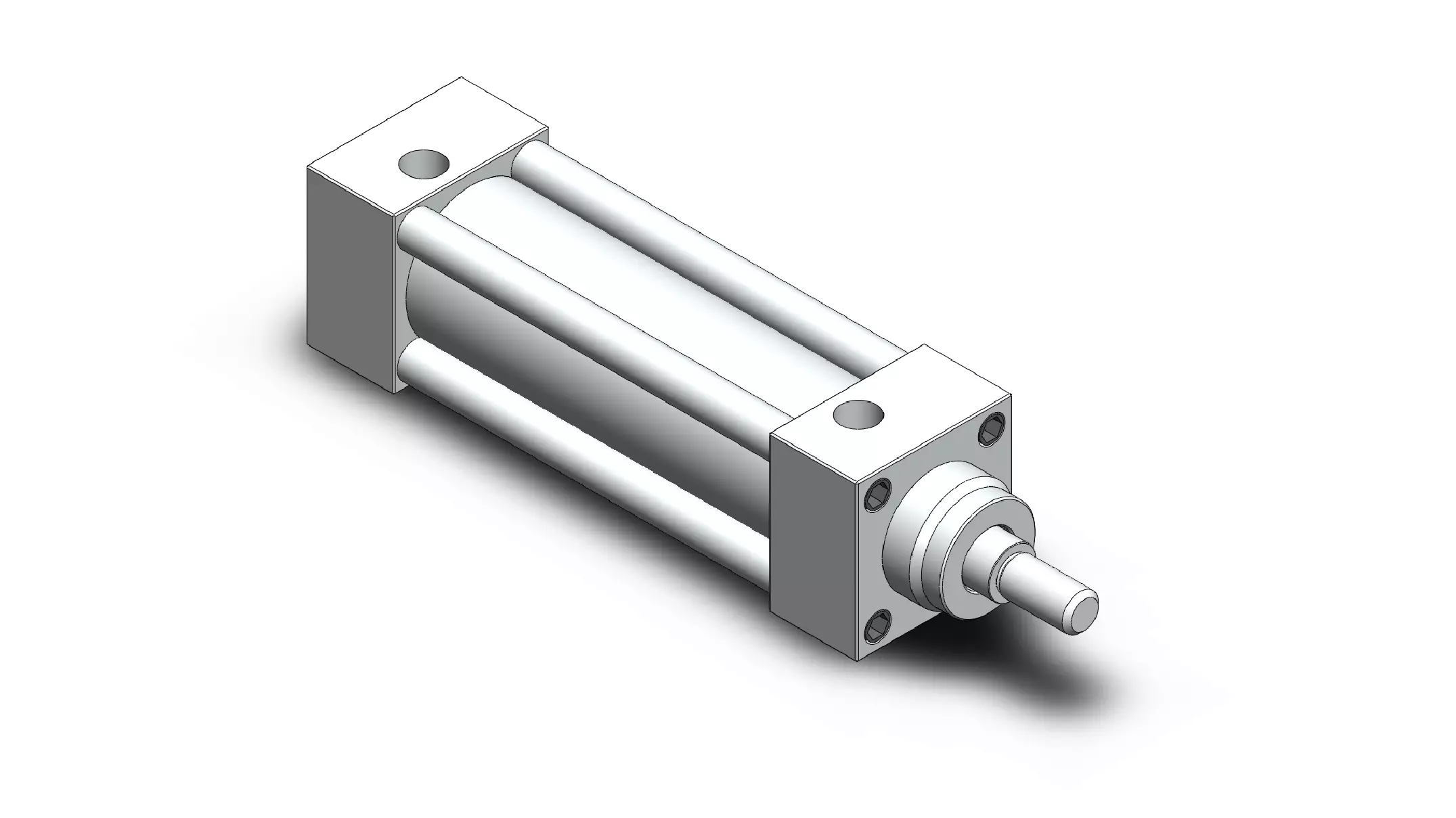

High-accuracy 3D model of a standard pneumatic cylinder compliant with ISO 15552 (formerly CNOMO / CETOP / NFE 49-003-1).

Bore 40mm Stroke 80mm

All dimensions follow ISO 15552 standard tables.Model includes: front cap, rear cap, barrel, tie rods, piston rod.Clean solid bodies — no internal parts, no seals, suitable for mechanical design, assembly visualization, technical documentation and CAD integration.

Included formats:— STEP (.step / .stp)— IGES (.iges / .igs)— STL (.stl)— Parasolid (.x_t)— SolidWorks part (.sldprt)

Files contain solid bodies only, no feature tree, no design table.Ready to insert directly into assemblies.
