WG 0009 - Complete range of 5 flex harrow 3D model

The documentation package includes the following equipment:

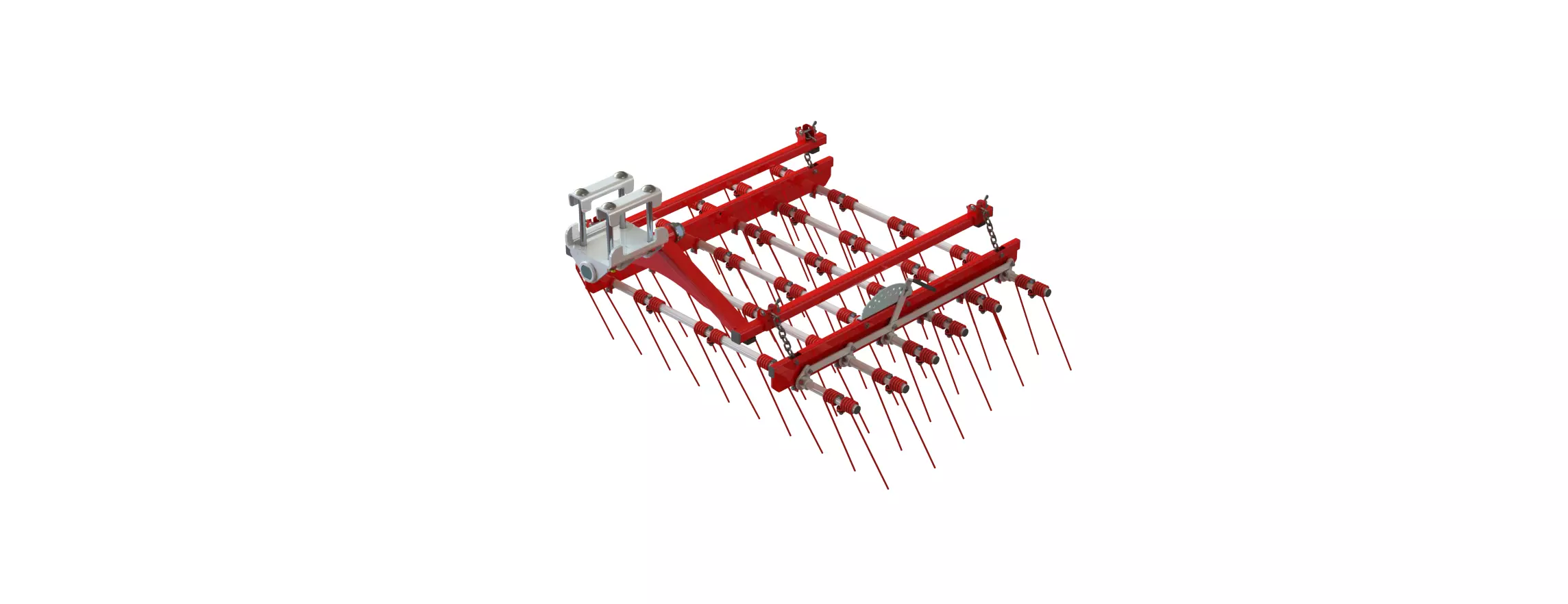

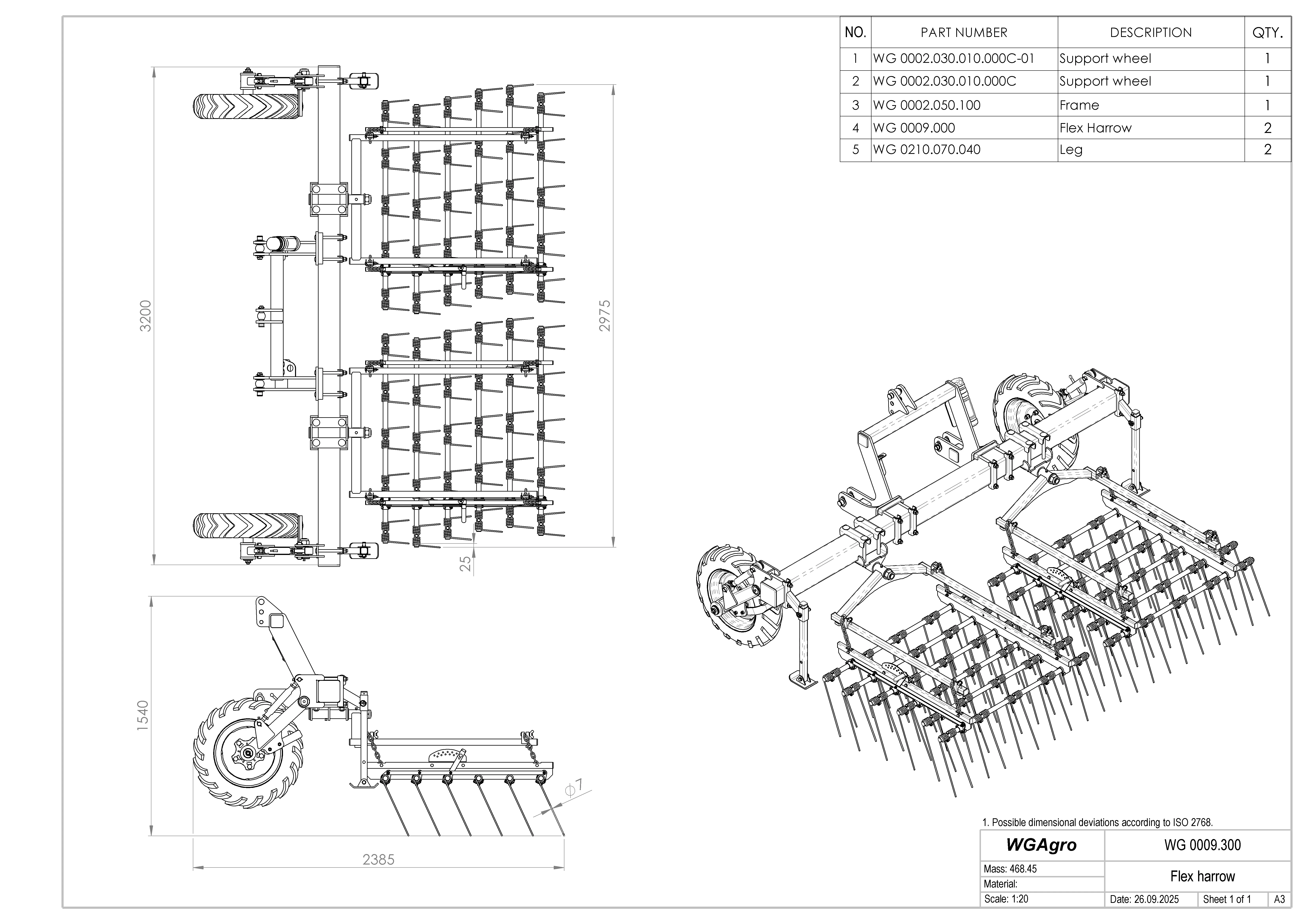

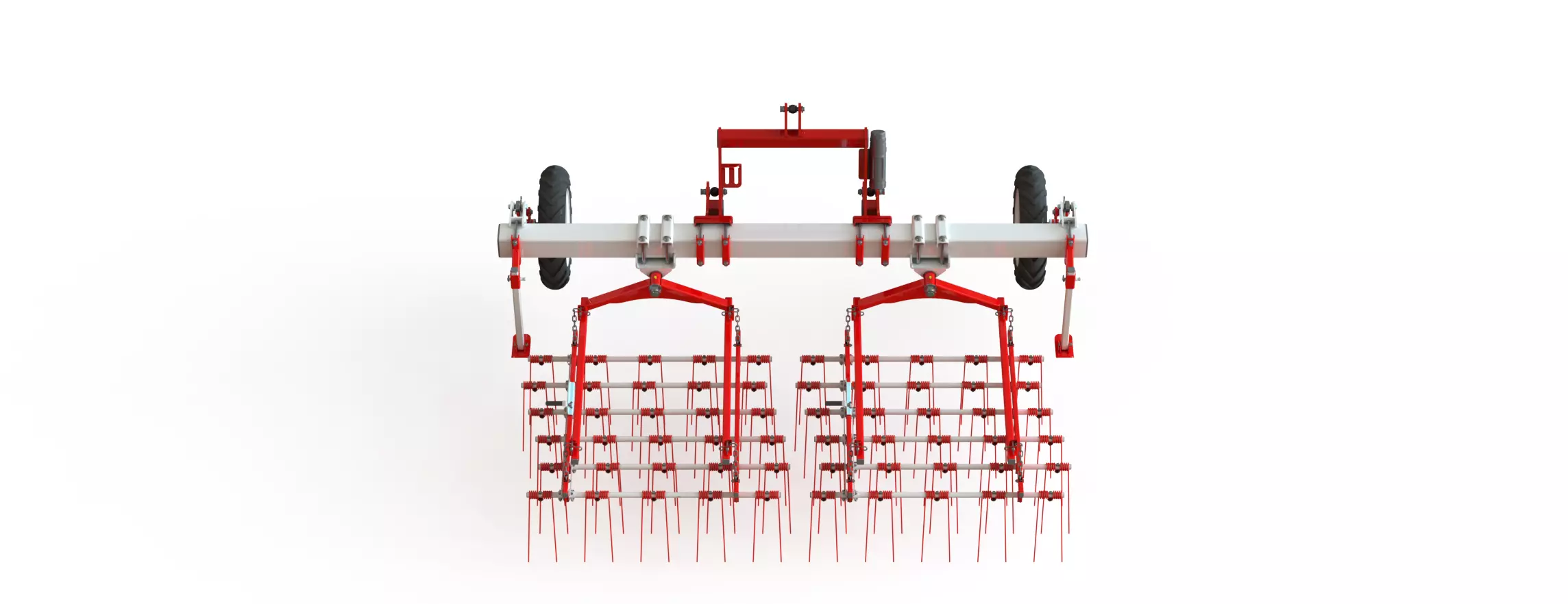

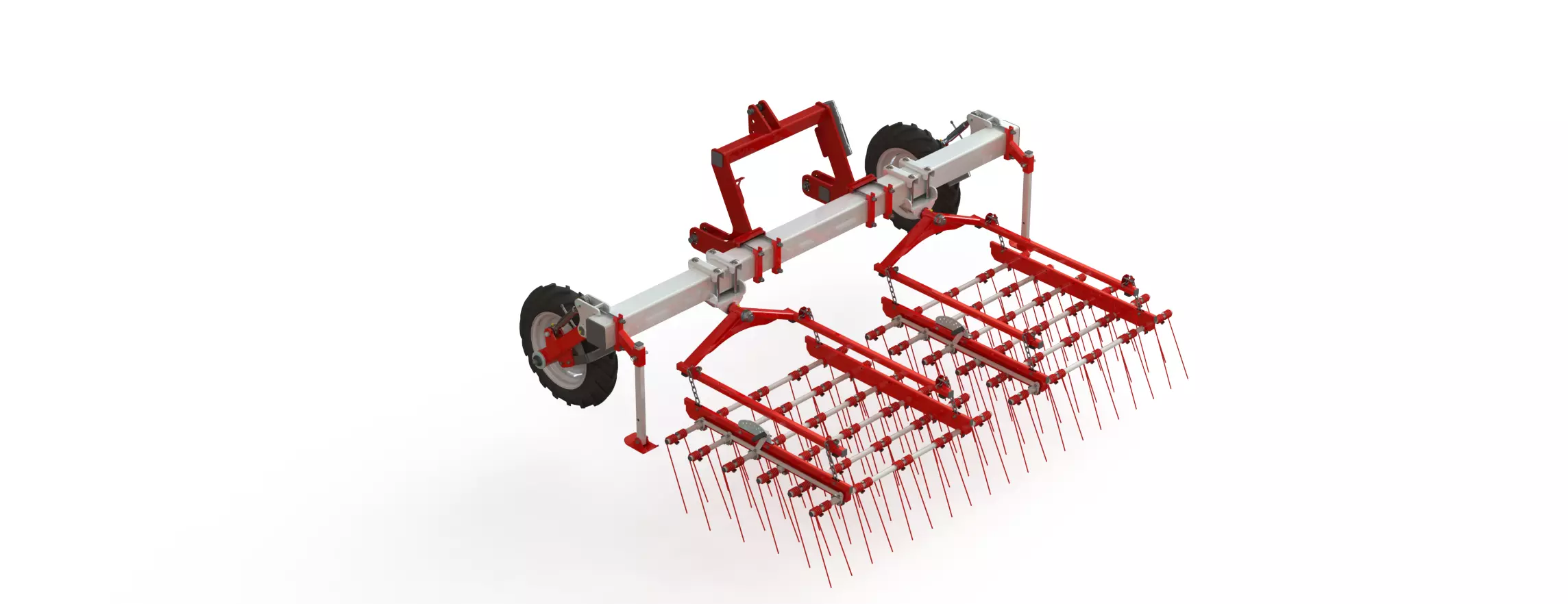

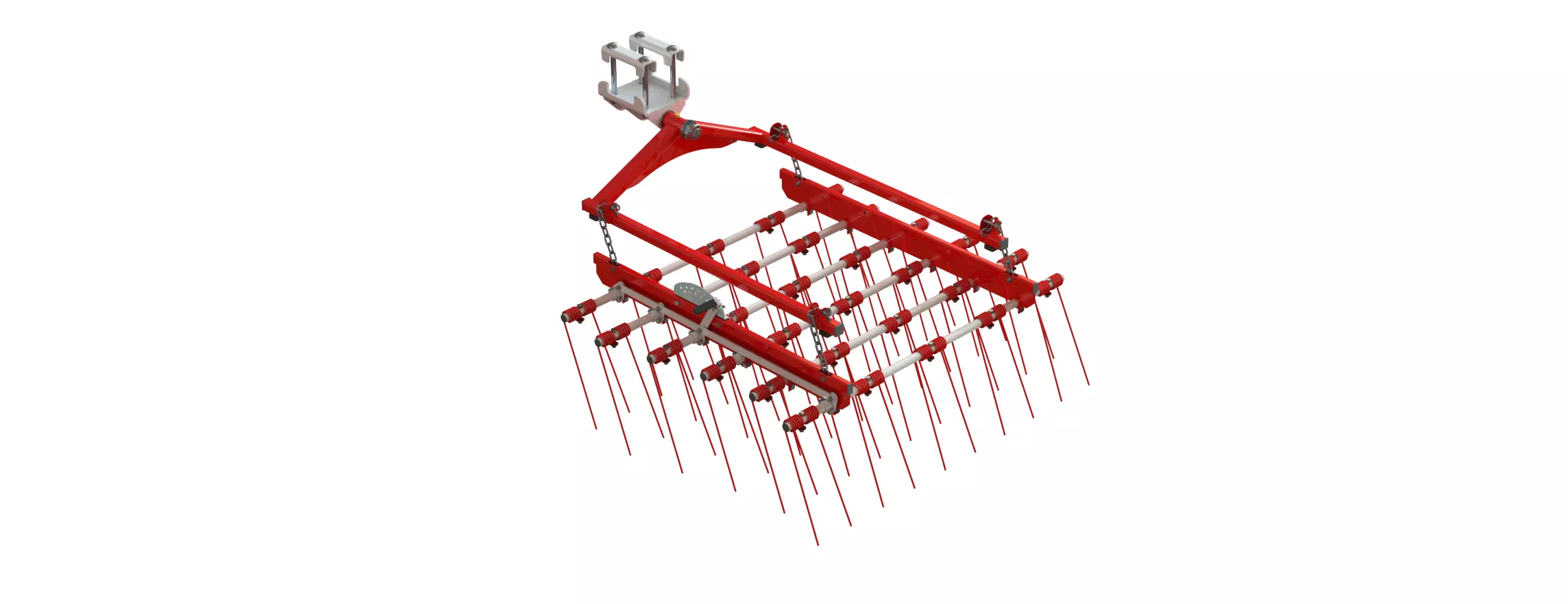

1. WG0009.300 – flex harrow with a fixed frame, 3.0 m working width

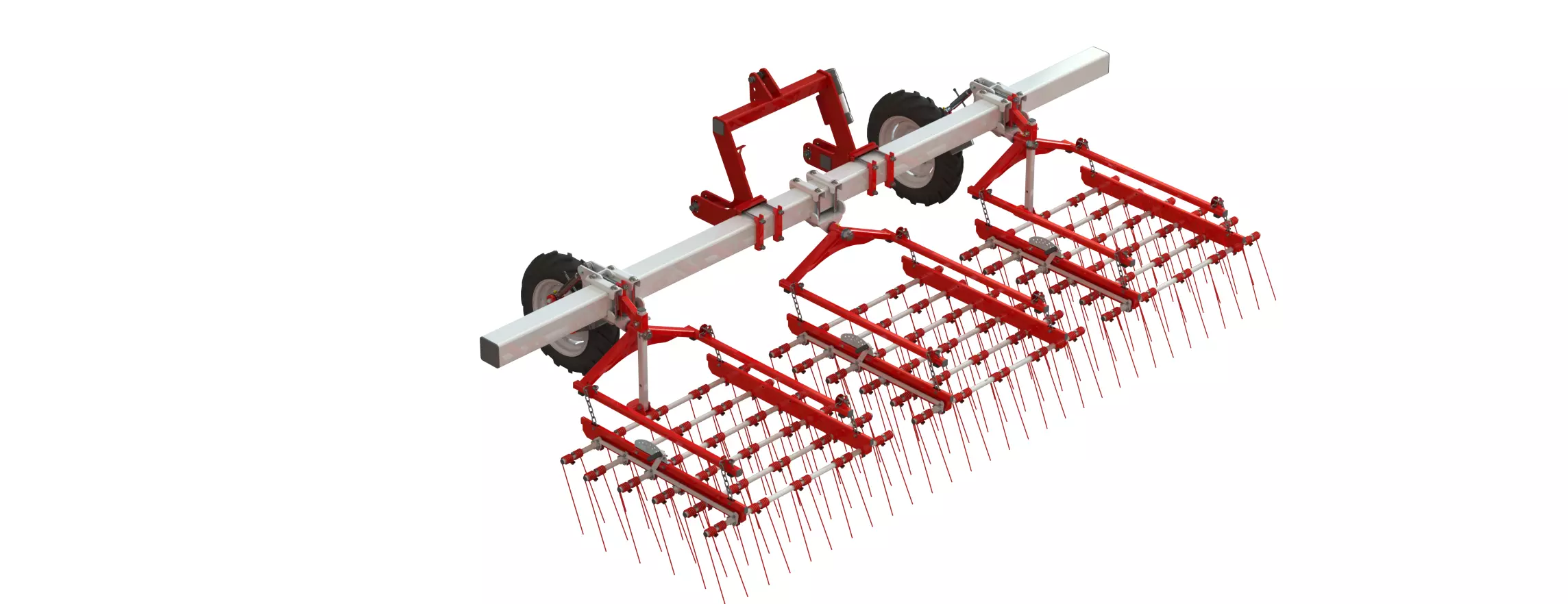

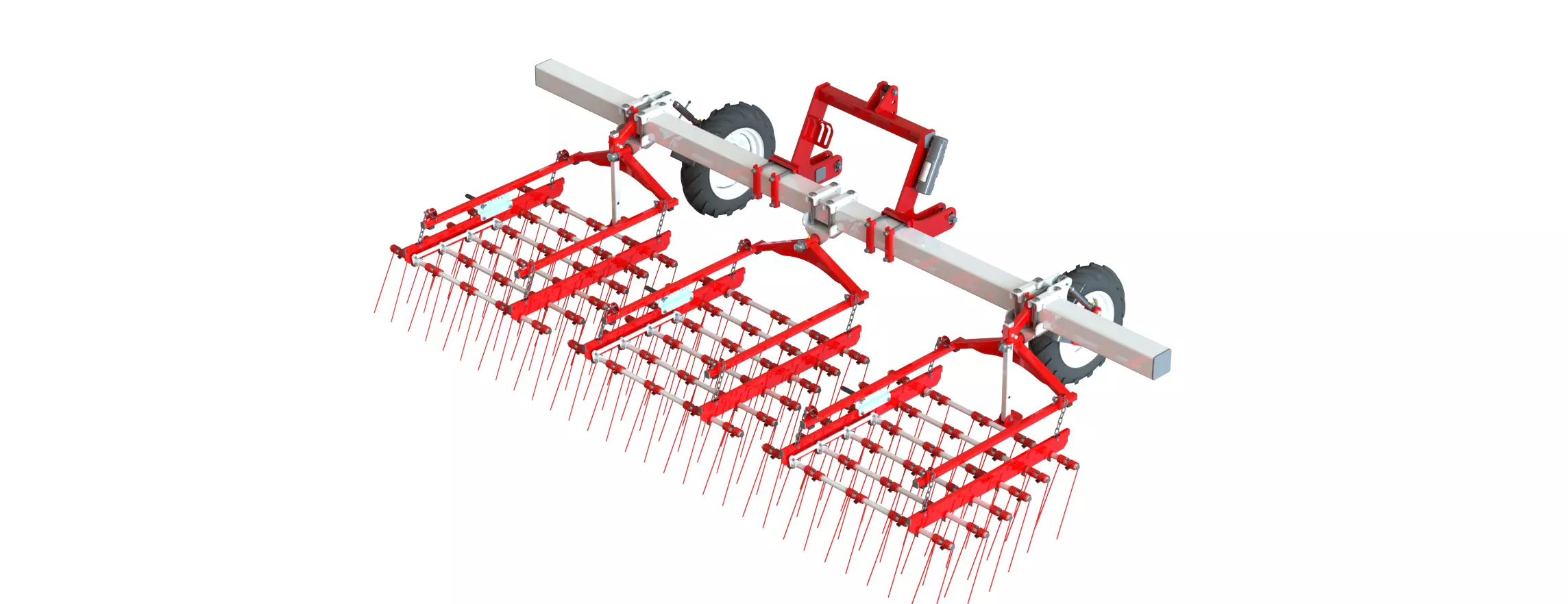

2. WG0009.450 – flex harrow with a fixed frame, 4.5 m working width

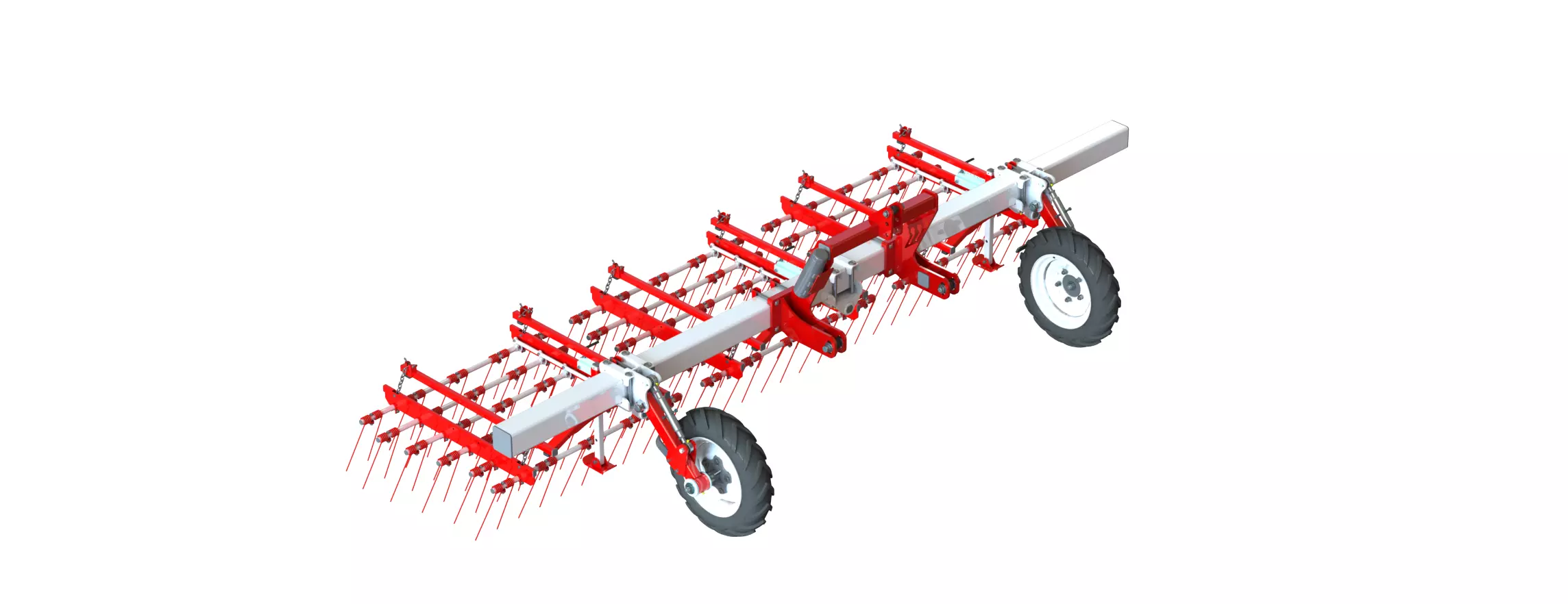

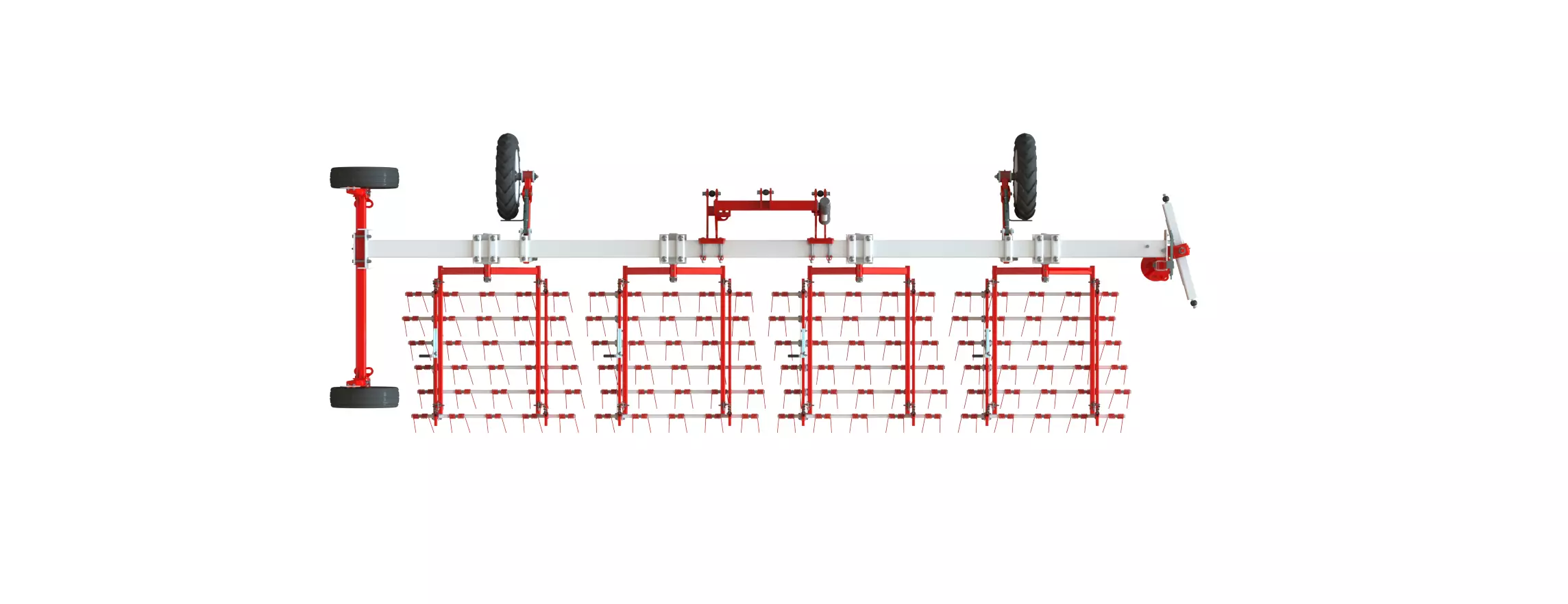

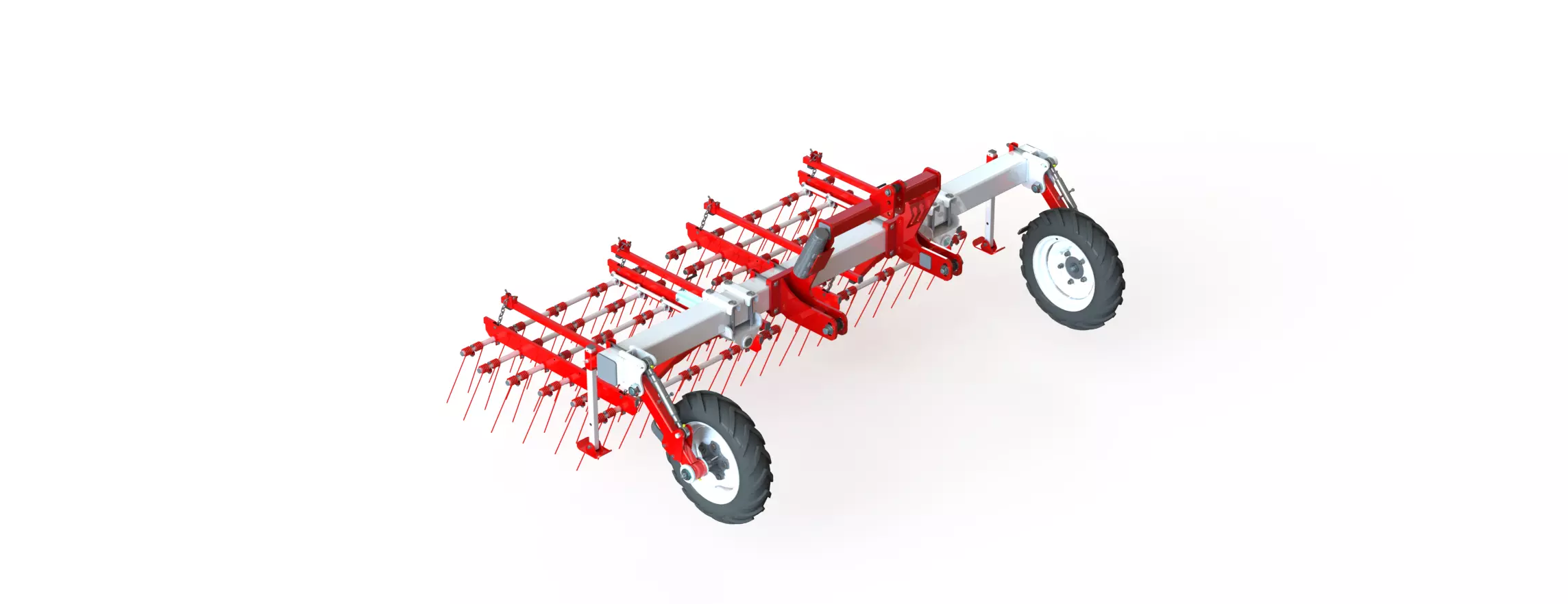

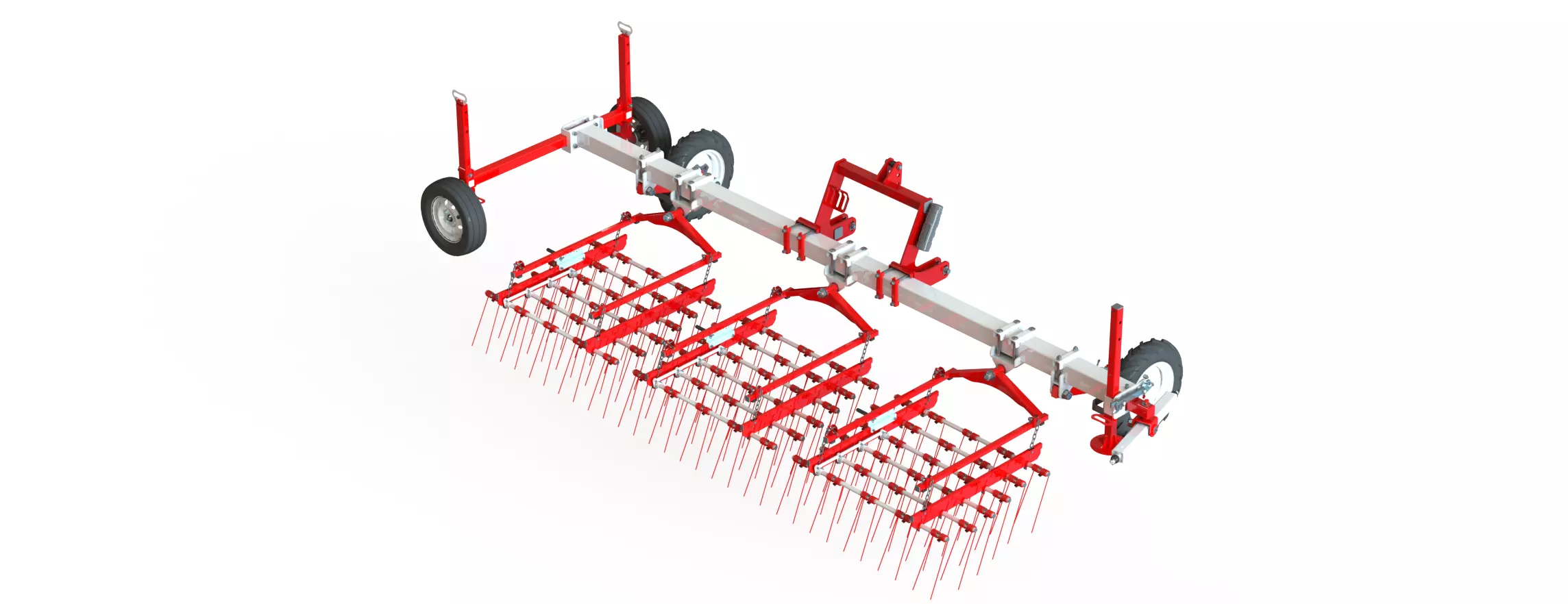

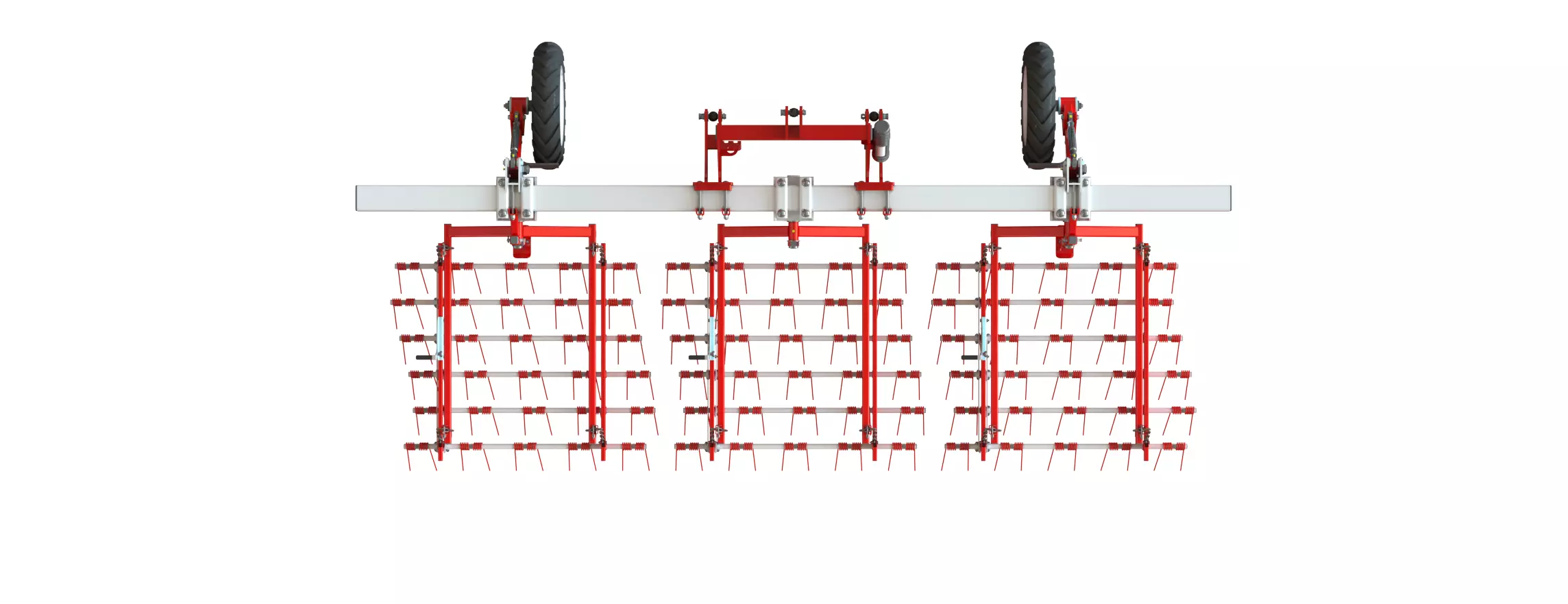

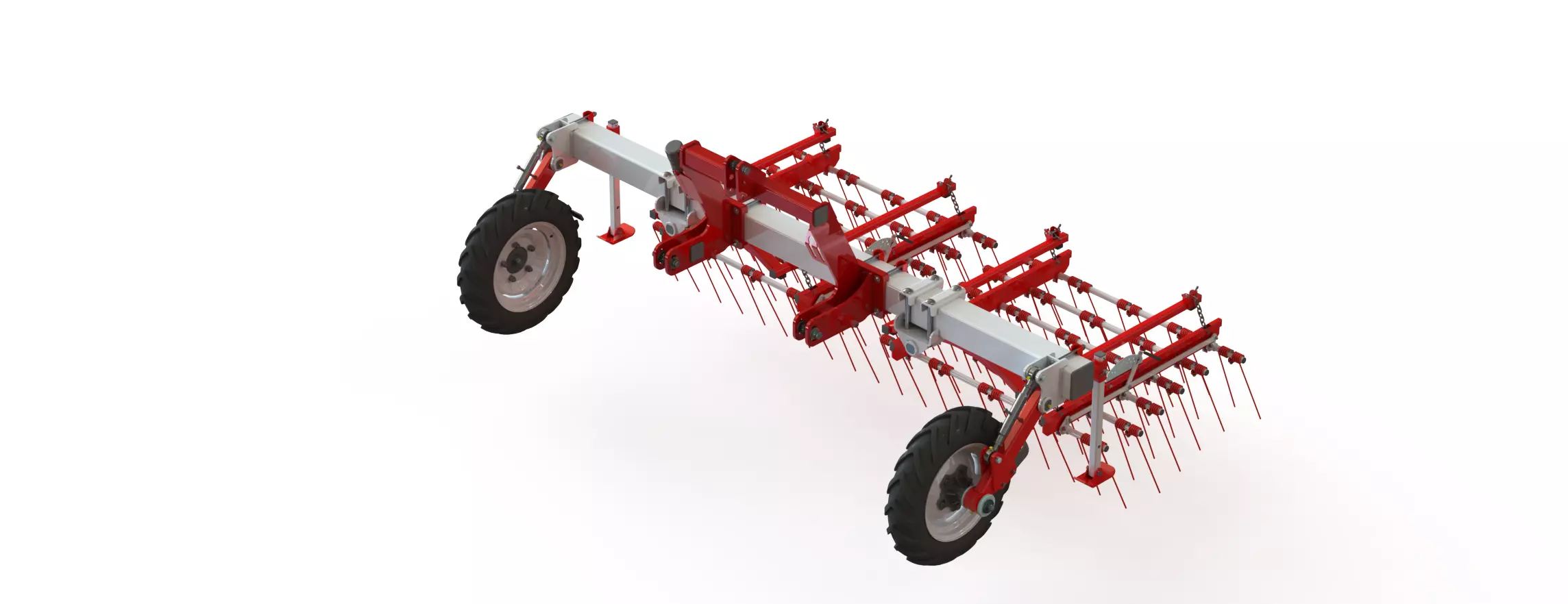

3. WG0009.451 – flex harrow with a frame and transport device, 4.5 m working width

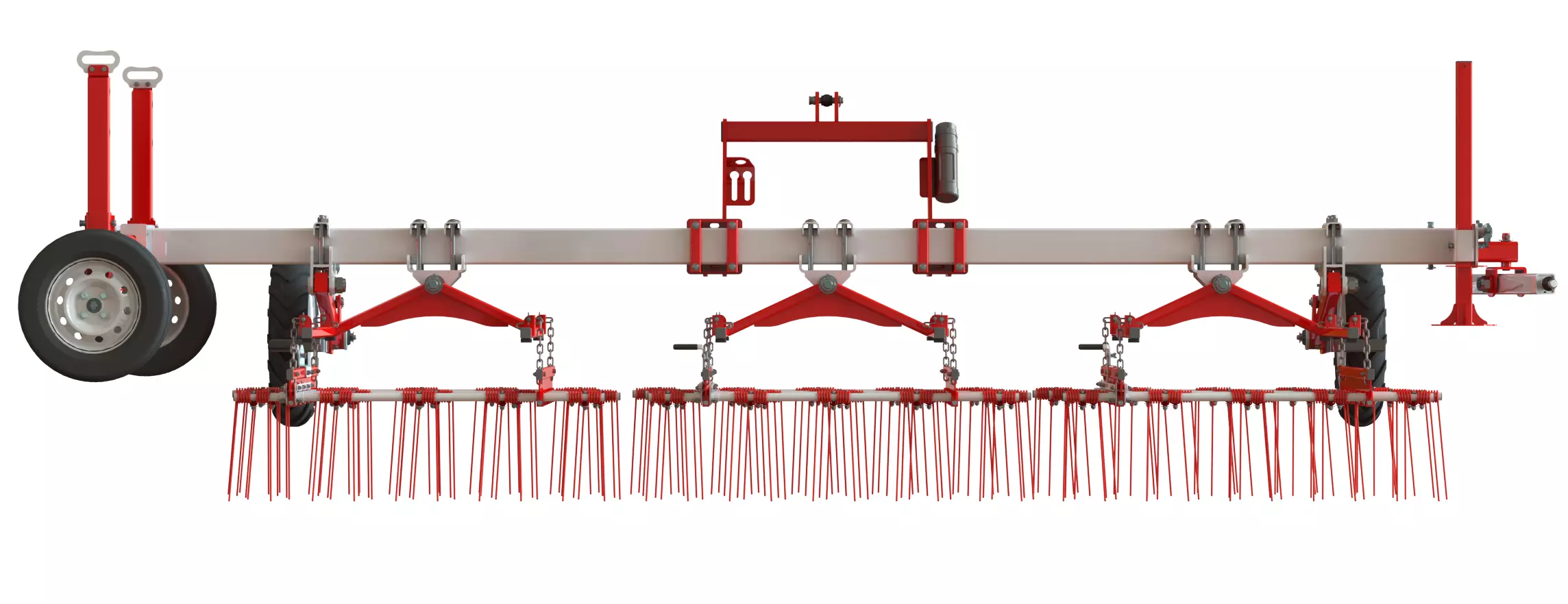

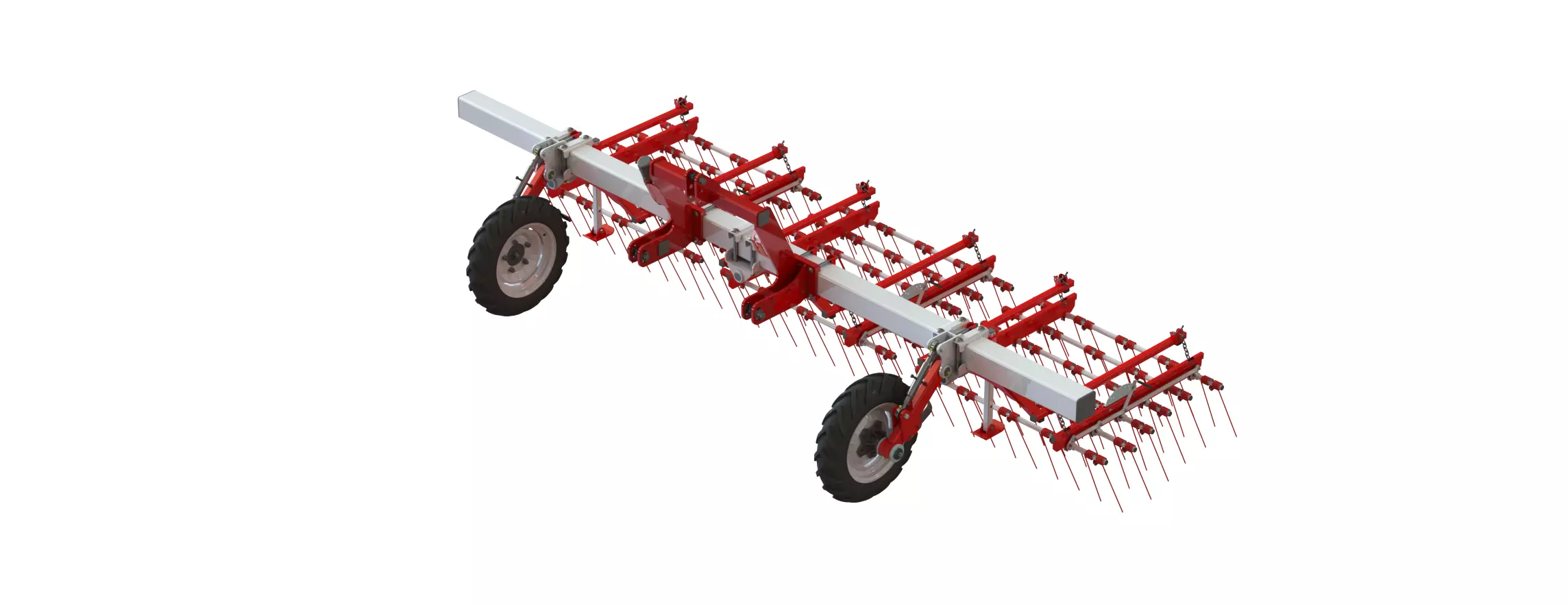

4. WG0009.600 – flex harrow with a fixed frame, 6.0 m working width

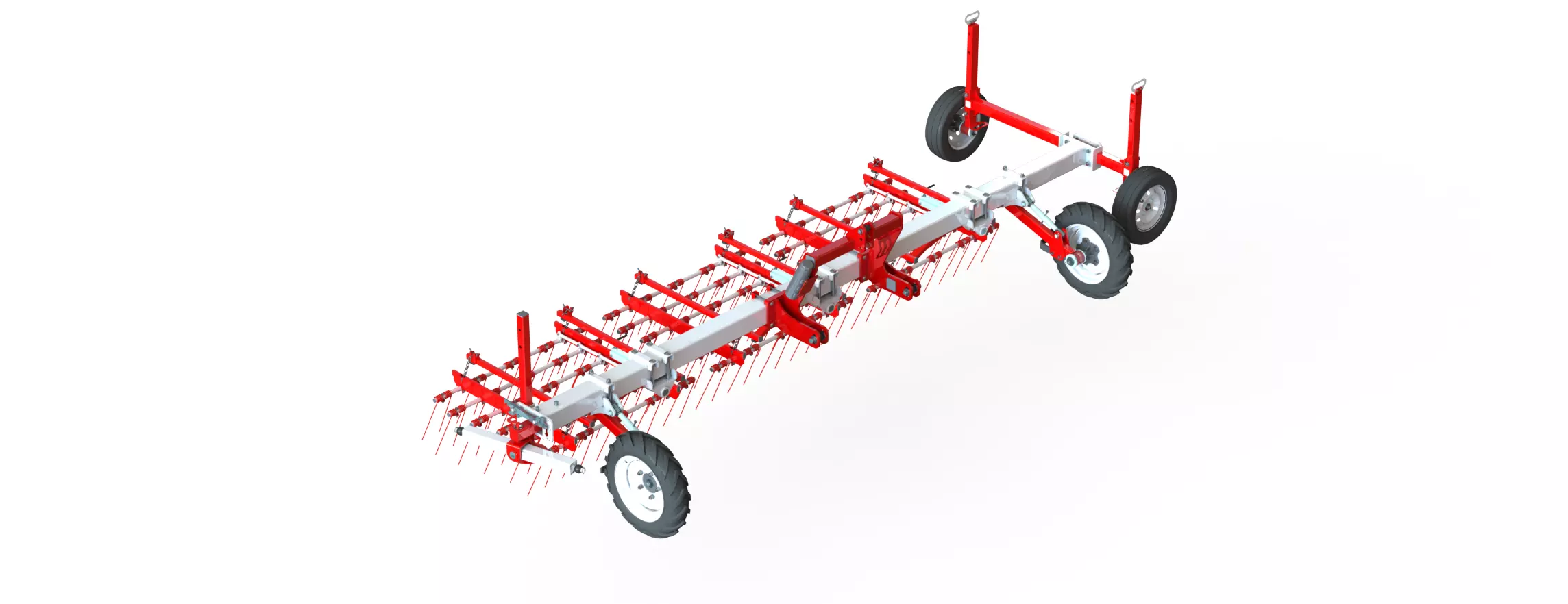

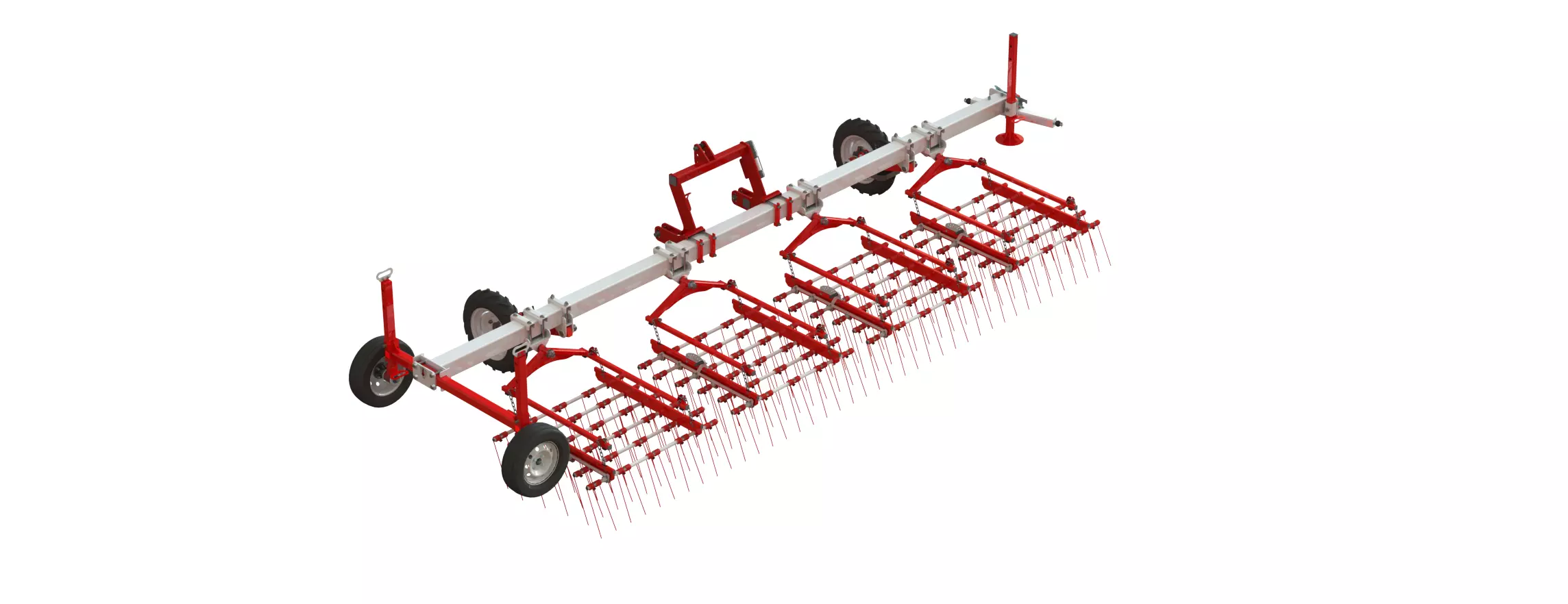

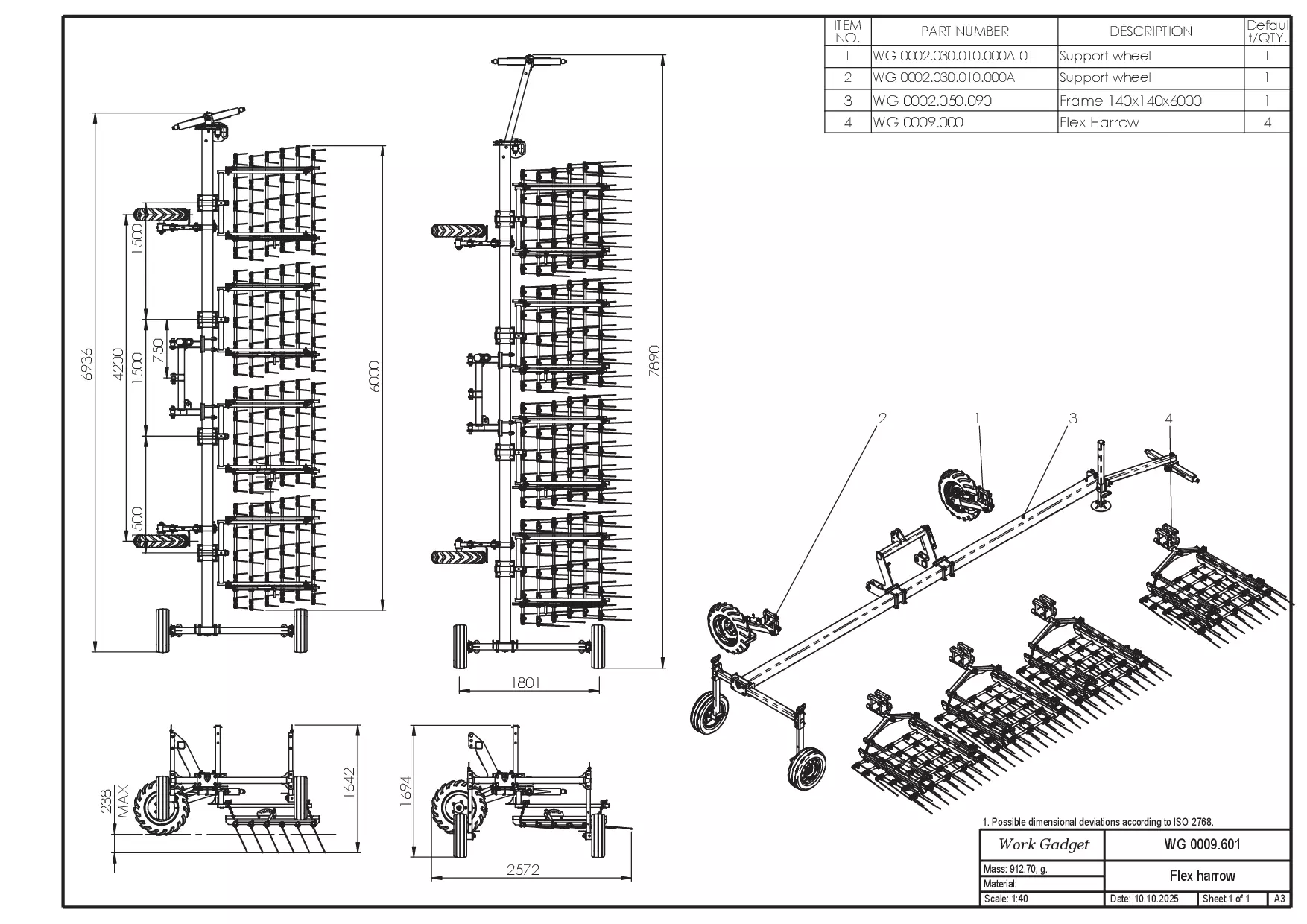

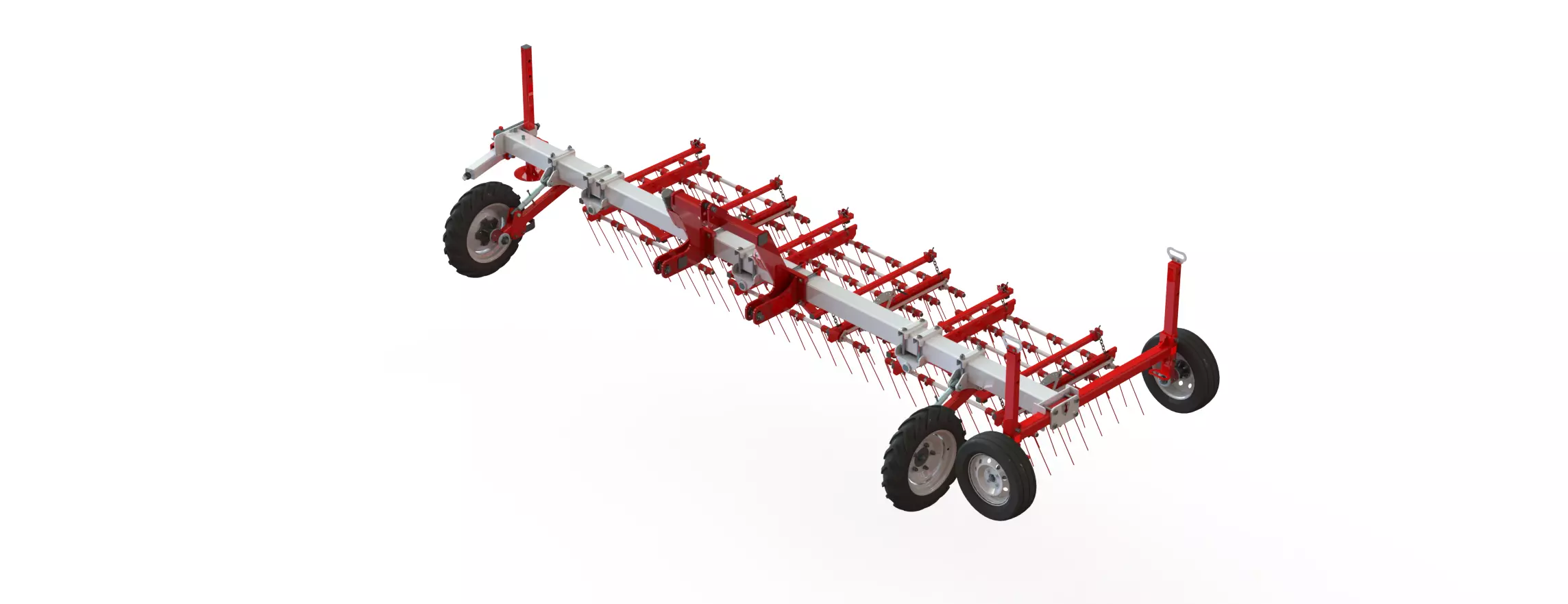

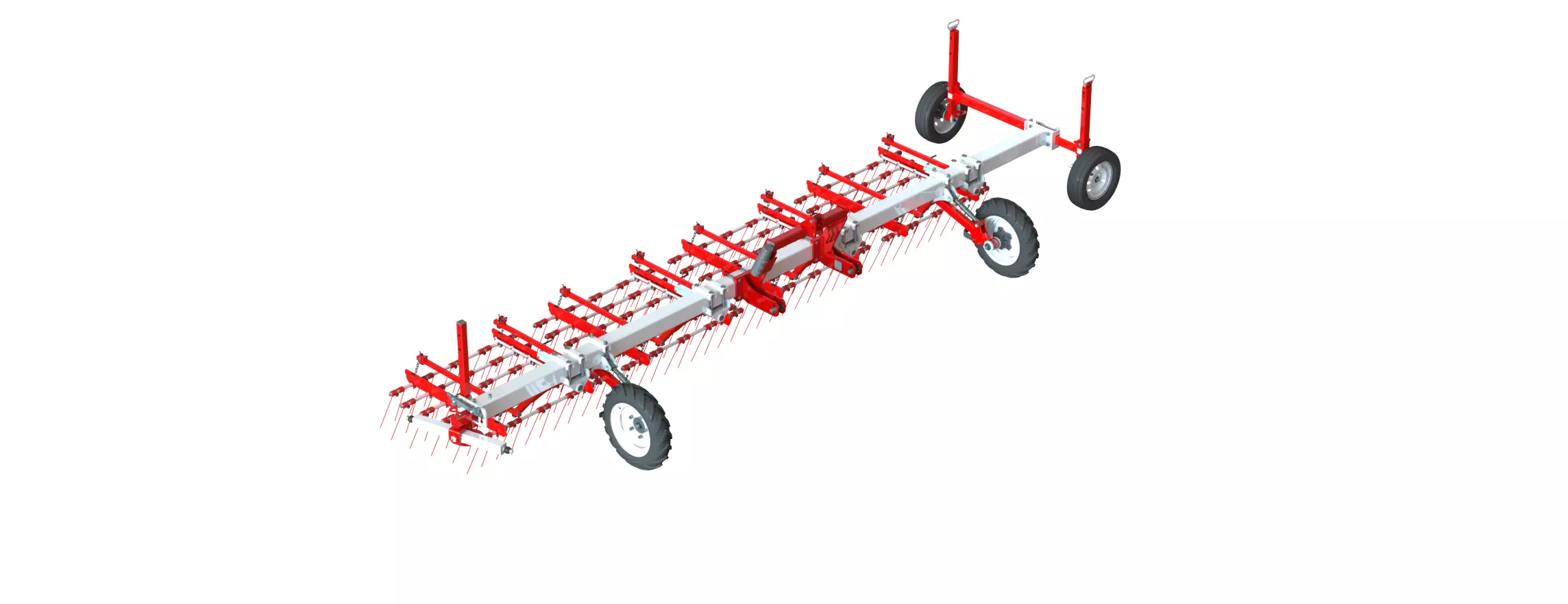

5. WG0009.601 – flex harrow with a frame and transport device, 6.0 m working width

The rotary harrow is designed for effective soil preparation before and after sowing. Its rotating working bodies efficiently destroy the soil crust, improve aeration, and promote uniform seed germination. Suitable for various crops, including cereals and row crops, it ensures high-quality soil cultivation. The robust construction and reliable components guarantee long-term performance even in challenging field conditions.

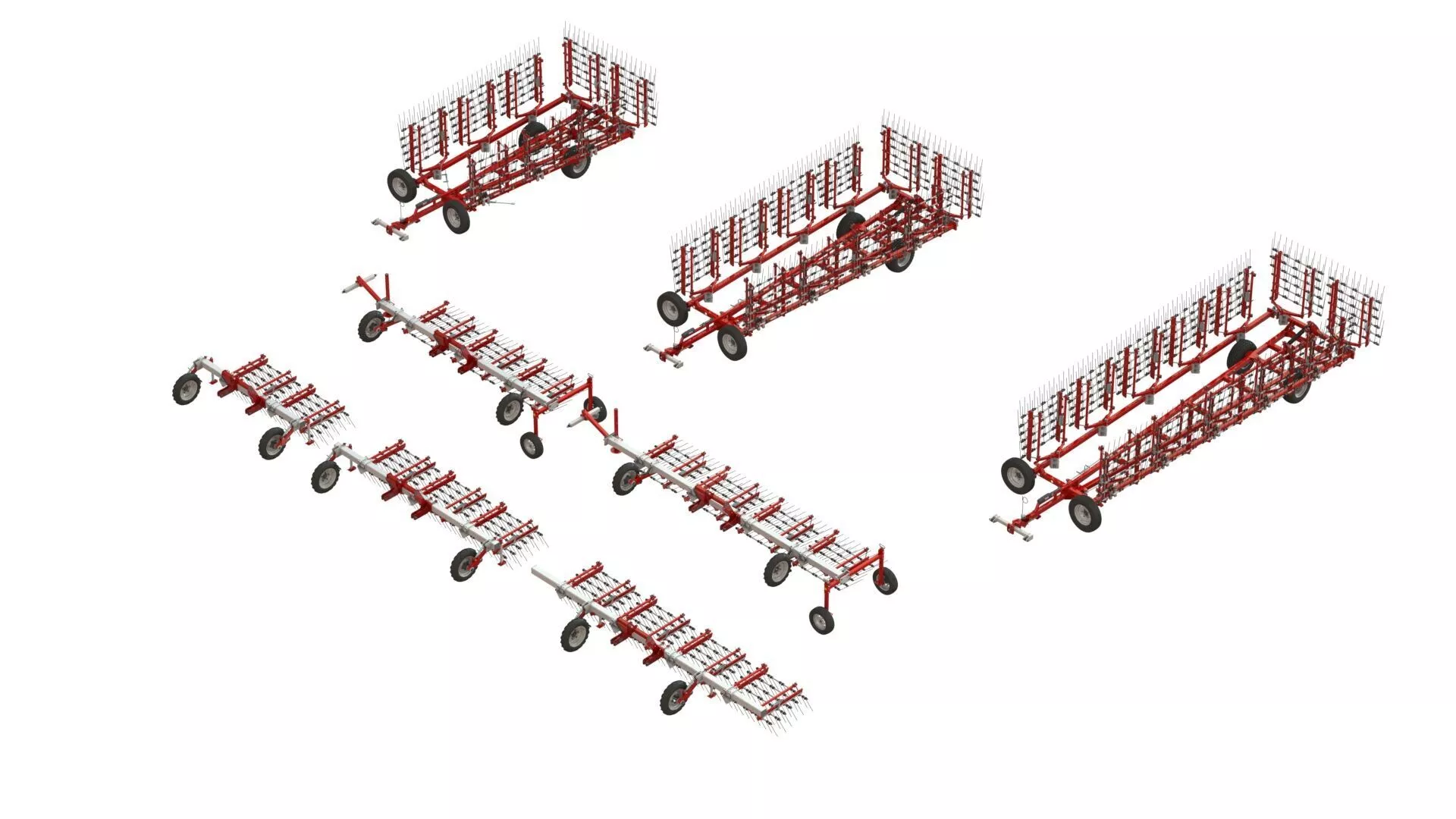

For safe and efficient transportation of oversized rigid-frame units on public roads, we recommend our low-bed trailer – WG 0027.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP).Ready for modification, prototyping, or production use.This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files, Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:Modeled in SolidWorks.All parts are real-world scaled (millimeters).Accurate real-world dimensionsHigh-detail componentsReady for fabrication or simulationDesigned for CNC manufacturing, prototyping, or educational useClean parametric structureCompatible with major CAD software.Designed with manufacturing feasibility in mind.Recommended Use:

Technical planningCustom fabricationEducational materialSuitable for engineers, farmers, and DIY enthusiasts.Textures not included. This is a solid CAD model, not polygonal mesh.Need your own version of this model? I can modify or create new equipment to suit your needs.
