The documentation package includes the following equipment:

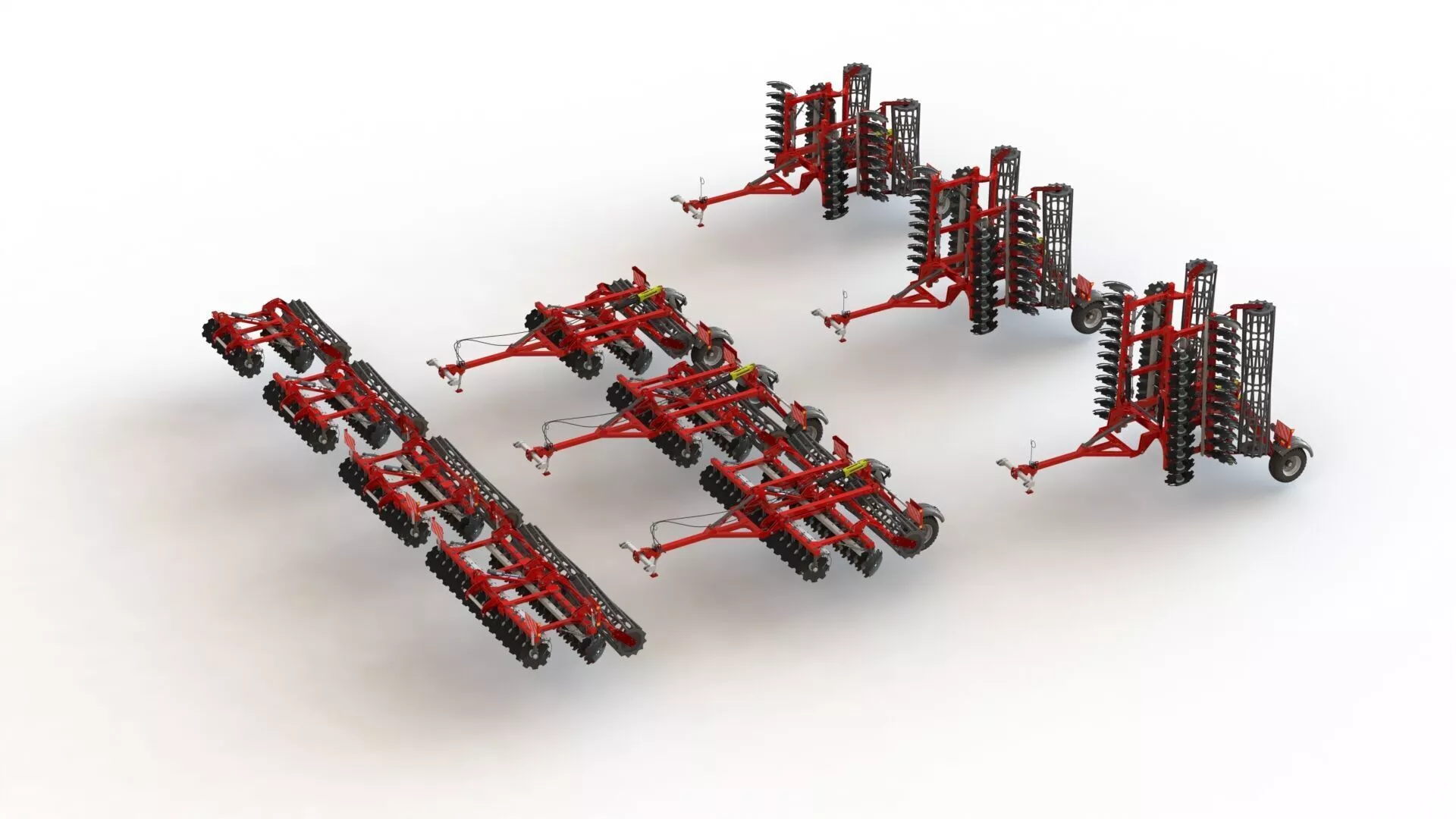

- WG 0007-251 - Semi-mounted heavy disc harrow 2.5 m with fixed frame
- WG 0007-301 - Semi-mounted heavy disc harrow 3.0 m with fixed frame
- WG 0007-401 - Semi-mounted heavy disc harrow 4.0 m with fixed frame
- WG 0007-402 - Semi-mounted heavy disc harrow 4.0 m with folding frame
- WG 0007-502 - Semi-mounted heavy disc harrow 5.0 m with folding frame
- WG 0007-602 - Semi-mounted heavy disc harrow 6.0 m with folding frame

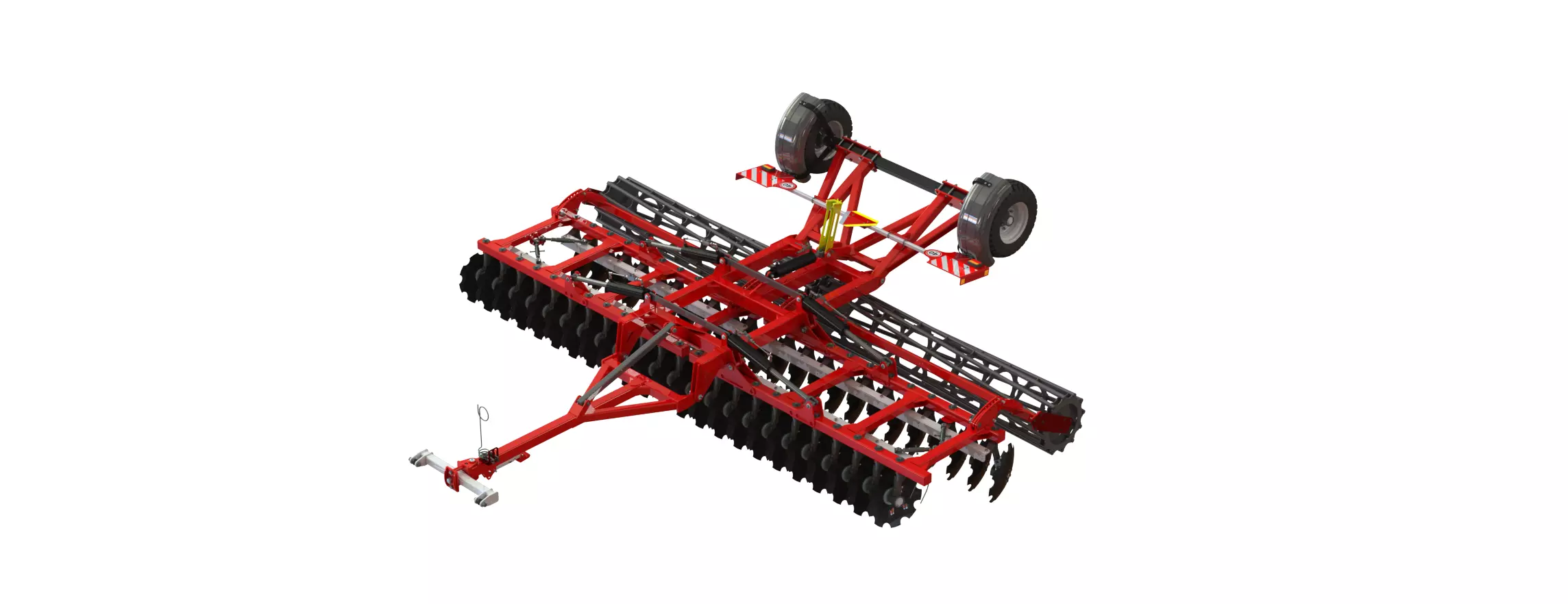

The semi-mounted heavy disc harrow is designed for resource-saving soil cultivation for cereals, industrial, and fodder crops. It efficiently controls weeds, crushes crop residues, levels the soil, and provides light compaction. Suitable for soil with up to 27% moisture and hardness up to 3.5 MPa, as well as fields with high residue content, it ensures consistent and high-quality preparation of the seedbed. A reliable tool for medium and large-scale farming operations.Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP + Parasolid + CATIA).Ready for modification, prototyping, or production use.This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files, Parasolid (.x_t) and CATIA (.cgr).
Technical Highlights:Modeled in SolidWorks.All parts are real-world scaled (millimeters).Accurate real-world dimensionsHigh-detail componentsReady for fabrication or simulationDesigned for CNC manufacturing, prototyping, or educational useClean parametric structureCompatible with major CAD software.Designed with manufacturing feasibility in mind.Recommended Use:
Technical planningCustom fabricationEducational materialSuitable for engineers, farmers, and DIY enthusiasts.Textures not included. This is a solid CAD model, not polygonal mesh.Need your own version of this model? I can modify or create new equipment to suit your needs.
