More Information About 3D Model :

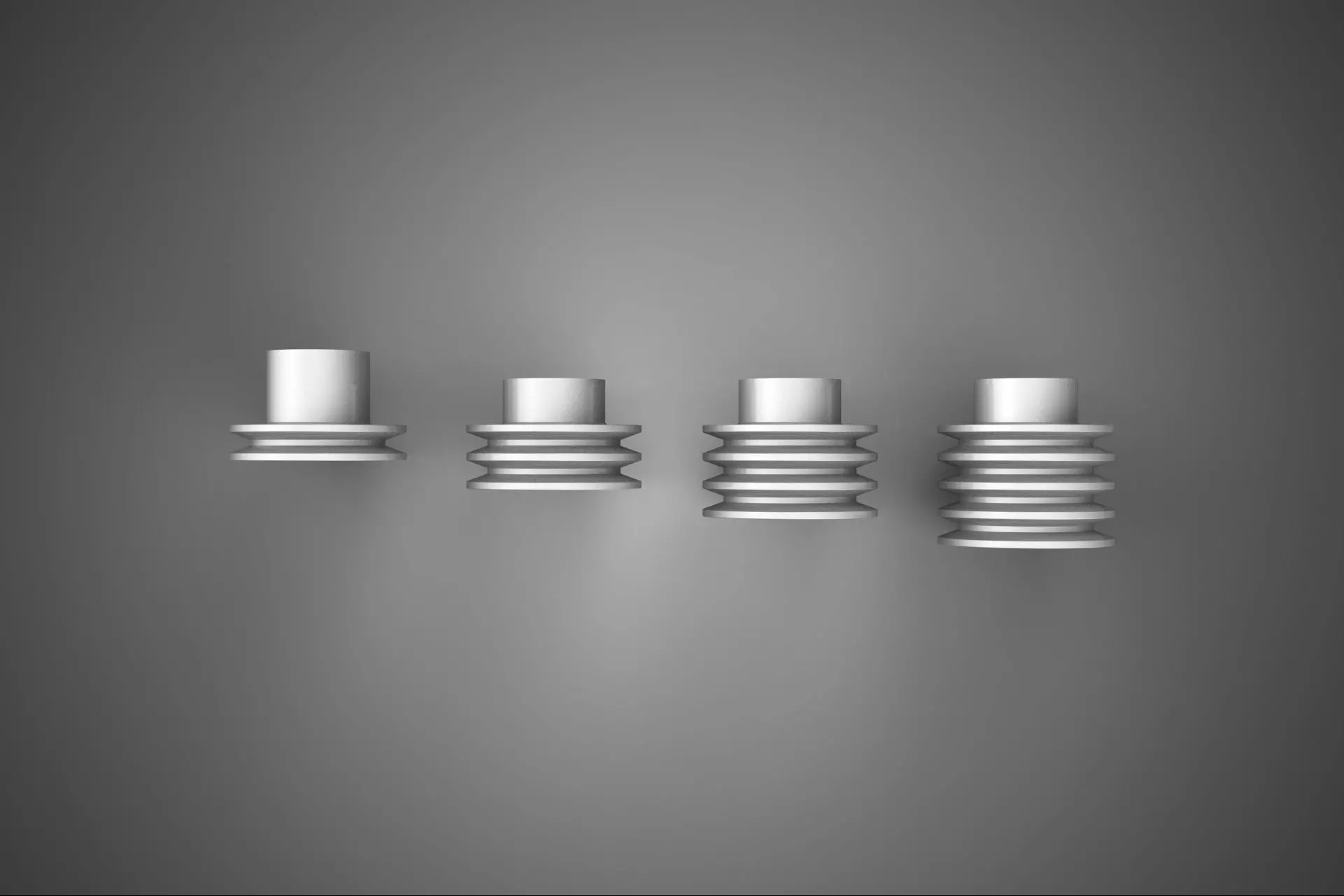

VARIOUS GROOVE PULLEY SHEAVE MULTI TRACK WHEEL DRIVE GEAR V BELT

A V-belt pulley sheave is a specialized mechanical component utilized in friction-based continuous power transmission systems, commonly referred to as belt drives. The component serves as the interface between a rotating shaft and an endless V-shaped belt, facilitating the transfer of torque and rotary motion between two or more shafts. While the terms pulley and sheave are often used interchangeably in this context, sheave is sometimes preferred when referring specifically to the grooved wheel engaging a V-belt. The term wheel drive gear is often a colloquial misnomer; the pulley functions through friction and wedging action, fundamentally differing from the positive meshing action characteristic of toothed gears.

The defining characteristic of this component is the groove or track, which is the circumferential channel engineered to accept the V-belt. The groove possesses precisely machined inclined sidewalls, optimized to maximize the coefficient of friction through the wedging principle. As the V-belt enters the groove, tension forces the belt deeper into the channel, causing a hydraulic effect that increases the normal force exerted by the pulley sidewalls onto the belt flanks. This amplified normal force drastically increases the tractive effort compared to simple flat-belt drives, ensuring efficient, high-torque power transfer with minimal slippage.

Pulleys are typically characterized by their Pitch Diameter (PD) and Outside Diameter (OD), the profile of the groove (determined by standard belt cross-sections like classical A, B, C, or narrow 3V, 5V, 8V), and the number of grooves present.

The concept of a multi-track or multi-groove sheave refers to a configuration where a single pulley body incorporates multiple parallel grooves, allowing for the simultaneous use of two or more individual V-belts (or a single banded multi-V belt).

This configuration is essential in high-power or high-load applications for several critical engineering reasons:

1. Load Distribution and Capacity: Distributing the total power requirement across multiple belts decreases the stress experienced by any single belt, significantly extending service life and increasing the overall mechanical power capacity of the drive system.

2. Increased Tractive Force: The total friction and traction available scale linearly with the number of belts utilized, allowing the drive to handle much greater torque transmission requirements without resorting to extremely large single pulleys or excessive belt tension.

3. Redundancy: In industrial settings, a multi-track setup provides a degree of redundancy. If one belt fails, the remaining belts may temporarily continue to transmit power until maintenance can be performed.

   Multi-groove sheaves must be manufactured with extreme precision to ensure that all grooves share an identical pitch diameter and profile. Any deviation (or out-of-track condition) would cause uneven loading and premature wear on the affected belt.

   ### Materials and Manufacturing

   V-belt sheaves are typically constructed from materials that offer a suitable balance of strength, wear resistance, and damping capabilities:


4. Cast Iron (ASTM A48 Class 30/35): The most common material for industrial and heavy-duty applications due to its excellent vibration damping properties, high compressive strength, and cost-effectiveness.

5. Aluminum Alloys: Preferred in automotive and high-speed applications where low rotational inertia and weight reduction are paramount.

6. Sintered Steel or Composites: Used for low-power consumer or specialized applications where mass production and specific noise reduction are design requirements.

   Manufacturing processes involve casting or forging followed by precision machining. Critical steps include the honing of groove sidewalls for optimal friction surface finish and dynamic balancing, especially for pulleys intended for high rotational speeds, to mitigate vibration and bearing stress.
