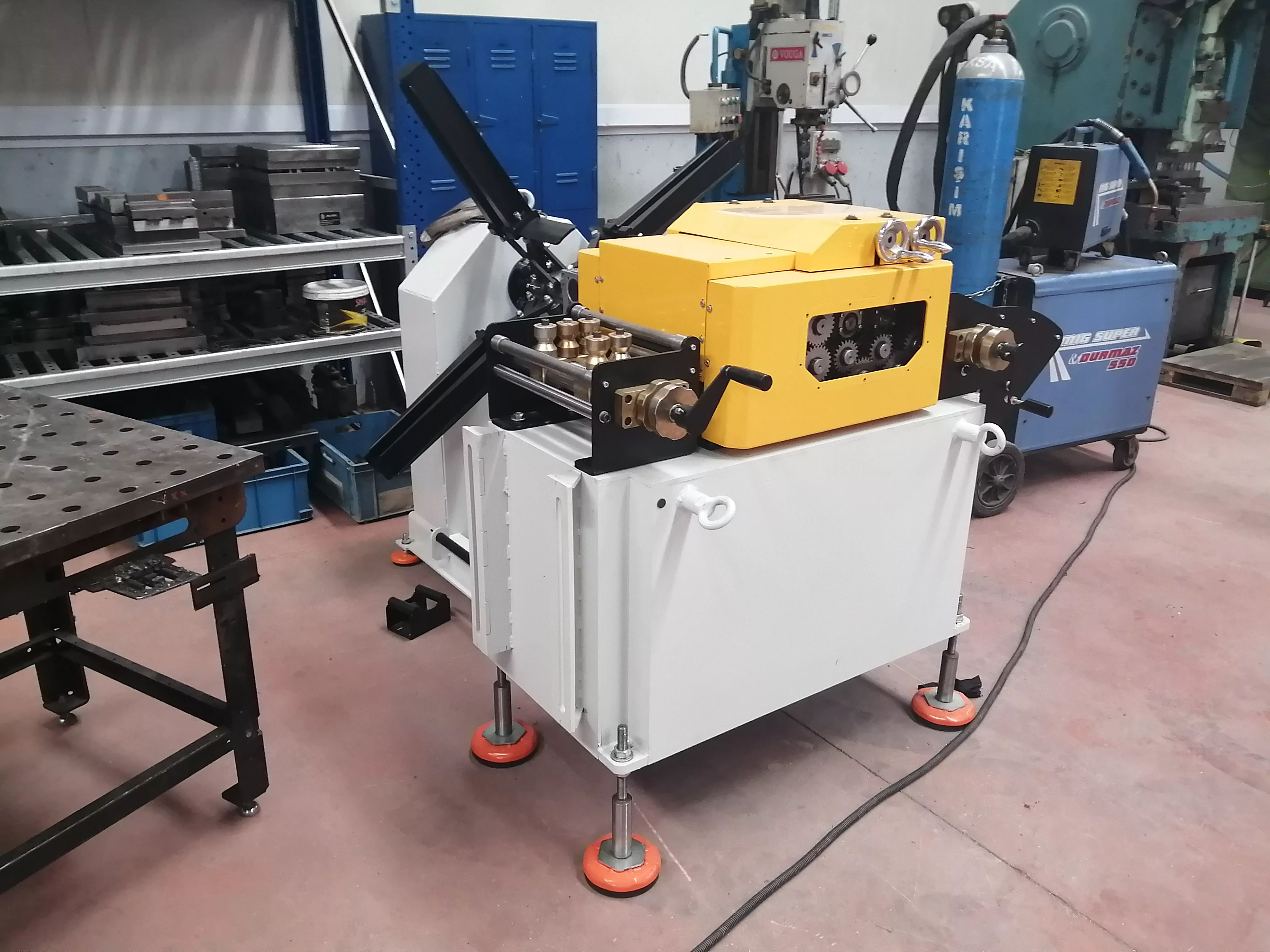

COMPLETE SERVO SHEET FEEDING and STRAIGHTENING MACHINE PROJECT FOR SALE
This is a complete engineering project for a servo sheet feeding and straightening machine.
IMPORTANT:This project has already been manufactured, assembled and tested as a real working machine. The design has been proven in actual operation, so this is not a concept design or an untested prototype.
The machine has been successfully produced and tested, and its working principle and mechanical design have been verified in practice.
STEP, Parasolid, and SolidWorks formats are available.
Photos from the manufacturing process are available.
The project package includes the technical documentation required for manufacturing and assembly:
• Detailed 3D CAD assembly• Manufacturing drawings• Detailed part drawings• Assembly drawings• Component and sub-assembly drawings• Complete dimensions and technical specifications• Material specifications• Standard component information• Shaft, roller and gear drawings• Machine frame and structural drawings• Mechanical assembly details• Bill of Materials (BOM)• Manufacturing-oriented technical documentation
MACHINE SPECIFICATIONS:
• Machine Type: Servo Sheet Feeding & Straightening Machine• Sheet Thickness: 0–5 mm• Sheet Width: 30–200 mm
WHY THIS PROJECT?
Already manufacturedSuccessfully assembledTested on a real machine Working design proven in practiceManufacturing-oriented engineering documentationSaves significant design and development timeSuitable for machine manufacturers and engineering companies
This project allows you to start manufacturing from an already proven machine design instead of spending months developing and testing a new machine from scratch.
Available at an affordable and competitive price.
Contact us for complete project details, technical drawings, project content and pricing.
