Roller Model with Configurable Macro Catalog Based 3D model
thumbnail
play iconthumbnail
thumbnail
DESCRIPTION

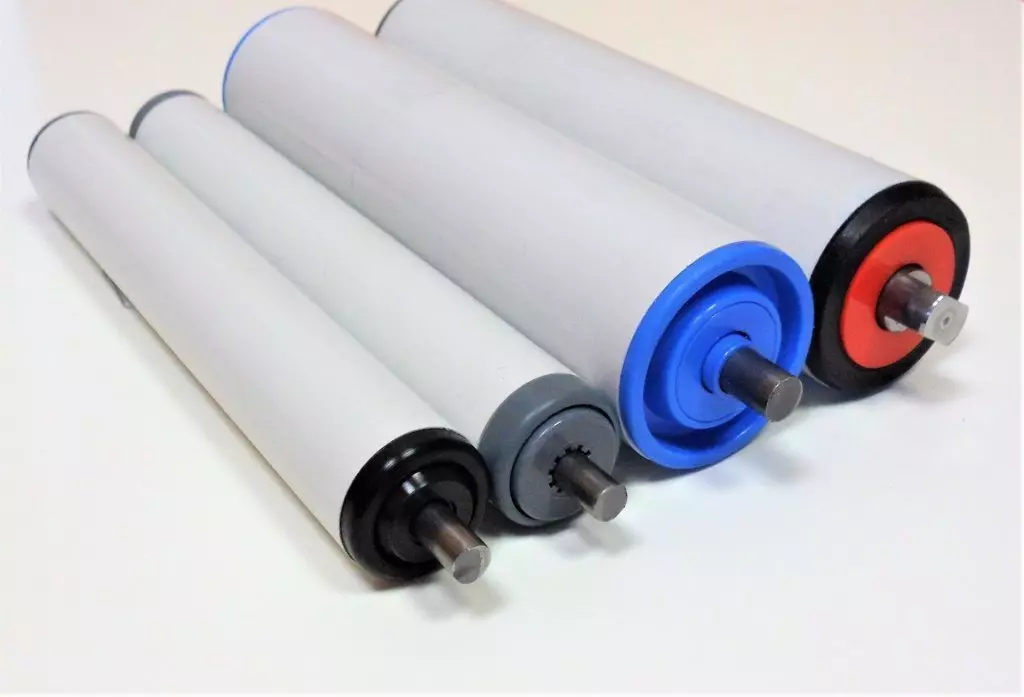

This SolidWorks part file features a 3D model of a conveyor roller designed according to commercial standards. A built-in macro allows quick and easy customization of key dimensions (length, diameter, shaft size, etc.) based on supplier catalogs. This tool saves time and ensures conformity with real-world components used in industrial conveyor systems.

  • Parametric design based on standard catalog sizes
  • Macro-enabled interface for fast dimension changes
  • Compatible with assembly integration
  • Ideal for mechanical design automation and standardization

https://youtube.com/shorts/1ERf8UxNtSE?si=dyMSEecxRNpLTCul

Related Tagsrollerparametriccataloguemacrosolidworksindustrialmachineindustrial machine
