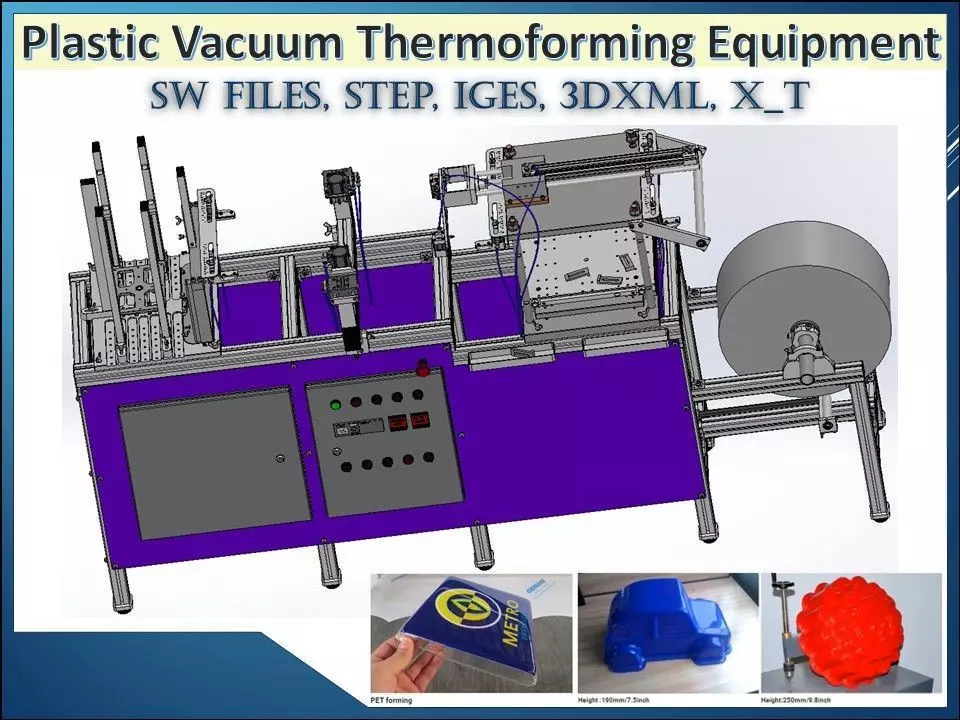

Industrial Vacuum Forming Machine 3D CAD model designed for thermoforming plastic sheets into customized shapes used in packaging, product trays, containers, and protective housings. The system operates by heating thermoplastic sheets and applying vacuum pressure to form the material over a mold, producing precise and consistent shapes.The machine integrates sheet feeding mechanisms, heating sections, vacuum forming platforms, and trimming stations to perform automated forming operations. A plastic sheet roll is fed into the machine where it is heated until soft, then vacuum pressure pulls the sheet tightly over the mold to create the desired form.Precision linear motion systems and pneumatic actuators control material positioning, mold pressing, and product removal, ensuring efficient and repeatable production cycles. The system typically includes heating elements, vacuum pumps, clamping frames, guide rails, and electronic control panels for reliable industrial operation.This CAD assembly demonstrates key design principles used in plastic thermoforming machinery, automated packaging equipment, and industrial sheet forming systems, making it suitable for manufacturing automation projects, mechanical engineering studies, and industrial equipment development.Key Features• Automated plastic sheet feeding system• Precision vacuum thermoforming process• Mold-based plastic shaping mechanism• Integrated heating and forming station• Pneumatic or servo-driven movement system• Industrial control panel and automation system• Continuous production workflow design• Detailed industrial machine CAD assemblyMain Components• Plastic sheet roll feeding unit• Heating chamber or heating plates• Vacuum forming platform• Mold mounting frame• Pneumatic actuators and cylinders• Structural machine frame• Vacuum pump and suction system• Electrical control panel and sensorsTypical Applications• Plastic packaging tray manufacturing• Food container and blister packaging production• Consumer product packaging systems• Disposable container manufacturing• Plastic component thermoforming• Industrial packaging production lines
