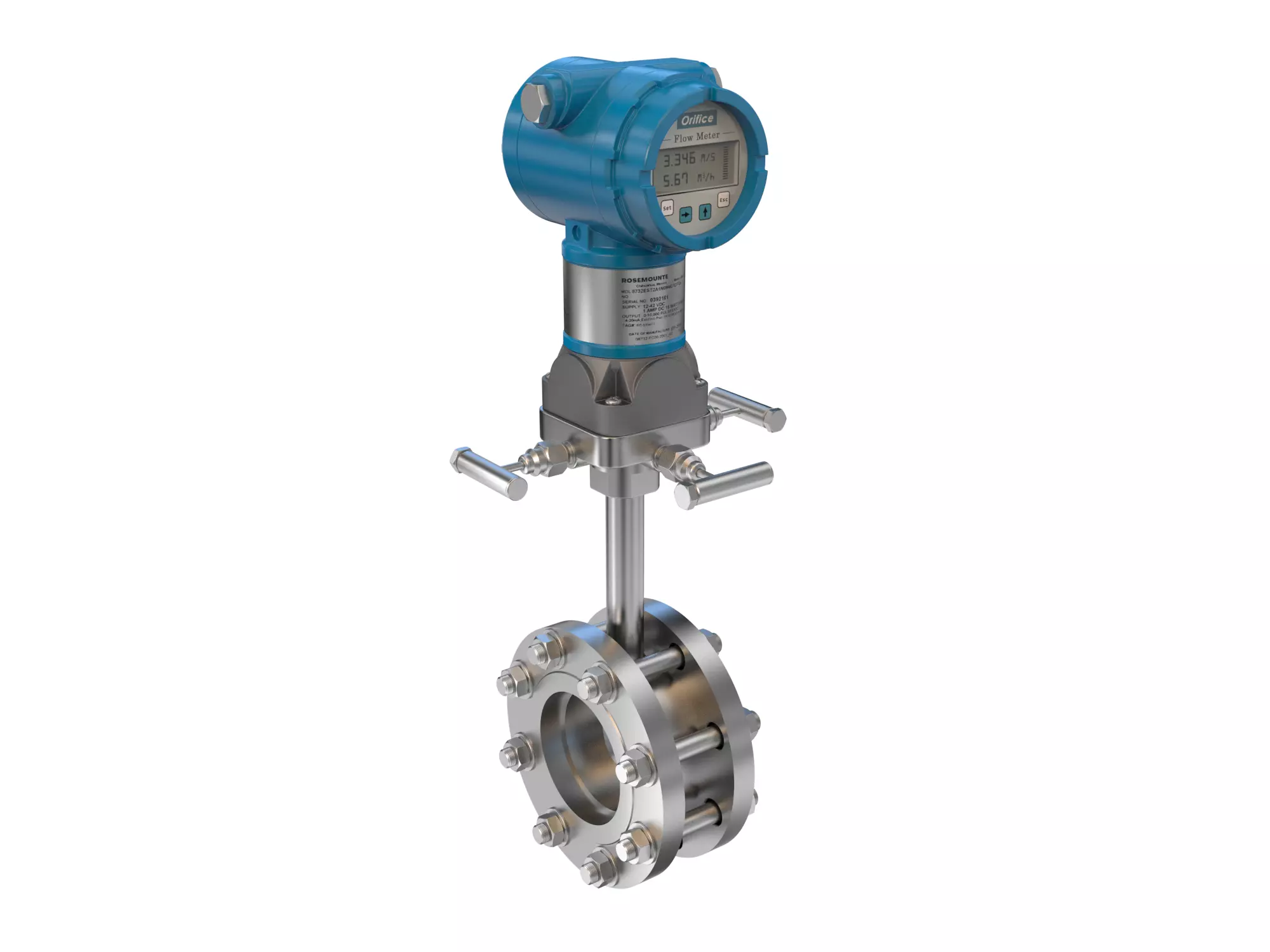

High-quality 3D model of an Orifice Flow Meter Assembly used for flow measurement in industrial piping systems. Orifice flow meters are widely used to measure the flow rate of liquids, gases, and steam by creating a pressure differential across an orifice plate. This model is suitable for industrial visualization, engineering presentations, process plant environments, and technical rendering projects.
FeaturesDetailed and realistic industrial designClean geometry and optimized topologyReal-world scaleOrganized objects and materialsSuitable for close-up rendersReady for visualization and engineering workflowsApplicationsOil and gas facilitiesChemical and petrochemical plantsPower generation systemsIndustrial piping networksProcess engineering projectsBIM and factory visualization
