DESCRIPTION

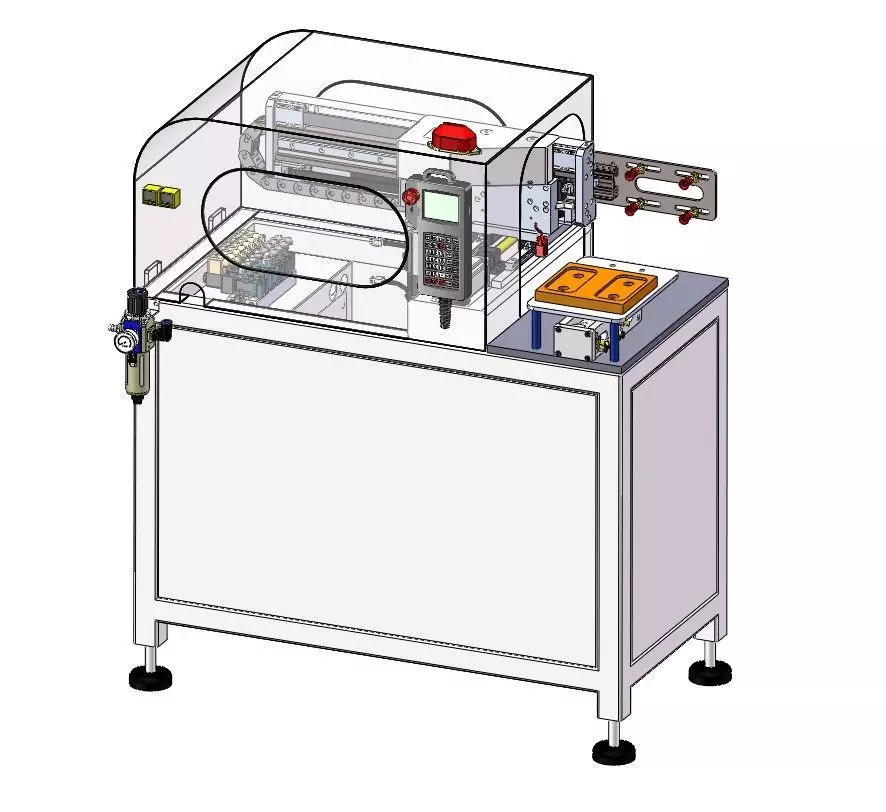

This industrial 3D model features a non-standard in-mold labeling (IML) robot designed for automated label application in injection molding. The system integrates a controller and mechanical handling equipment to insert printed composite material labels into specially structured mold cavities. Utilizing the heat from injected plastic, the label seamlessly fuses with the product, ensuring high durability and quality. Primarily suitable for PE and PP plastic packaging, in-mold labeling (IML) enhances anti-counterfeiting, product aesthetics, and durability, making it superior to silk-screen and out-mold labeling. The technology offers resistance to water, oil, mildew, friction, acids, and temperature variations, ensuring long-lasting and high-quality branding. Designed in SolidWorks (SW2014), the model is available in STEP, SLDPRT, and SLDASM file formats.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Labeling Robot for Automated Label Application 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT
Size: 73.1 MB
2020
Exchange formats
OTHER
Other | 2 files<br />File Size: 147 MB
IGE
IGES<br />Version: 2020<br />File Size: 144 MB
STP
STEP<br />Version: 2018<br />File Size: 131 MB
STL
Stereolithography<br />Version: 2018<br />File Size: 30.6 MB
