DESCRIPTION

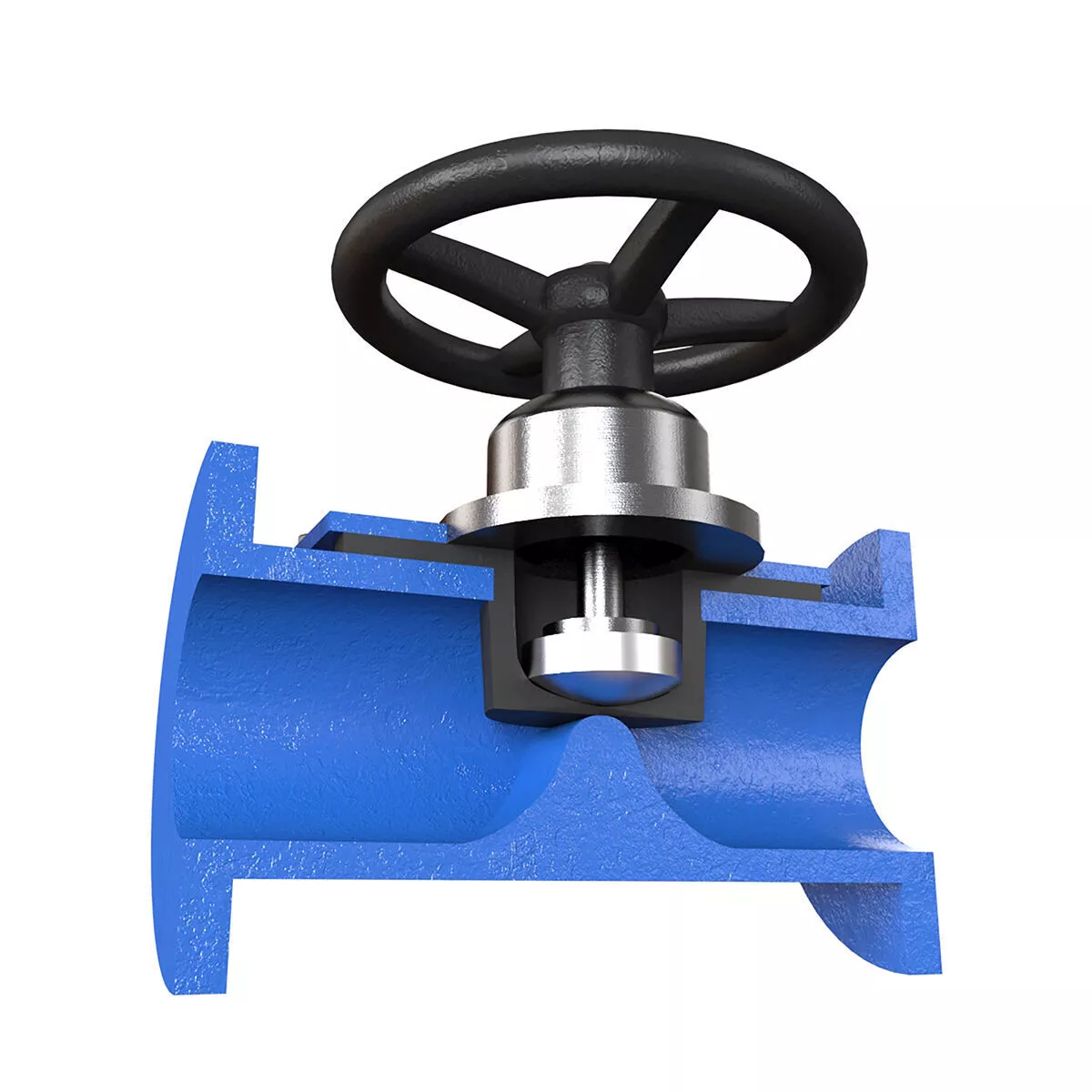

High-quality 3D model of an Industrial Diaphragm Valve used for precise flow control and isolation in pipeline systems. This valve uses a flexible diaphragm to regulate fluid flow, making it ideal for applications requiring clean, leak-tight, and corrosion-resistant operation.

Widely used in water treatment plants, chemical processing, pharmaceutical industries, food & beverage systems, and industrial fluid handling networks. The model features detailed body structure, actuator housing, and internal diaphragm mechanism, suitable for engineering visualization and technical animation.

Features:

Detailed industrial diaphragm valve designAccurate flexible diaphragm mechanismClean topology and optimized geometryReal-world scale proportionsSuitable for close-up rendering and animationIndustrial-grade visualization asset

Use Cases:

Chemical processing systemsWater treatment and filtration plantsPharmaceutical and hygienic pipelinesFood & beverage production linesIndustrial flow control simulationsEngineering presentations and CGI/VFX

Related Tagsdiaphragmvalveindustrialflowcontrolhygienicchemicalwatertreatmentequipmentpharmaceuticalpipelinepipingprocesscorrosionresistantmechanicalengineering
