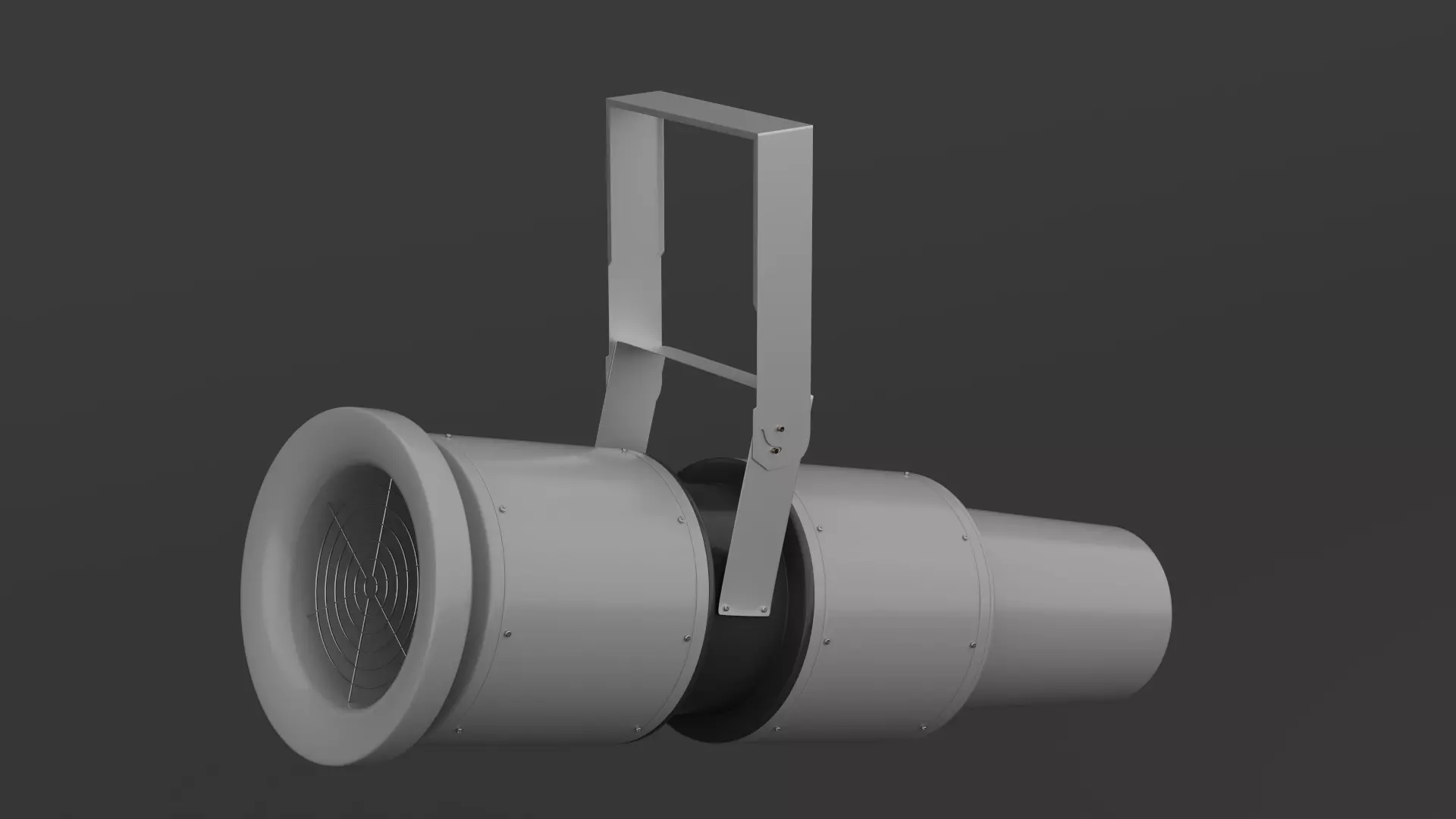

Industrial Axial Jet Fan Ventilation System 3D model
DESCRIPTION

High-quality 3D model of an Industrial Axial Jet Fan, designed for professional visualization, engineering simulations, and architectural renders. This model represents a standard induction fan used for smoke control and air circulation in large indoor spaces like parking garages and tunnels.

Key Features:

Accurate Geometry: Clean topology with both low-poly and high-poly wireframe options as seen in the previews.

Detailed Internal Components: Includes the 5-blade impeller and motor assembly.

Adjustable Mounting: Features a heavy-duty U-bracket for ceiling suspension.

Ready to Render: Optimized for high-end rendering with realistic proportions.

Technical Specifications:

Geometry: Polygonal (Quads/Tris)

Components: Fan Housing, Inlet Guard, 5-Blade Impeller, Motor, Exhaust Nozzle, Mounting Bracket.

Related Tagsjetfanaxialventilationindustrialtunnelparkinglotsmokeextractioninductionhvacmechanicalengineeringblowerairflowfactorywarehouseimpeller

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Industrial Axial Jet Fan Ventilation System 3D model

$9.00
Royalty Free License
Created by
w
wodtlf
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
MAX2 files
Size: 12.4 MB
Arnold | 2023
V-Ray 7 | 20
Exchange formats
OBJ
OBJ | 2 files<br />File Size: 4 MB
FBX
Autodesk FBX<br />File Size: 1.86 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Polygon mesh
A model built from polygons (triangles or quads) connected in a mesh.
36035 polygons
The total number of polygons (flat shapes) that make up the 3D model.
/
36908 vertices
The number of points (corners) that define the shape of the model's polygons.
Unwrapped UVs
Unknown
Publish date
2026-04-26
