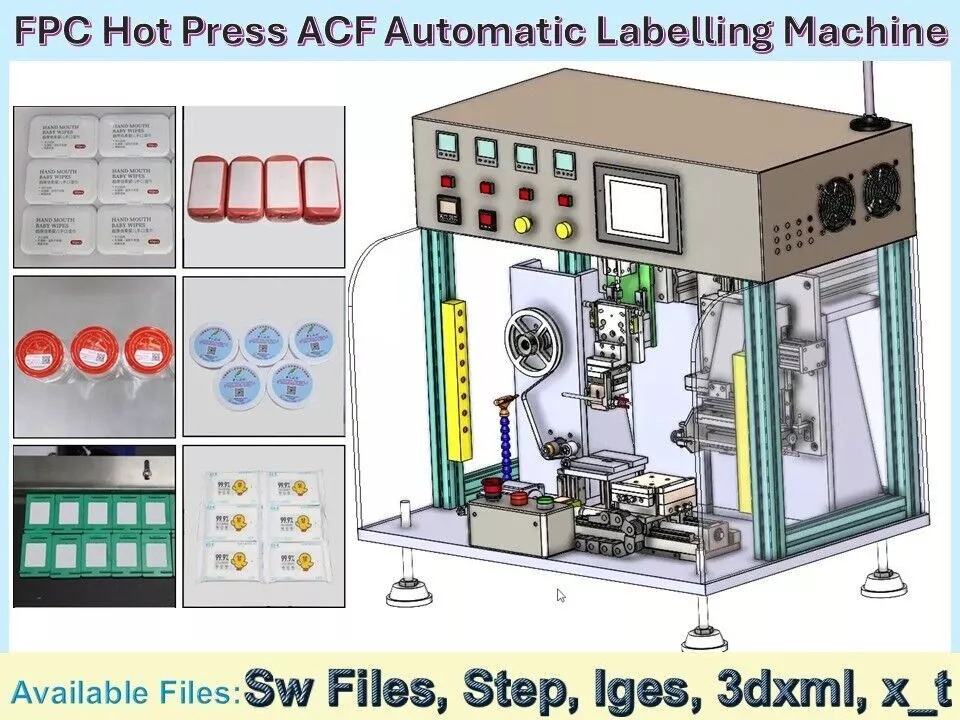

Professional Compact Desktop ACF Automatic Labeling Machine 3D CAD Model designed for precision cutting, picking, heating, and hot-press application of ACF (Anisotropic Conductive Film), adhesive films, insulating films, protective tapes, conductive tapes, and precision labels onto Flexible Printed Circuits (FPCs) and other miniature electronic components. The machine integrates automatic label cutting, vacuum pickup, heated pressure bonding, precision positioning, and automatic release in a compact desktop footprint, making it ideal for electronics assembly, LCD, OLED, touch panel, camera module, semiconductor, and precision manufacturing applications. Equipped with a vacuum generator, accurate FPC positioning mechanism, PLC control, and temperature-controlled hot press head for stable, repeatable bonding.

Key Features• Compact desktop ACF laminating machine • Automatic film and label cutting • Vacuum suction pickup system • Precision hot press bonding • Servo positioning mechanism • High-accuracy FPC alignment • Temperature-controlled pressure head • Adjustable bonding pressure • PLC & HMI touchscreen control • Vacuum generator integrated • Automatic pick-and-place process • Compact space-saving design • High repeatability • Industrial safety enclosure • SolidWorks 3D CAD assembly
