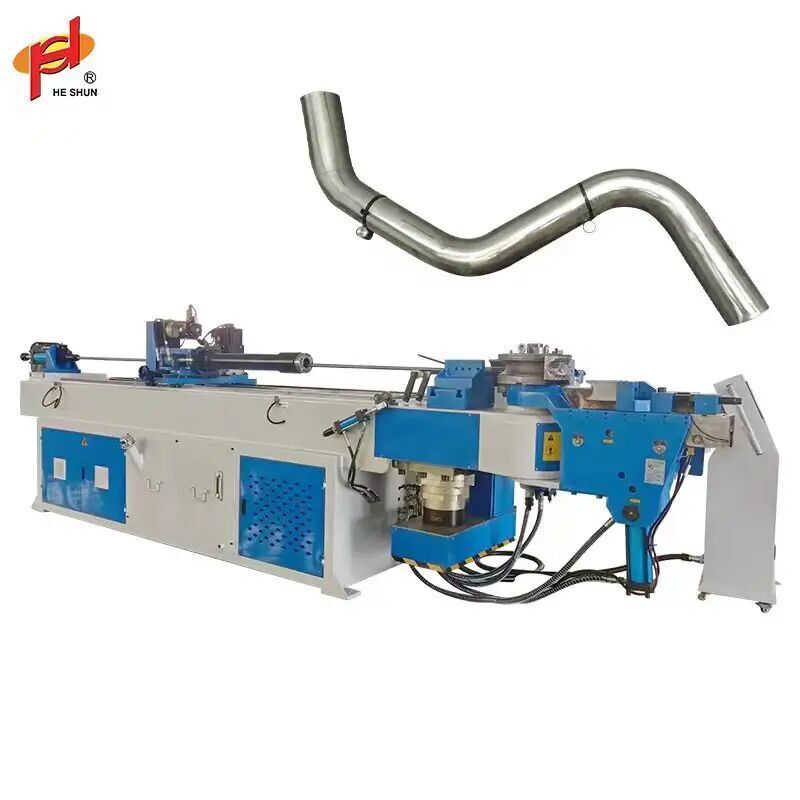

CNC 5 Axis Tube Bending Machine 3D model
Description
This high-precision 3D model showcases a CNC-controlled 5-axis tube bending machine, designed for complex tube manipulation and fabrication. The model features detailed components such as the servo-driven bending head, clamping systems, rotary actuators, and linear guides. Ideal for simulation, design validation, factory layout planning, and digital twin applications, this model is perfect for industries in automotive, aerospace, and industrial piping systems.
CNC 5 Axis Tube Bending Machine
Royalty Free No Ai License
CNC 5 Axis Tube Bending Machine
Royalty Free No Ai License
3D Modeling
Post Production
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)28 MB
Exchange
- IGES 2018 (.ige, .igs, .iges)59.4 MB
- Other 28.6 MB
- STEP 2018 (.stp)24.2 MB
- Stereolithography 2018 (.stl)8.04 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-04-19
- Model ID#6057953
