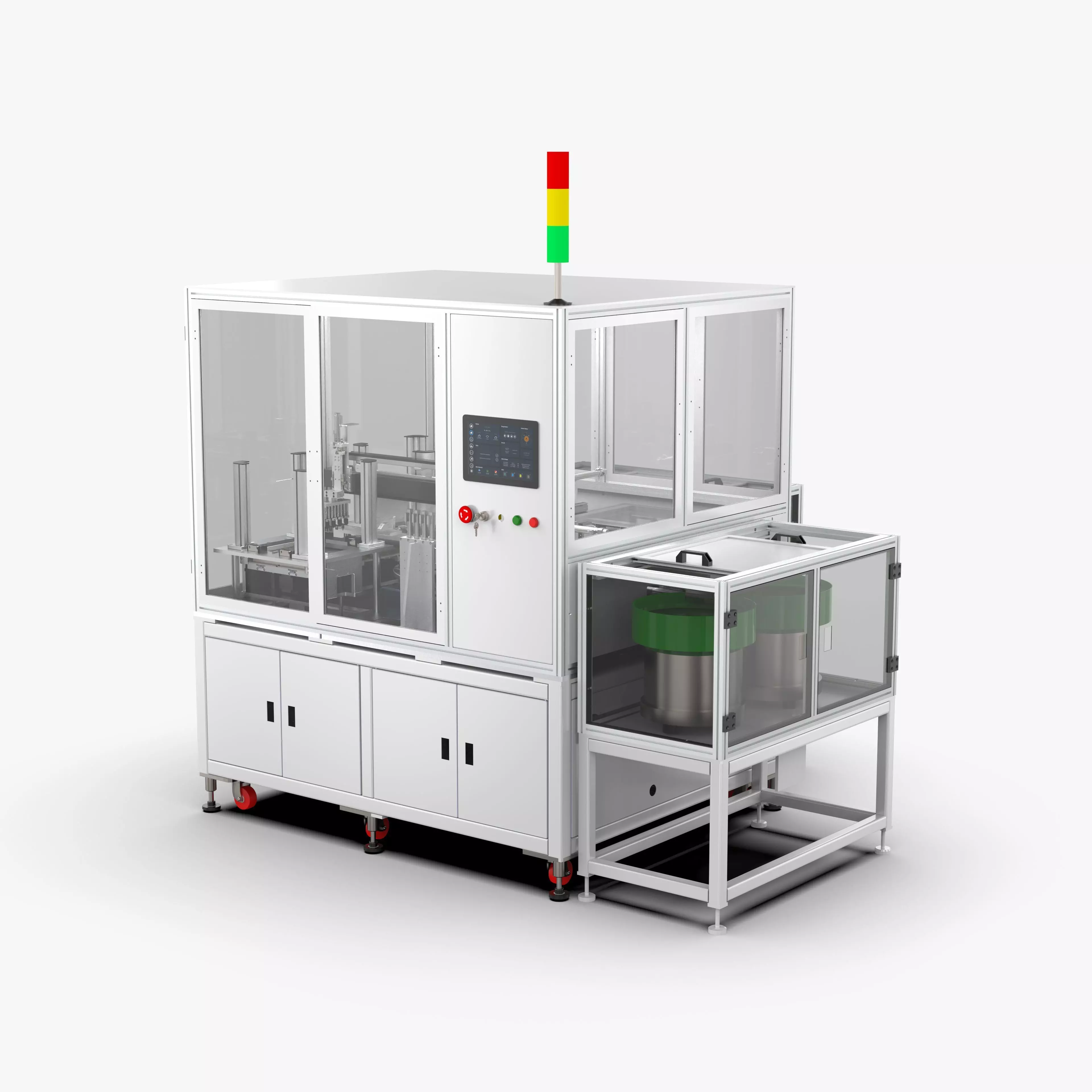

Automatic Spring Distribution and Assembly Swinging Machine 3D model

Automatic Spring Distribution and Assembly Swinging Machine

Introduction

The spring distributing and assembly swinging machine is used for the assembly and swinging of springs and auxiliary small parts such as pin shafts and levers. The spring and lever vibrating plate are arranged for feeding, rotating for distributing, and servo for transferring and unloading. The main mechanisms include: spring and lever vibrating plate feeding mechanism, spring and lever rotating material distribution mechanism, spring lever assembly mechanism, post-assembly compression mechanism, 6-station turntable assembly, tooling jacking mechanism, servo transfer and lowering Material swinging mechanism, storage tray switching jacking components, rack cover, etc. The structure is complex, the feature size is complete and editable.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 2,281,582
• Vertice: 6,844,746
