Fully Automatic Plug In Machine

Introduction

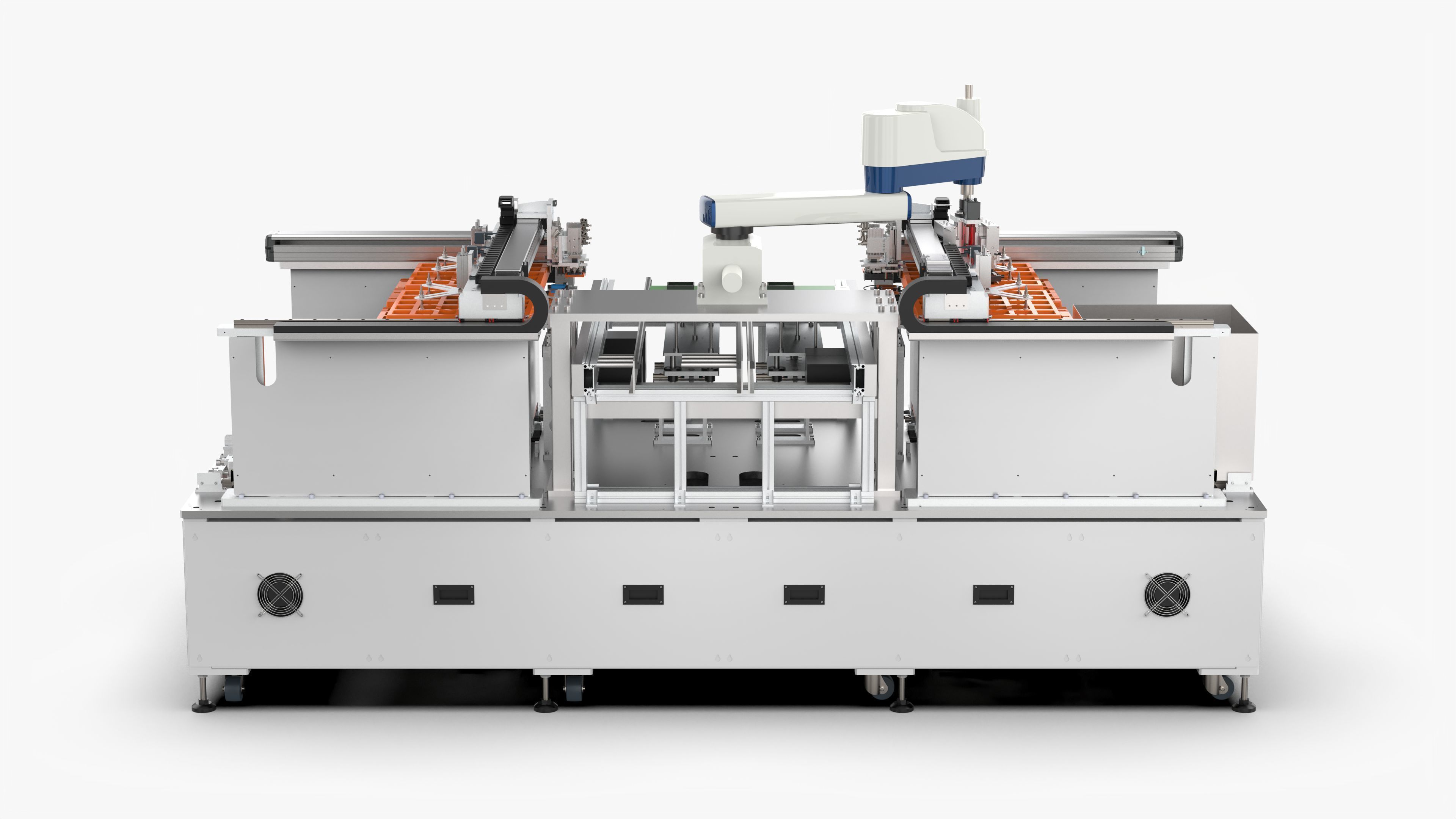

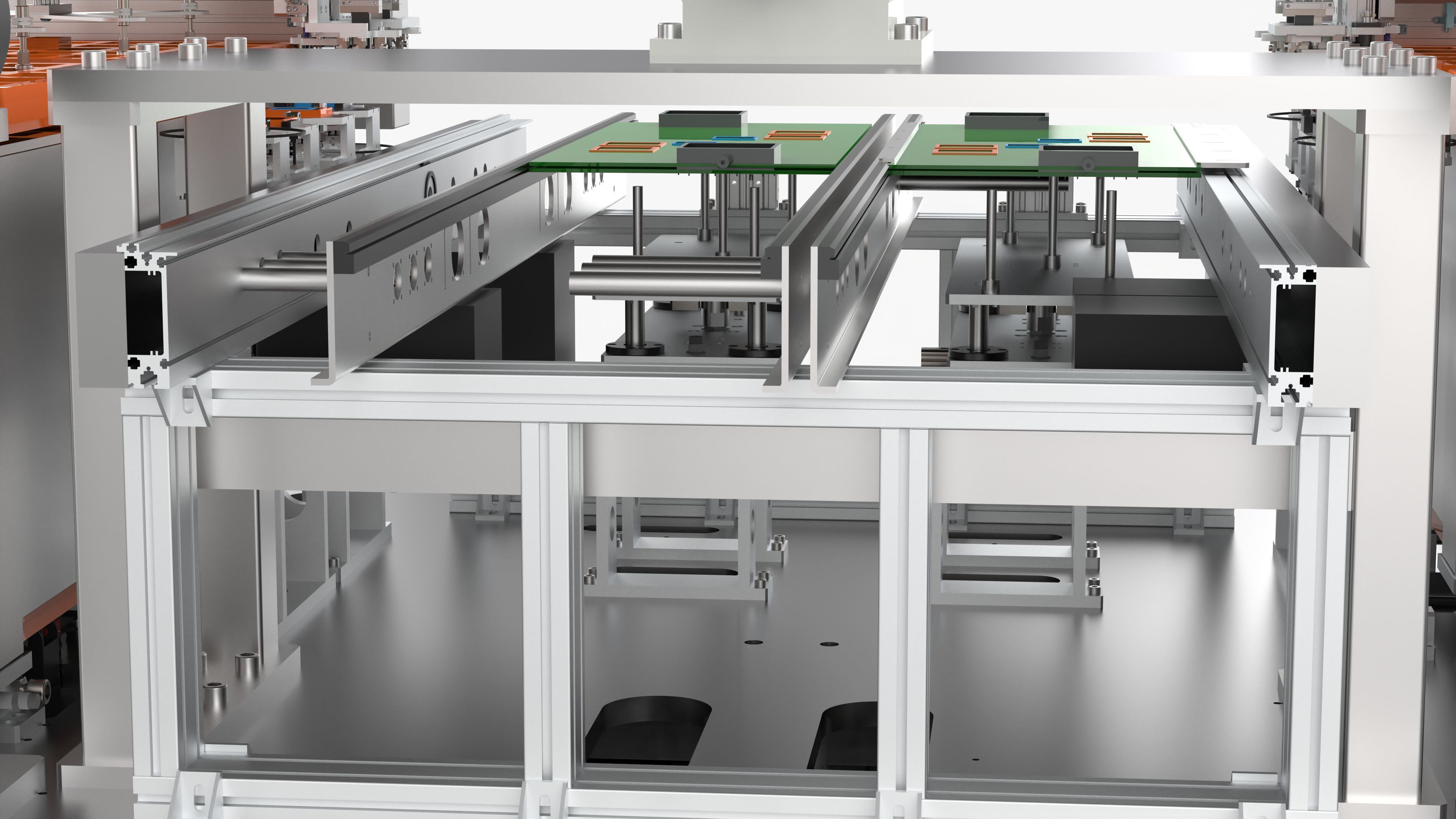

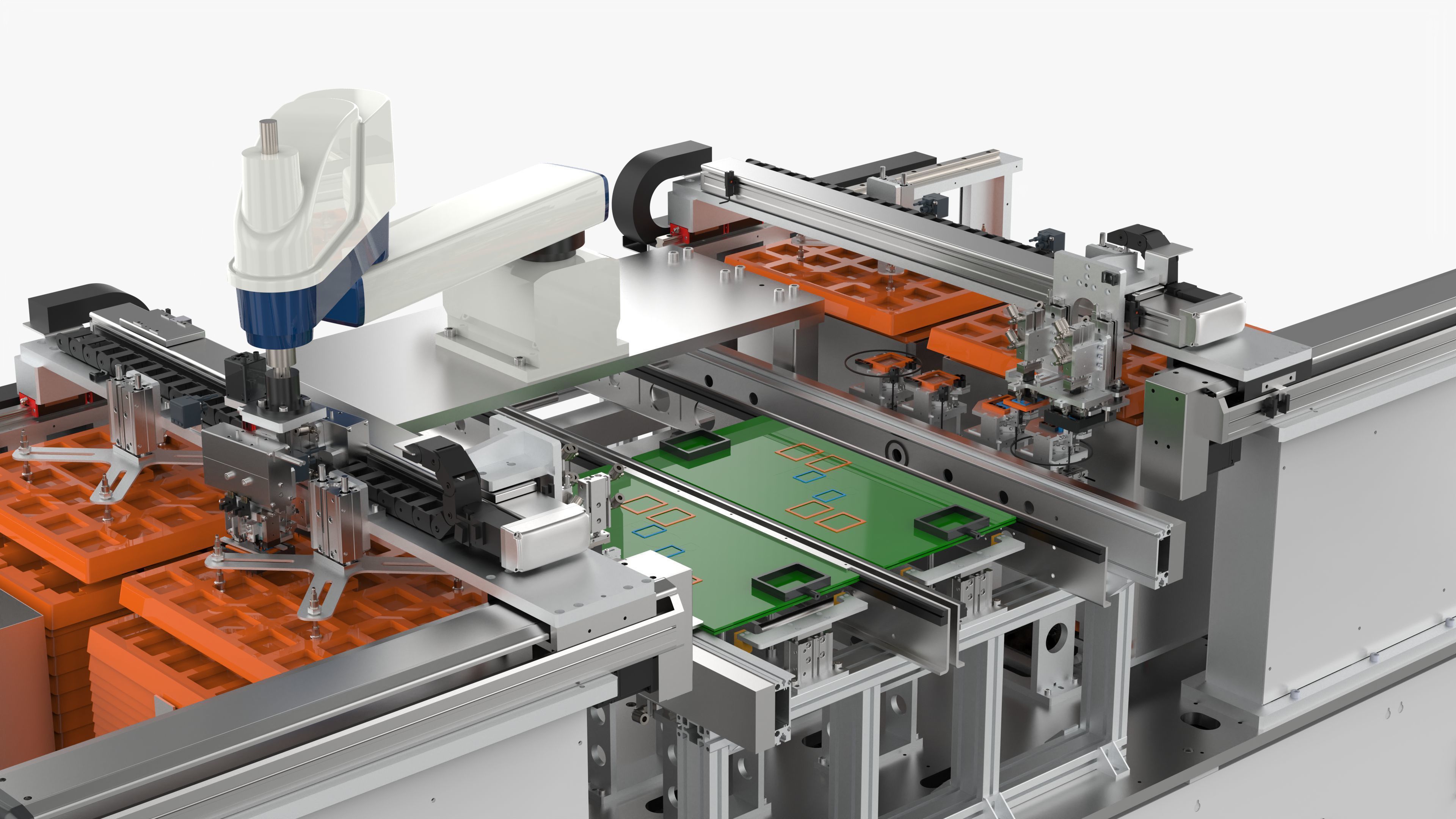

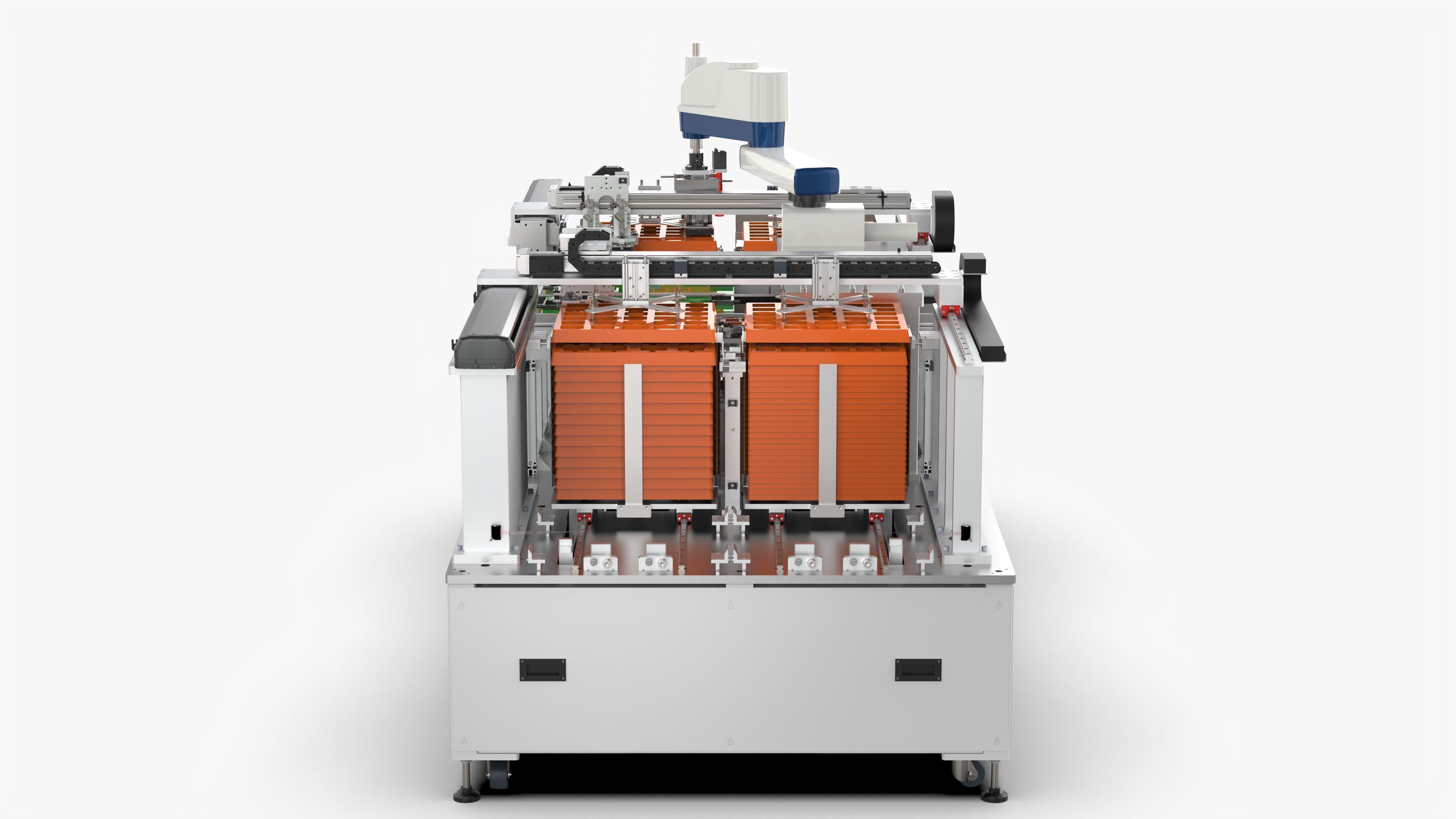

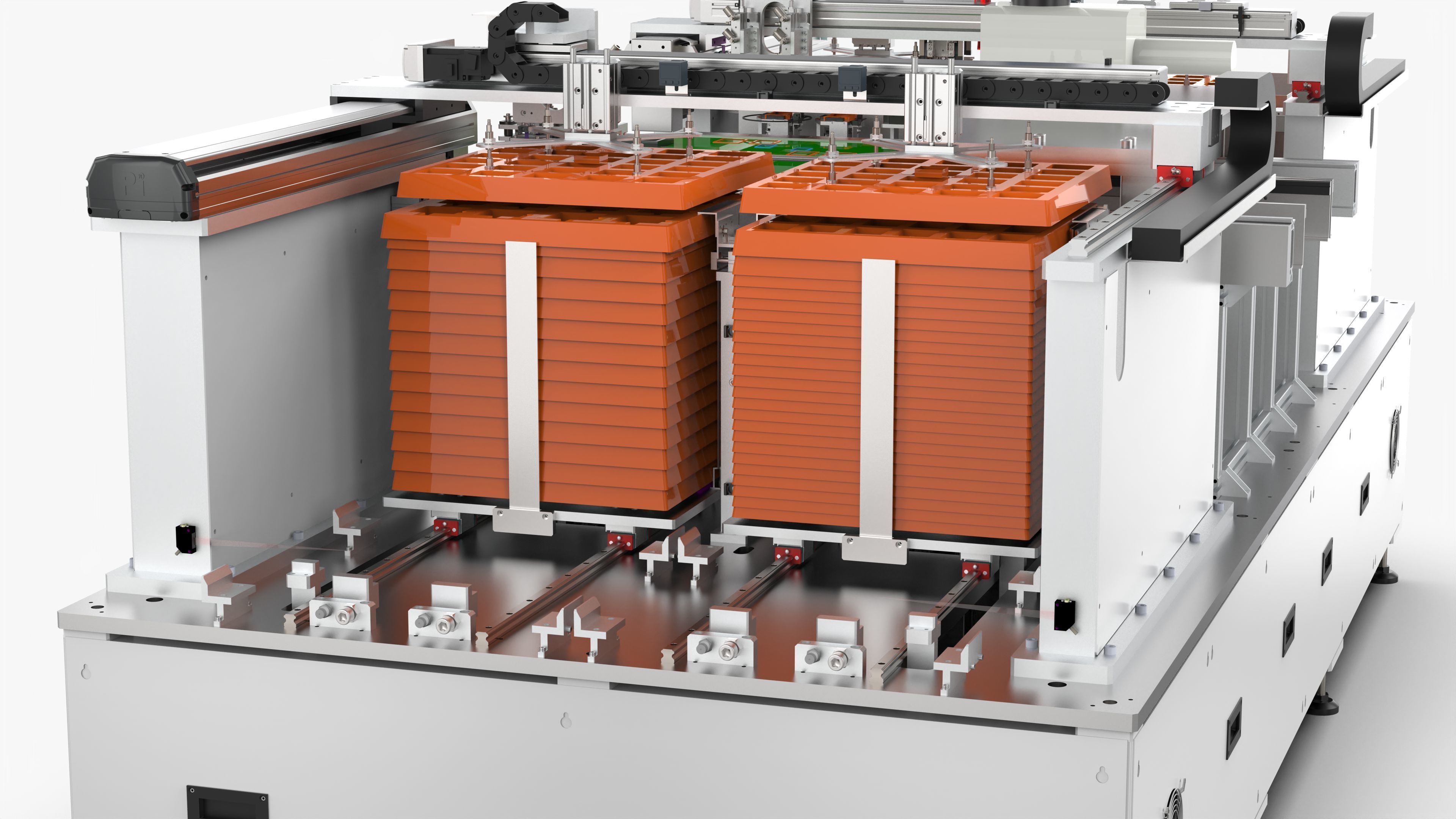

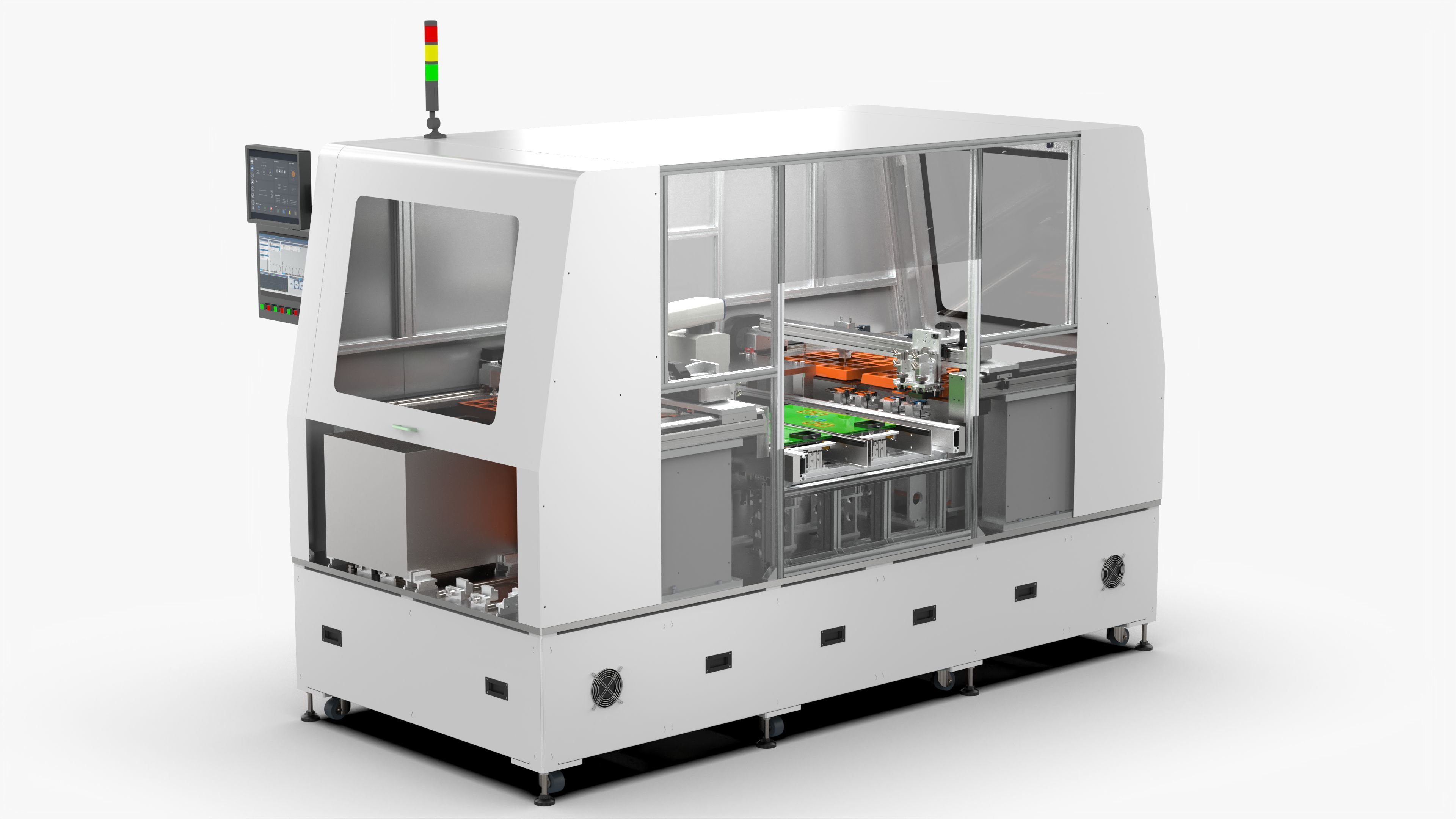

The fully automatic plug-in machine equipment adopts the left and right double-station Tray feeding method to ensure that the equipment does not stop and increase production capacity. The servo screw XYZ module completes automatic adsorption (magnetic), alignment and assembly. The secondary positioning and rotation positioning of the product can be based on the product. Fine-tuning, assembly is completed by suction with a four-axis manipulator, and the PCB line body is transported and lifted for positioning. This equipment has been mass-produced and operates stably.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 6,592,867
  • Vertice: 19,778,601
