DESCRIPTION

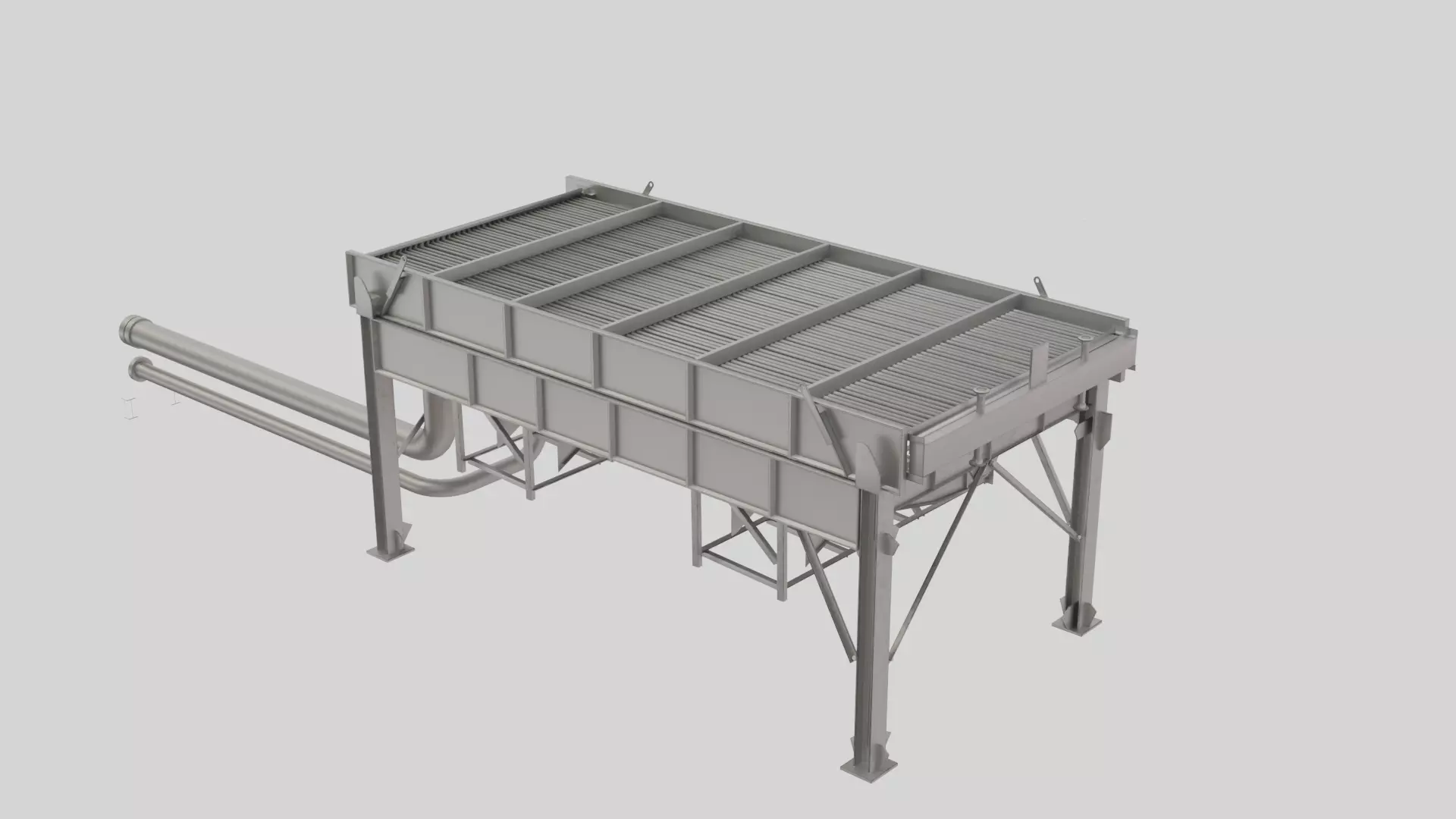

Air-Cooled Heat Exchanger (ACHE) – Realistic Industrial 3D Model

This high-quality, realistic Air-Cooled Heat Exchanger (ACHE) 3D model is designed for industrial, mechanical, and process engineering visualizations. It accurately represents the structure and working components of a standard air-cooled heat exchanger commonly used in refineries, petrochemical plants, power stations, HVAC systems, and industrial cooling operations.

The model features detailed tube bundles, finned tubes, fan assembly, motor housing, support frame, plenum chamber, louvers, and structural platform, making it ideal for technical animations, plant layouts, VR/AR training, and educational content.

Clean mesh, optimized topology, and professional PBR textures ensure smooth performance across rendering and real-time environments.
