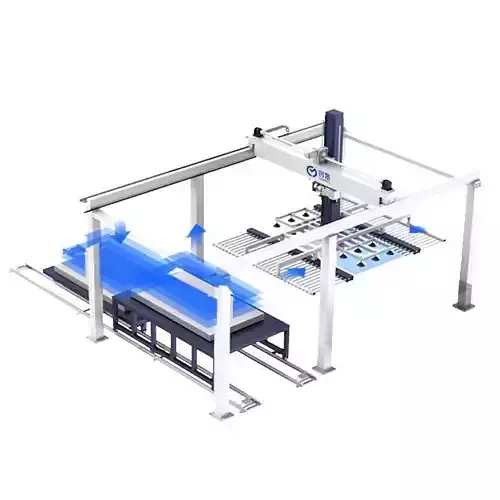

3-Axis Gantry Robot XYZ Linear Stage for CNC Loading Unloading 3D model
Description
High-quality 3D CAD model of an industrial 3-axis gantry robot (XYZ Cartesian robot) for automated loading and unloading in CNC production lines. Includes rails, vacuum gripper, servo drives, and linear guideways.Applications:• CNC machine automation• Palletizing & depalletizing• Sheet metal loading• Panel handling systems• Industrial pick-and-place tasks
3-Axis Gantry Robot XYZ Linear Stage for CNC Loading Unloading
Royalty Free No Ai License
3-Axis Gantry Robot XYZ Linear Stage for CNC Loading Unloading
Royalty Free No Ai License
3D Modeling
Post Production
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)61.8 MB
Exchange
- Other 31.8 MB
- STEP 2018 (.stp)24.4 MB
- IGES 2018 (.ige, .igs, .iges)16.8 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-08-09
- Model ID#6355855
