160L B5 IEC electric motor - 3D CAD model 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

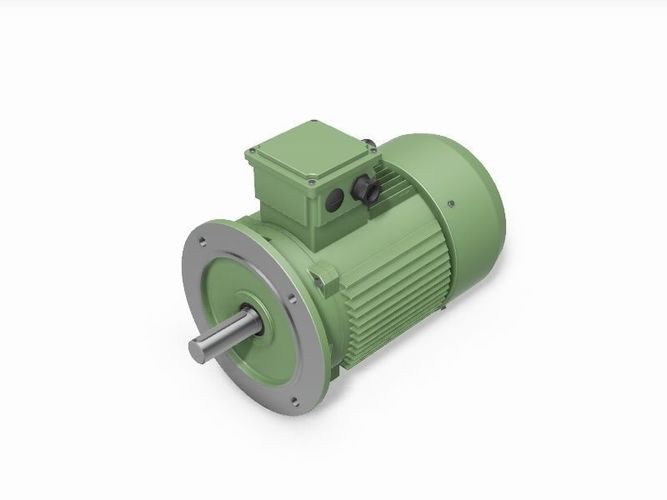

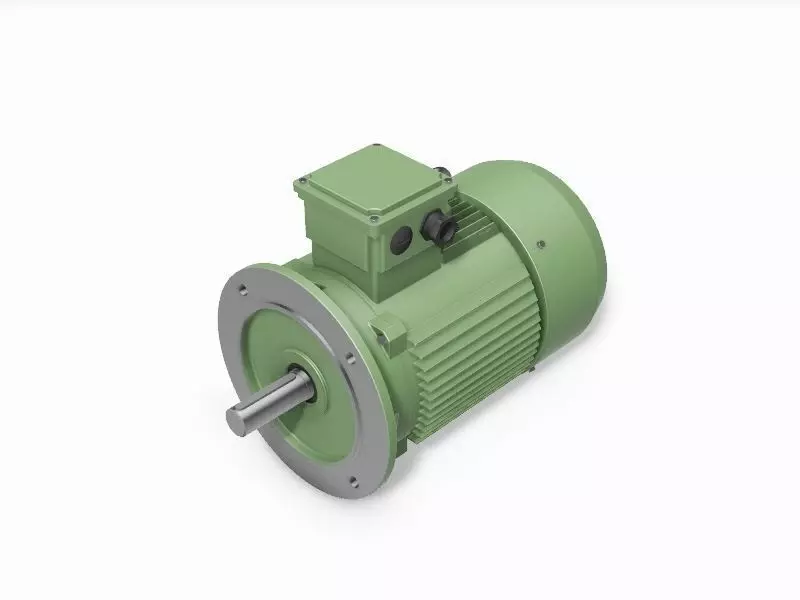

Electric motor IEC 160L B5 - IM3001 (flange mount)

■ 18,5 kW - 3000 r.p.m. (4 pole)(25 Horse Power )
■ 15 kW - 1500 r.p.m. (4 pole)(20 Horse Power )
■ 11 kW - 1000 r.p.m. (6 pole)(15 Horse Power )
■ 7,5 kW - 750 r.p.m. (8 pole)(10 Horse Power)


Is this not the type of motor you need?

Click here for our 3 step motor-selection tool and download the right CAD model in less than a minute...
Related Tagscad modelelectric motoriec motorinduction motorstep fileindustrialmachineindustrial machine
