ISO Metric Hex Screws Kitbash 3D model

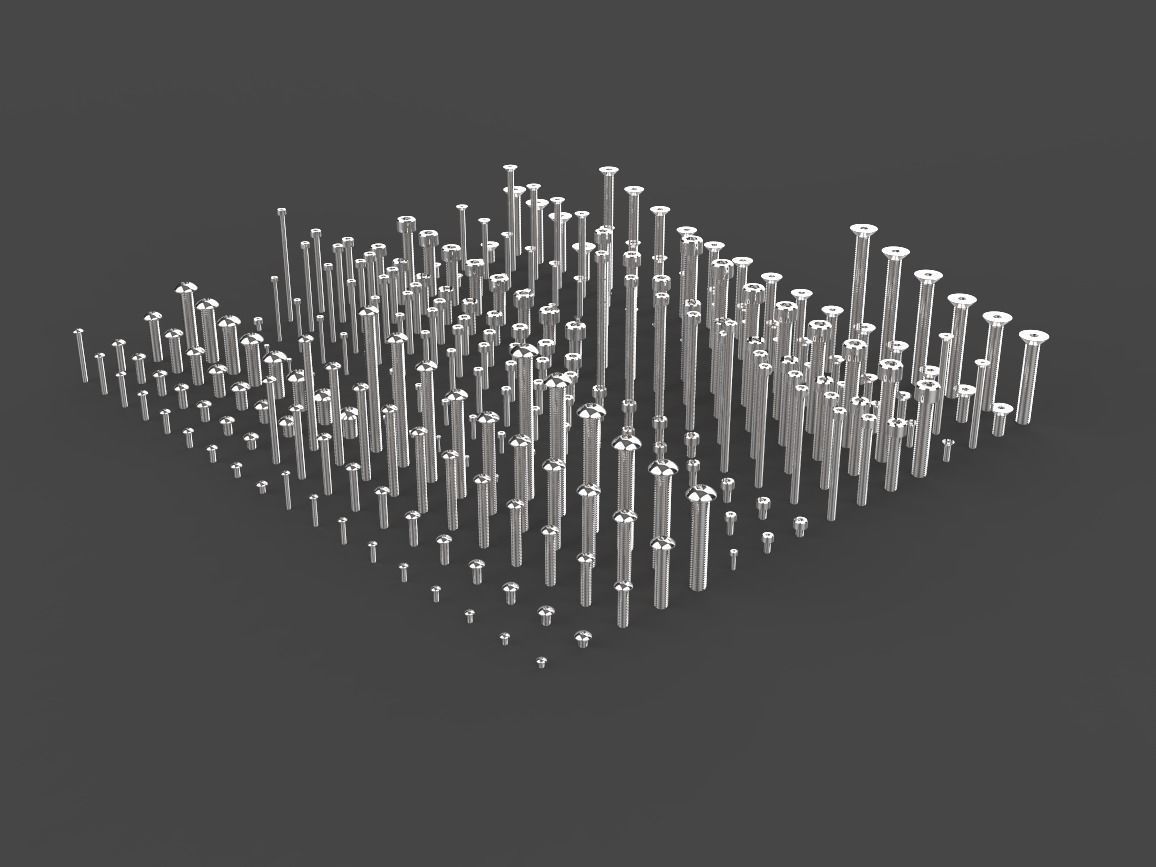

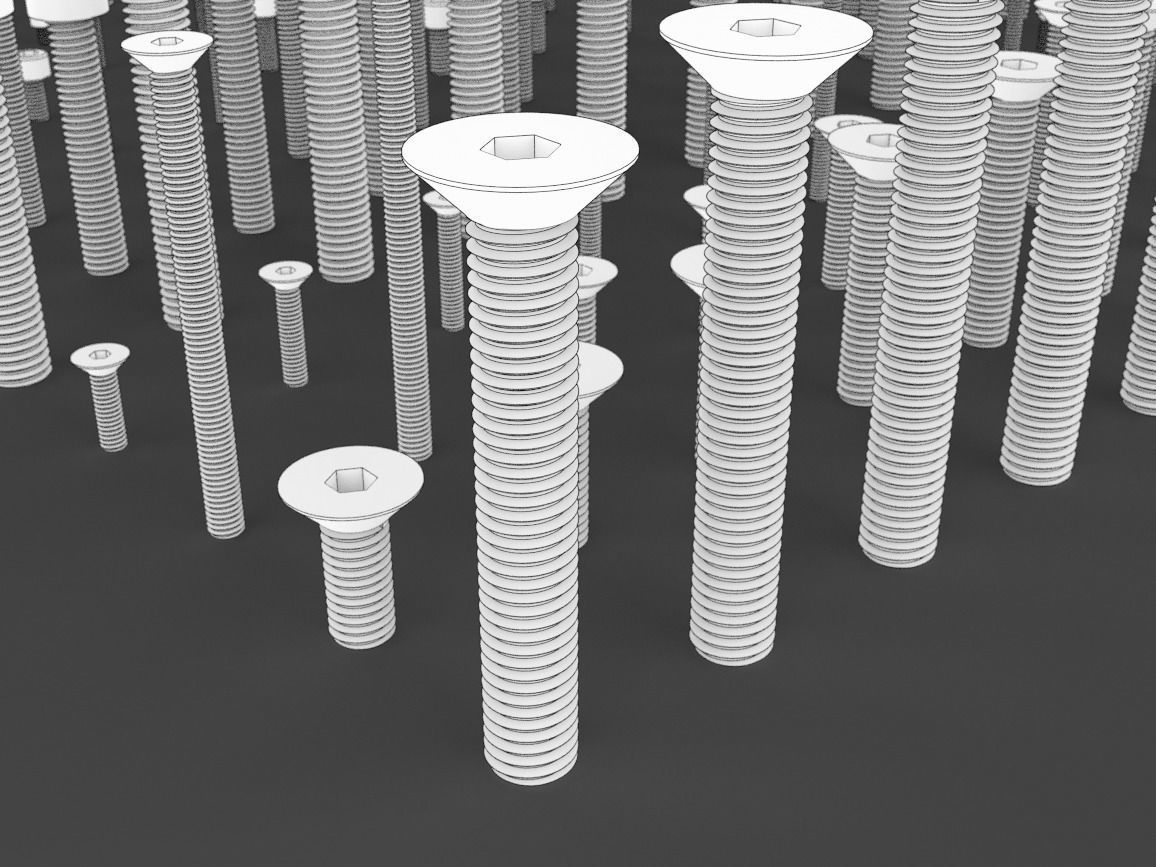

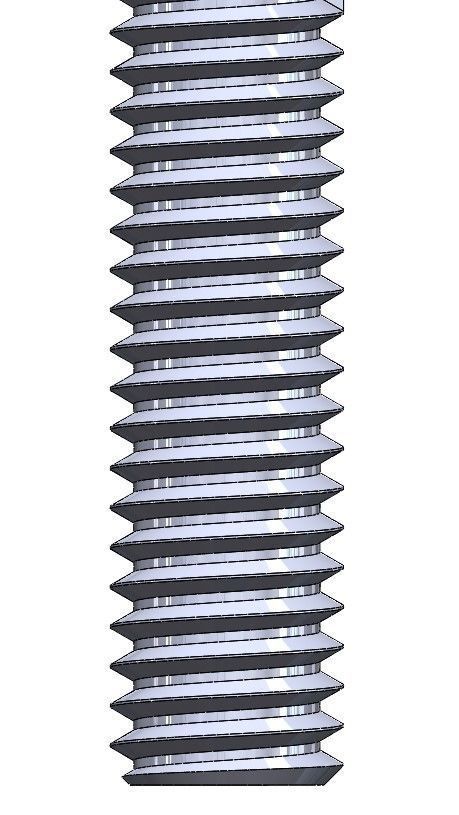

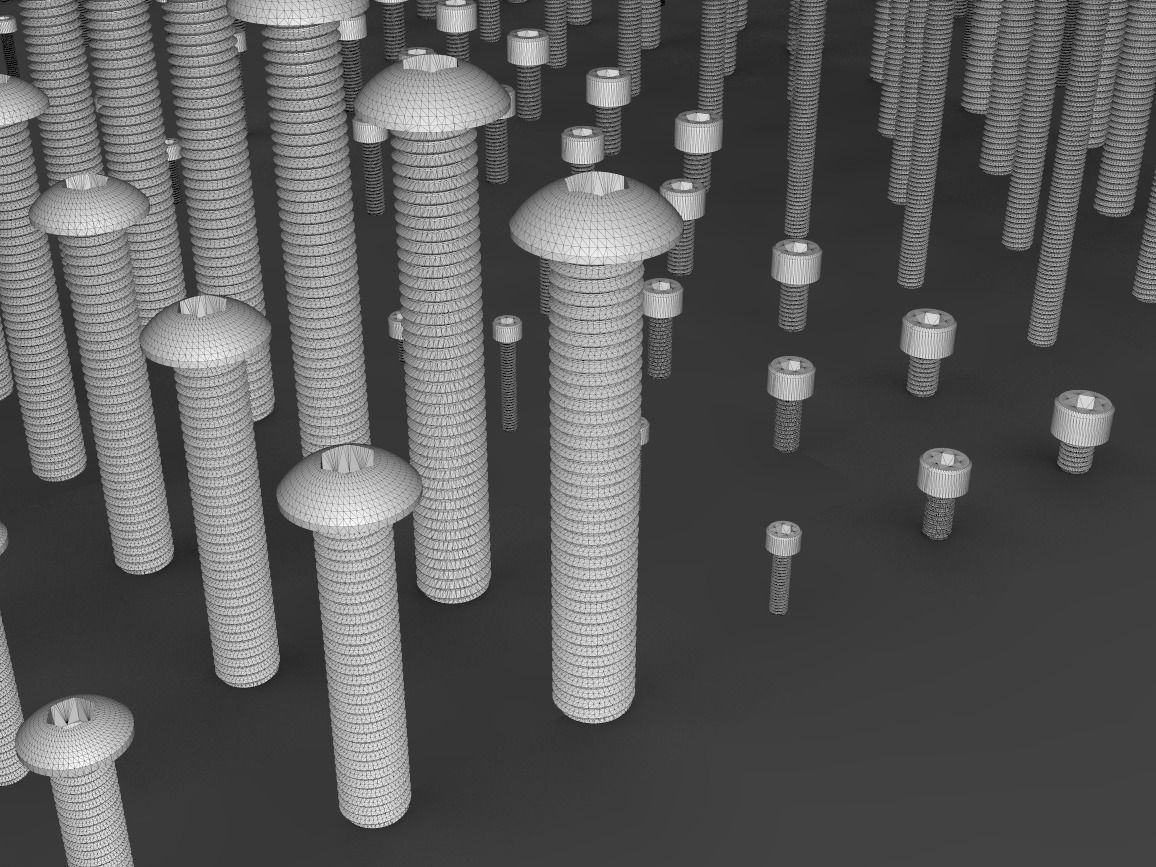

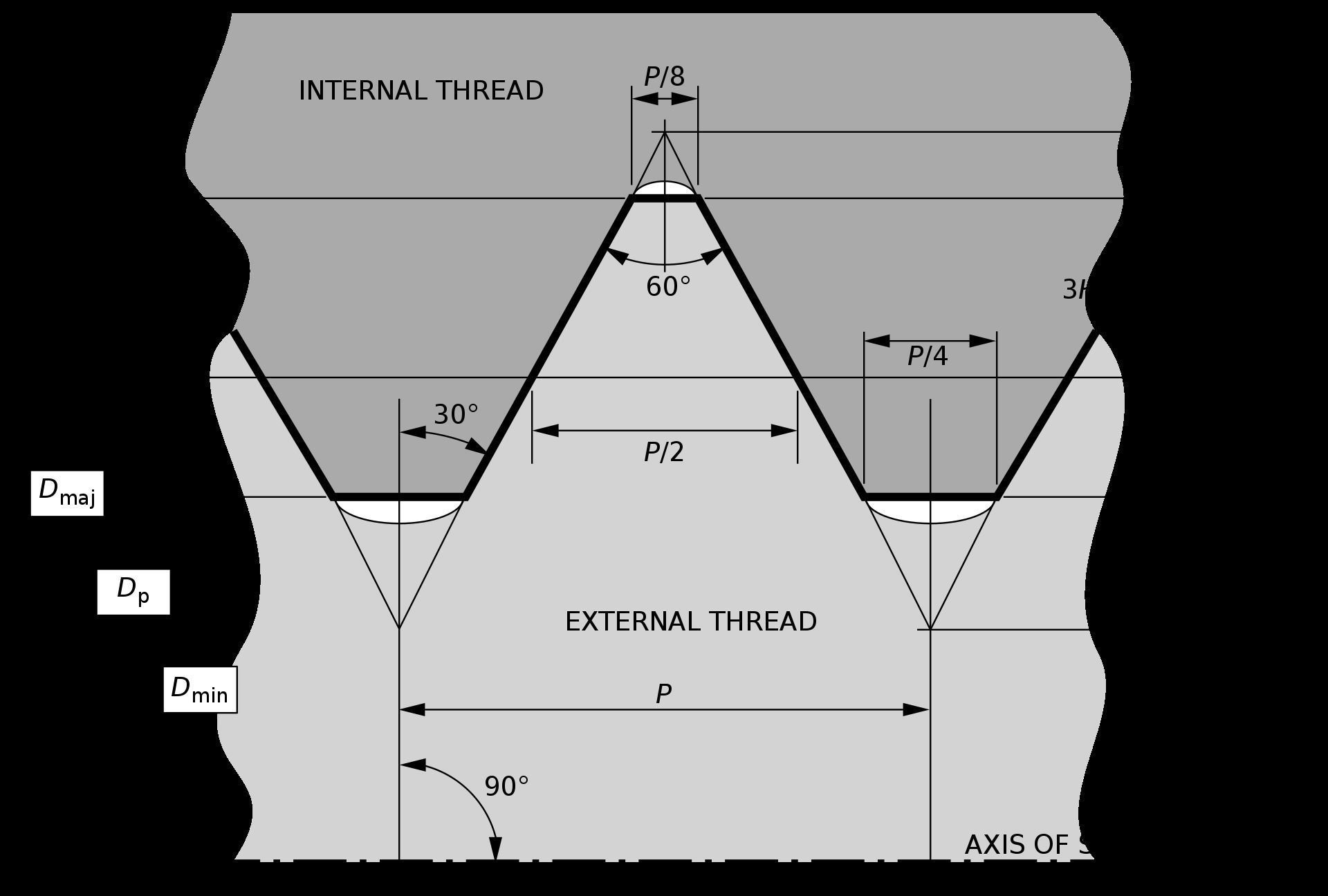

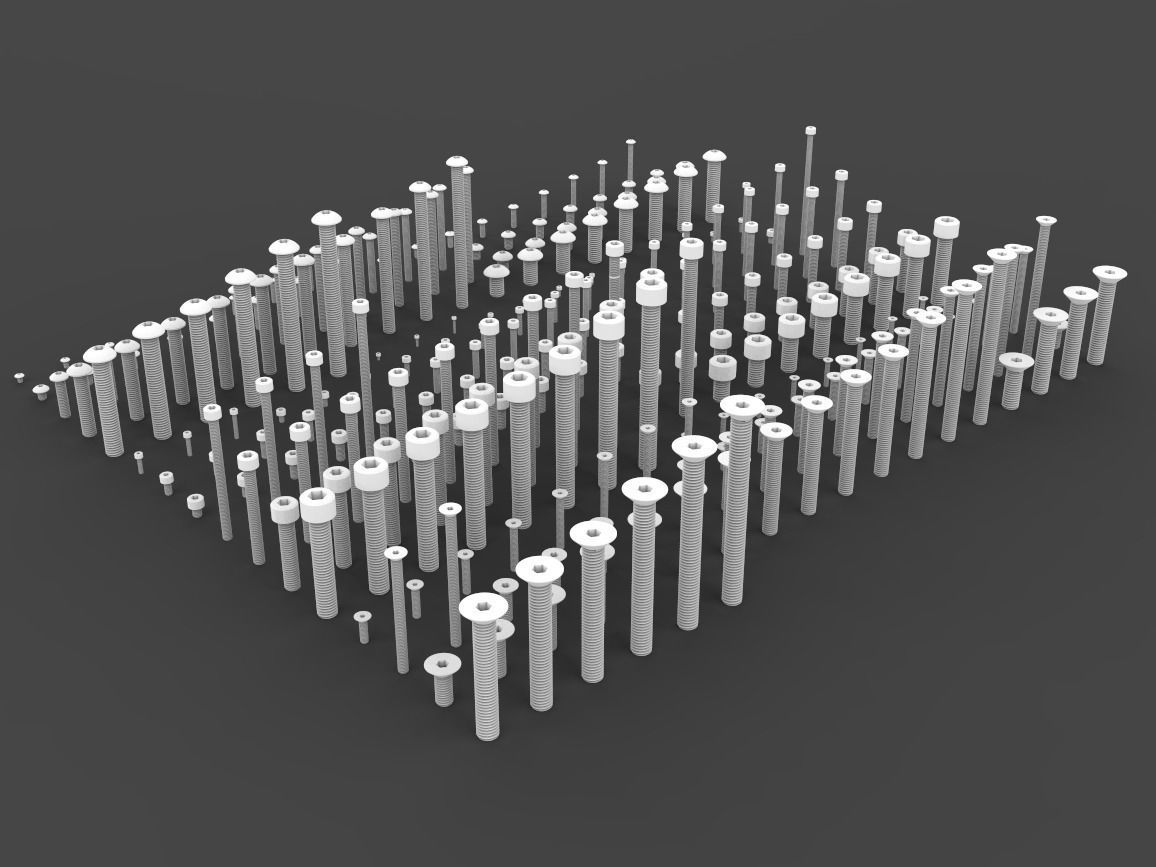

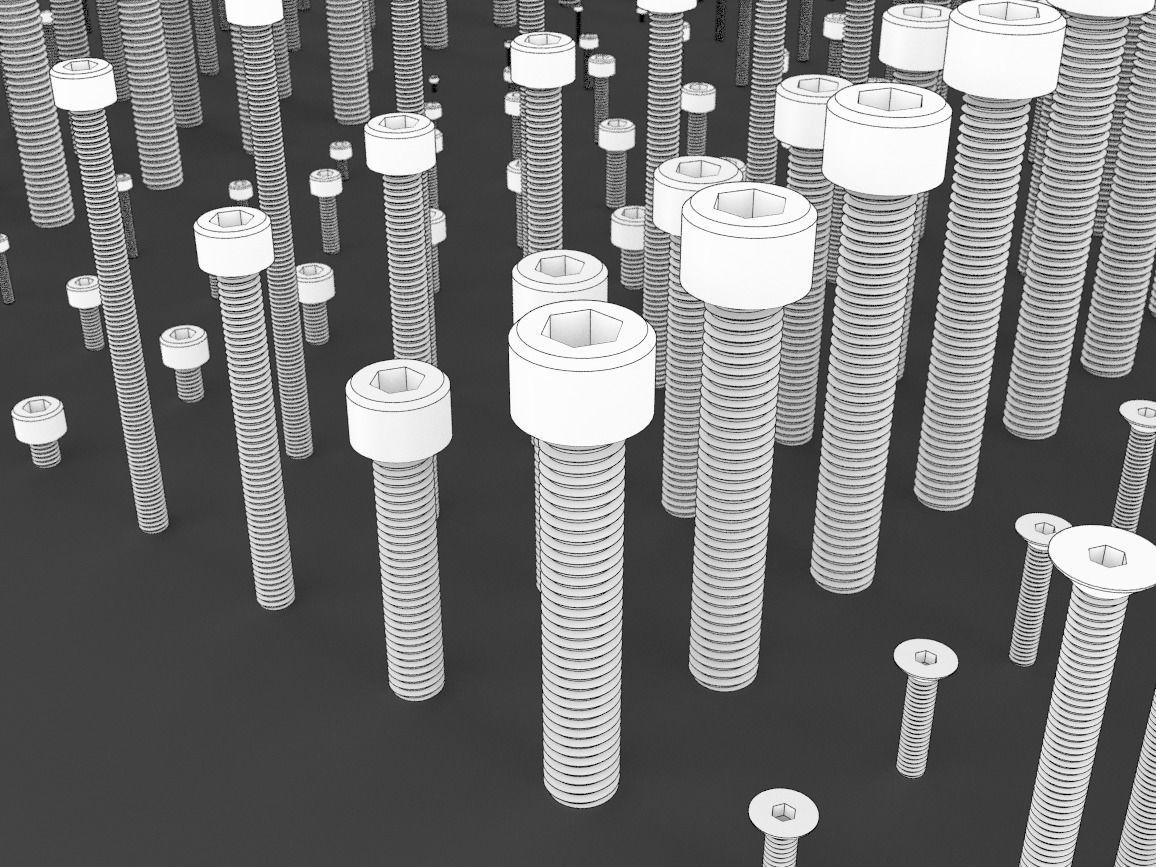

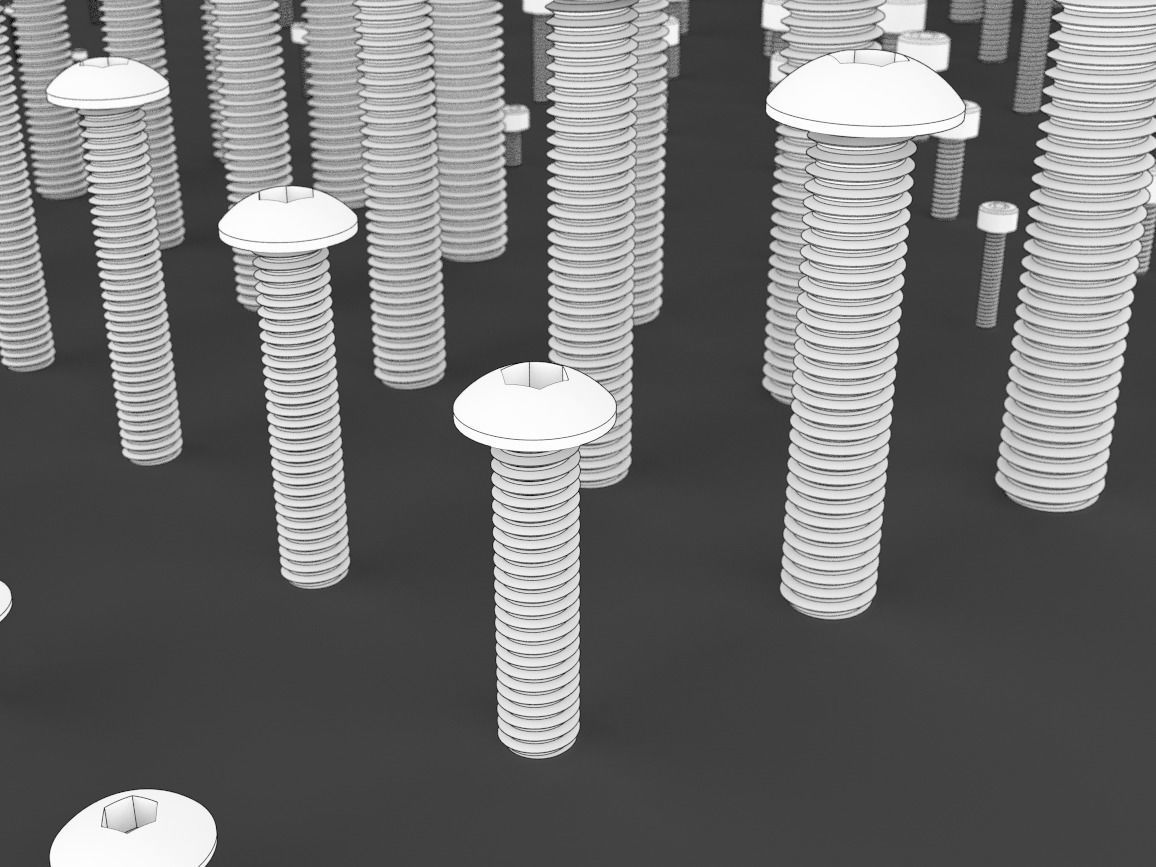

This is a collection of models of the Hex Socket Cap Head (ISO 4762), Button Head (ISO 7380), and Countersunk Head (ISO 10642) machine screws (Allen key) in the common ISO Metric sizes (M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10). The thread has been accuractely modelled using the ISO standard which defines to ration of pitch to thread height (H = (1/2tanTheta)P). The pitch is correct for the ISO standard for the respective nominal diameters. The larger sizes work well as 3D printed threads.

SolidWorks users:

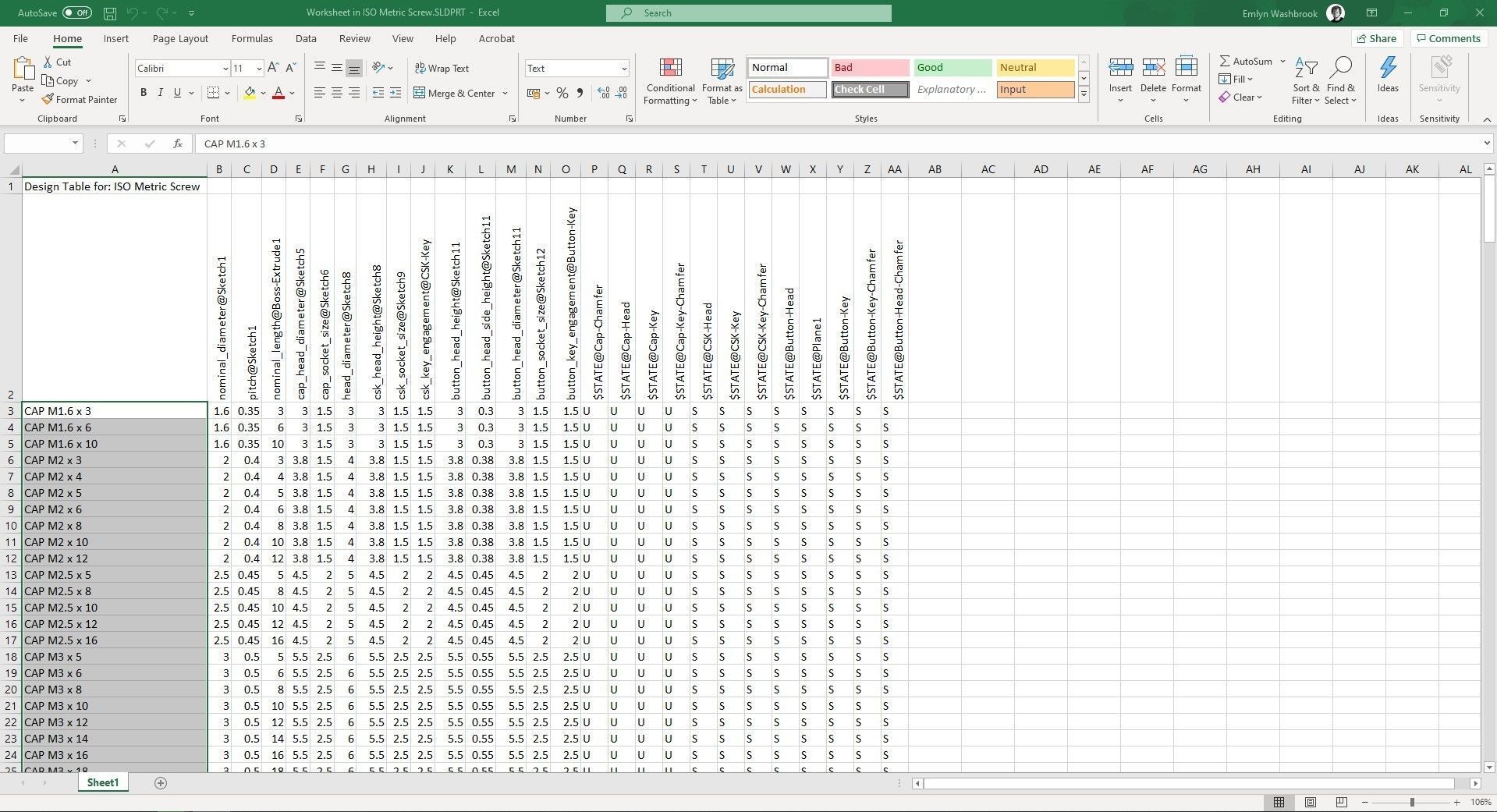

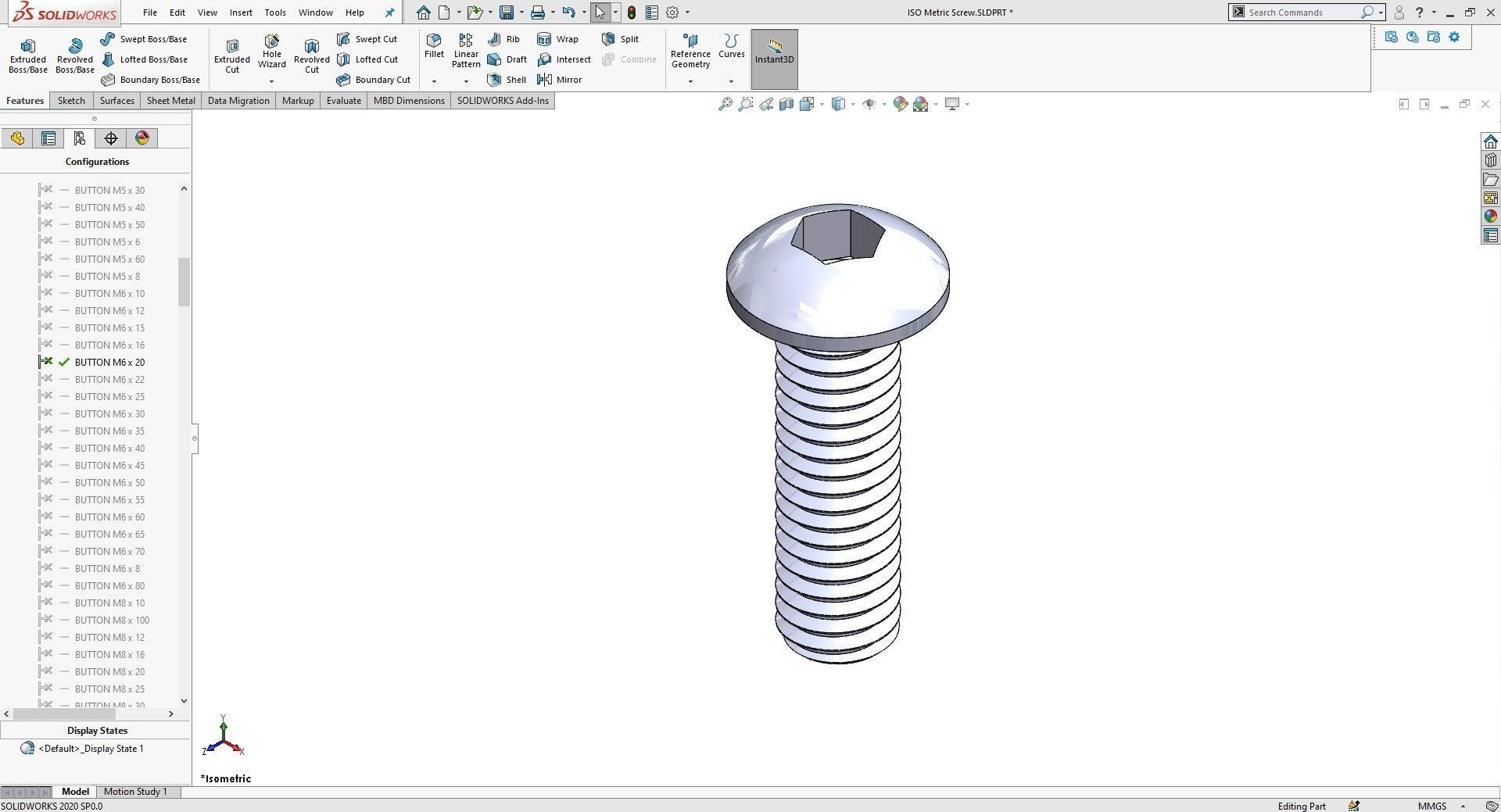

This is supplied as one SolidWorks part file, with 306 configurations driven by a design table. To find the screw you need, simply double-click on the configuration in the Configuration Manager. The configurations are sorted by Head Type, Major Diameter, and Nominal Length. I have covered the common lengths within the M1.6 - M10 sizes. If you would like to add more then you can edit the Design Table, or contact me and I can create a custom size for no extra charge.

All other software users:

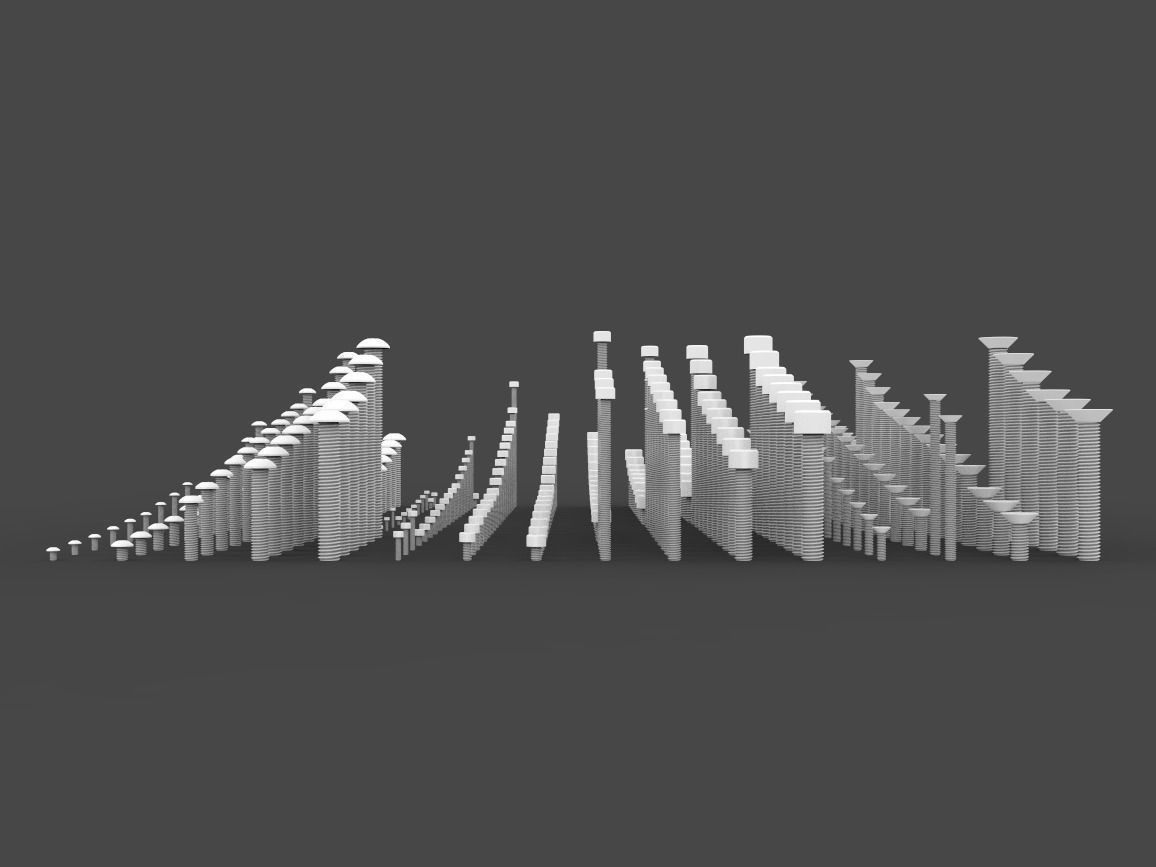

This is a kitbash style download, with a 306 combinations of nominal lengths within the M1.6 - M10 sizes, covering the Socket Cap, Button Head, and Countersunk Head styles. If you would like a size or length that is not in the collection, contact me and I can easily create a custom model for no extra charge.
