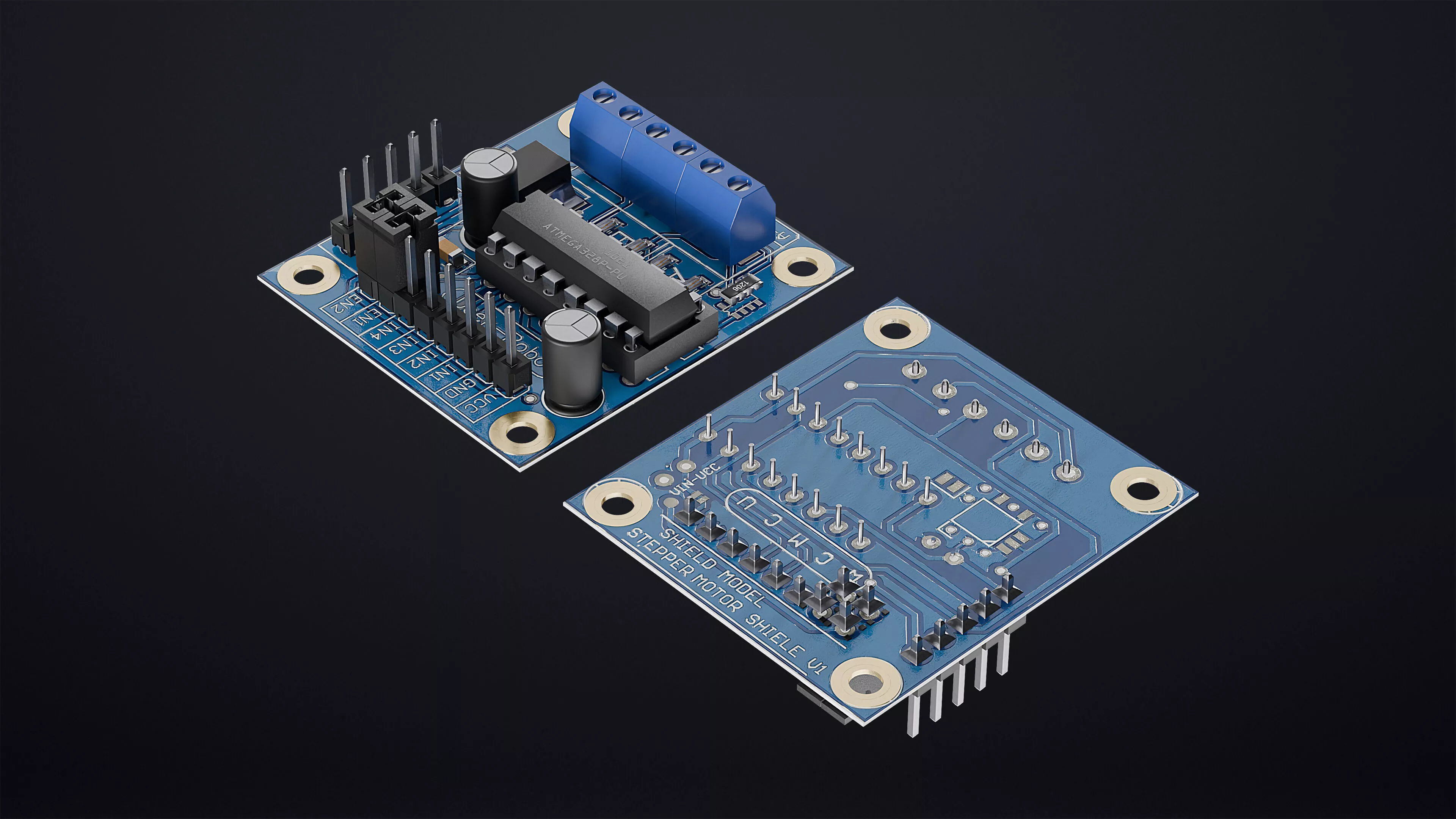

Highly detailed 3D model of the Mini L293D Motor Driver Shield Expansion Board, a compact motor control shield designed for Arduino-compatible development boards. Based on the L293D dual H-Bridge motor driver IC, this shield enables control of DC motors, stepper motors, and servo motors for robotics, automation, and DIY electronics projects. The model accurately recreates the L293D driver IC, screw terminals, pin headers, capacitors, LEDs, and PCB layout for realistic electronics visualization and technical rendering.

Perfect for:

Arduino motor control projectsRobotics and automation systemsDIY robot and smart vehicle applicationsElectronics explainer animationsProduct presentations and mockupsEngineering and educational content

Features:

Accurate real-world dimensions and proportionsDetailed L293D H-Bridge driver ICRealistic screw terminal connectorsHigh-quality PCB traces and silkscreenDetailed SMD and through-hole componentsClean hard-surface topologyRender ready for close-up renders

Includes:

Mini L293D Motor Driver ShieldL293D H-Bridge motor driver ICMotor output screw terminalsPower input connectorsArduino shield pin headersLEDs, capacitors, and passive componentsPCB board with detailed circuitry and silkscreen
