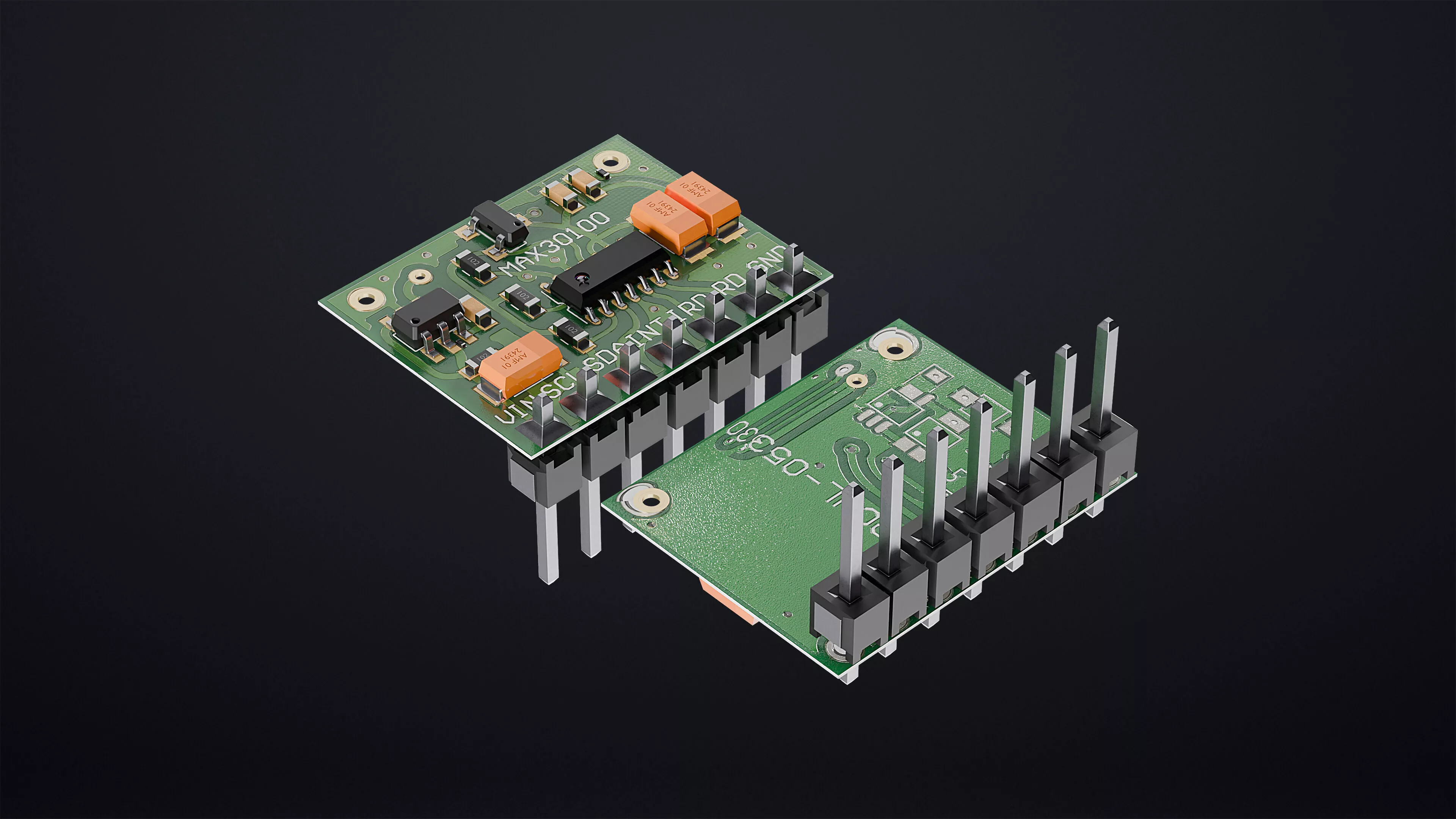

Highly detailed 3D model of the MAX30100 Pulse Oximeter and Heart Rate Sensor Module, widely used for measuring blood oxygen saturation (SpO2) and heart rate in wearable devices, health monitoring systems, and Arduino-based biomedical projects. The model accurately recreates the MAX30100 sensor, PCB layout, pin headers, voltage regulation circuitry, and SMD components for realistic electronics visualization and technical rendering.

Perfect for:

Health monitoring device visualizationsWearable technology projectsArduino and ESP32 biomedical applicationsMedical electronics animationsProduct presentations and mockupsEngineering and educational content

Features:

Real-world dimensions and proportionsAccurate MAX30100 sensor detailingDetailed PCB traces and silkscreenRealistic SMD components and circuitryClean hard-surface topologyHigh-quality materials and texturesRender ready for close-up shots

Includes:

MAX30100 pulse oximeter moduleSpO2 and heart rate sensorPCB board with tracesPin header connectorsVoltage regulation circuitrySMD electronic components
