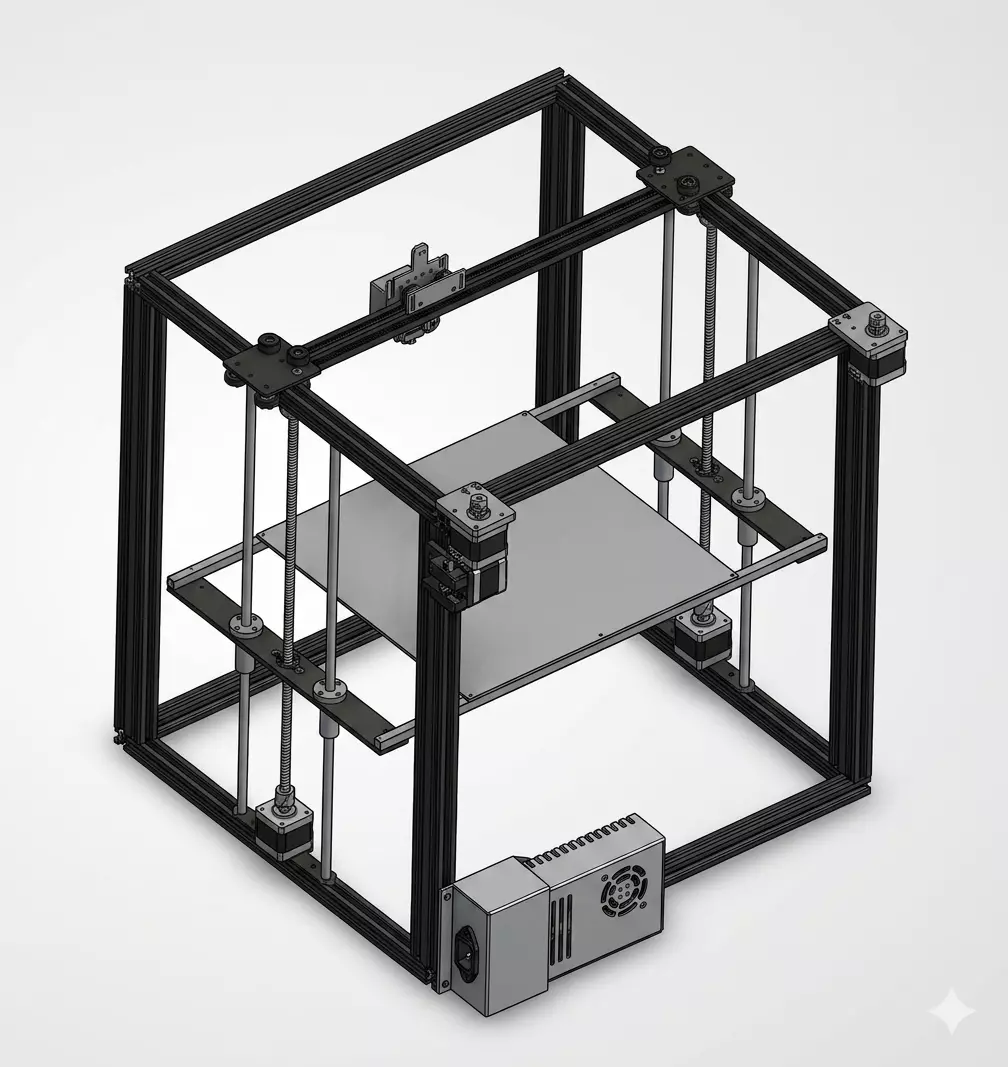

DIY CoreXY 3D Printer Design - Full CAD - Production Files 3D model
thumbnail
thumbnail
thumbnail
DESCRIPTION

Complete DIY CoreXY 3D Printer Mechanical Design & Manufacturing Package

This is a fully detailed, production-ready 3D printer engineering project designed during my university years. It is not just a visual model; it is a complete technical documentation package created for engineers, makers, and DIY enthusiasts who want to build their own high-performance 3D printer from scratch.

What’s Included in the Download Archive:

Complete CAD Assembly: Native SolidWorks assembly and part files (.sldasm, .sldpart).

Production Drawings: Detailed manufacturing technical drawings for every single custom mechanical part.

Step-by-Step Assembly Guide: Clear, sequential blueprints showing exactly how to assemble the machine piece by piece.

Universal Formats: Includes universal formats for maximum compatibility with other CAD software and slicers.

Technical Features of the Design:

Motion System: High-stability CoreXY / H-Bot style cube framework.

Structure: Standard aluminum profiles and precision linear shafts ensuring maximum rigidity.

Z-Axis: Integrated lead screw driven mechanism for smooth layer transition.

Electronics Layout: Custom enclosures designed for power supply, mainboard, and wiring.

TÜRKÇE (TURKISH)Eksiksiz DIY CoreXY 3D Yazıcı Mekanik Tasarım ve İmalat Paketi

Üniversite yıllarımda geliştirdiğim, tamamen detaylandırılmış ve üretime hazır 3D yazıcı mühendislik projesidir. Bu çalışma sadece görsel bir modelden ibaret olmayıp; kendi yüksek performanslı yazıcısını sıfırdan üretmek isteyen mühendisler, makerlar ve hobi kullanıcıları için eksiksiz bir teknik dokümantasyon paketidir.

İndirilecek Arşiv İçeriği:

Eksiksiz CAD Montajı: Orijinal SolidWorks montaj ve parça dosyaları (.sldasm, .sldpart).

İmalat Resimleri: Özel olarak üretilmesi gereken her bir mekanik parçanın detaylı teknik imalat resimleri.

Adım Adım Montaj Kılavuzu: Makineyi parça parça nasıl birleştireceğinizi gösteren adım adım sıralı montaj şeması.

Evrensel Formatlar: Diğer CAD ve dilimleme (slicer) programlarıyla maksimum uyumluluk için evrensel formatlar dahil edilmiştir.
