Arduino Uno Rev 3 in solidworks 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

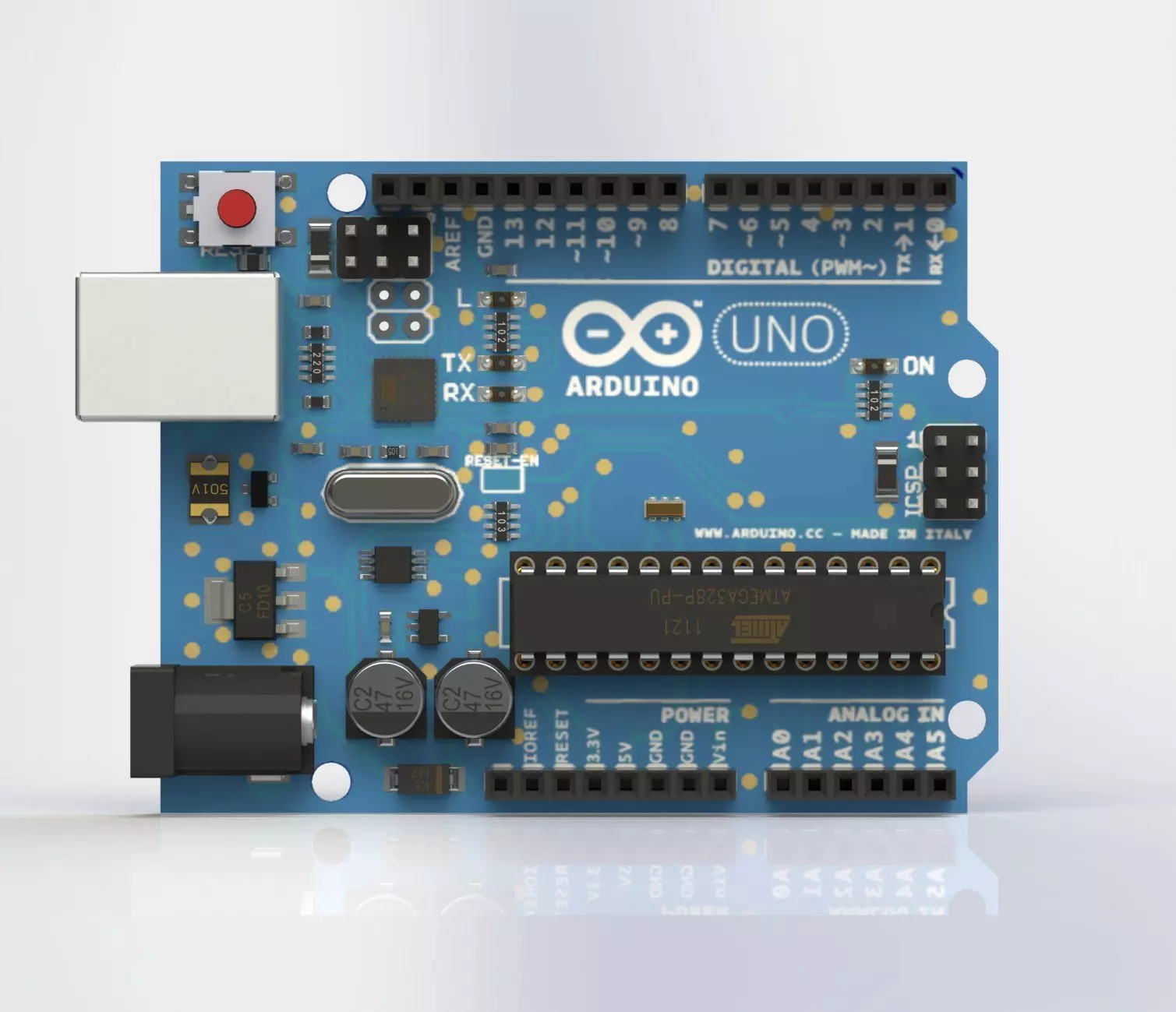

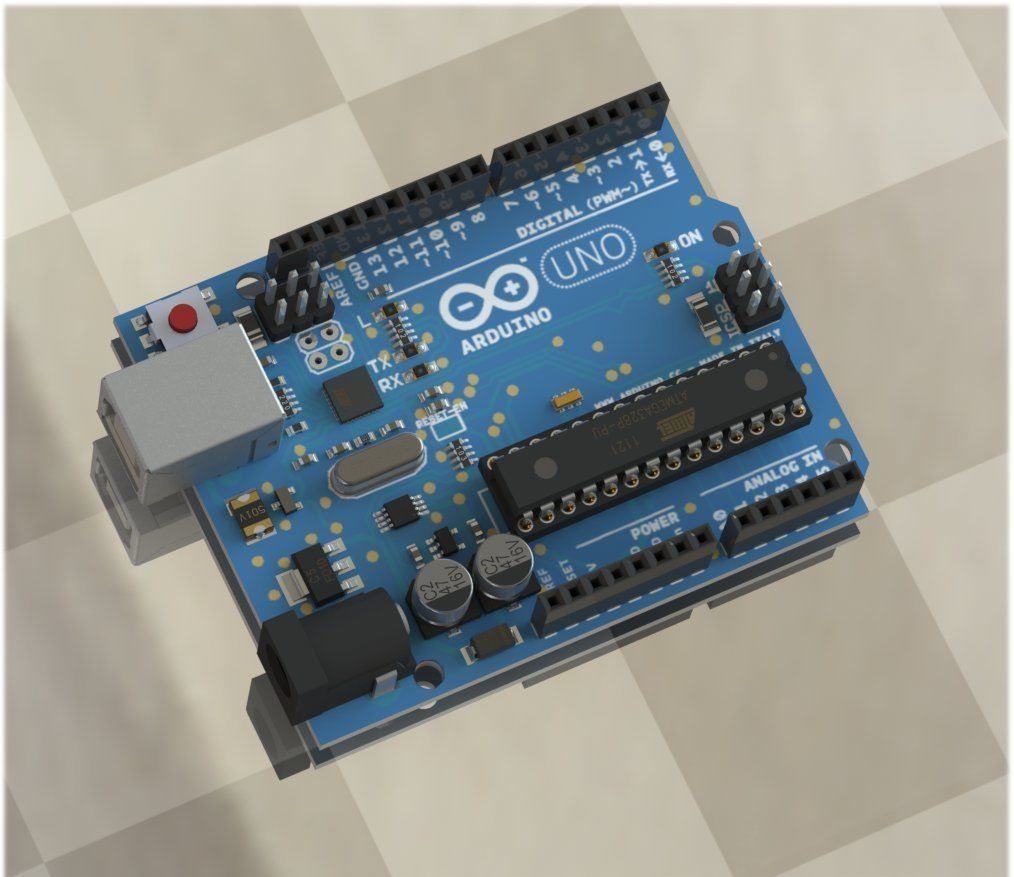

An Arduino Uno, Rev 3 in solidworks

Supplied as an assembly and a part for convenience

Dimensions taken directly from product data sheets and the EAGLE files for the Uno Reference design from the website, so the model really ought to be accurate.

Otherwise and as always with my models, it's probably useful to suppress the extraneous detail if it's not needed.

Software: SOLIDWORKS, STEP / IGES, Rendering, Parasolid, SOLIDWORKS
