4 Band Resistor Kit on Breadboards

4 Band Resistor Kit on Breadboards Low-poly 3D model

A collection of 4 bad resistors and prototyping breadboards for electroncis projects. There are 19 different values. Each value comes in three configuration: Straight, bent for horizontal assembly and bent for vertical assembly.

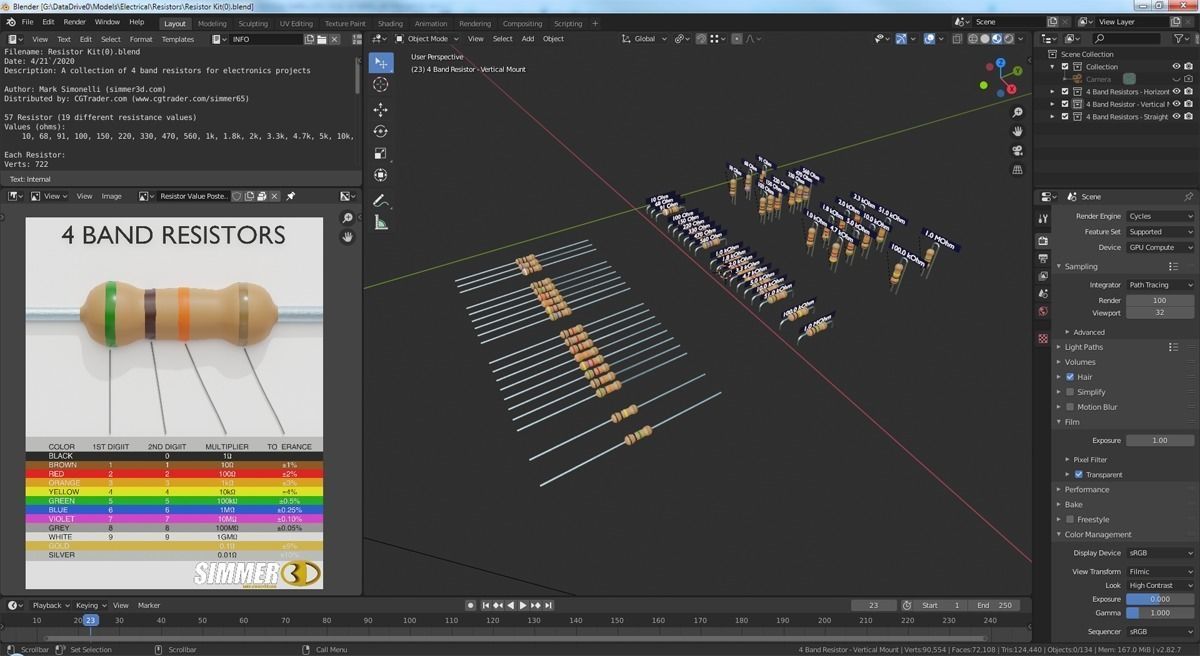

The resistors were modeled in Blender 2.82A and drawn to real world dimensions using the Imperial scale. The bent resistors have terminals to fit in a breadboard that has 0.1spacing. The breadboards are 5.82 x 4.12x .33. The holes are created with a boolean modified and can be easily customized in Blender.

All the resistors share materials for the color bands. If there is a resistor that you need that isn't in the set, it is simpe to customize in Blender.

The bent resistors come with labels that can be easily turned off (or deleted). The labels share the same material and can be easily changed.

Each resistor has 722 verts and 736 faces. Most of the faces are quads exceprt for the ends of each terminal. The terminal ends use triangles.

57 Resistor (19 different resistance values) Values (ohms): 10, 68, 91, 100, 150, 220, 330, 470, 560, 1k, 1.8k, 2k, 3.3k, 4.7k, 5k, 10k, 51k, 100k, 1M

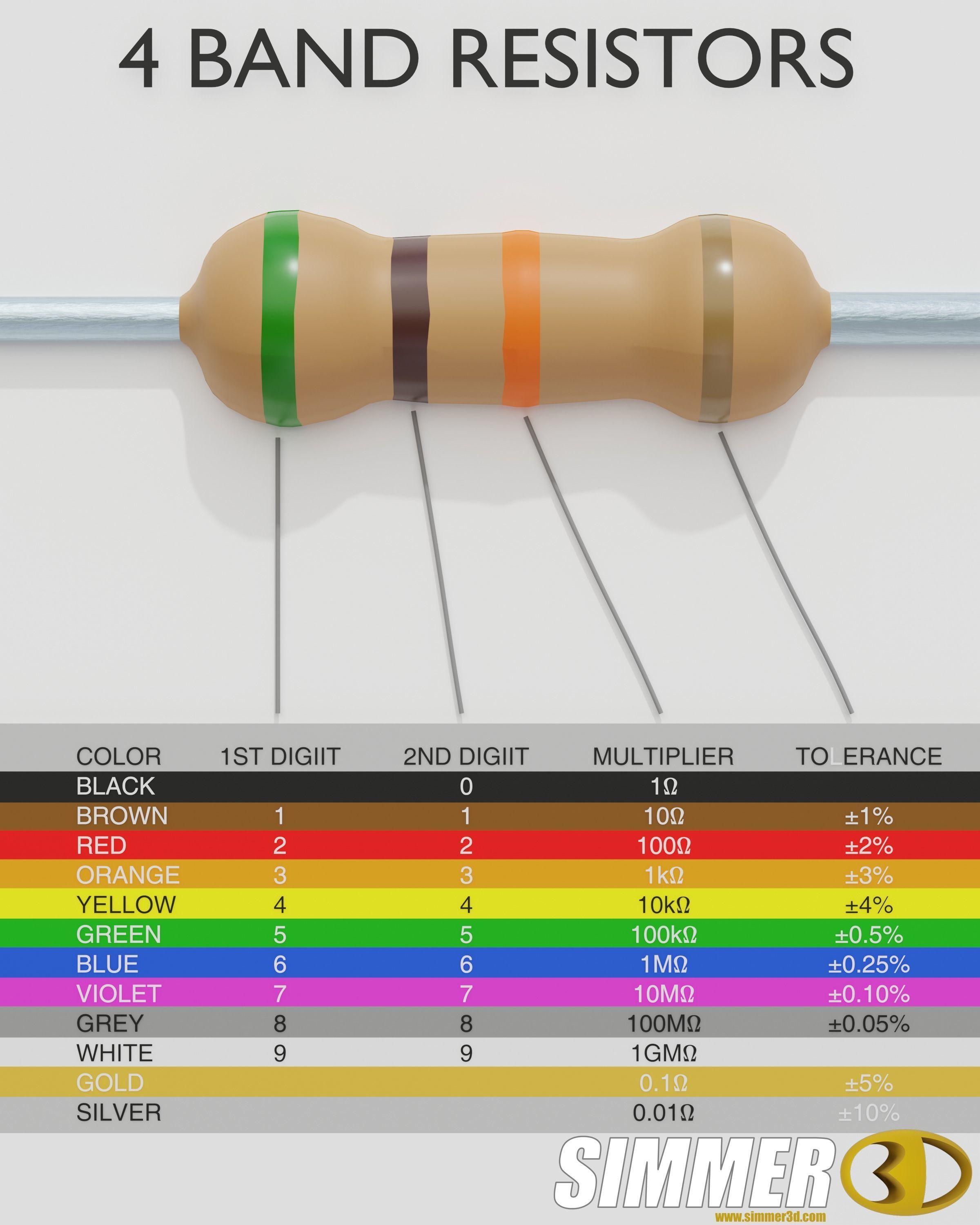

A print ready graphic of the resistor color values is included.
