AM4 CPU Socket 3D model
Verification details of the FBX file
Files
FBX file format
Scene
Supported object types
Geometry
No N-gonsManifold geometryNo faceted geometry
Textures and Materials
Missing required texturesPower of 2 texture sizesNo embed texturesAssigned materialsTexture aspect ratio
UVs
UV unwrapped modelNo overlapped UVs per UV island
Naming
Allowed characters
Description

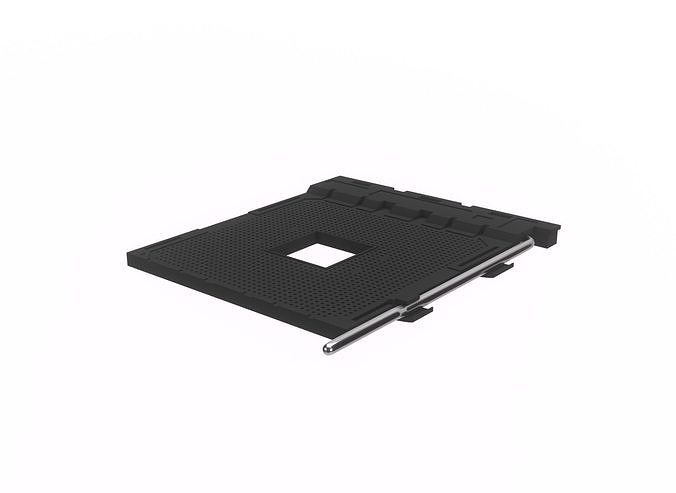

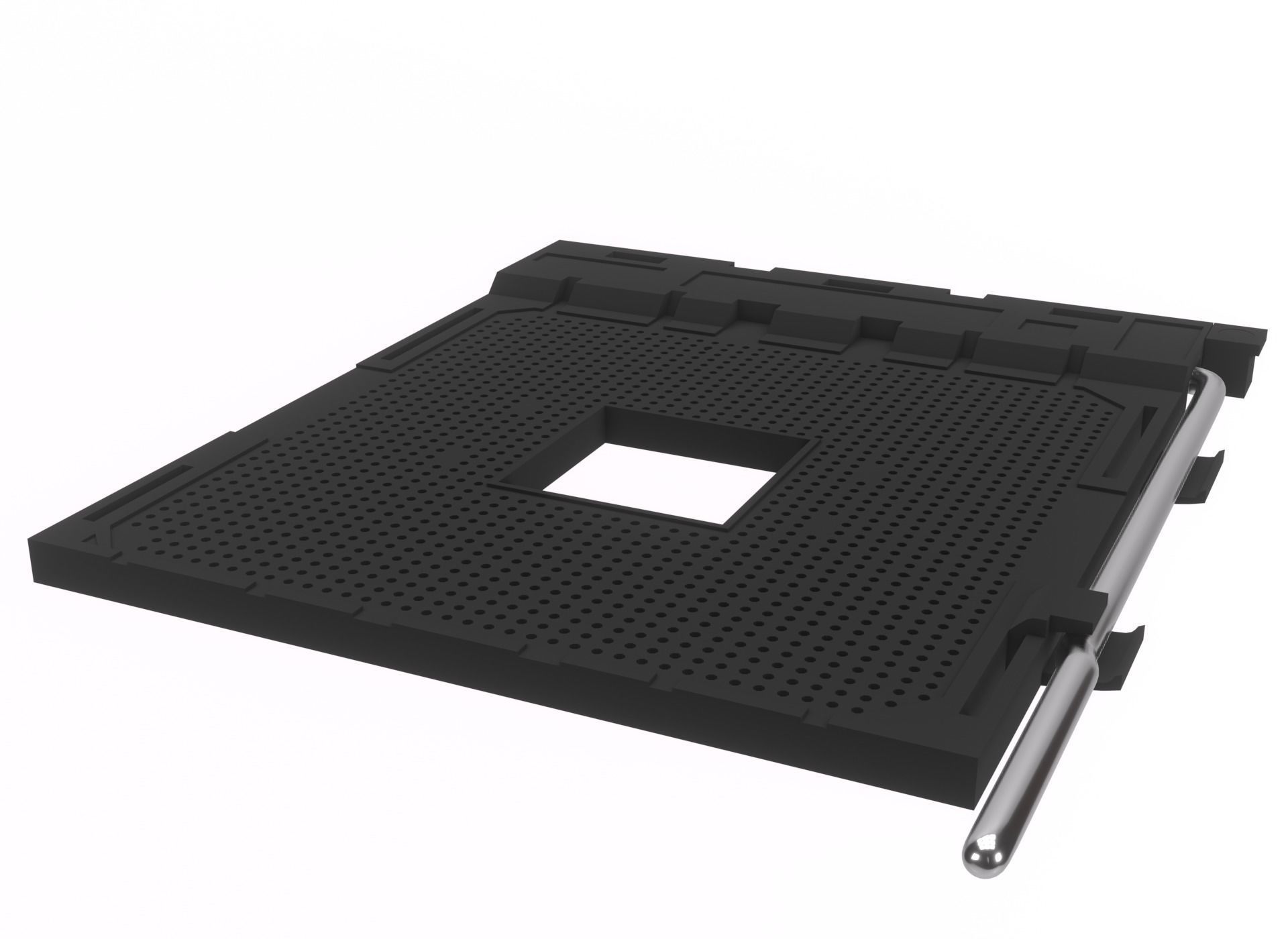

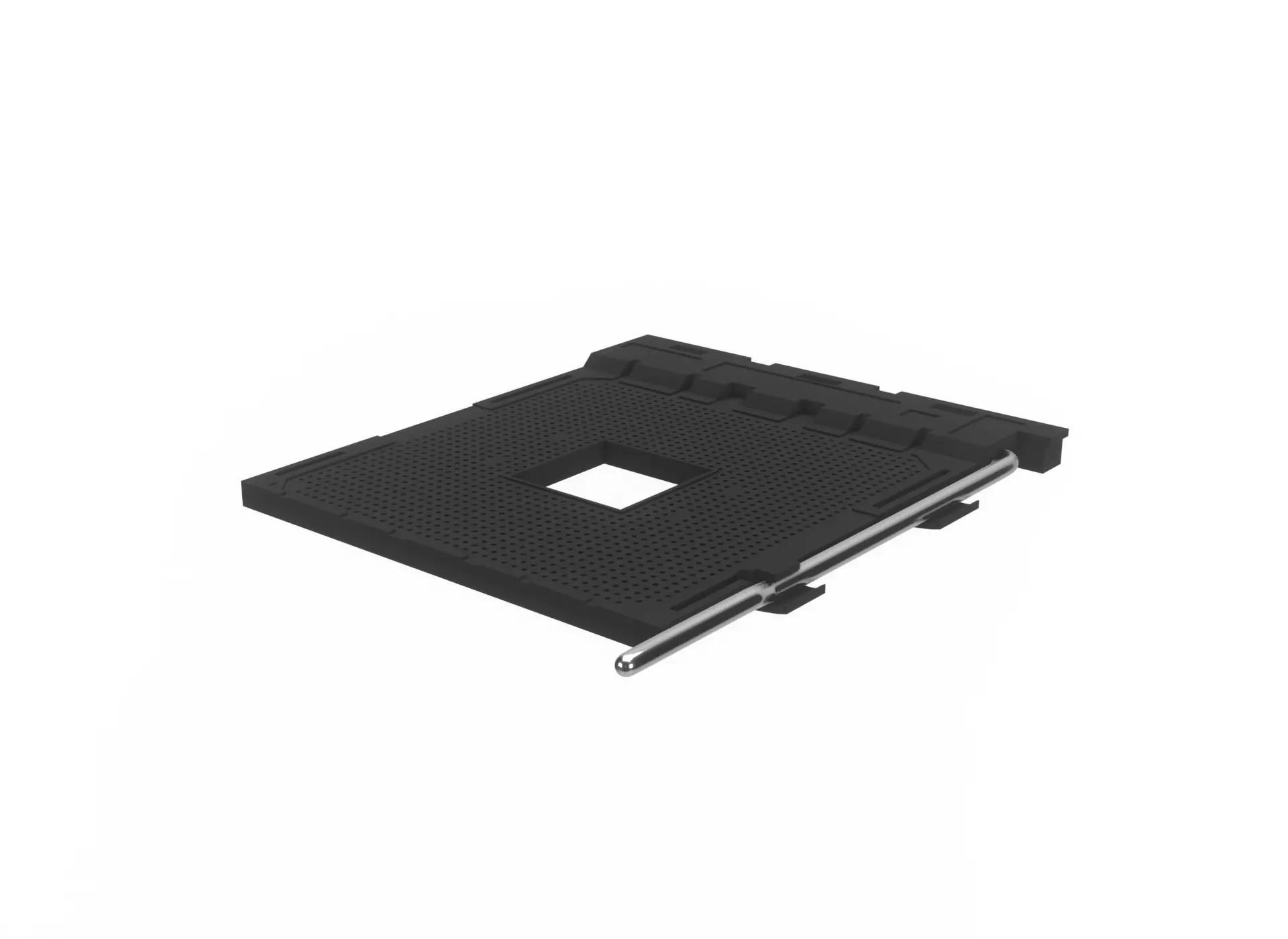

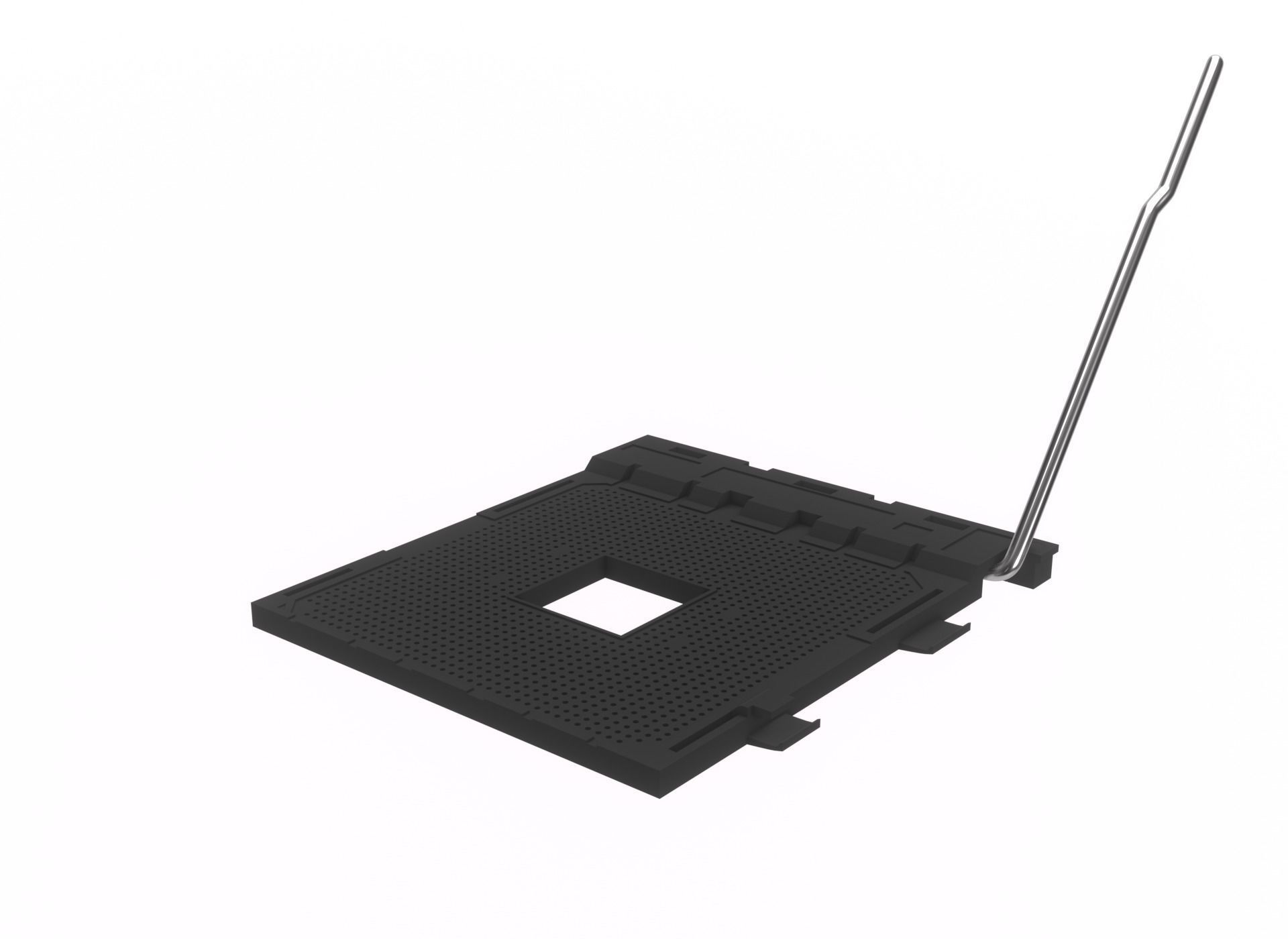

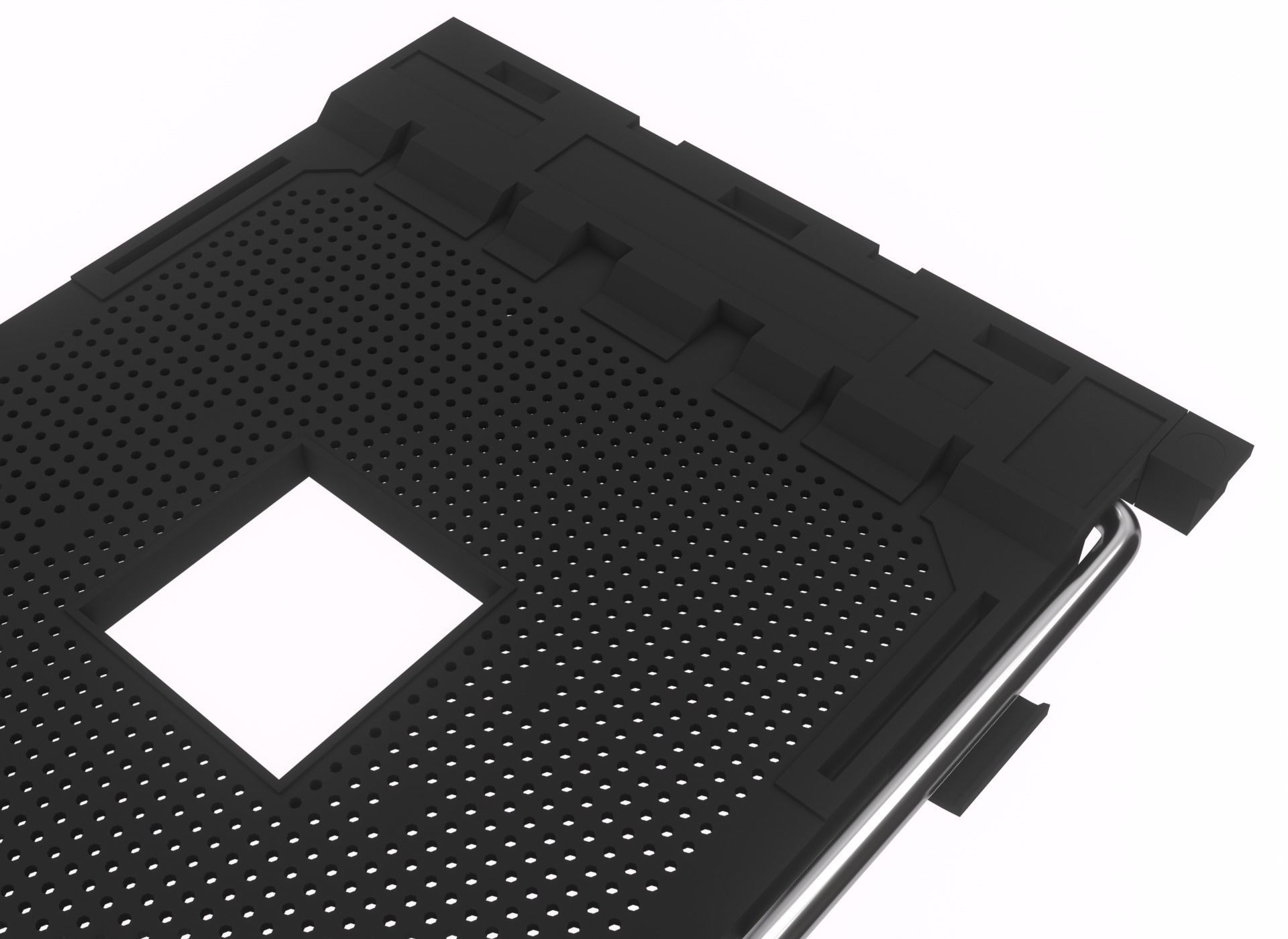

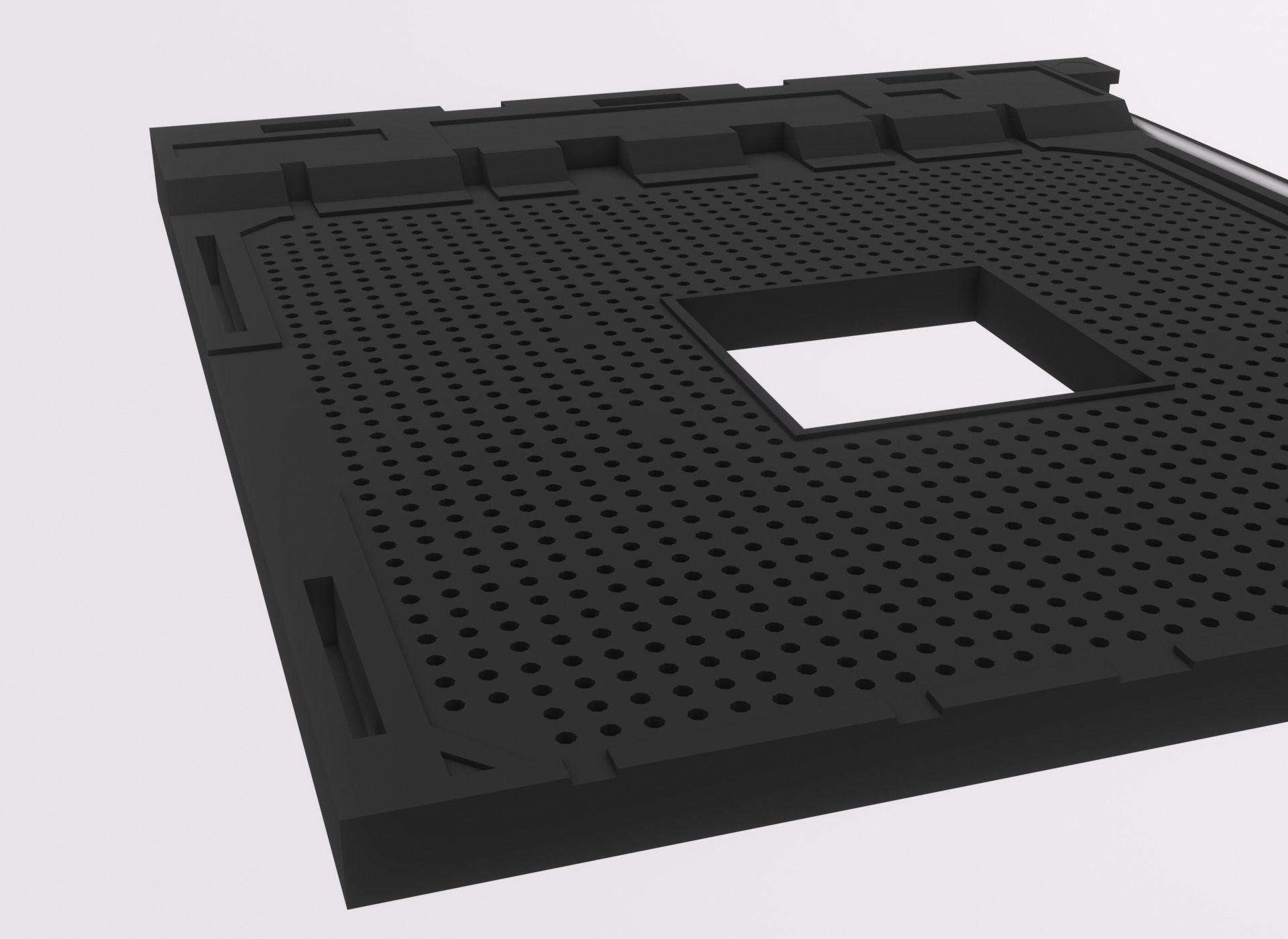

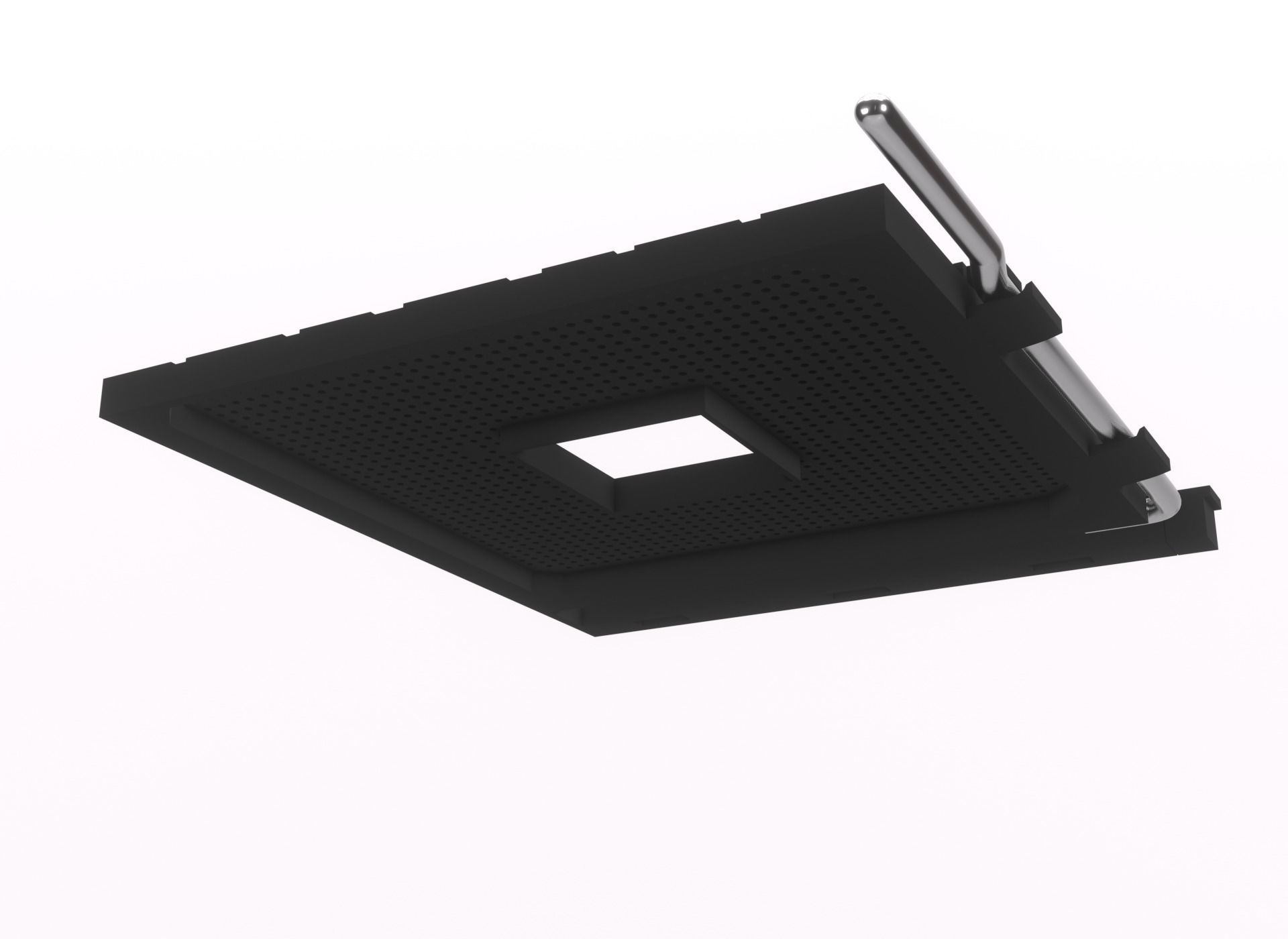

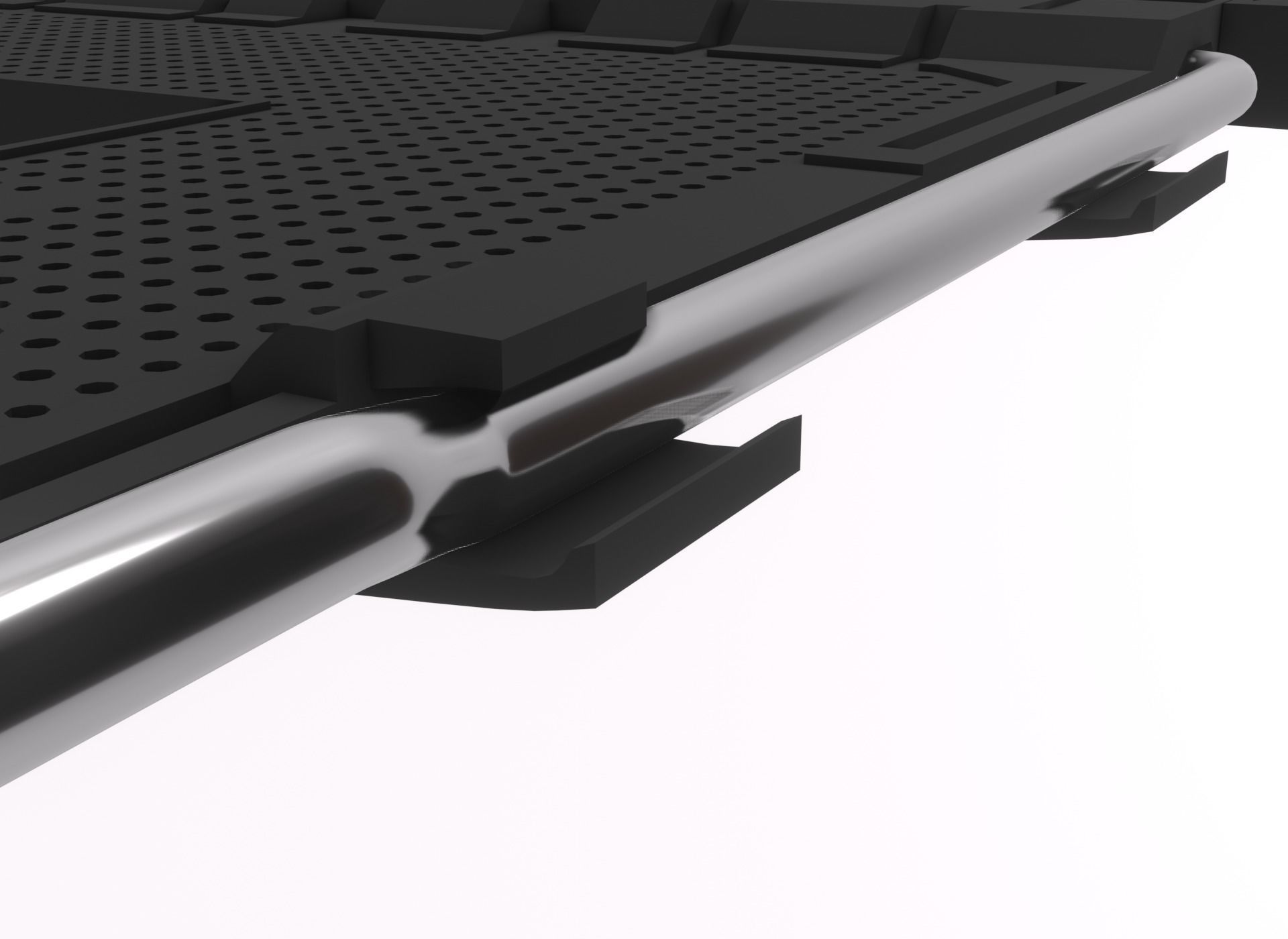

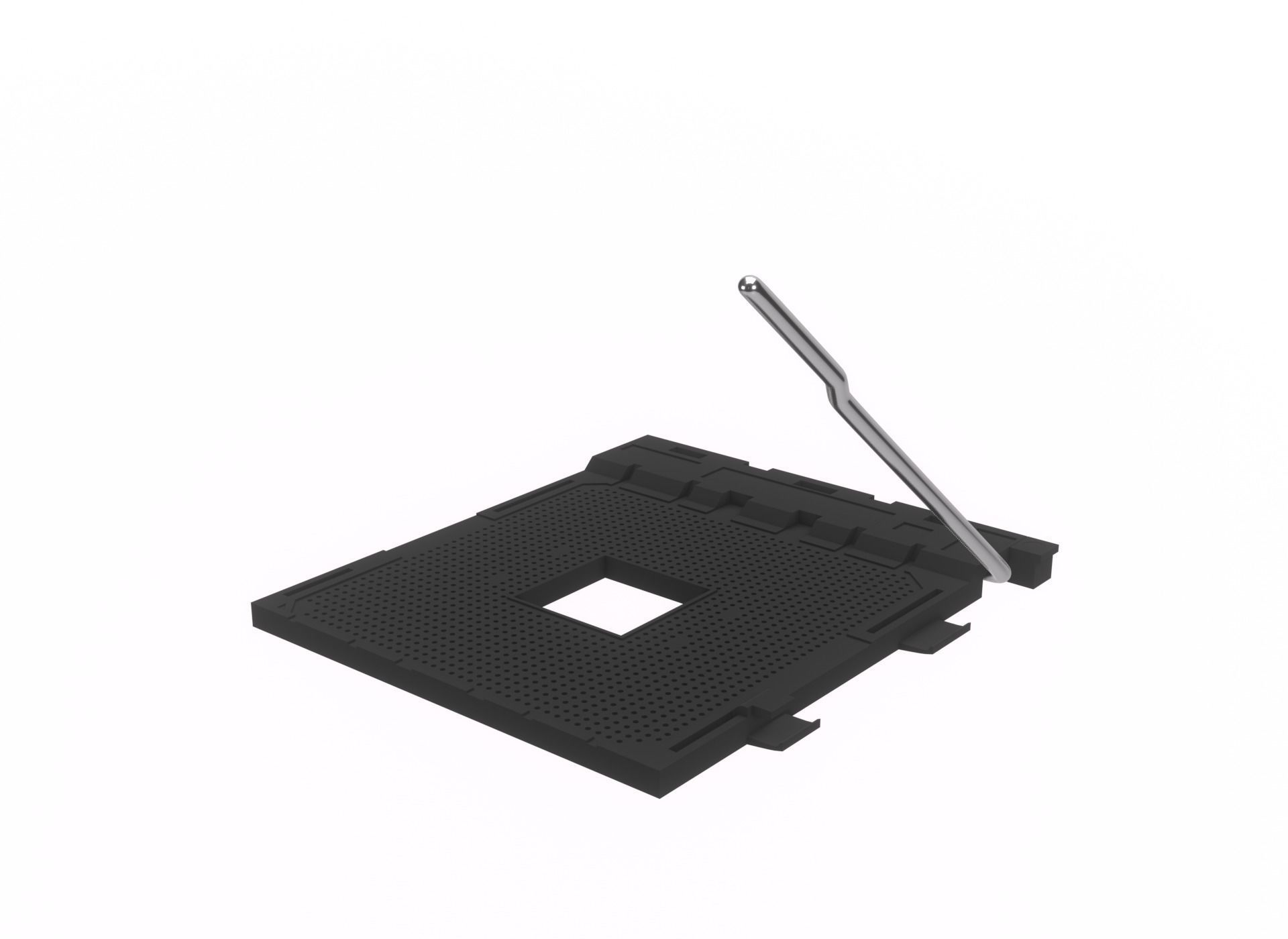

AM4 CPU Socket for Ryzen Zen 1-3 processors. This Socket was modeled with Ryzen 7 5800X CPU to fit in. All sizes are correct, dimensions are not.

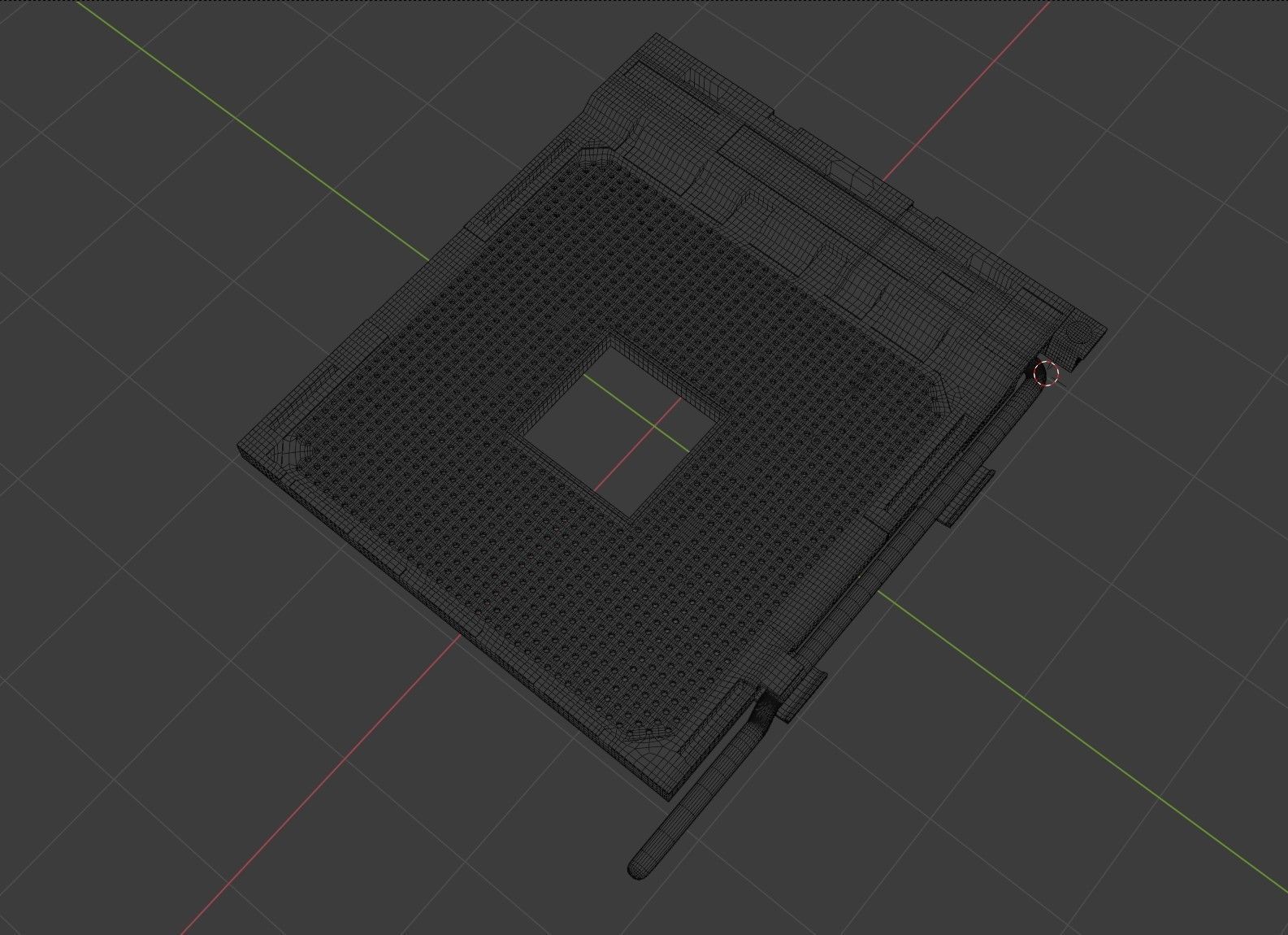

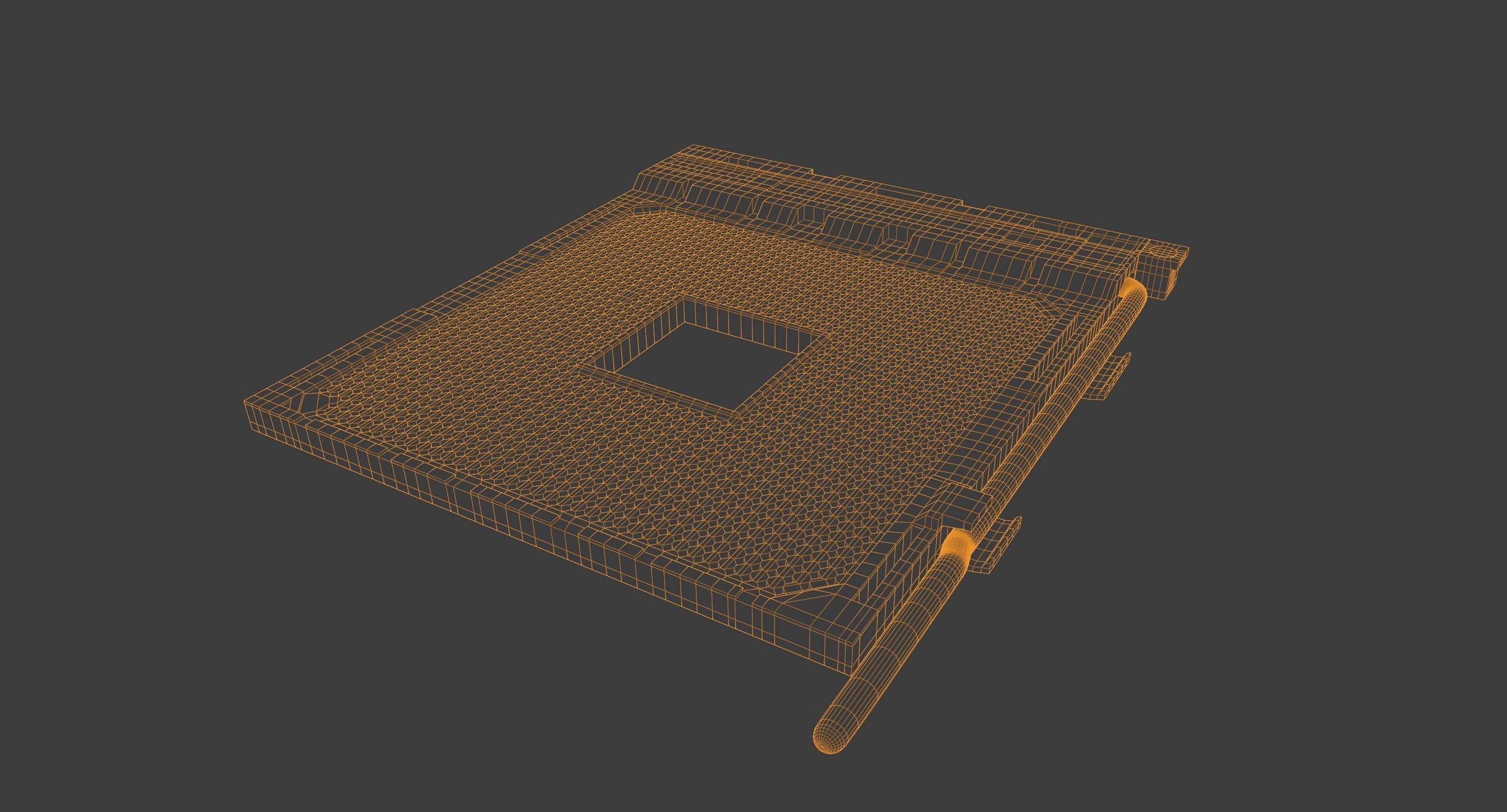

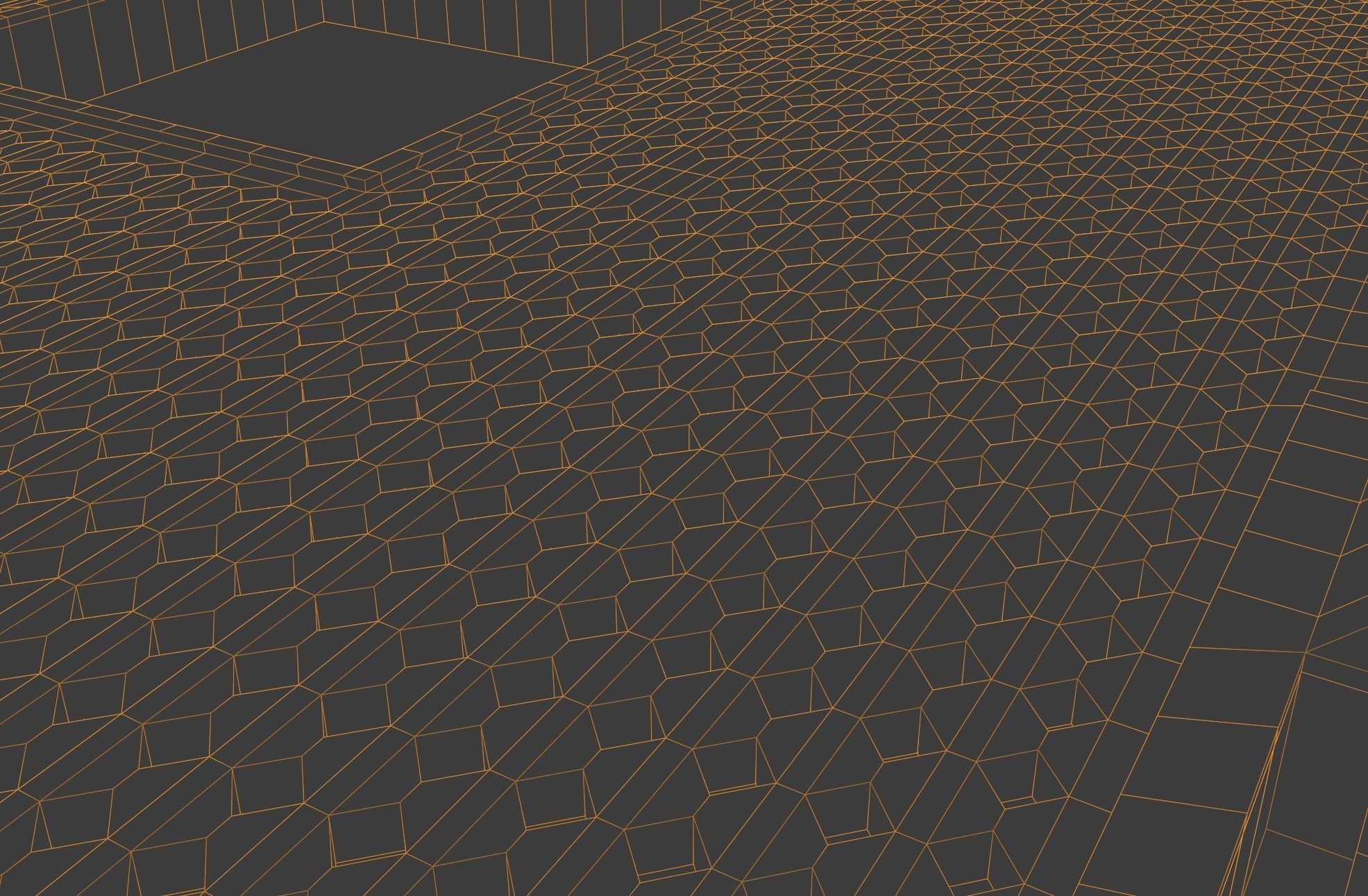

Parts of the socket that are supposed to have texts on them are unwrapped as its own UV to work with. The low-poly version contains 21k polygons due to a high number of pins. Topology is clean as possible and low as possible for this socket to be optimized for subdivision or unwrapping.
The subdivided version has over 70k faces. You can easily subdivide it by yourself in the Blender file.
Materials used. Plastic (black diffuse color with maximal Roughness) and steel (grey color with maximal Metalic and minimal Roughness)
AM4 CPU Socket
Royalty Free License
AM4 CPU Socket
Royalty Free License
3D Model formats
Format limitations
Native
- Blender (.blend) (2 files)17.3 MBVersion: 2.93.4Renderer: Cycles
Exchange
- Collada (.dae) (2 files)24.6 MB
- Alembic (.abc) (2 files)9.59 MB
- glTF (.gltf, .glb) (2 files)12.2 MB
- DXF (.dxf) (2 files)59.6 MB
- Autodesk FBX (.fbx) (2 files)3.93 MB
- Stereolithography (.stl) (2 files)9.11 MB
- OBJ (.obj, .mtl) (4 files)10.1 MB
- Blender (.blend) (2 files)17.3 MBVersion: 2.93.4Renderer: Cycles
3D Model details
- Publish date2021-10-01
- Model ID#3296422
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Subdivision ready
- Polygons 21,455
- Vertices 18,782
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Mixed
- Plugins used
- Ready for 3D Printing
