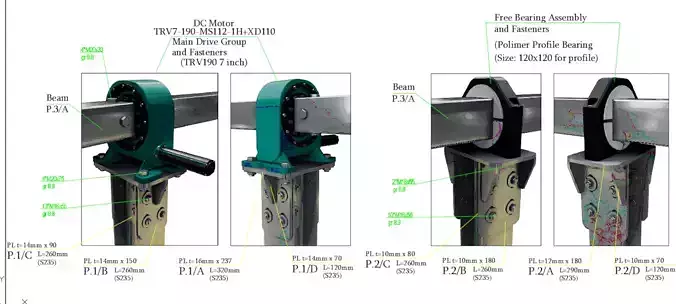

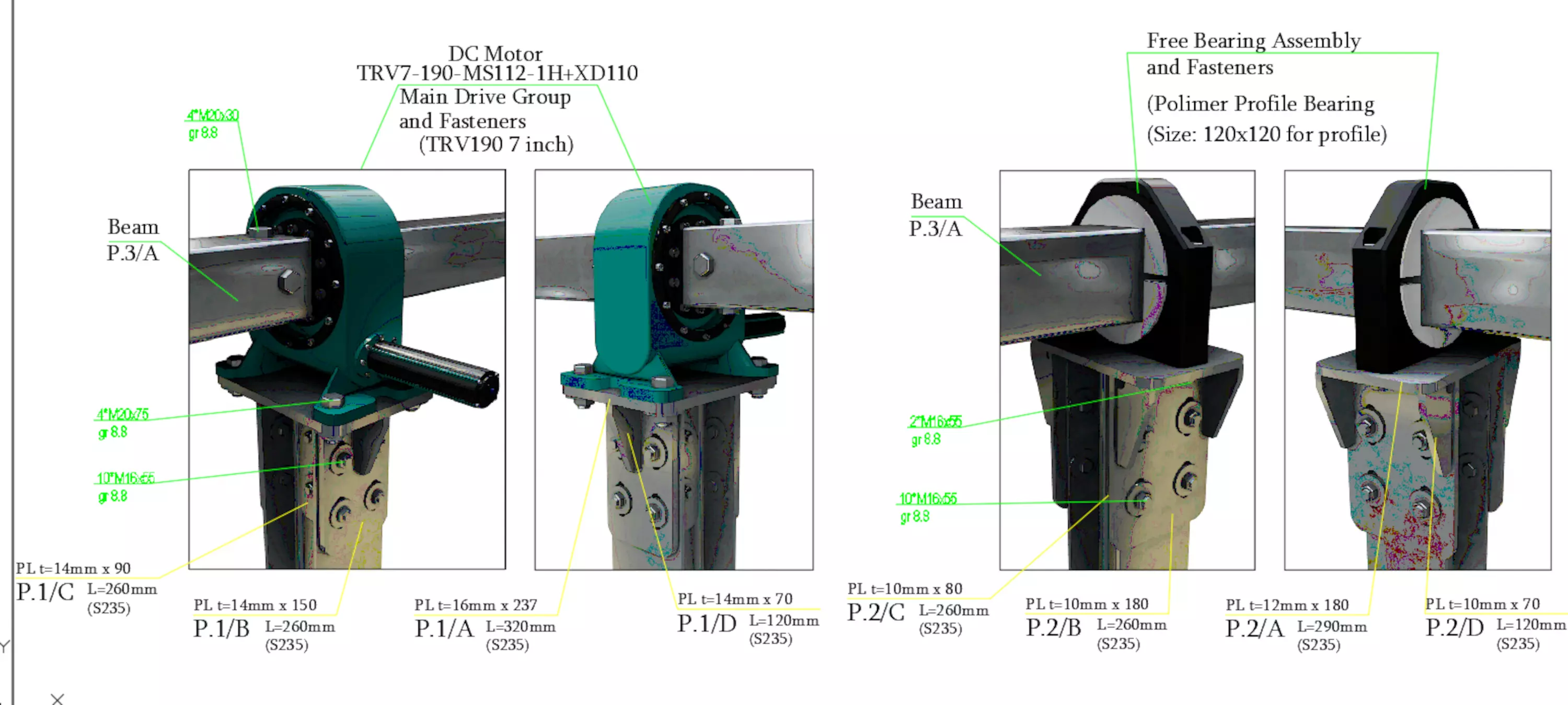

Solar Tracker Systems Static Project
Static Steel Fabrication Project
1x20x2 (40 panel pcs.) Vertical Panel Layout
Ground Connection Type; With Concrete Friction Pile
Distance of Columns Below Ground 1400 mm.
Concrete Friction Pile Dimensions : Ø300 mm H= 1500 mm
Panel Dimensions : 2384 x 1303 x 35 mm
Panel Power : 675Wp
1 solar panel steel construction produces 27 kWp power in 1 hour
The system consists of 11 axles and the distance between each axle is 5000 mm. and 5500 mm.
Single Column.
Horizantal angle of panel 0° _ +55° _ -55°
The closest distance of the panels to the floor 800 mm.
Prepared With AutoCAD Version 2021
Solar Tracker Systems Static Project
Royalty Free License
Solar Tracker Systems Static Project
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- AutoCAD 2021 (.dwg)11.8 MB
Exchange
- Other 21.6 KB
- PDF (.pdf) (6 files)15.3 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-02-25
- Model ID#5895137
