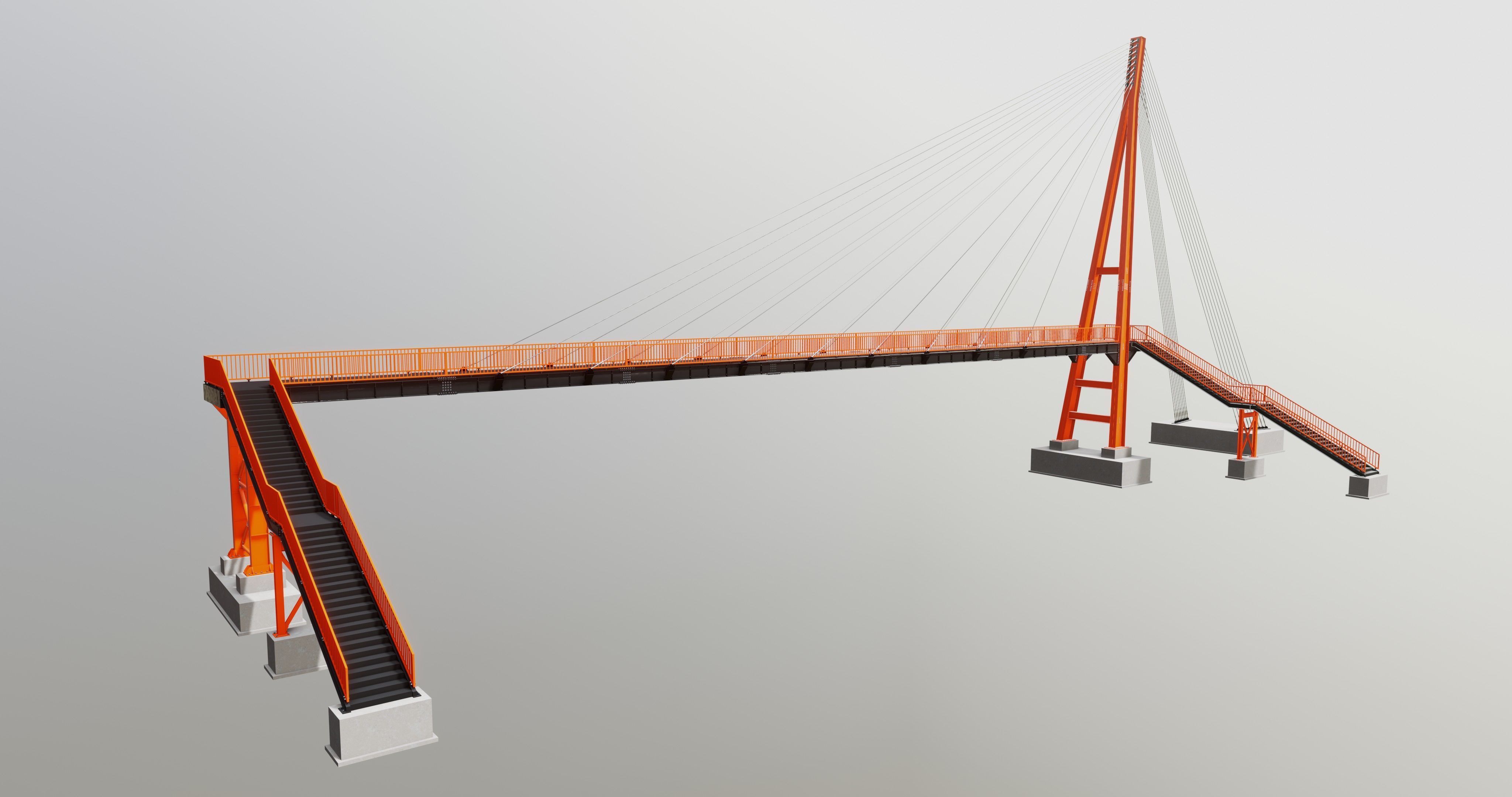

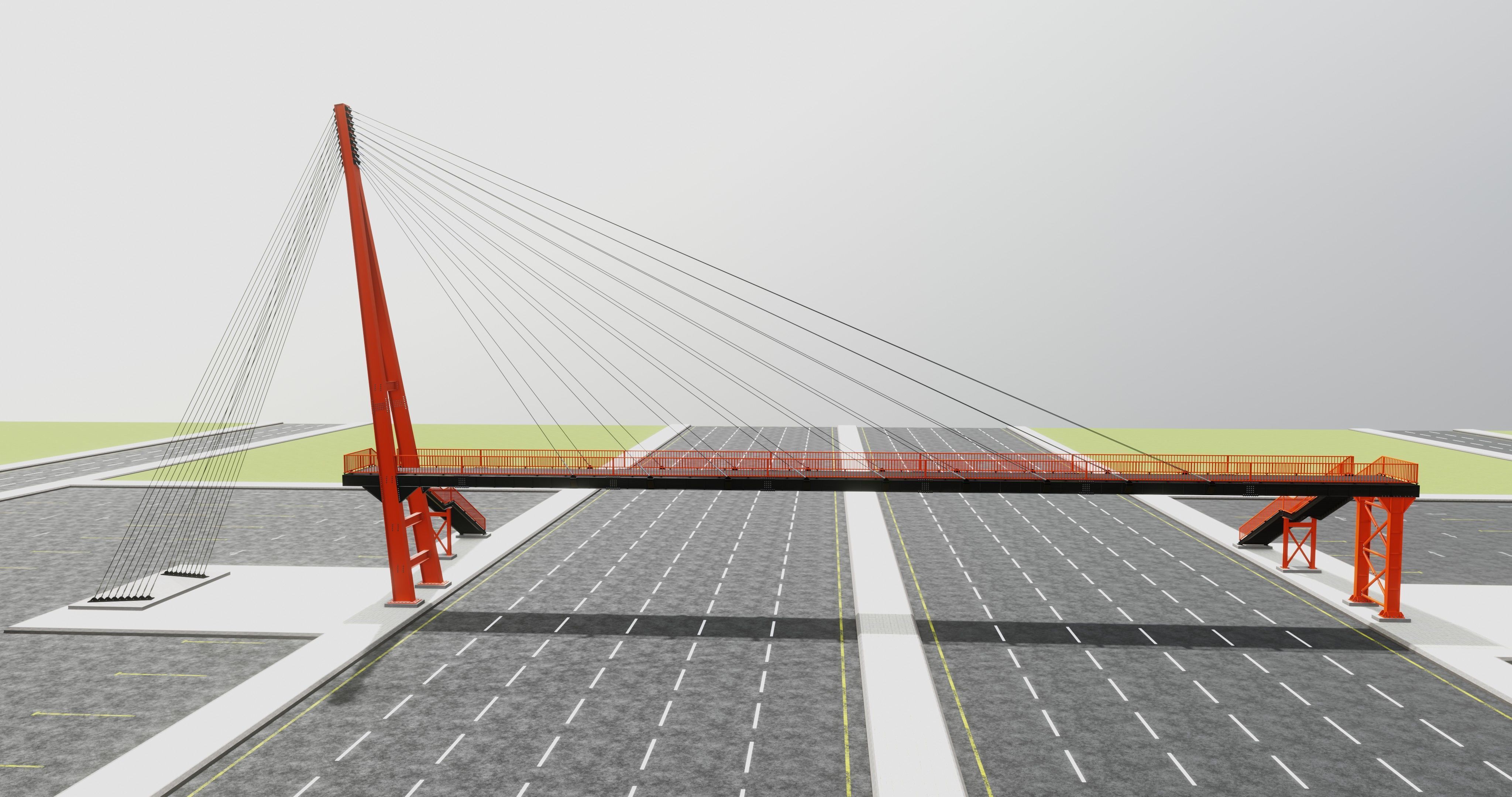

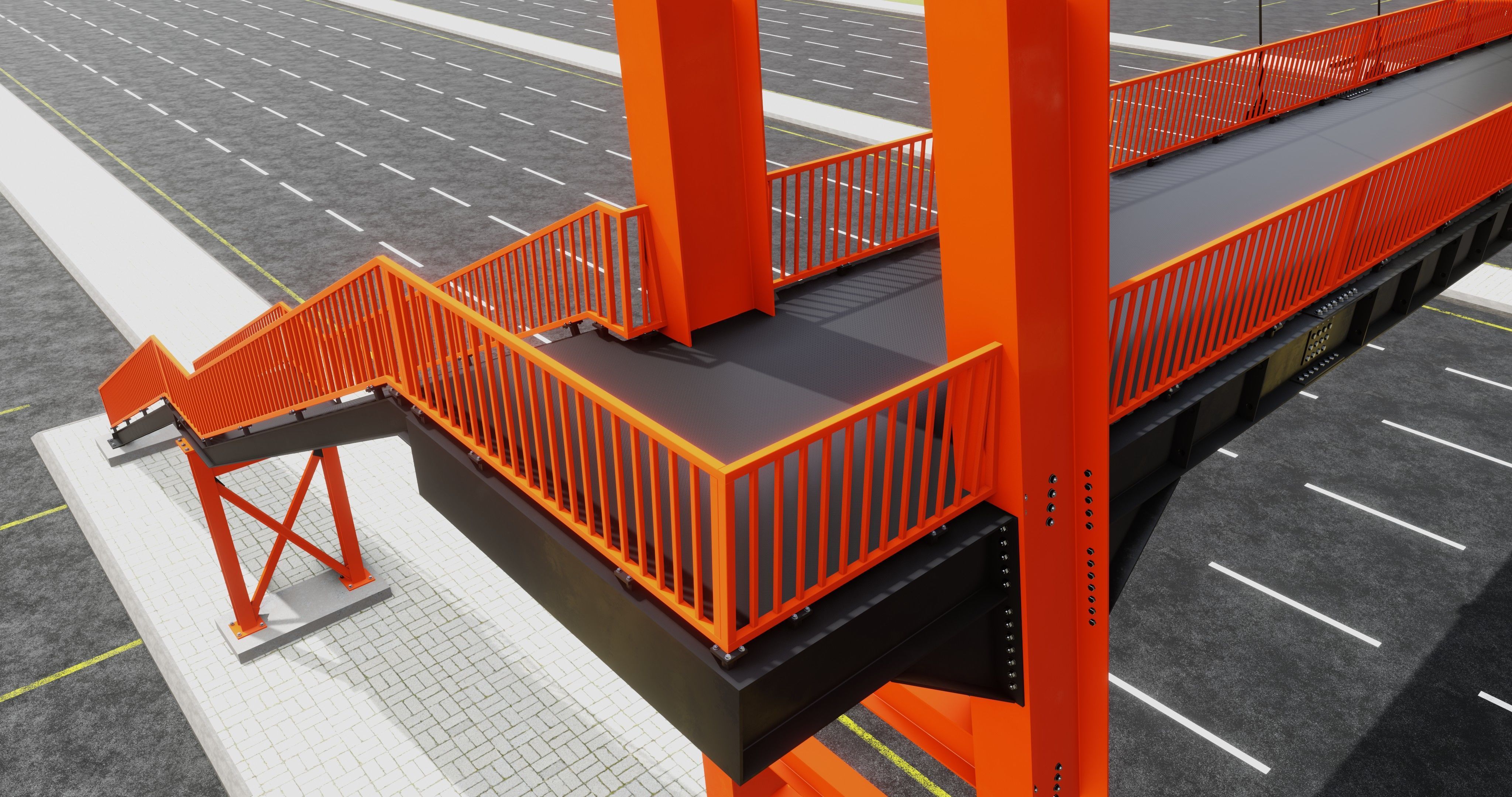

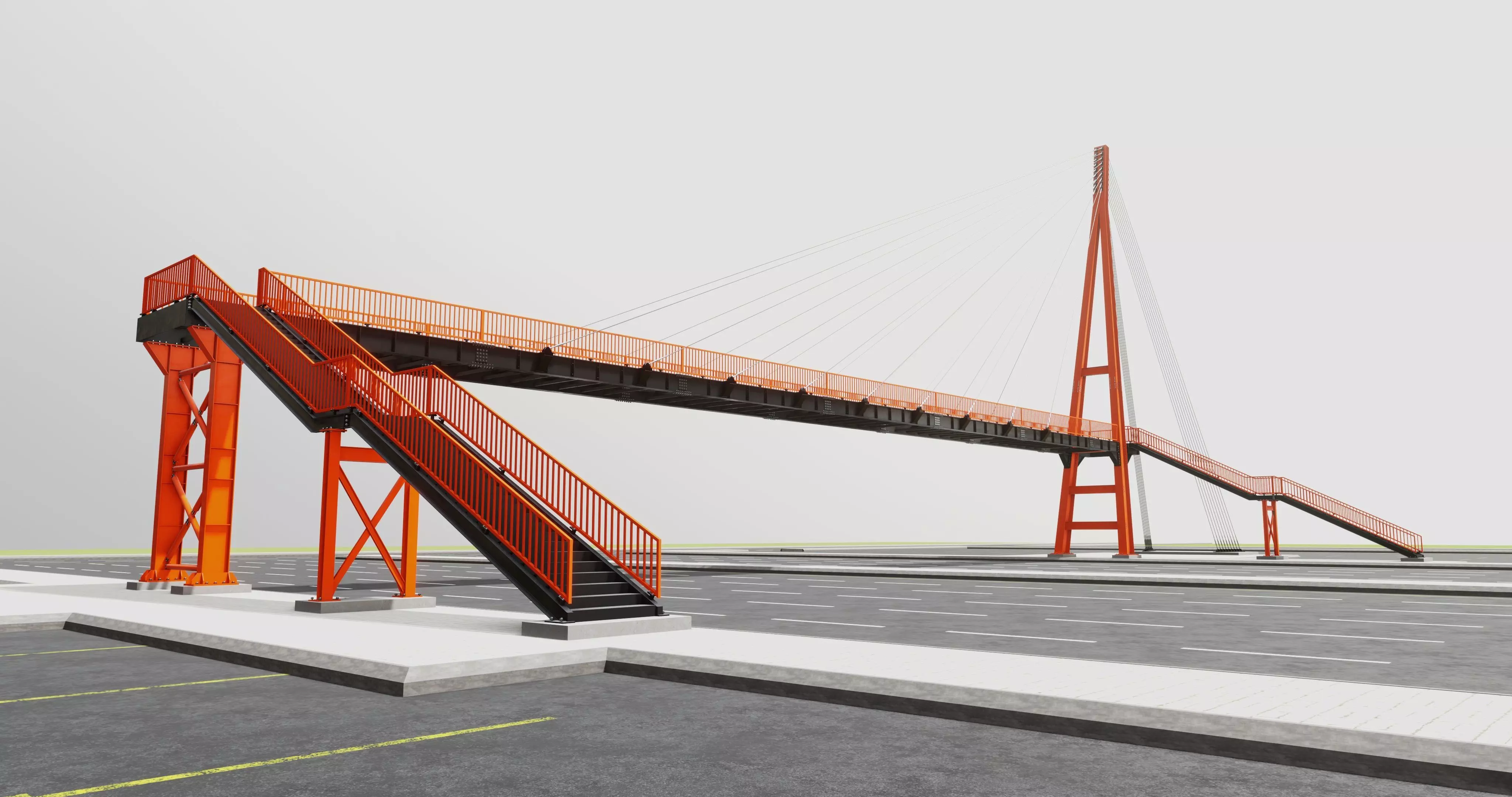

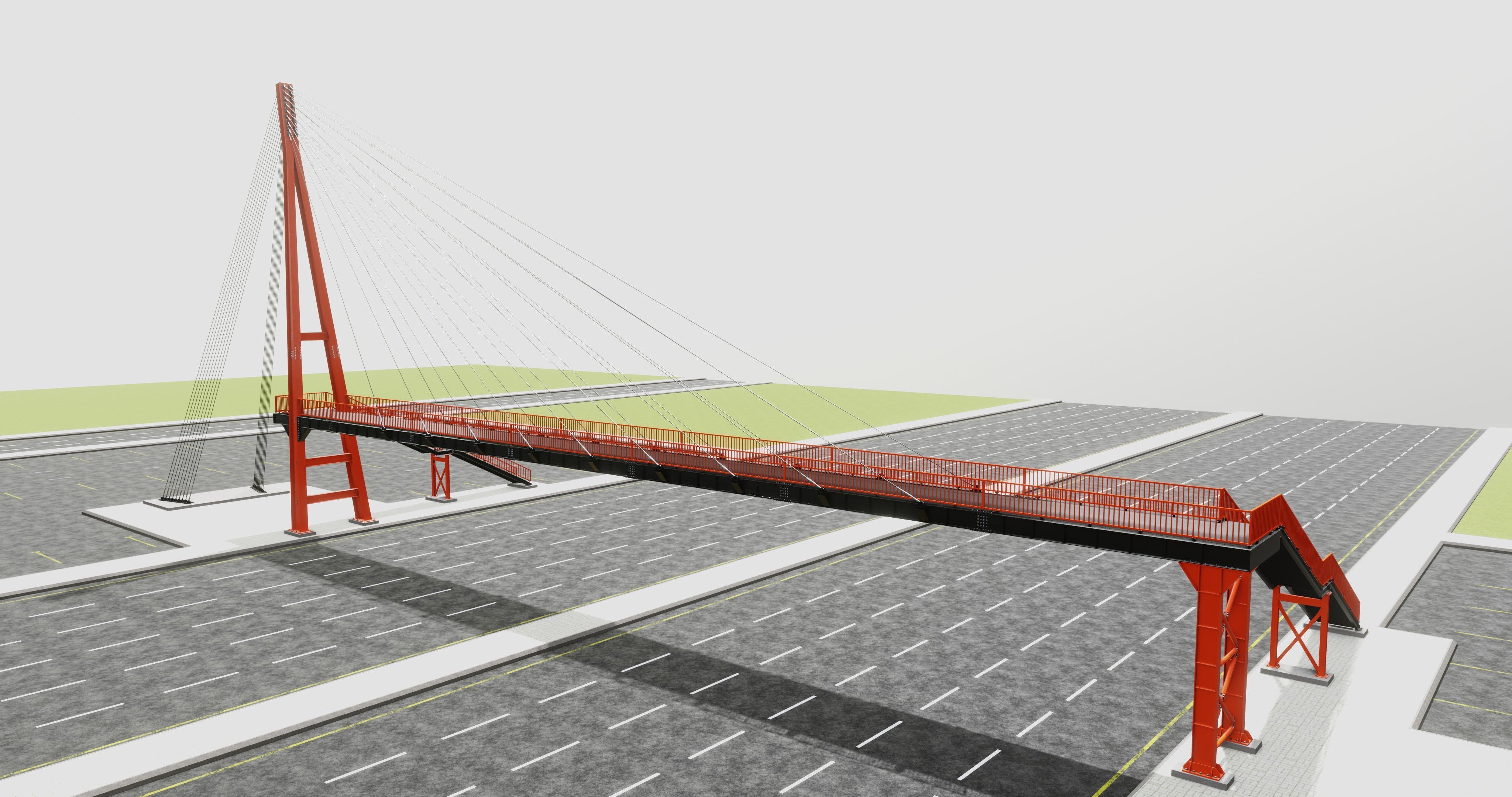

Rope Tension Pedestrian Overpass Type-1 3D model

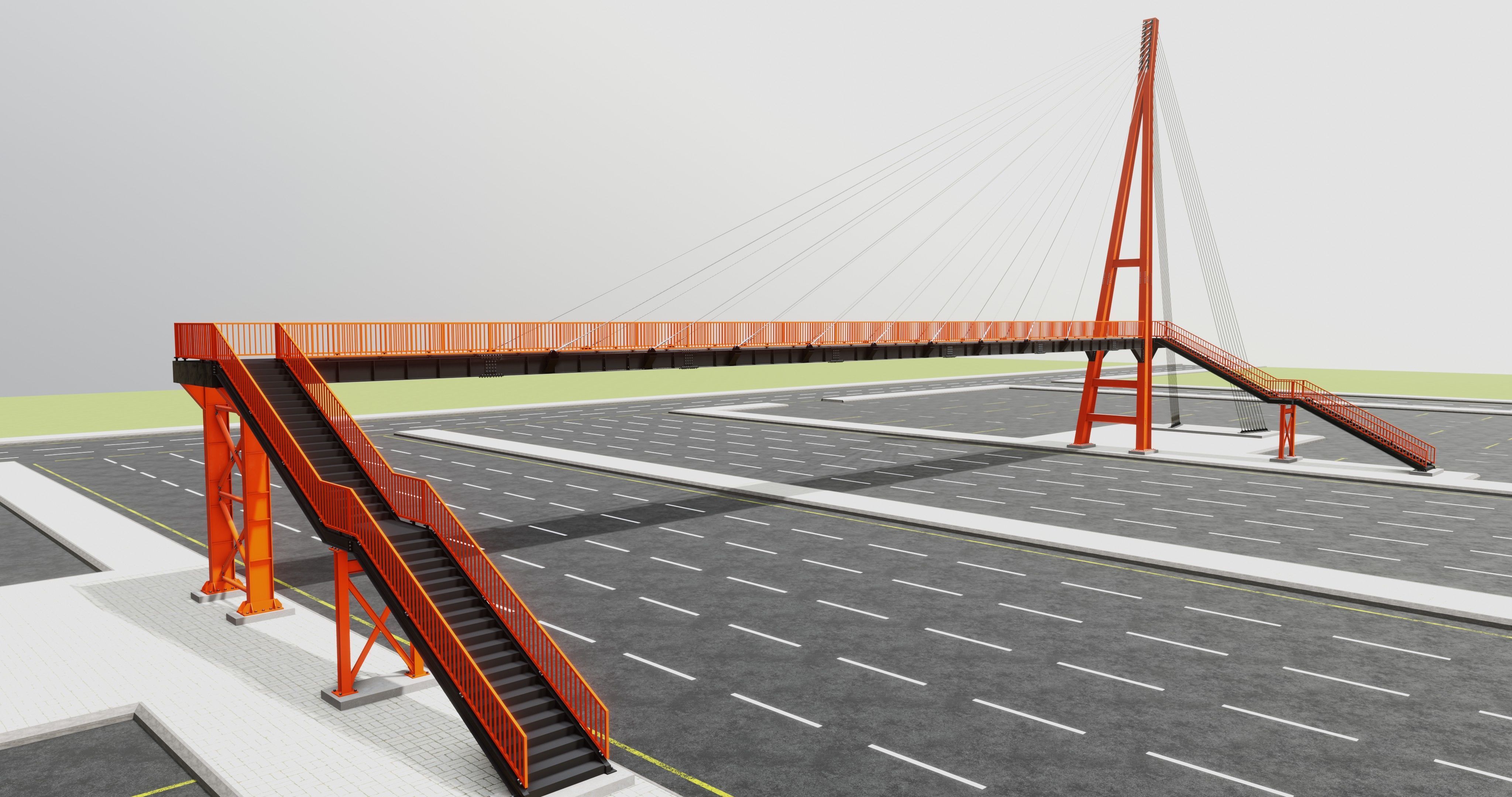

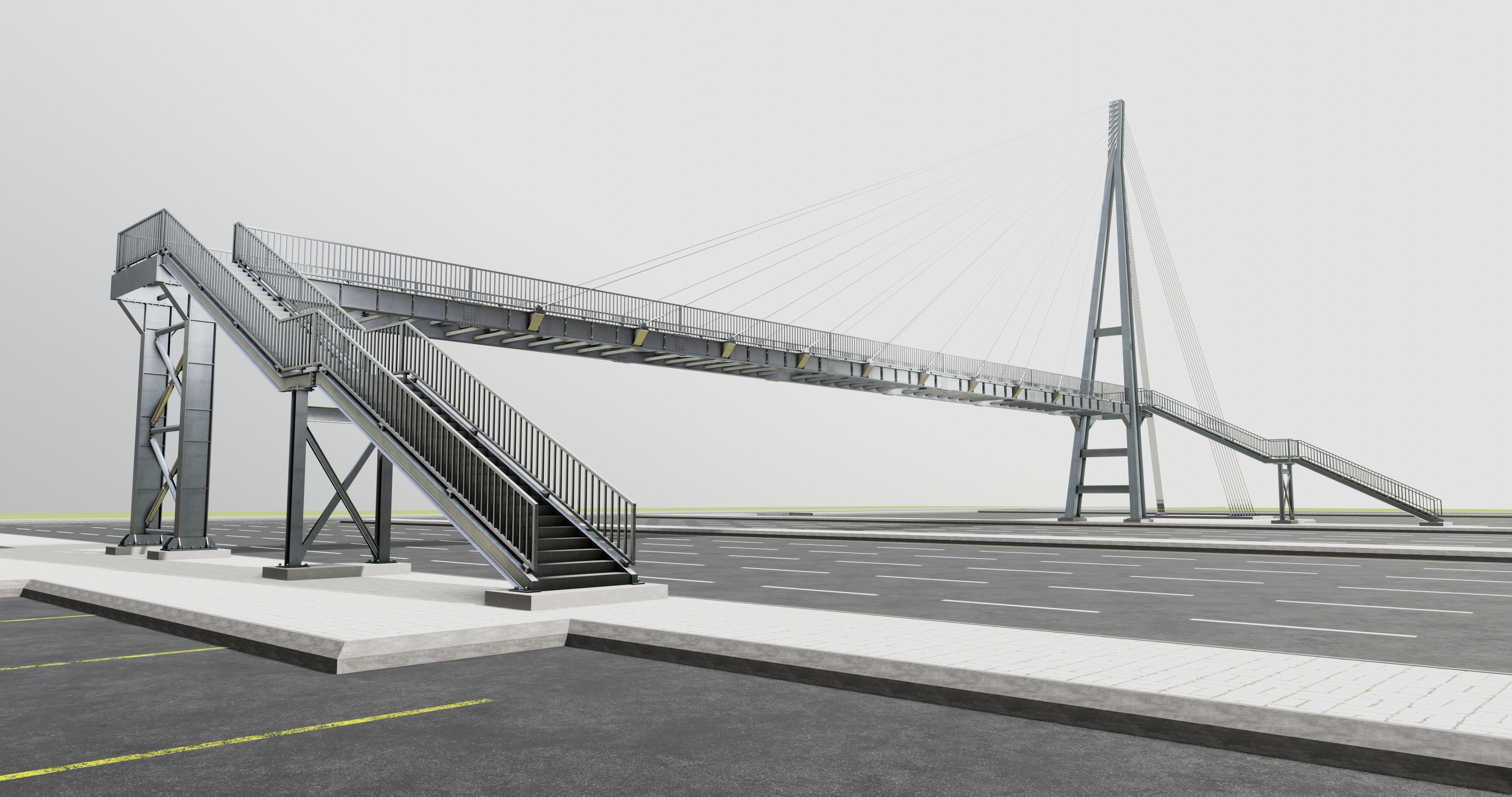

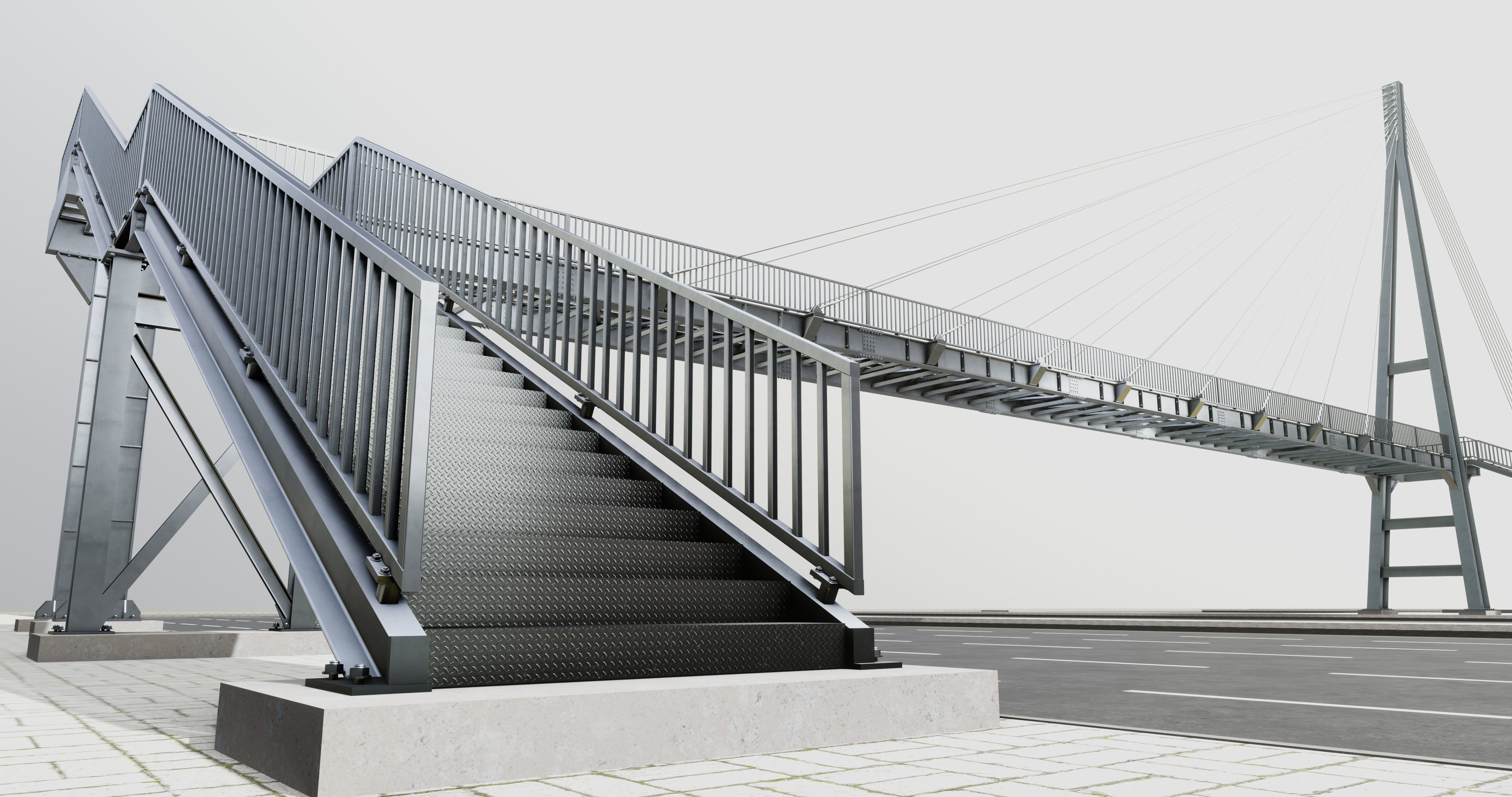

Rope Tension Pedestrian Overpass Type-1

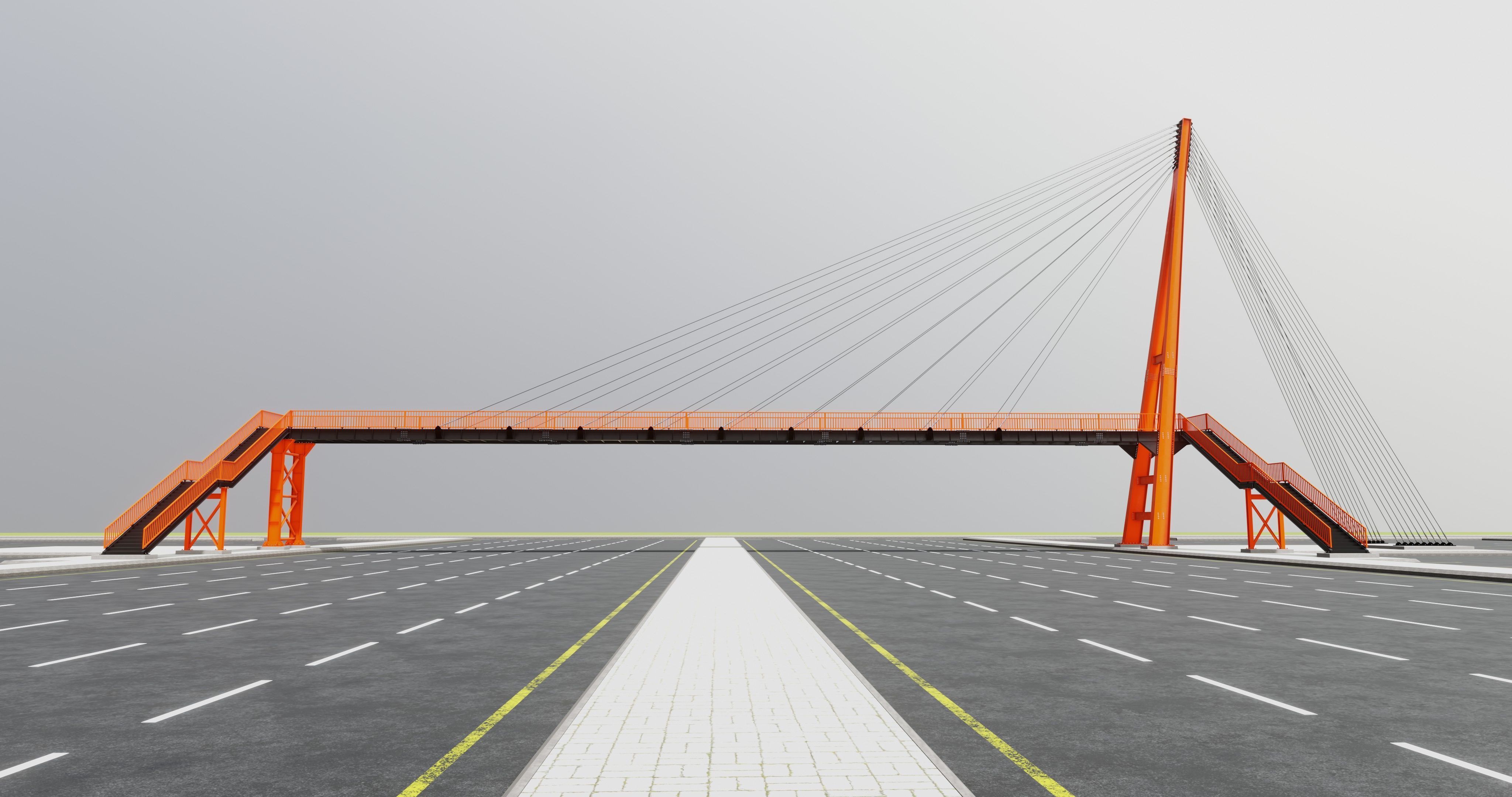

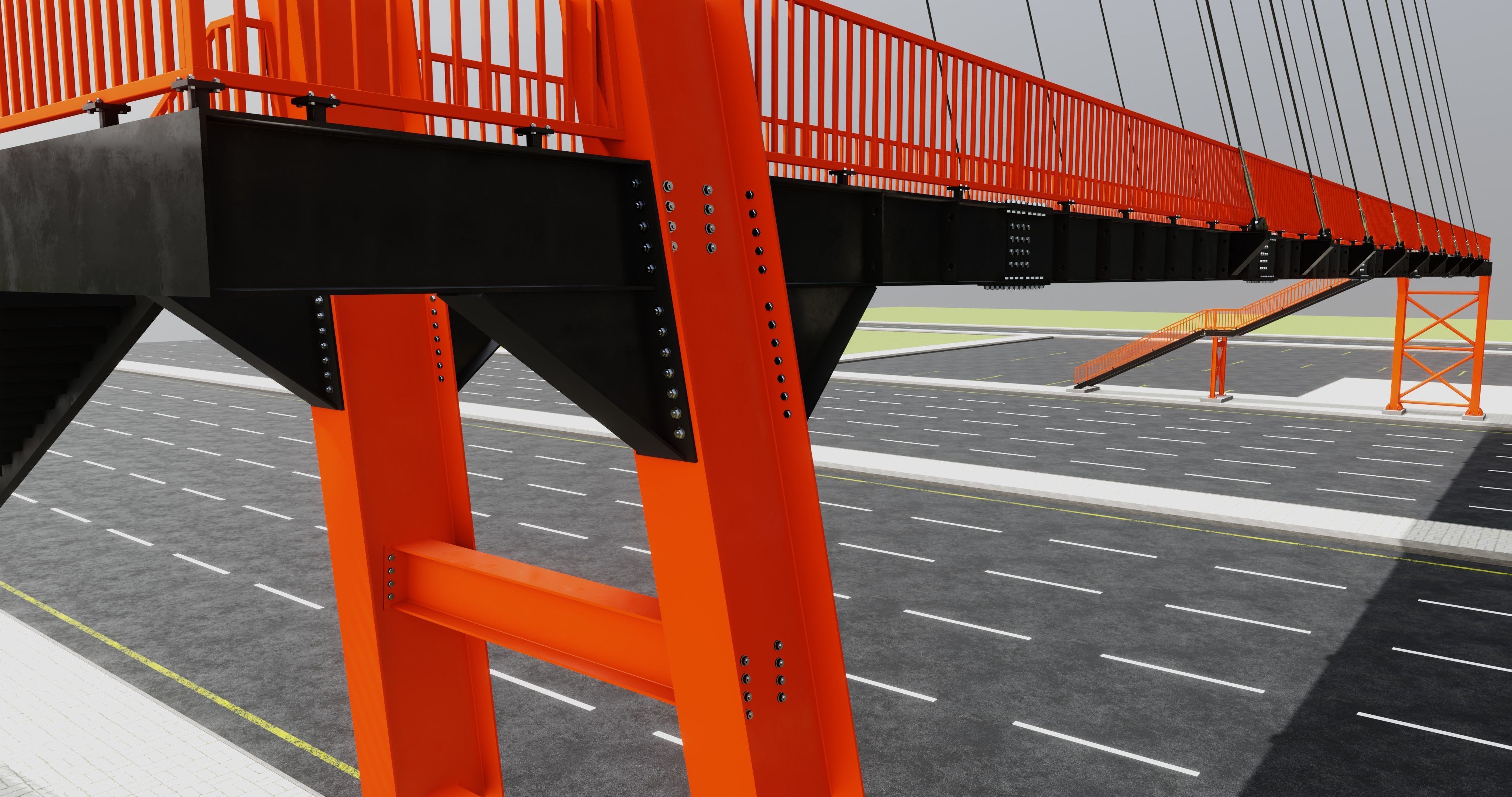

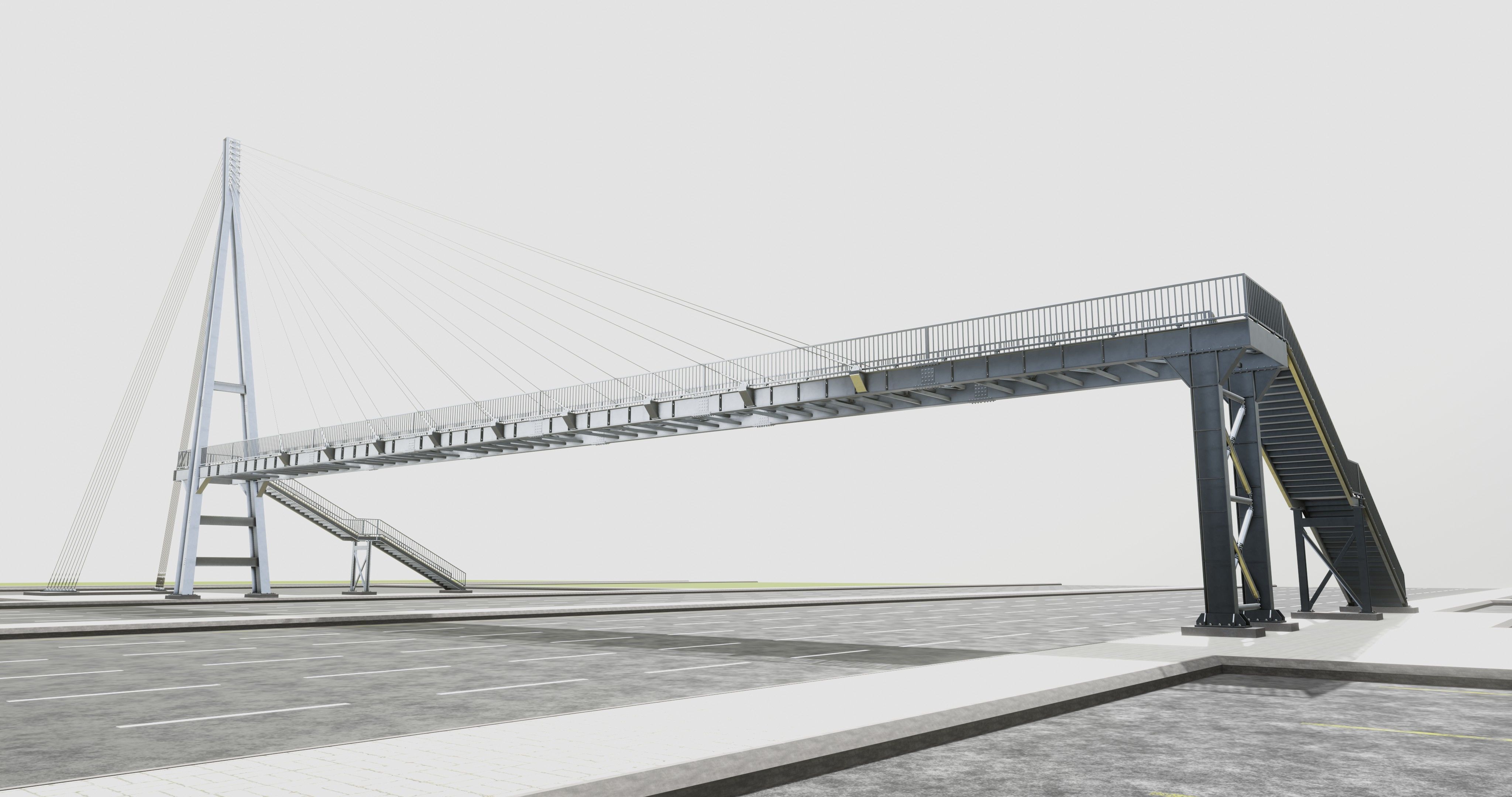

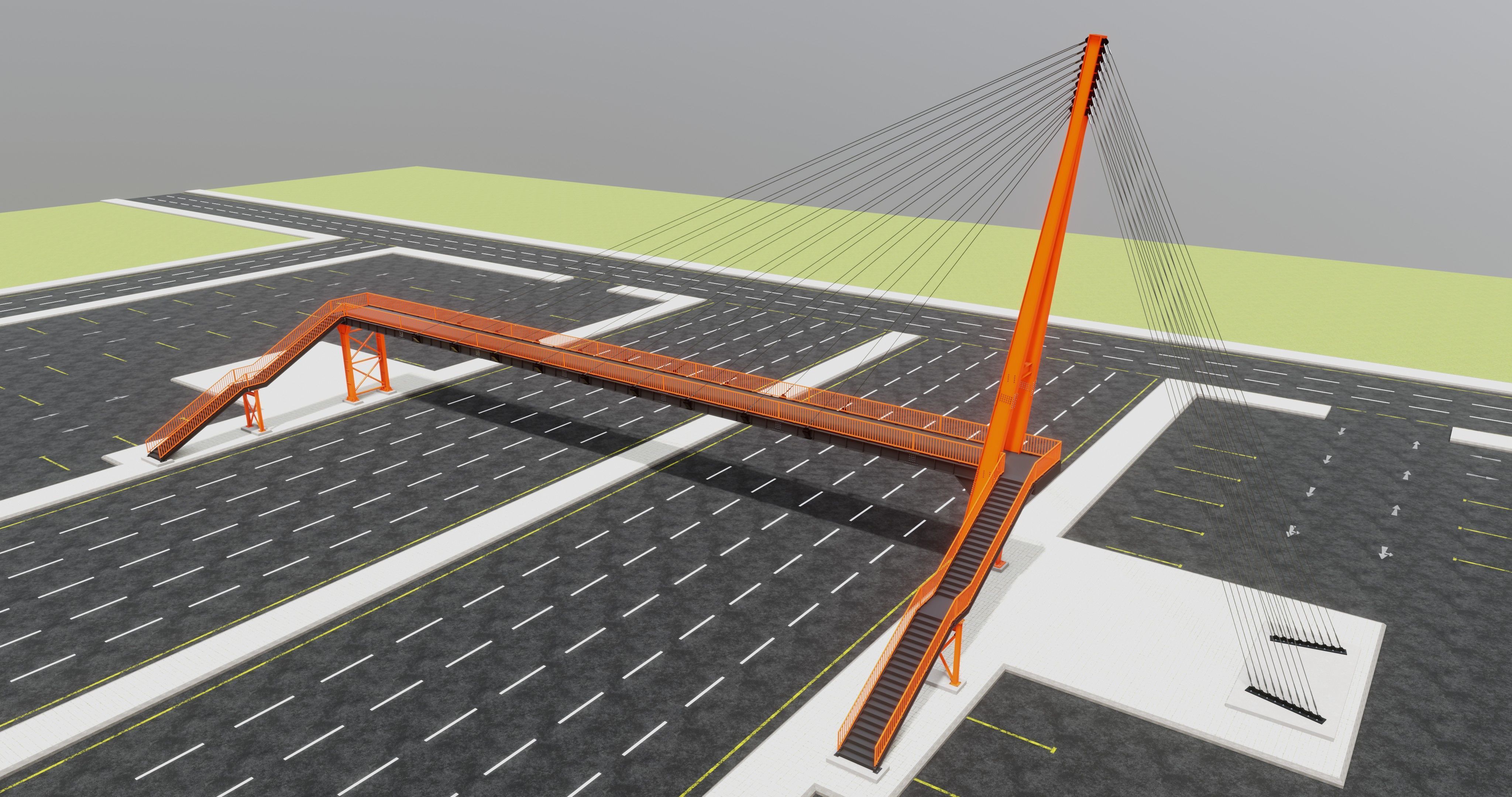

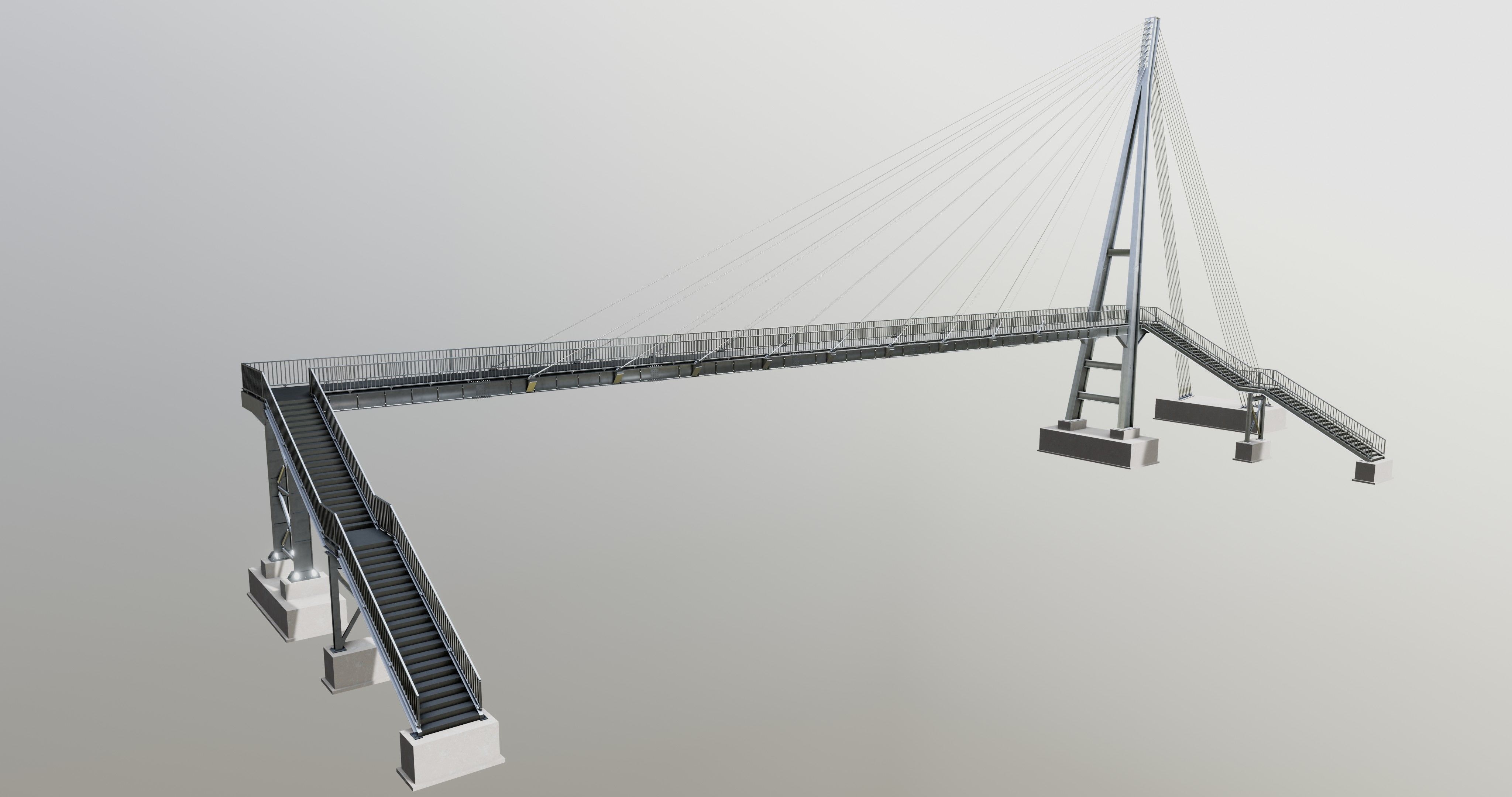

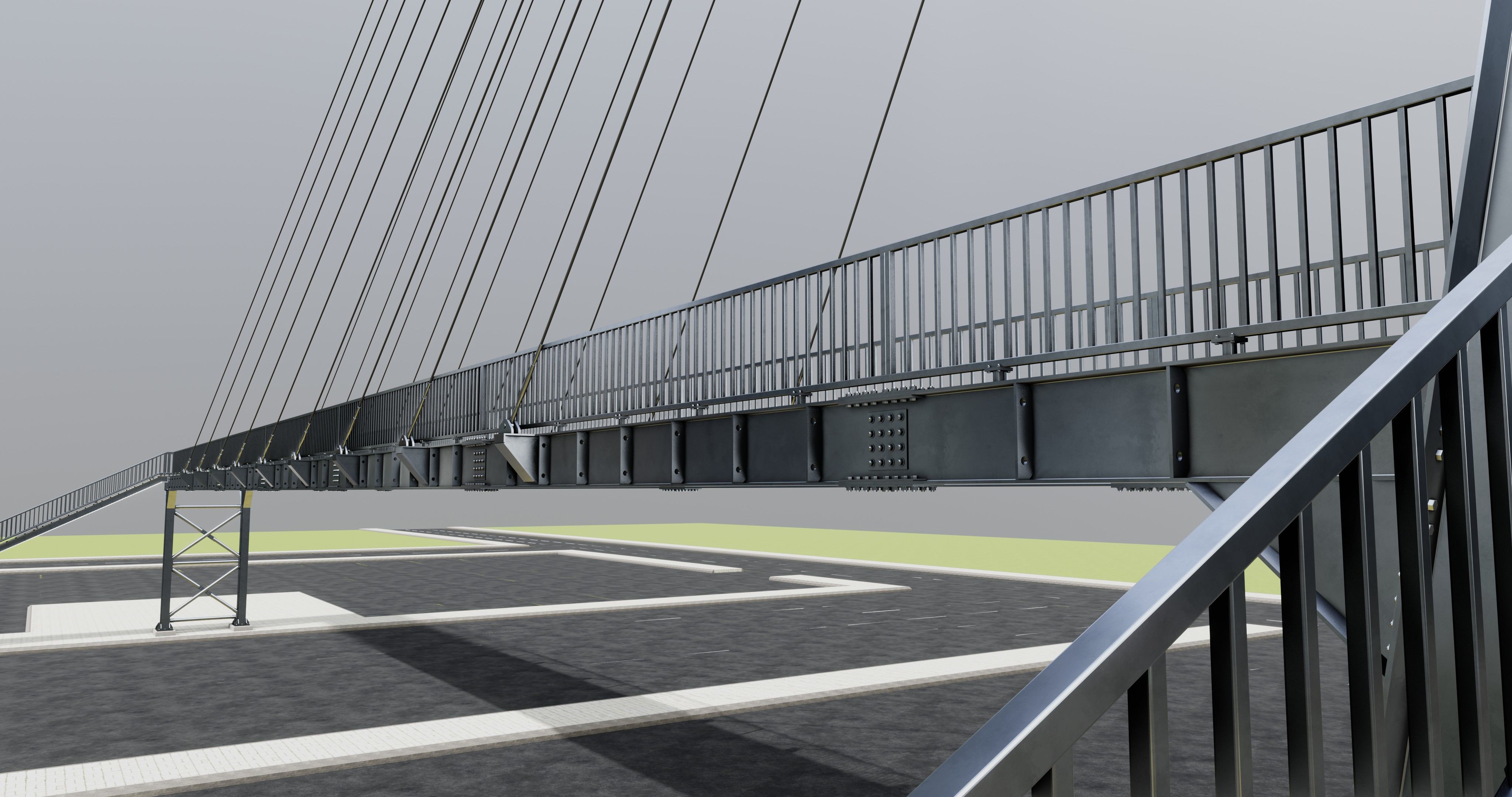

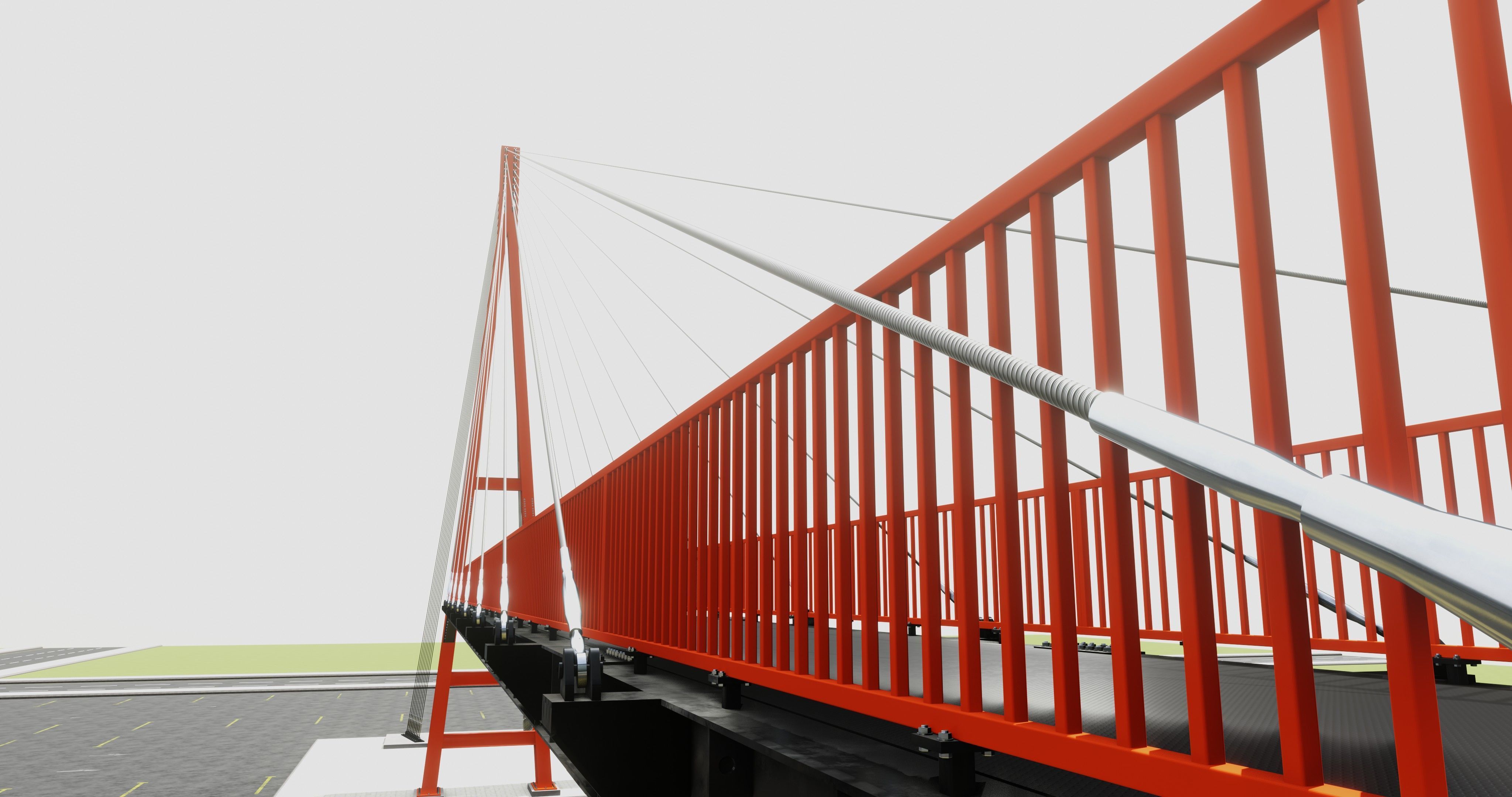

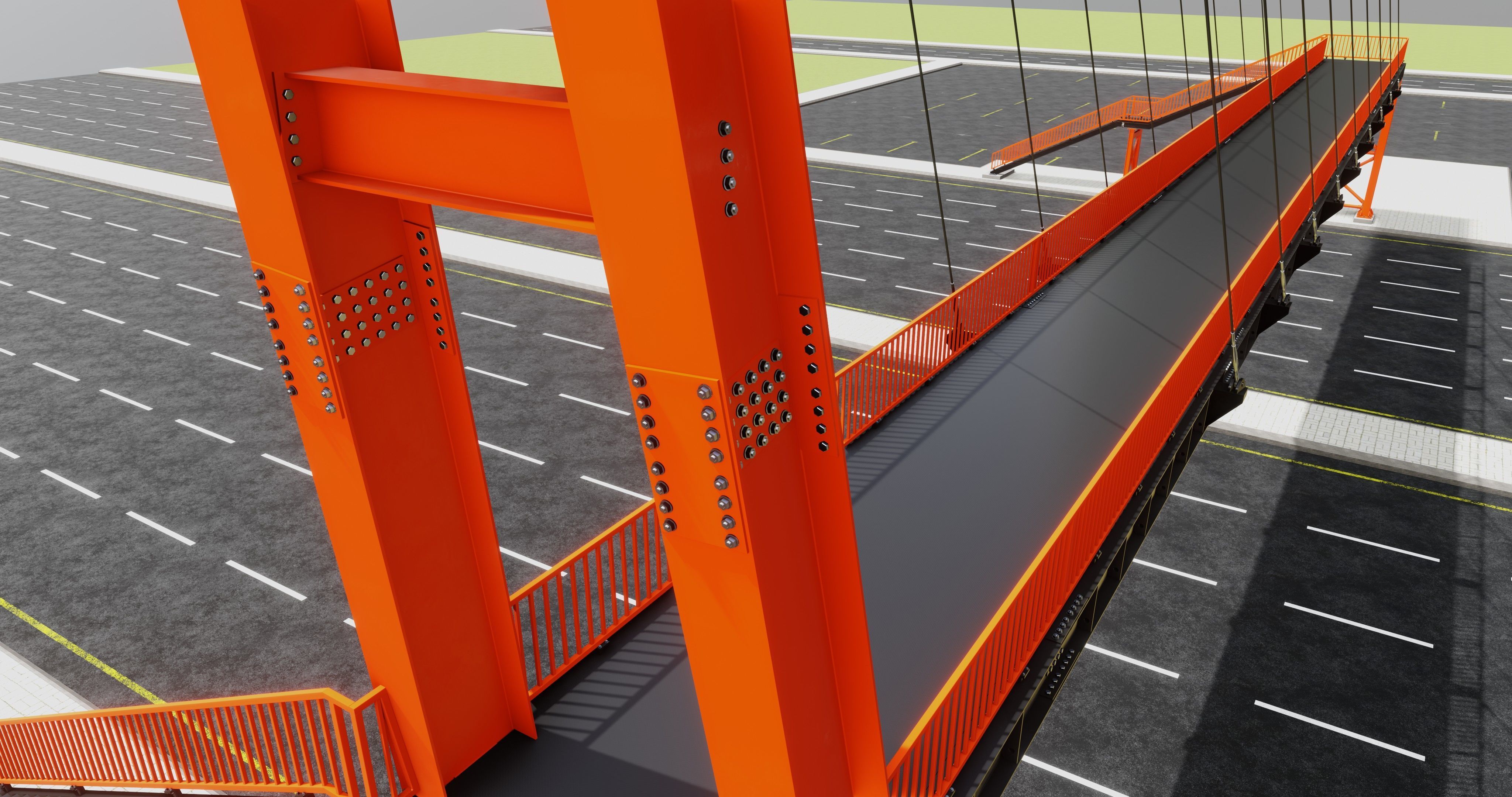

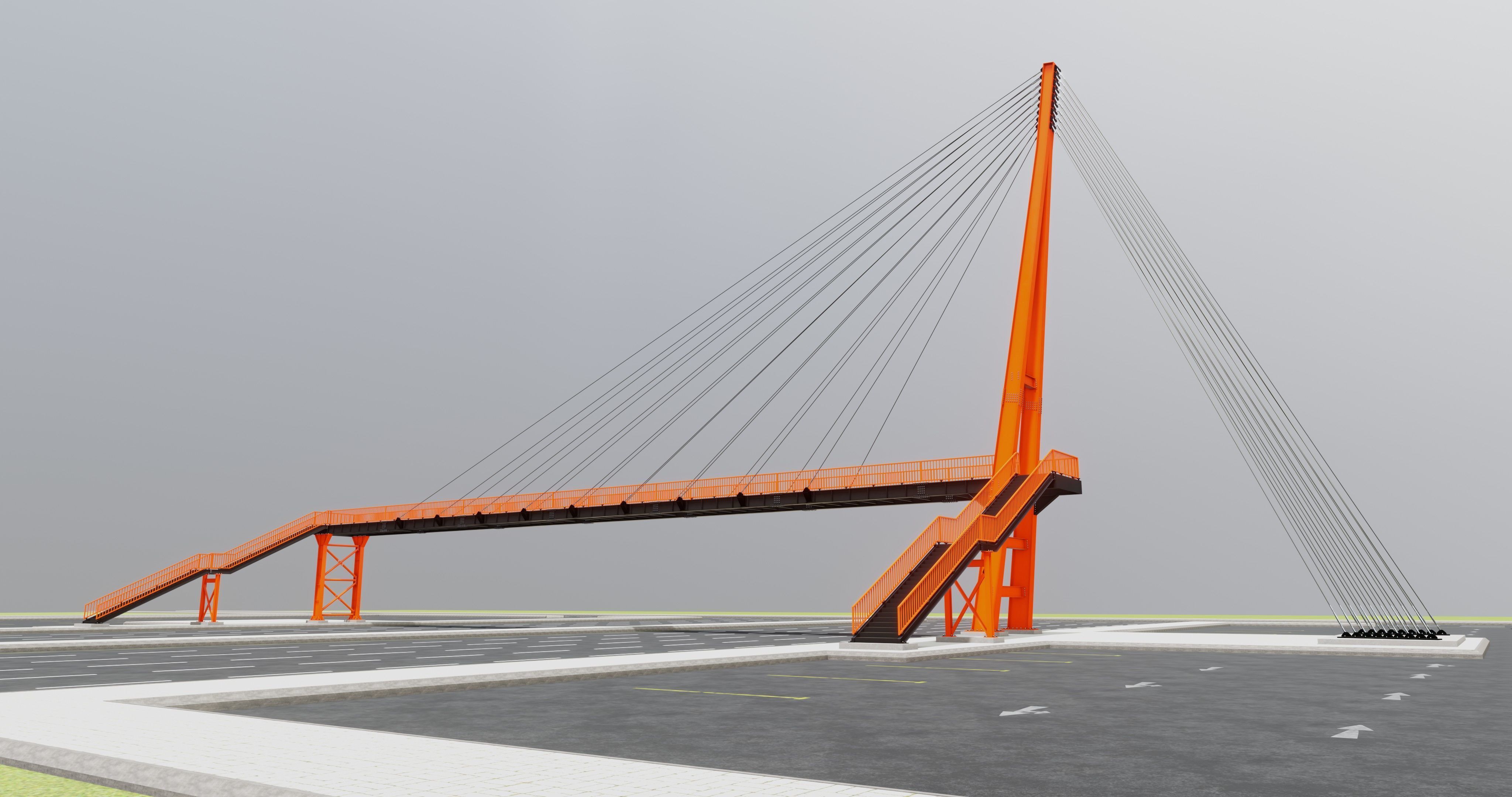

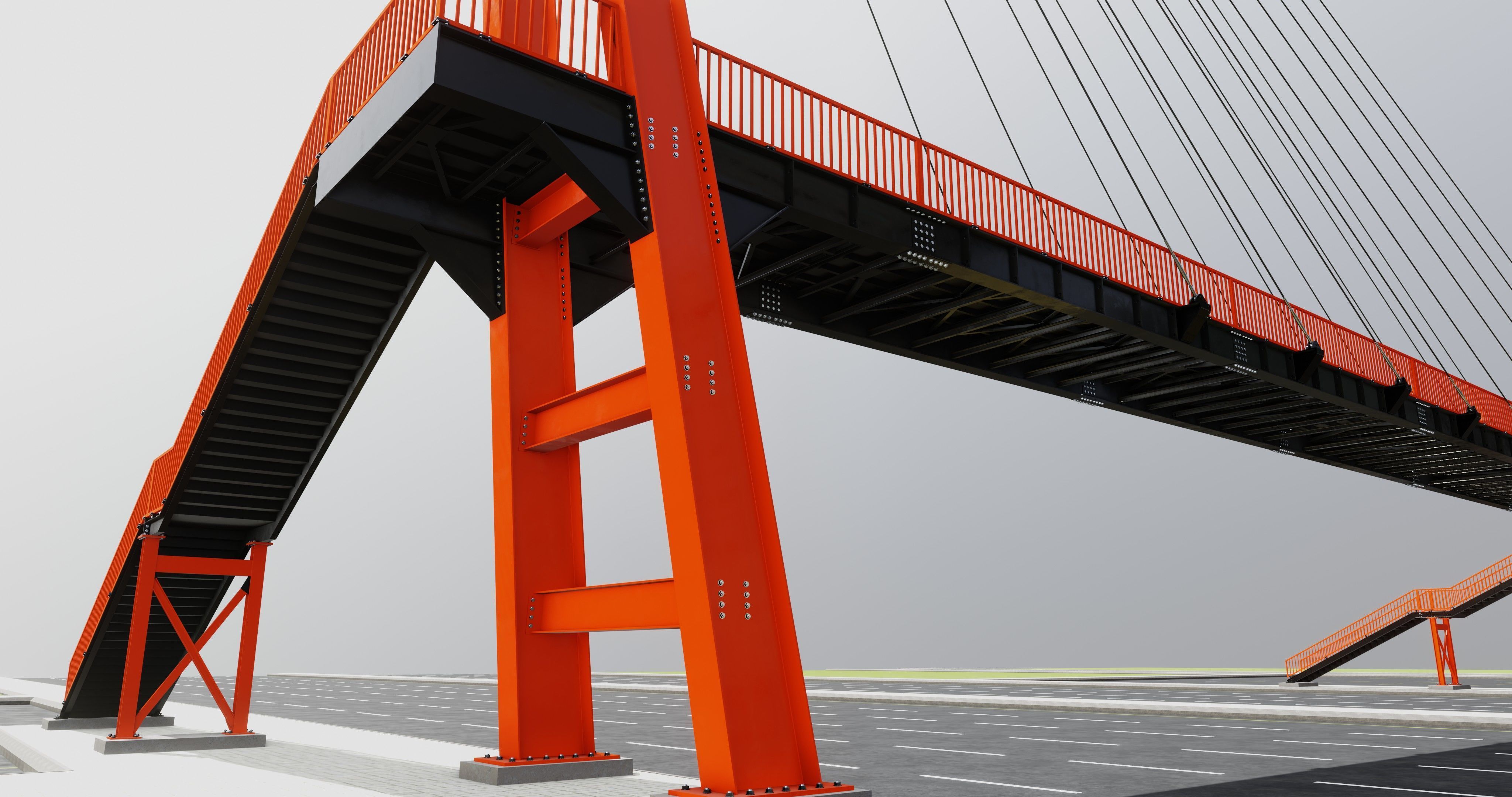

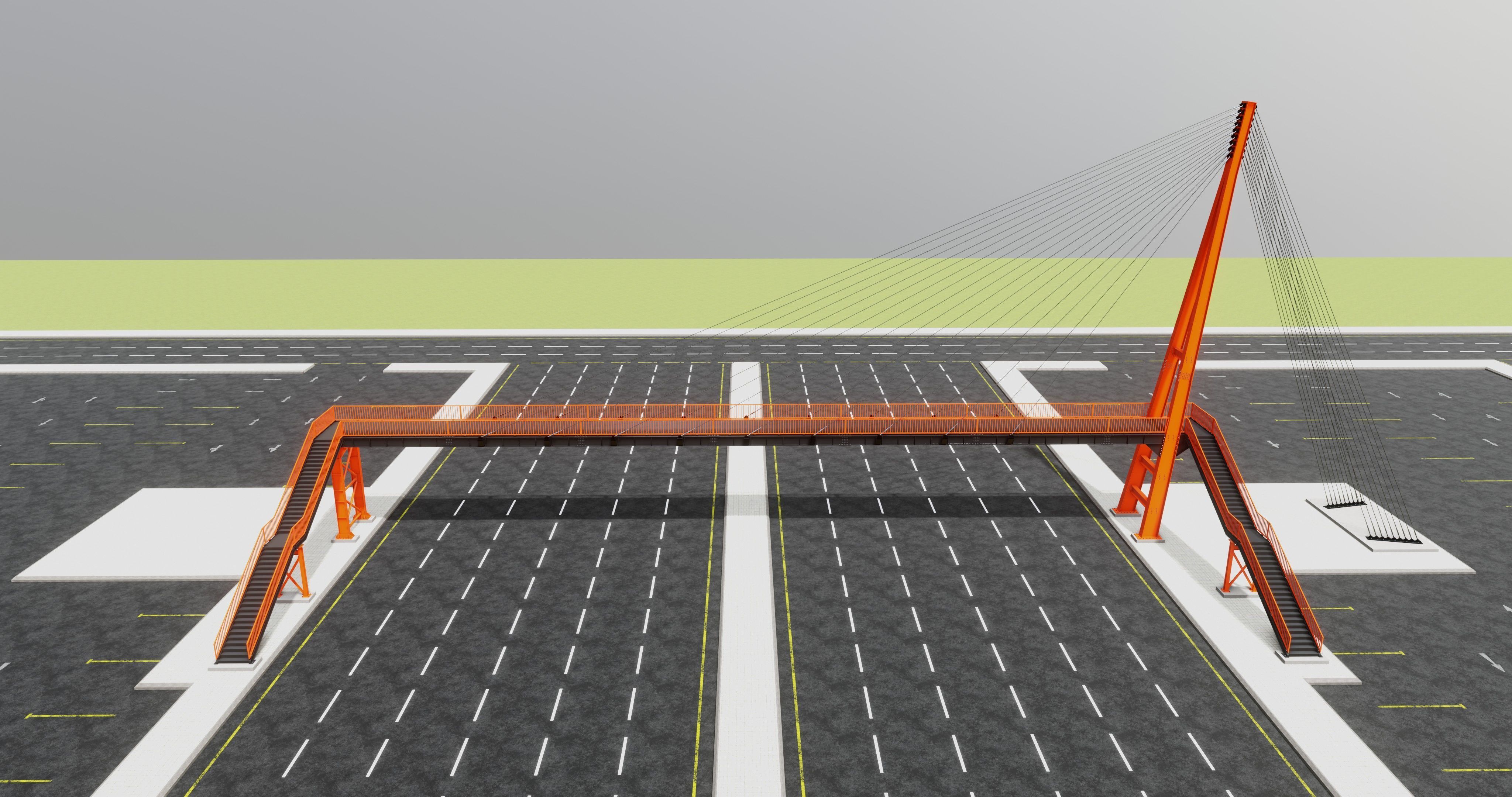

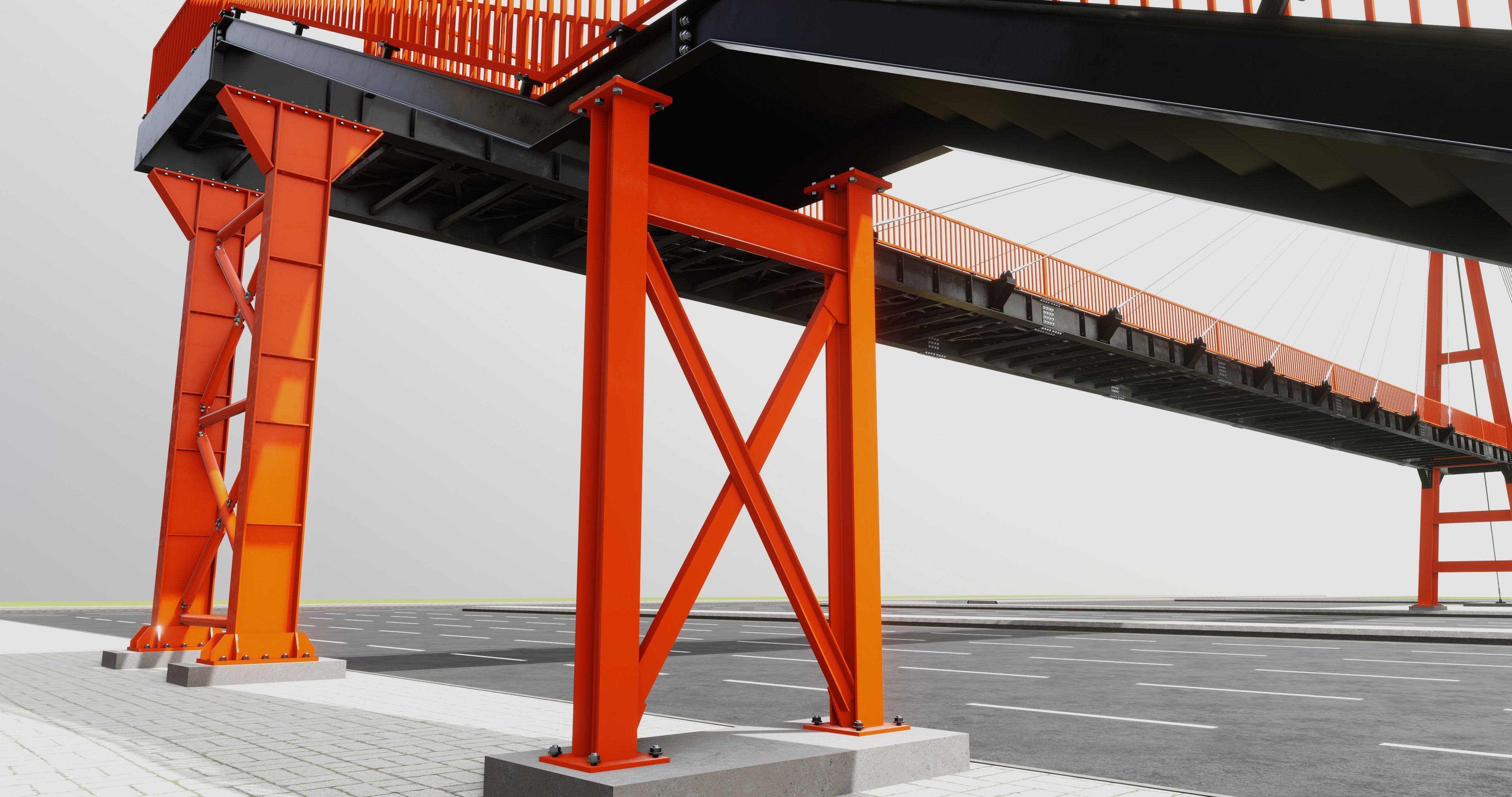

The Same Model is Available in Two Different Colors.Galvanized Coating Color With Black and Orange Colors

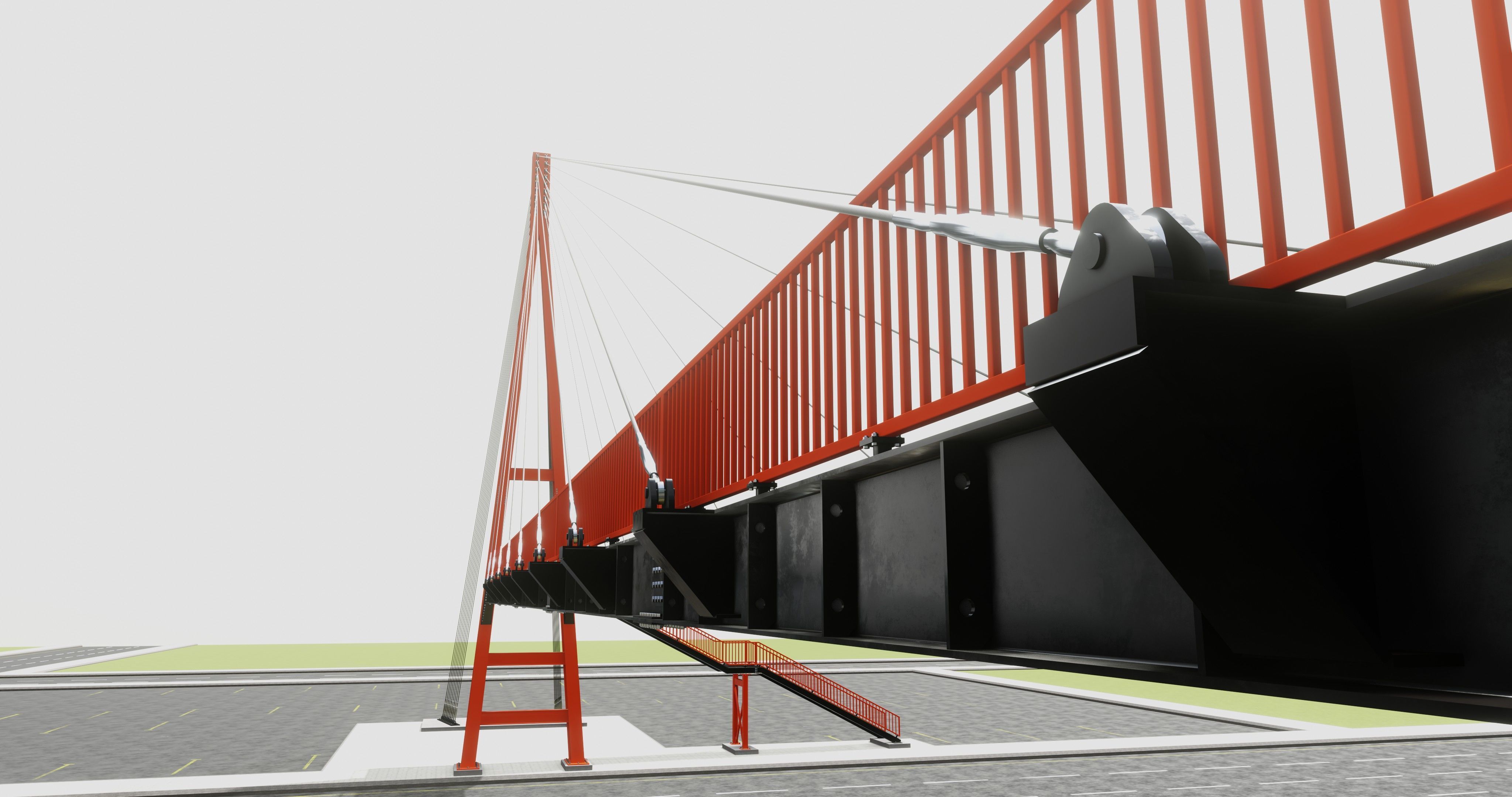

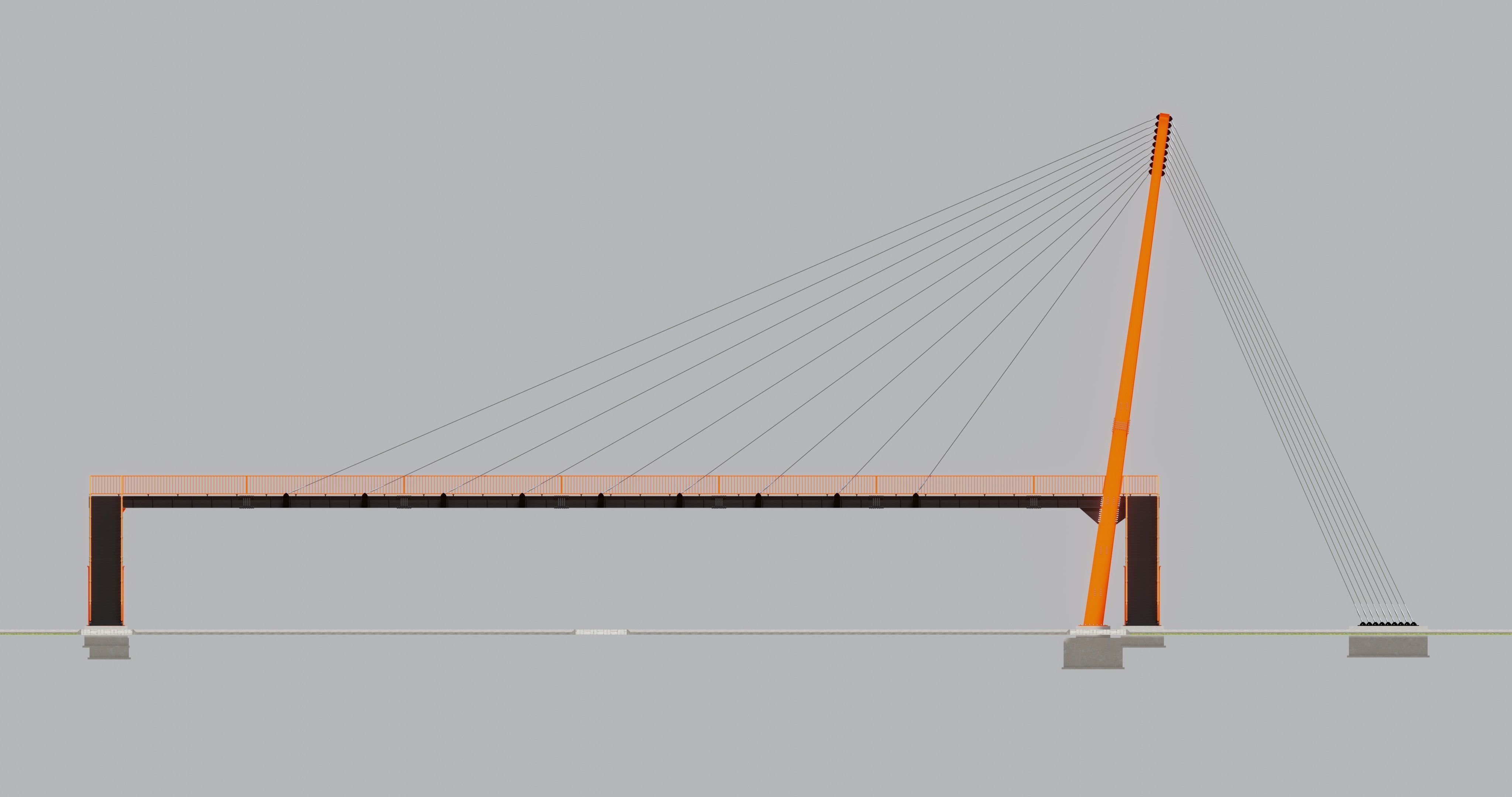

The Long Platform Construction is Connected by Rope Tensioning.

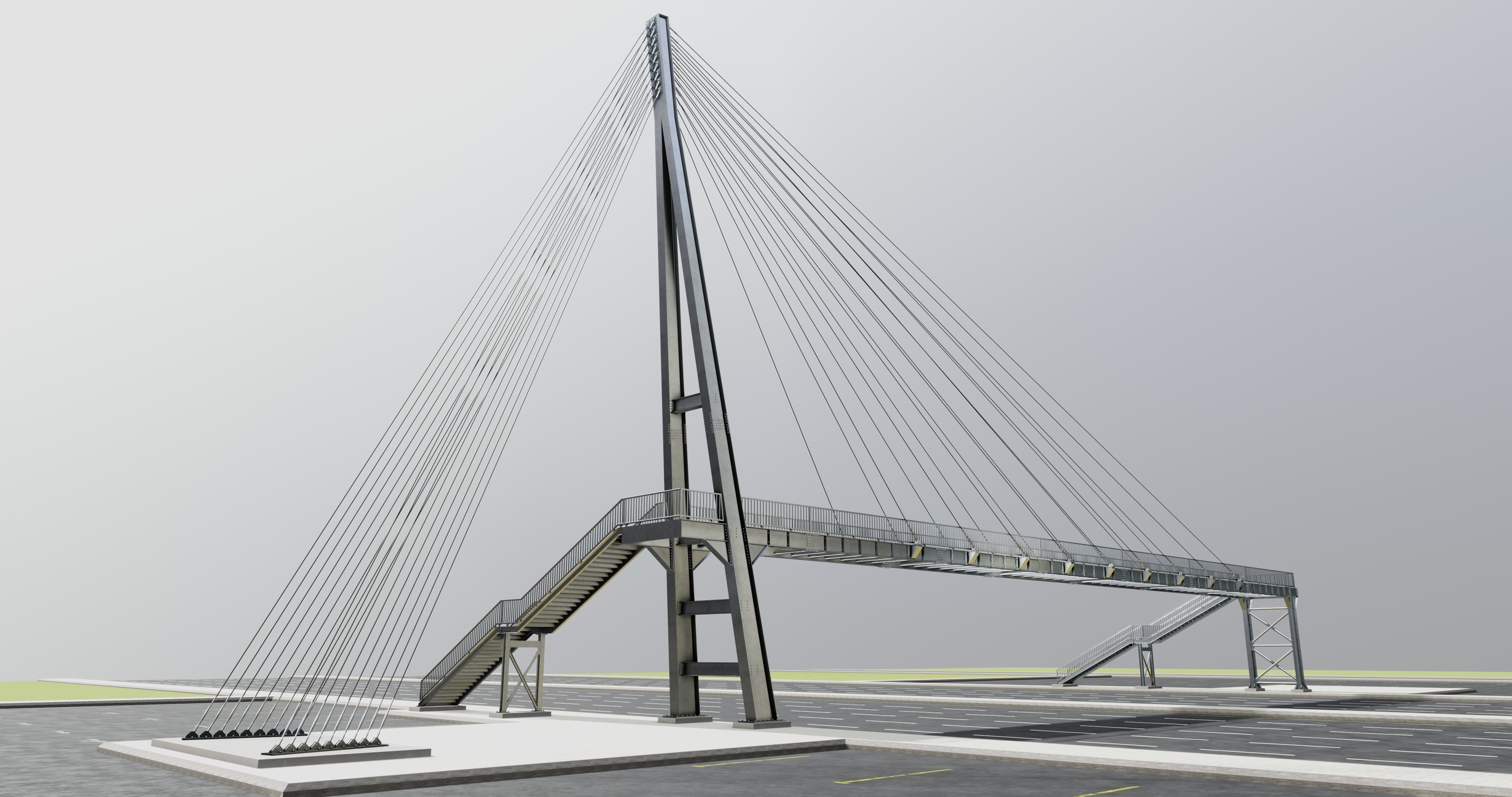

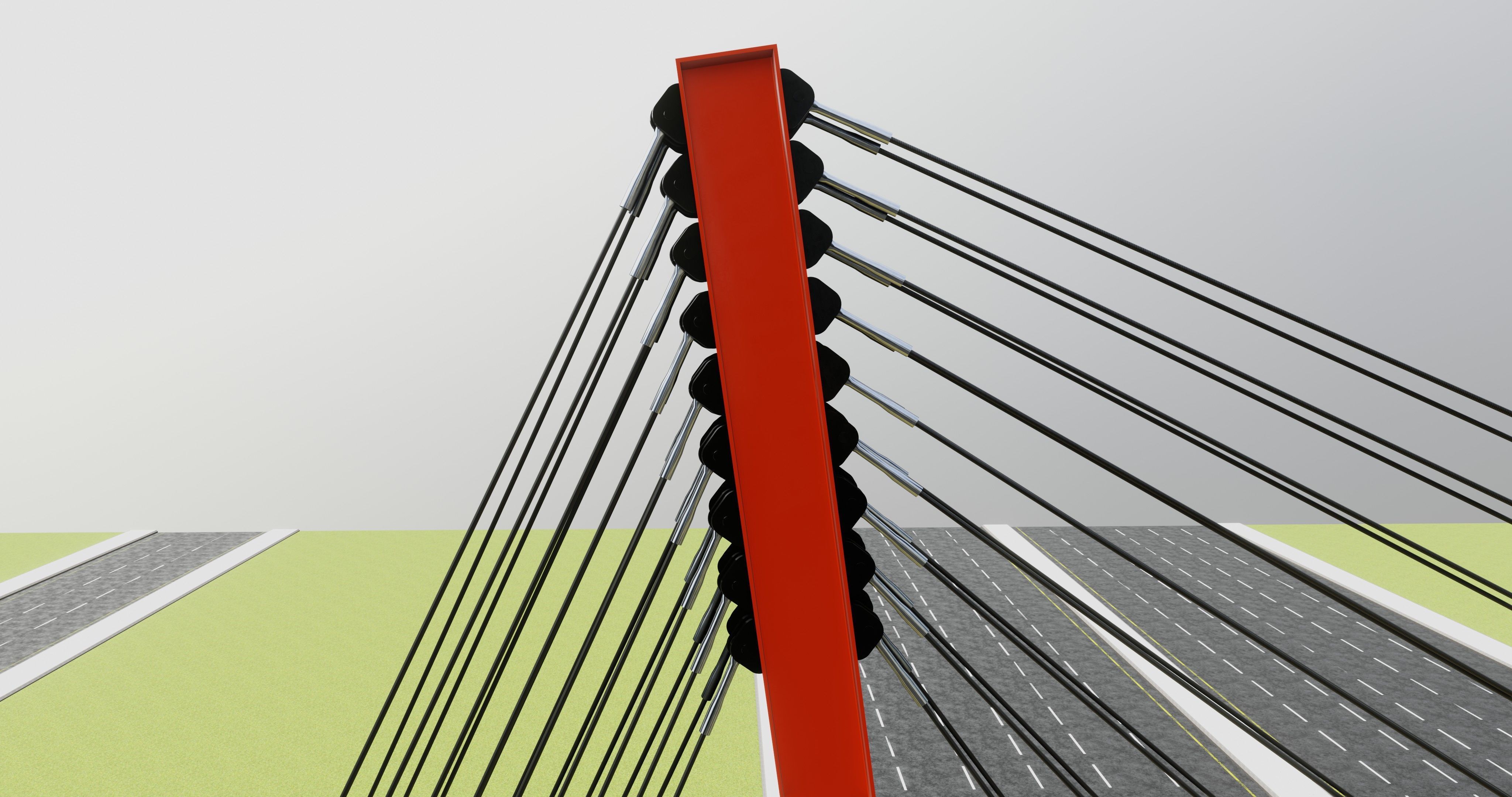

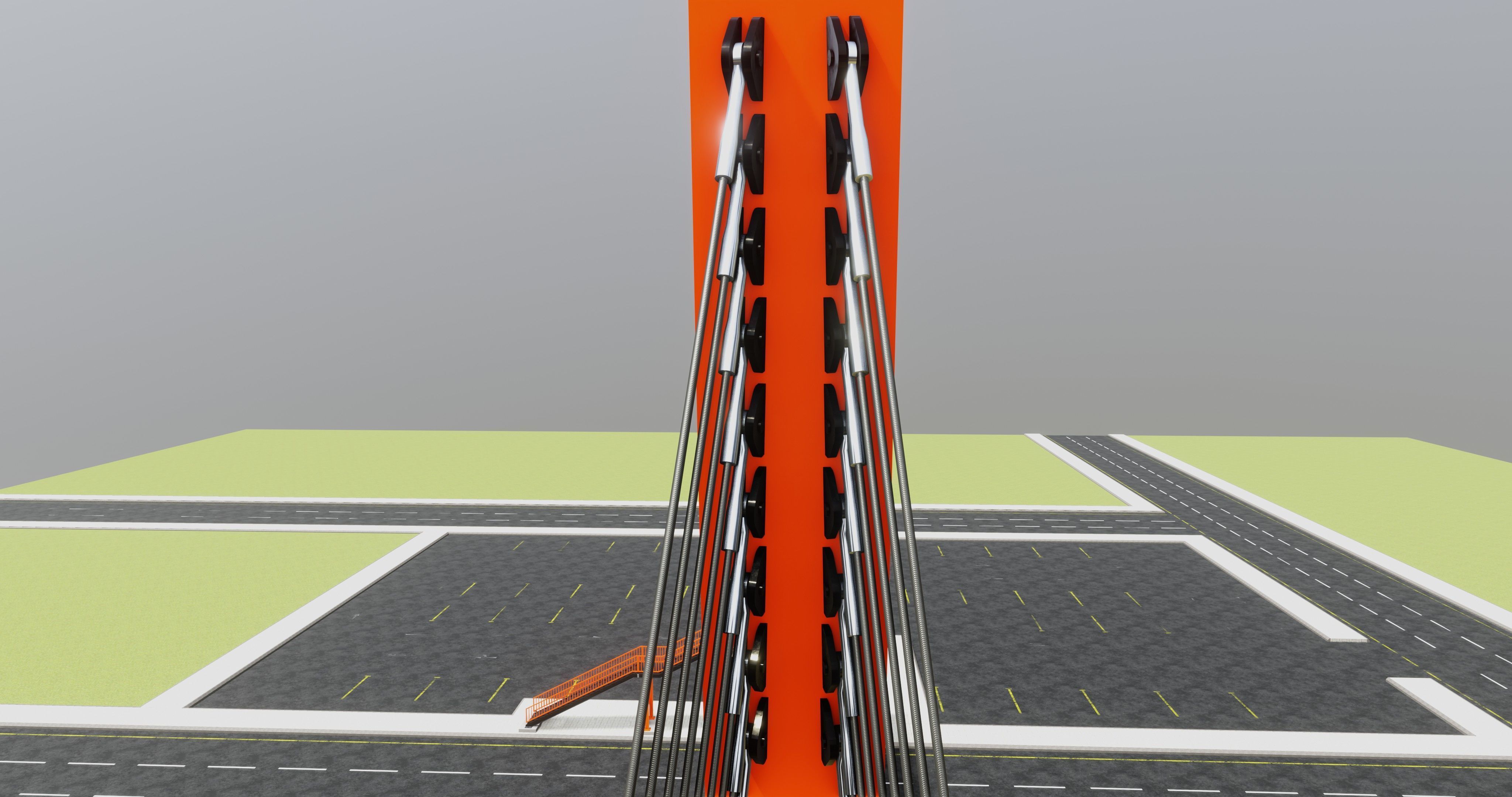

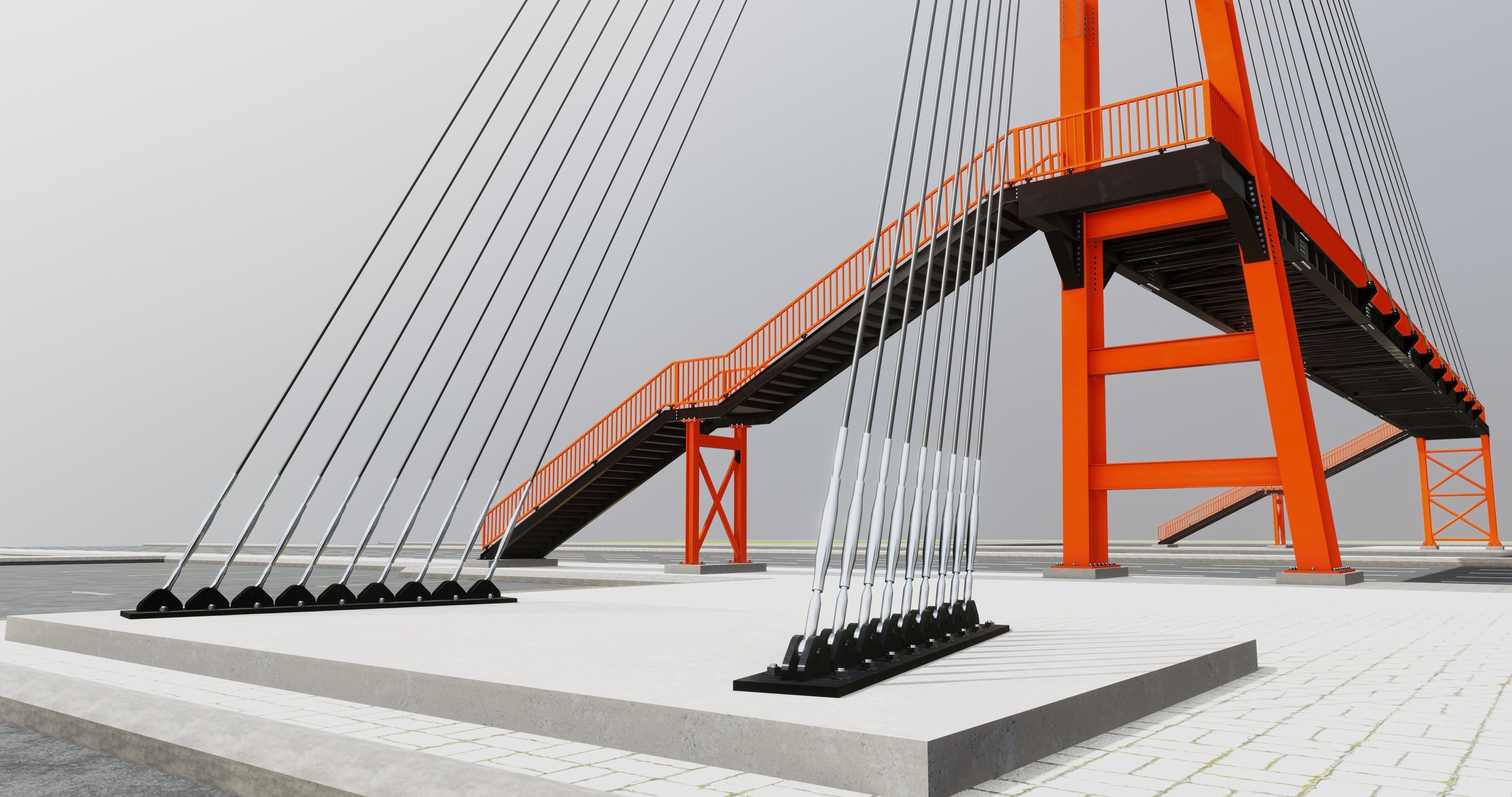

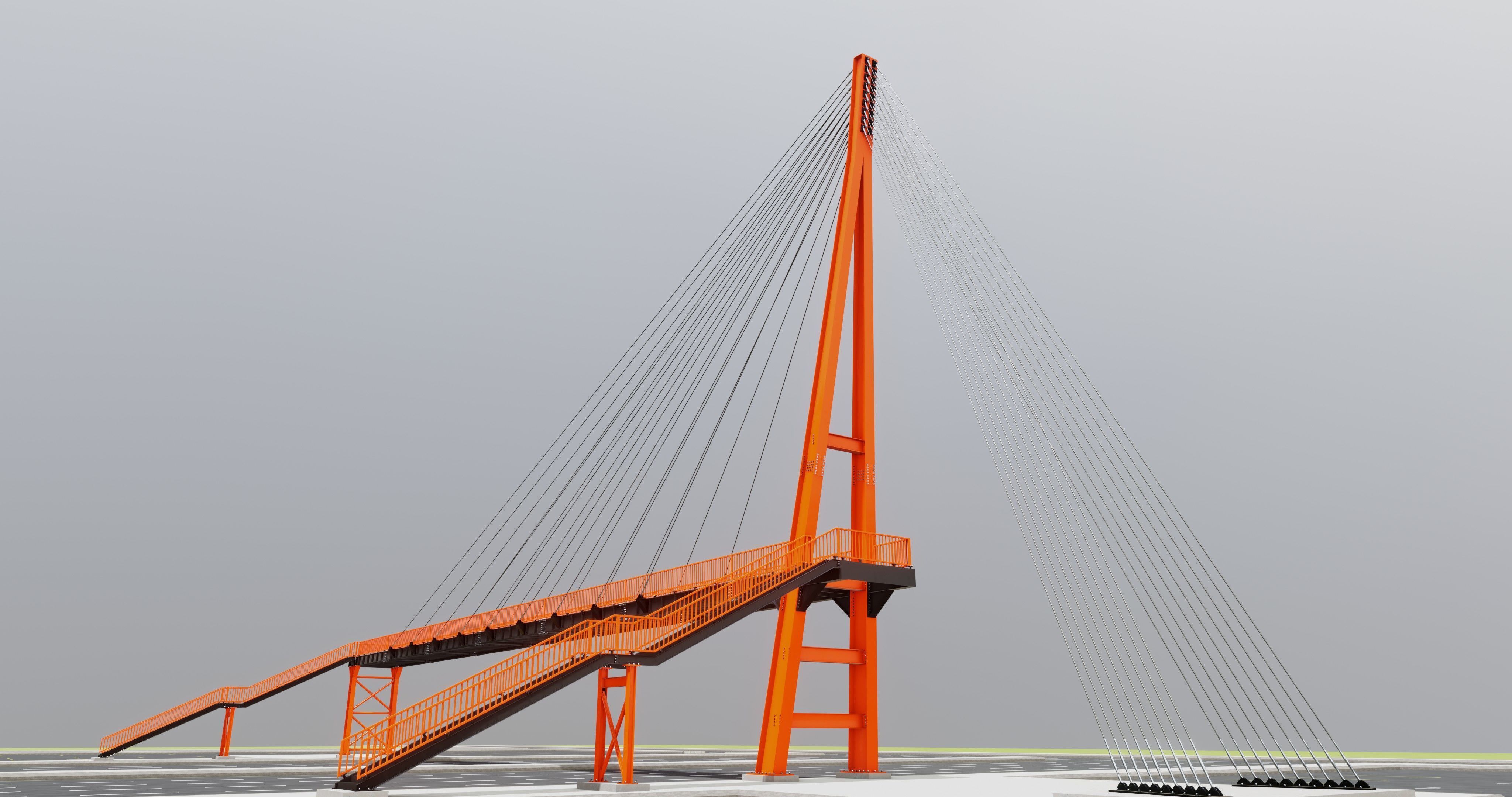

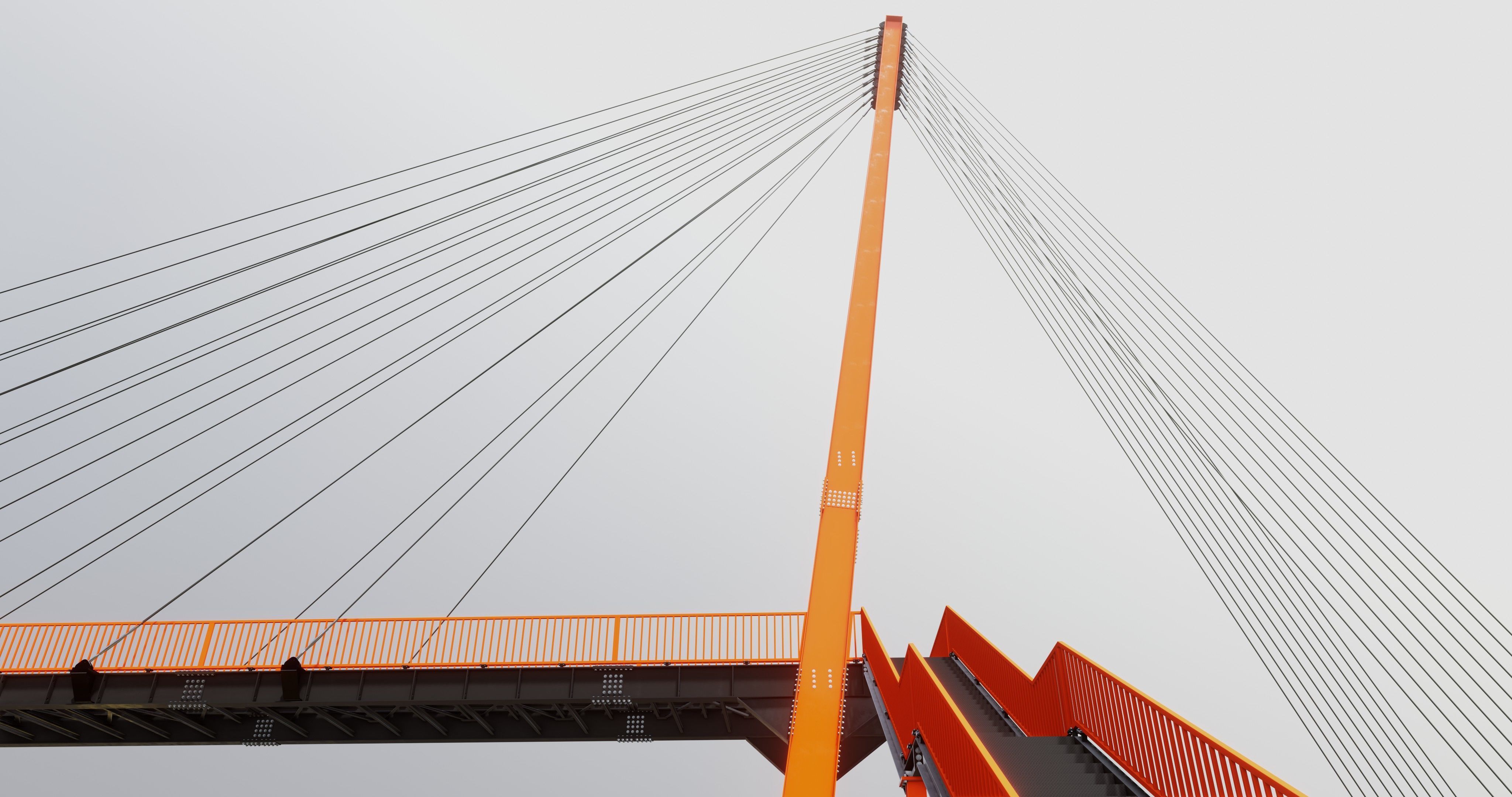

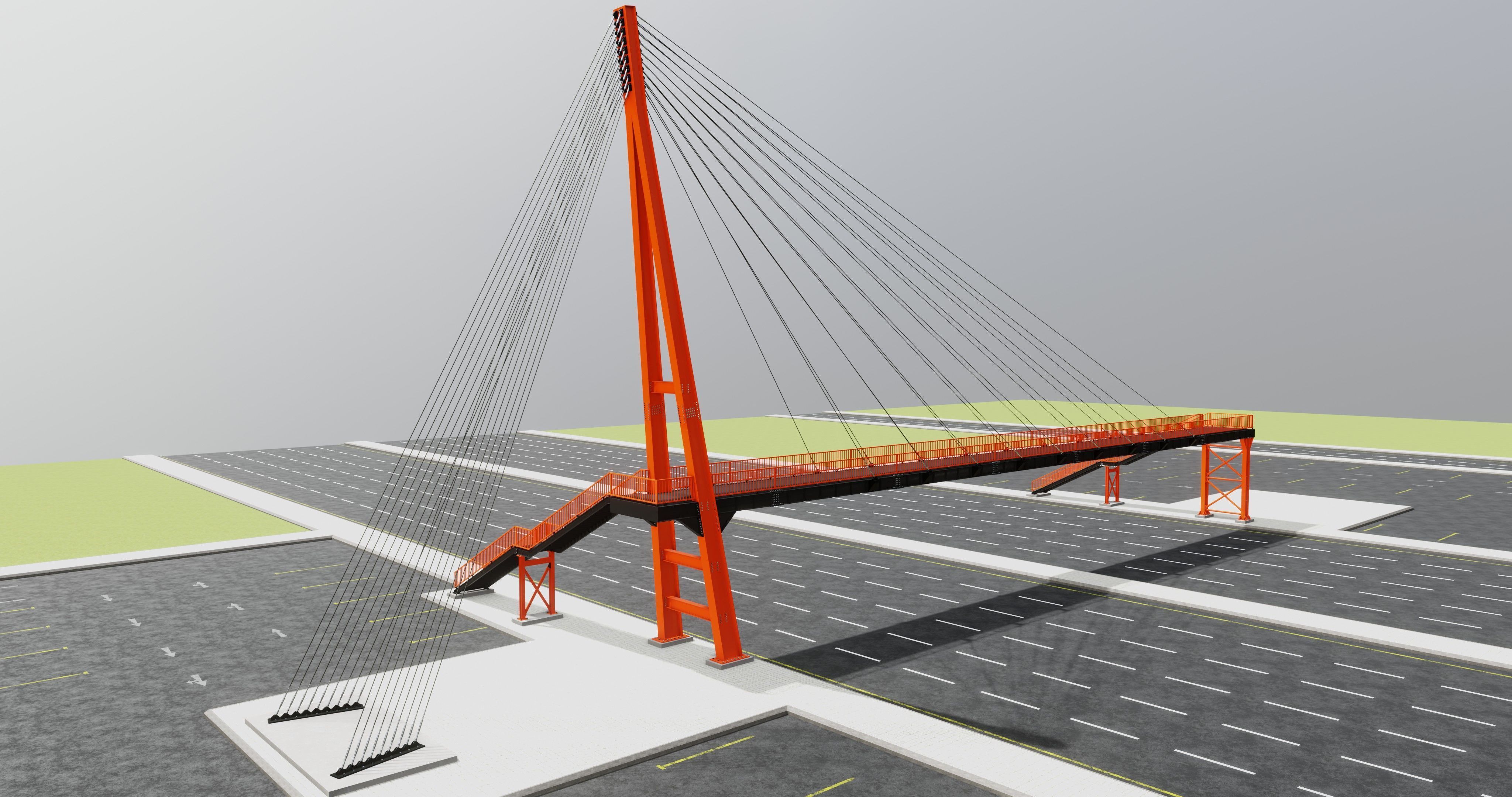

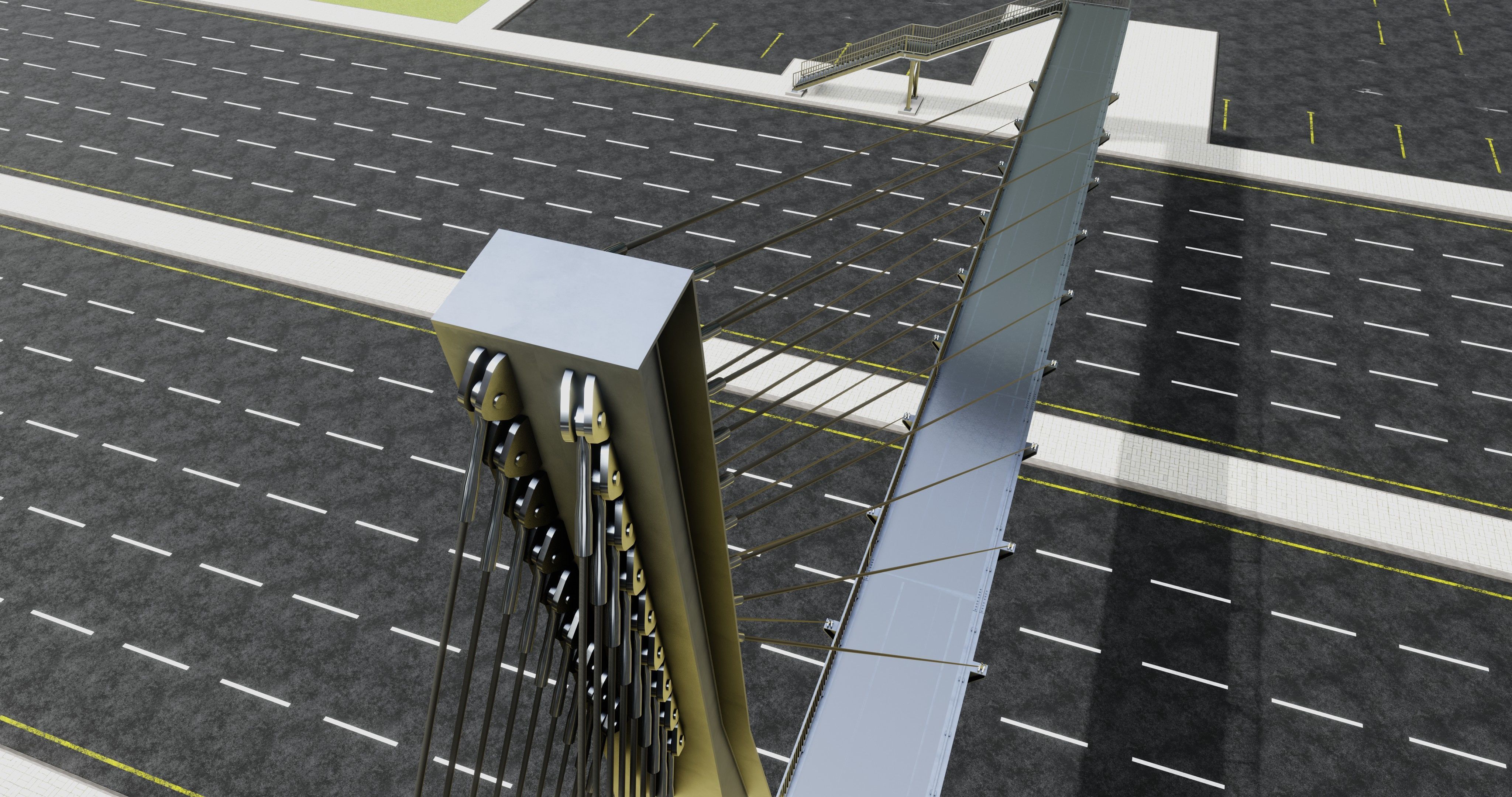

18 Ropes for the Tensioning of the Platforms 18 Ropes for the Moment Balance of the Long Pylon Column Were Tied to the Ground From the Back.

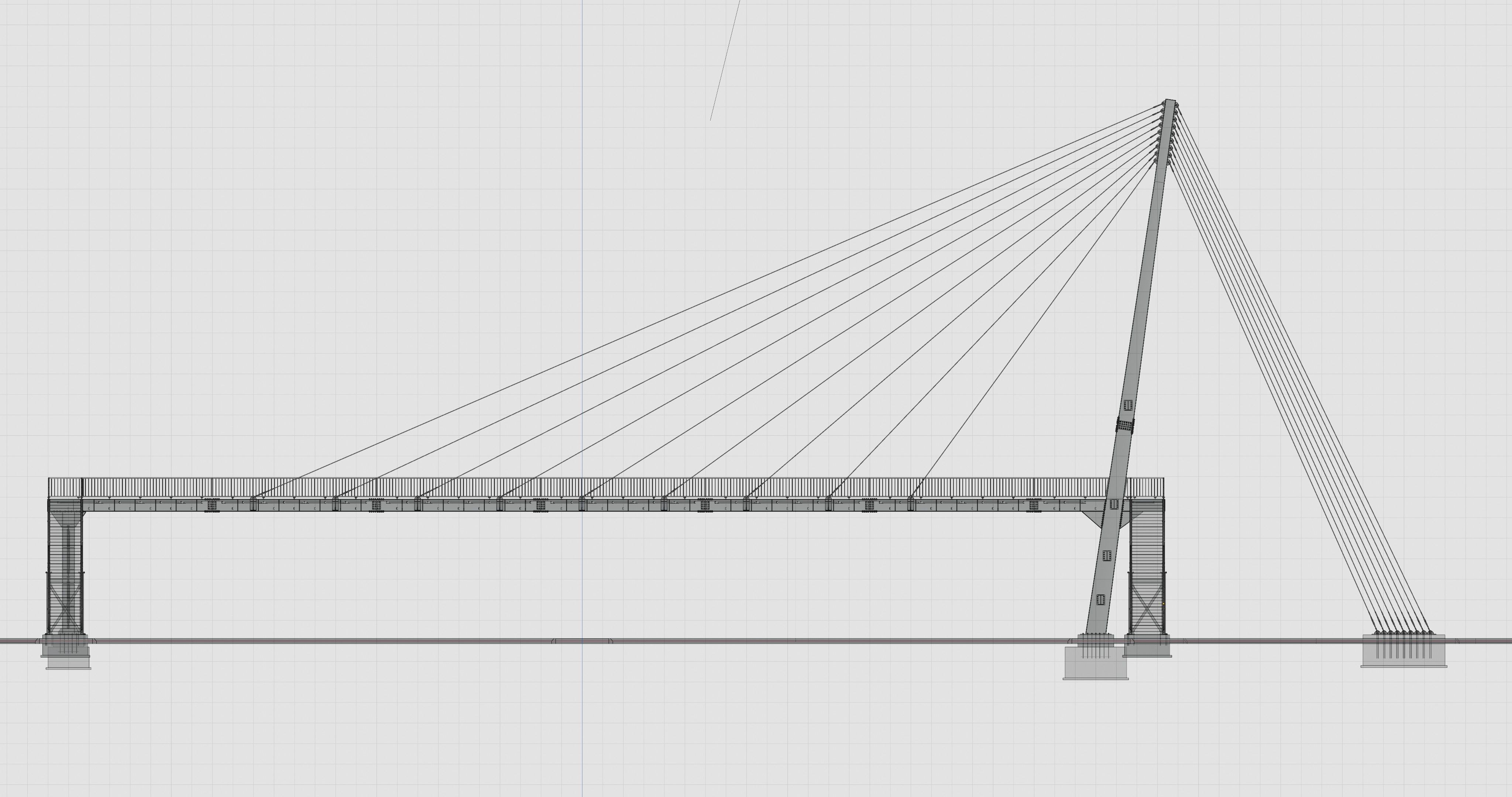

Largest Column Span : 50 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Steel Rope : 36 piece

Rope Fixed Press : 16 piece

Rope Tensioning Press System : 16 Piece

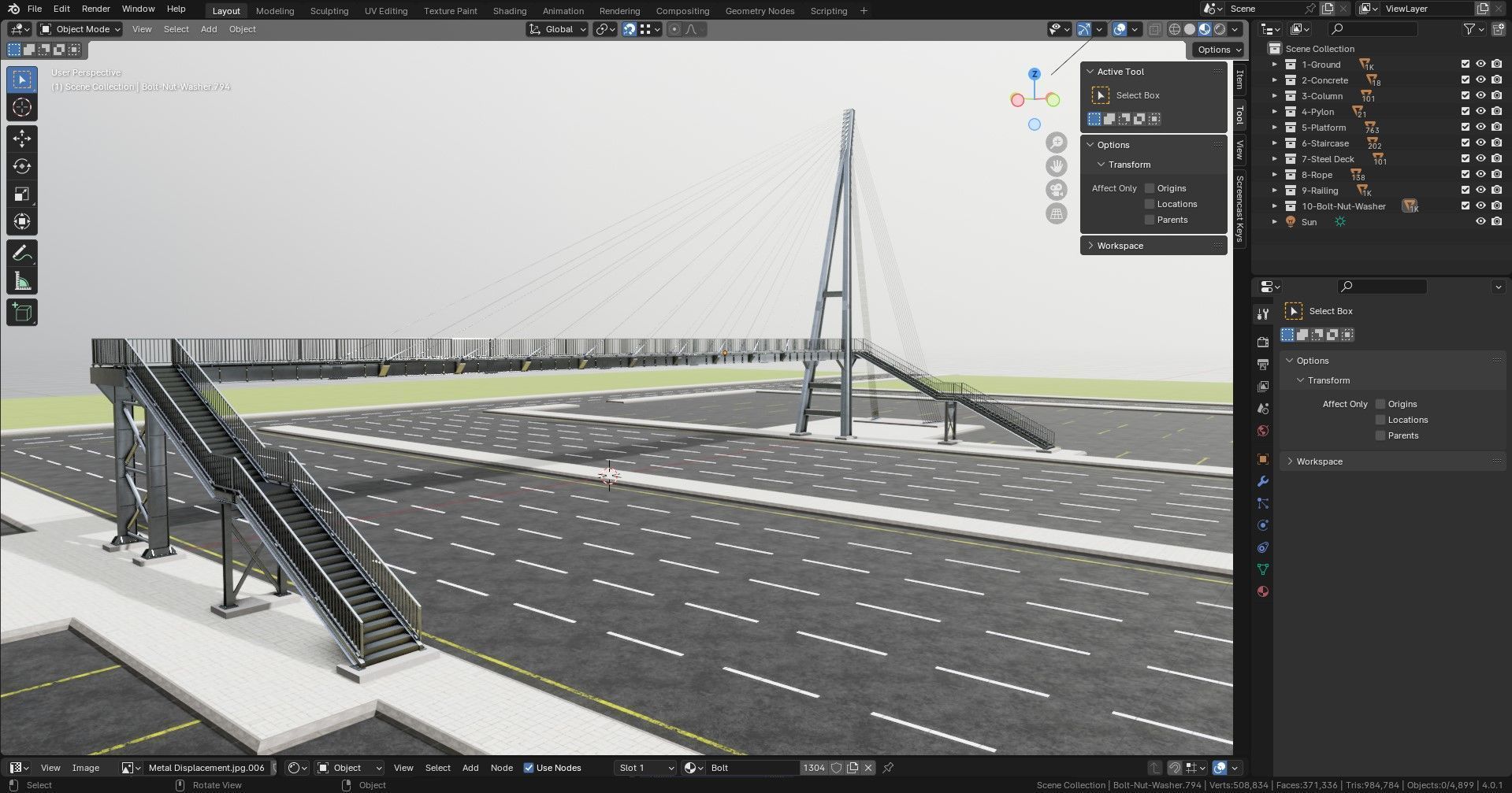

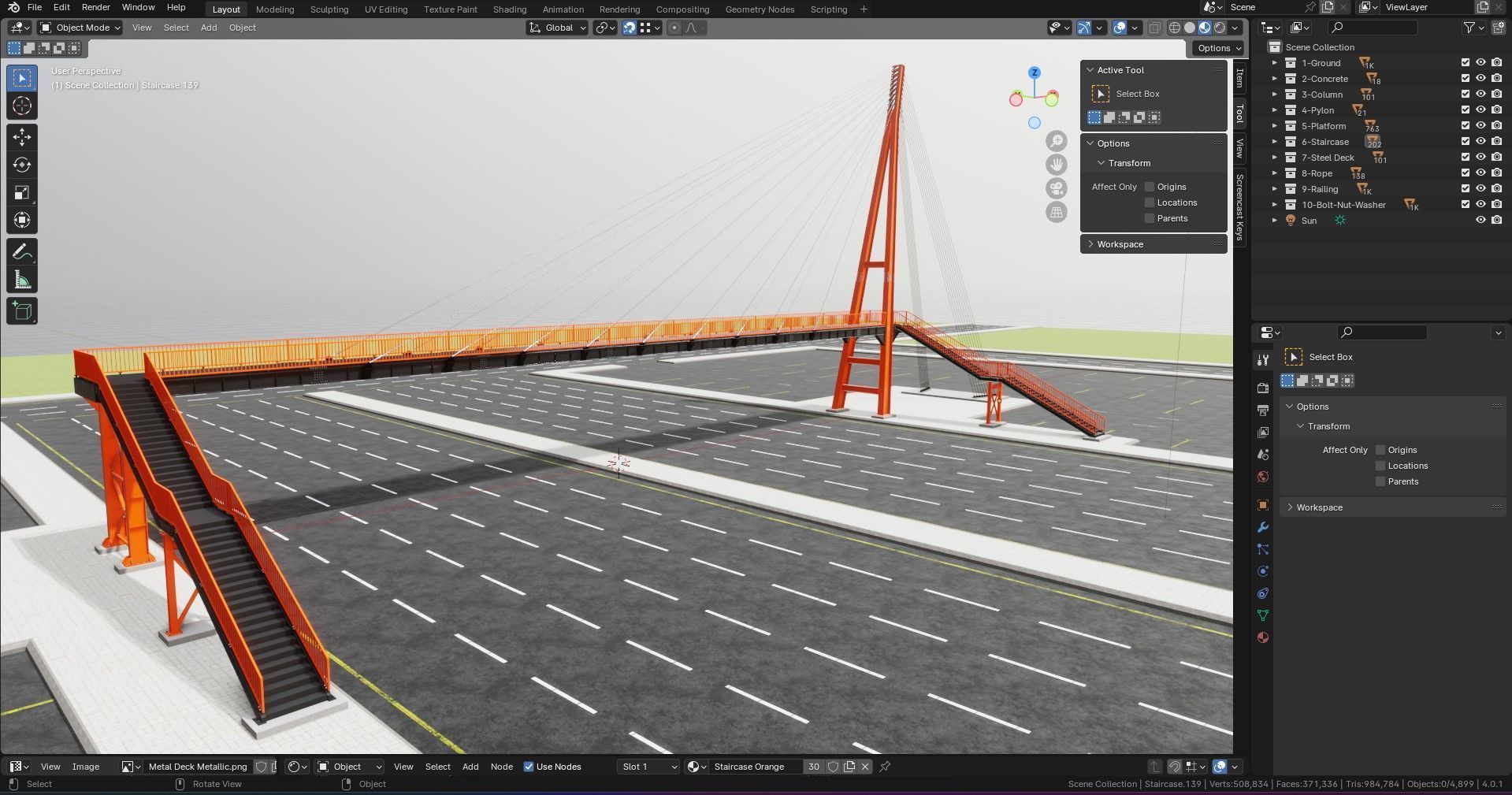

Prepared With BLENDER Version 4.0.1

Polygons : 371336

Vertices : 508834

Objects : 4899
