Reinforced Concrete Ribbed Slab with Steel Reinforcement 3D model
DESCRIPTION

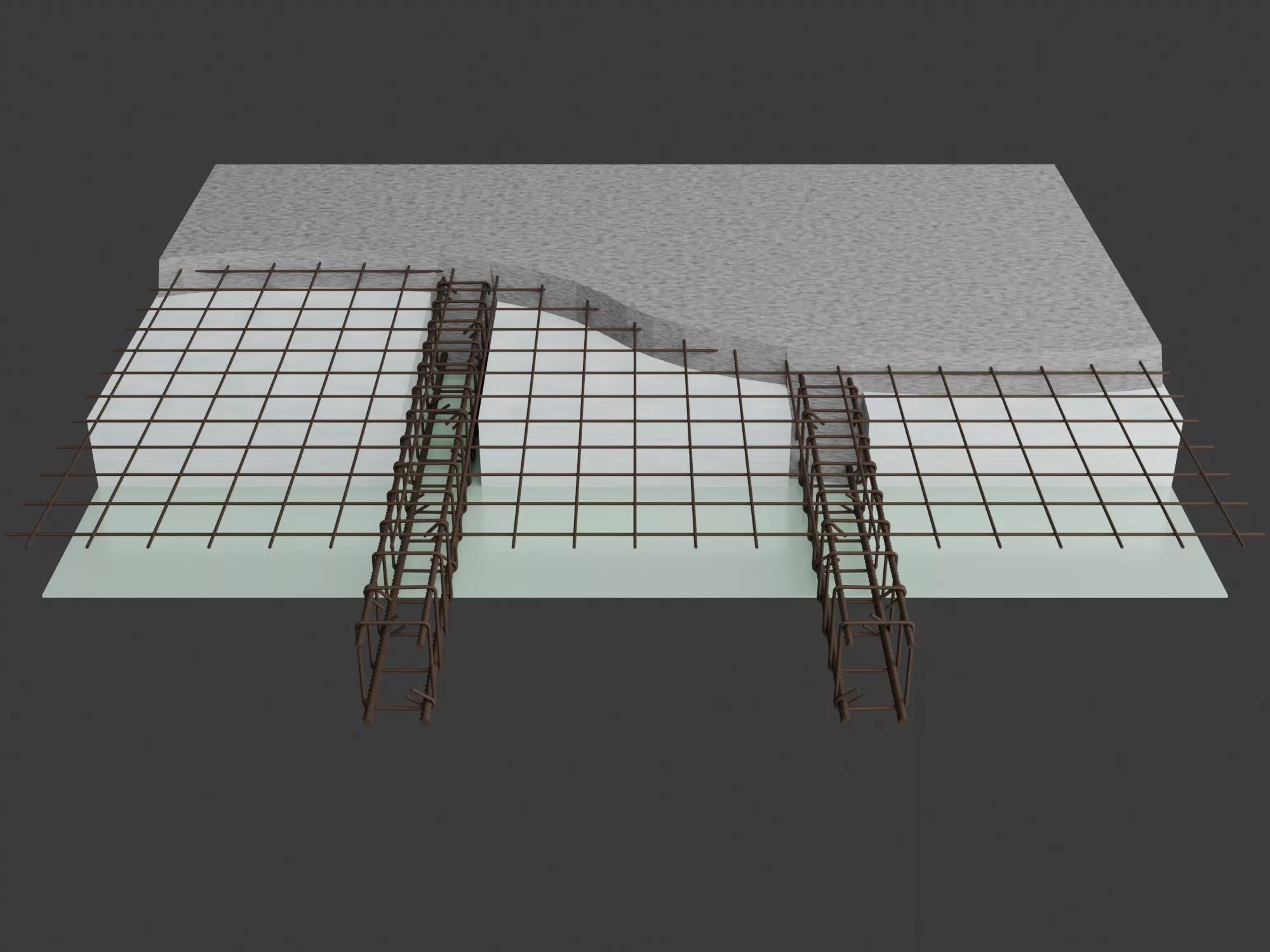

Detailed 3D model of a reinforced concrete ribbed slab, featuring a concrete slab section, structural ribs and exposed steel reinforcement bars.

The model illustrates the relationship between the slab topping, supporting ribs and reinforcing steel, making it suitable for structural engineering presentations, architectural visualization, construction details and educational material.

Features:

Reinforced concrete ribbed slab geometry

Exposed steel reinforcement bars

Structural ribs and slab topping

Detailed construction assembly

Suitable for engineering illustrations and technical presentations

Ideal for civil engineering projects, construction documentation, educational diagrams and architectural renders.

Note: This model is intended for visualization and educational purposes. It does not constitute a verified structural design.
