DESCRIPTION

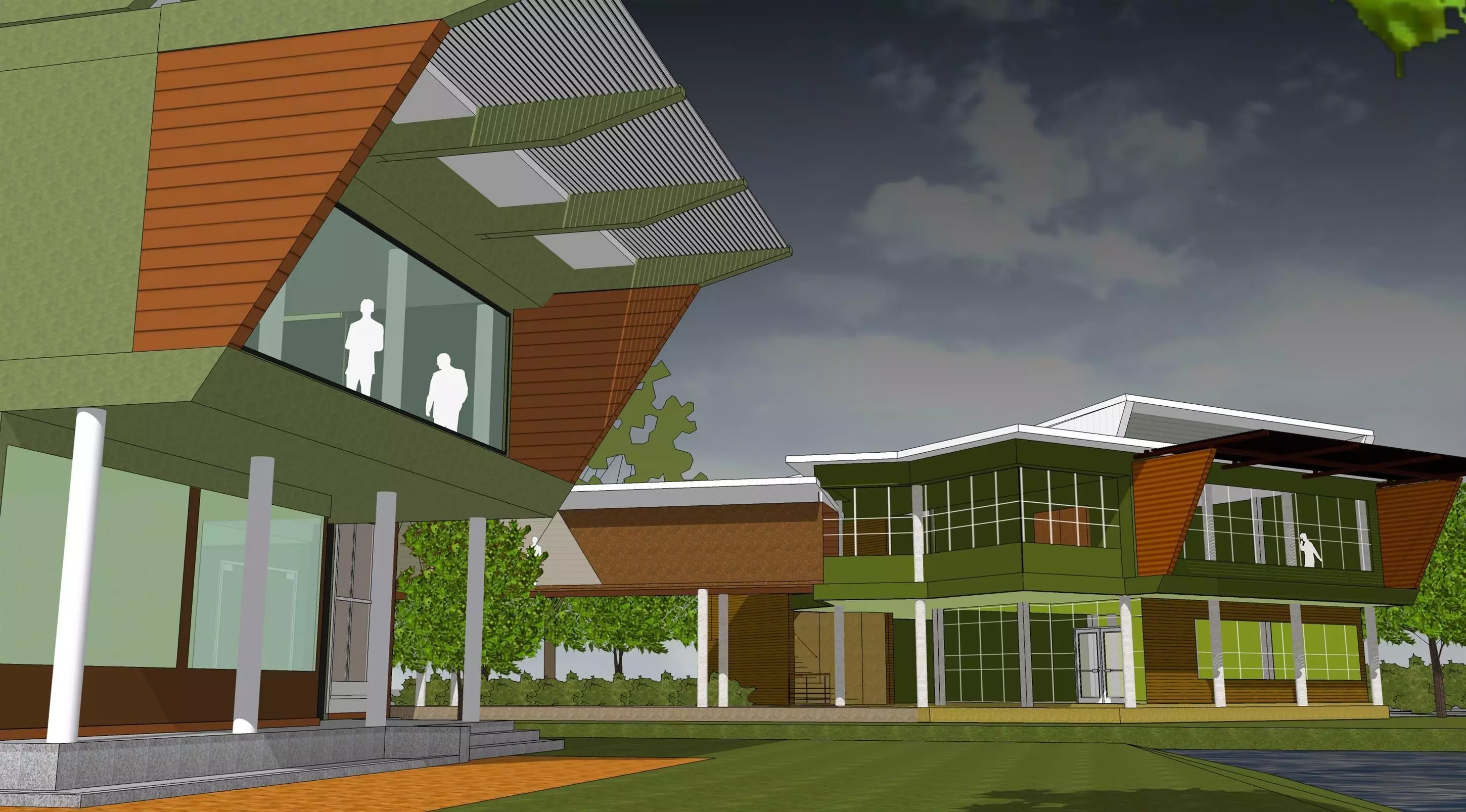

Office extension and bridge linkage

Theme :

  • Passive energy design
    • Optimized solid wall & opening.
    • By building's orientation and sun shading.
  • Circulation linkage
    • Combined circulation both existing office and new office through the bridge.
  • Site constrain as design solution
    • Water view along the combined circulation for existing pond.
    • Diagonal building's new office layout to face both existing office and main gate.

Building & material info :

  • Foundation : Spread footing
  • Structure : Post and beam - Reinforce concrete
  • Roof : Reinforce concrete Slab
  • Ceiling : Gypsum panel / Fiberglass insulation blanket type
  • Wall : Autoclaved aerated concrete (AAC) masonry / plastering / Gypsum panel
  • Floor : Reinforce Concrete hollow core / Terrazzo finished
  • Doors & windows : Aluminium frame / Glass 6 mm.thk
