DESCRIPTION

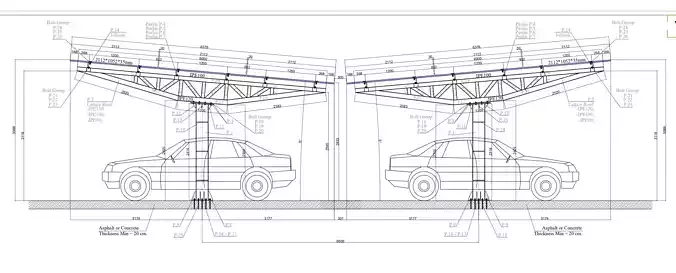

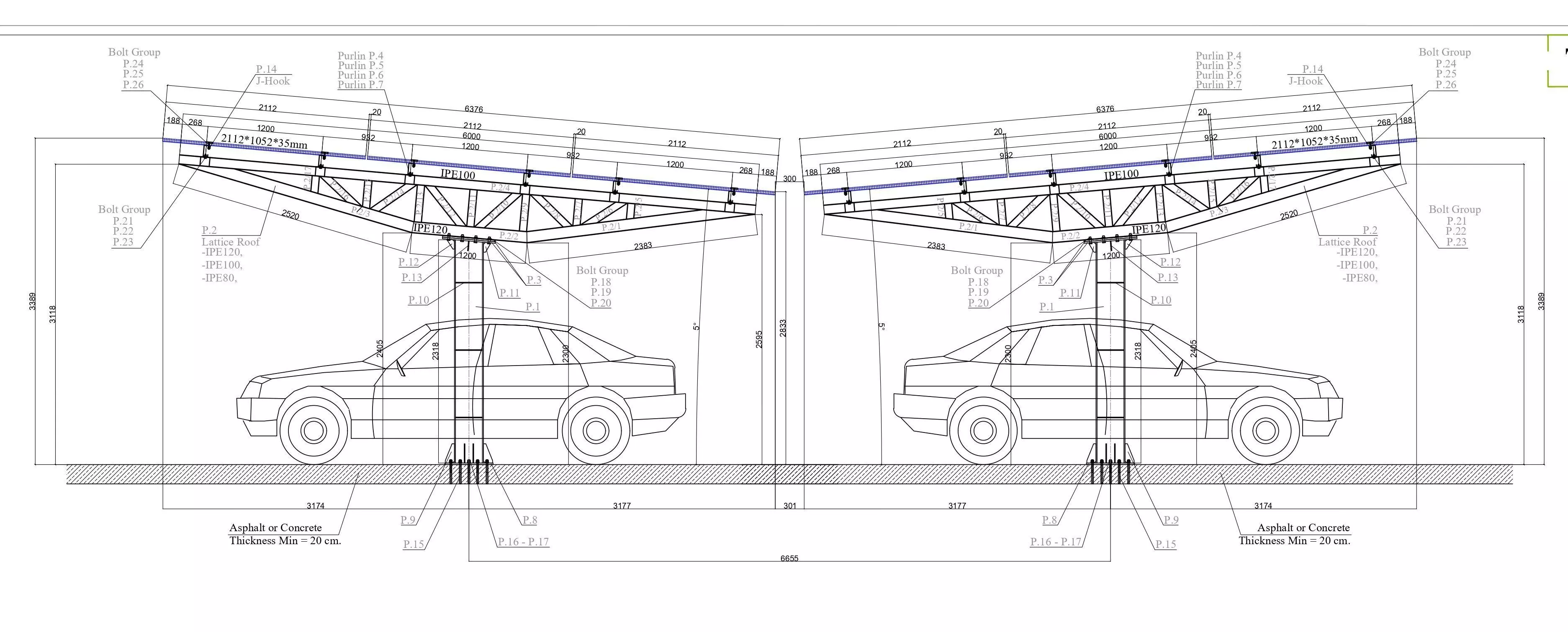

68,25 kWp Solar Carport Project Type 5

Static Steel Fabrication Project

3x25(x2) Vertical Panel Layout

Ground Connection Type; With Anchor Plate

Panel Dimensions : 2112 x 1052 x 35 mm

Panel Power : 455Wp

1 solar carport steel construction produces 68,25 kWp power in 1 hour

The system consists of 6x2 axles and the distance between each axle is 5200 mm.

Horizantal angle of panel 5°

The closest distance of the panels to the floor 2822 mm.

Prepared With AutoCAD Version 2021
