Template - Boeing 787-9

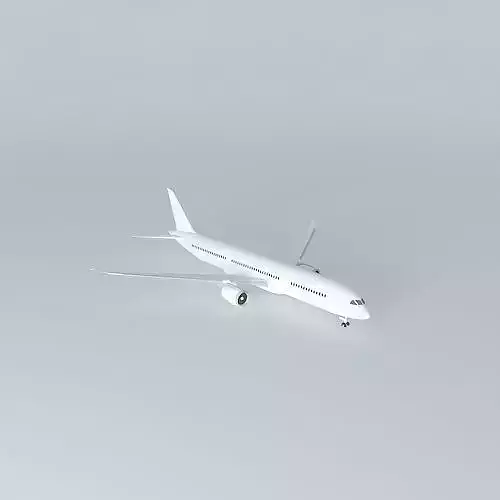

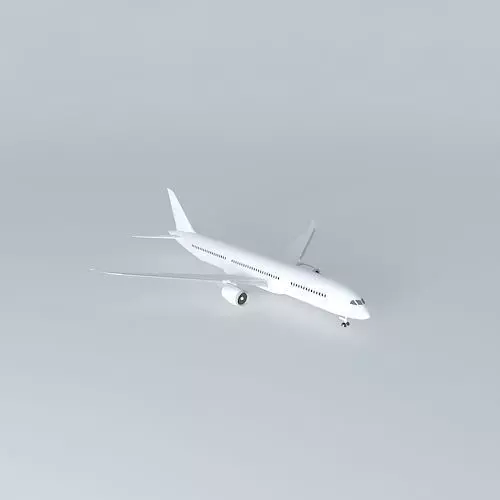

Template - Boeing 787-9 3D model

Description

This 3D model was originally created with Sketchup 8 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 AA 787-9 by 707. The 787-9 will be the first variant of the 787 with a stretched or lengthened fuselage that is 206 feet [63 m] long. It is to seat 250–290 passengers in three classes with a range of 8,000 to 8,500 nautical miles {14,800 to 15,750 km}. This variant differs from the 787-8 in several ways, including structural strengthening, a lengthened fuselage, a higher fuel capacity, a higher maximum take-off weight [MTOW], but with the same wingspan as the 787-8. The targeted entry into service {EIS} date, was originally planned for 2010, but by October 2011 deliveries were scheduled to begin in early 2014. Boeing is targeting the 787-9 to compete with both passenger variants of the Airbus A330 and to replace its 767-400ER. Like the 787-8, it will also open up new non-stop routes. The official configuration was set to final on July 1st, 2010. When launched, the 787-9 will have the same fuel capacity as the 787-8. The design differences meant higher weight and resulted in a slightly shorter range than the 787-8. After further consultation with airlines, design changes were incorporated to add a forward tank to increase its fuel capacity, so it has a longer range and a higher MTOW than the 787-8. Air New Zealand is the launch customer for the 787-9. The first 787-9 is currently in final assembly and is set to roll out and begin test flights in August 2013.

S
saru9 2016-10-21 14:52:27 UTC
I imported the model .skp in a revit project, but size does not correspond to the dwg drawing downloaded from Boeing
2001kraft
2001kraft 2018-07-12 22:21:43 UTC
I have created an updated template. Feel free to use that, it's also free.
Item rating
0 0
Template - Boeing 787-9
$2.00

Royalty Free License
Template - Boeing 787-9
$2.00

Royalty Free License
Response 70% in 8.5h
3D Modeling
Low-poly Modeling
Texturing
Hire me

3D Model formats

Format limitations
  • 3D Studio (.3ds)162 KB
  • Collada (.dae)466 KB
  • Autodesk FBX (.fbx)405 KB
  • IGES (.ige, .igs, .iges)298 Bytes
  • Autodesk 3ds Max (.max)299 KB
  • OBJ (.obj, .mtl) (2 files)252 KB
  • Sketchup (.skp)409 KB
  • Stereolithography (.stl)331 KB

3D Model details

  • Publish date2015-09-01
  • Model ID#157148
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
